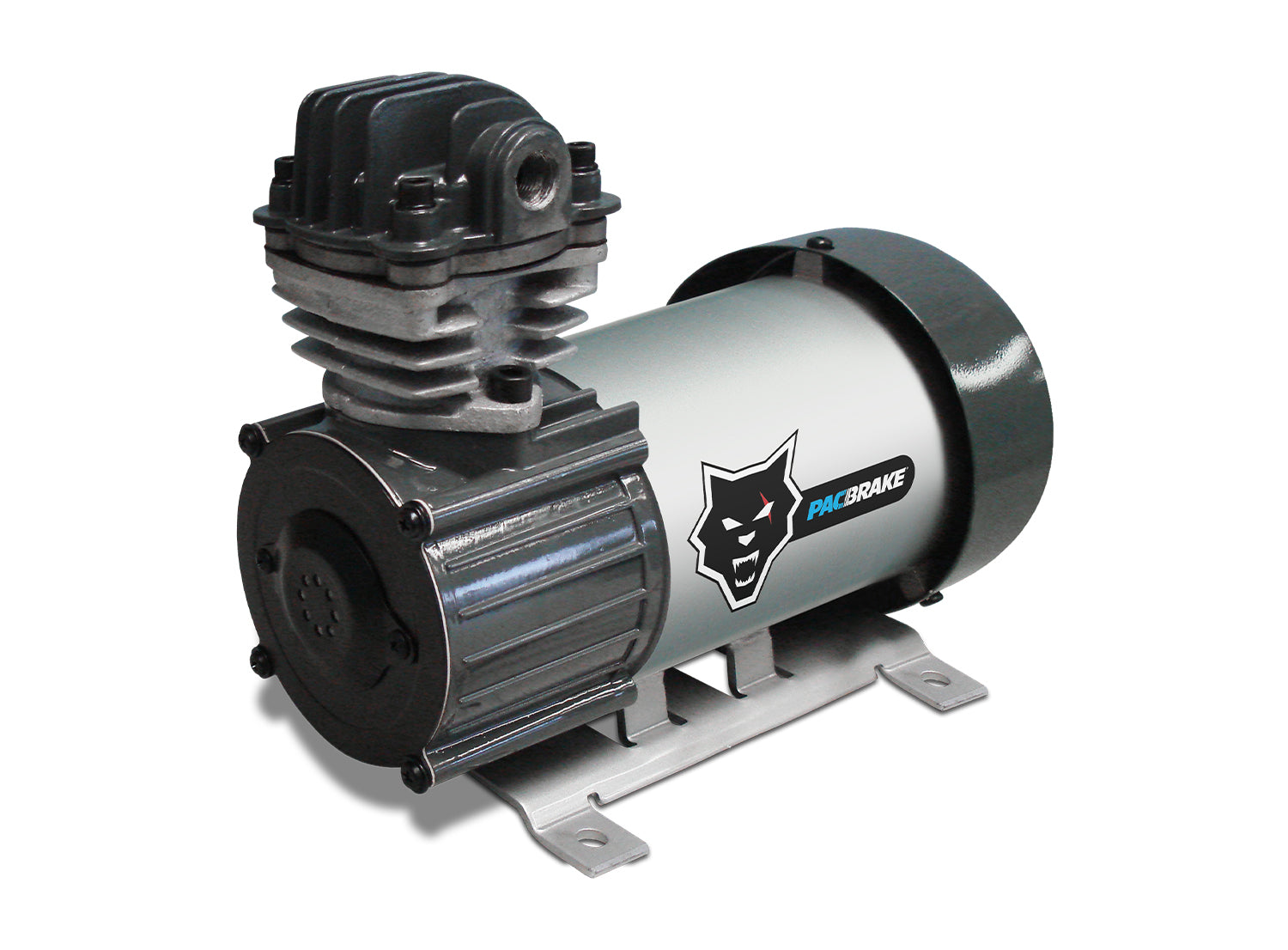

Pacbrake HP10625V-24 - 24V HP625 Series Heavy Duty Air Compressor - Vertical Pump Head

Pacbrake HP10625V-24 - 24V HP625 Series Heavy Duty Air Compressor - Vertical Pump Head

HP10625V-24 24V HP625 Series Heavy Duty Air Compressor - Vertical Pump Head

Pacbrake's HP625 Series Air Compressors have a 100% duty cycle (60 minutes @ 100 psi) and are offered in 24 VDC Vertical Head configuration (HP10625V-24) or 12 VDC in either a Vertical Head configuration (HP10625V) or Horizontal Head configuration (HP10625H). These 3/4 horsepower compressors have an oil-less design, sealed bearings, a PTFE piston ring, a copper wire wound permanent magnet motor and a cast steel cylinder with a hard anodized aluminum sleeve. Kit Details: Replacement 24VDC HP625 Series Air Compressor - Gunmetal Grey finish Vertical Head configuration Raw Compressor only - Does not include installation hardware (See Basic Kit: HP10630) Does not include any pre-built harnesses (See Premium Kit: HP10633) HP625 Series Compressor Specifications: 11.5 inch x 6 inch x 9.5 inch (LxWxH) / (293mm x 153mm x 242mm) 18.5 lbs (8.39kg) PLEASE NOTE: HP625 series compressors require the use of the unloader assembly (Part #: HP10116) for use with an air tank. Basic/Replacement kits are available with unloader kit and all required installation hardware included.

• Get quick and effortless inflation power at your fingertips with Pacbrake's robust heavy duty compressors!
