NOS 12536NOS - Dry Plate for Sniper EFI Fabricated Race Series LS Intake Manifolds-Silver

NOS 12536NOS - Dry Plate for Sniper EFI Fabricated Race Series LS Intake Manifolds-Silver

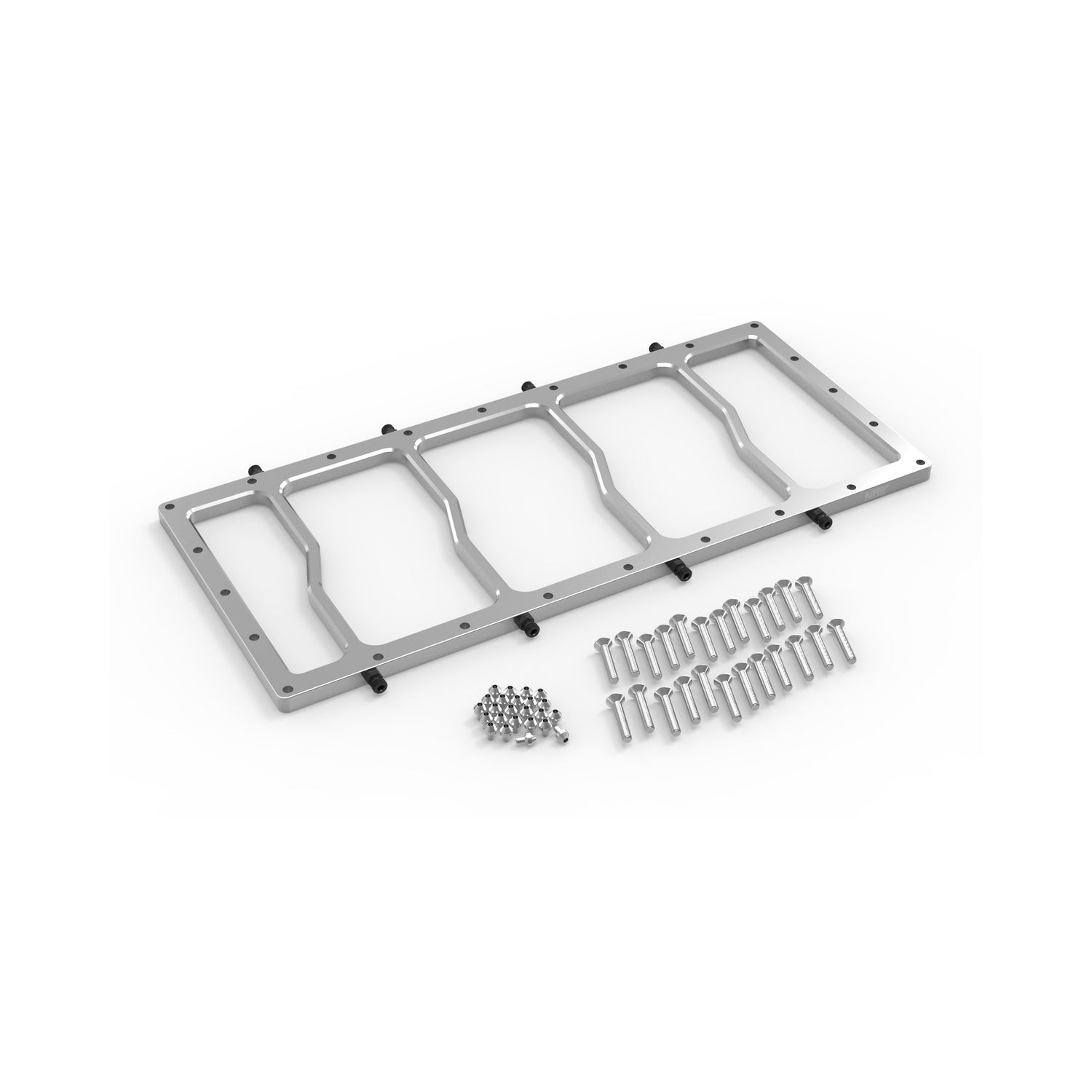

Dry NOS Plate for Sniper EFI Fabricated Race Series LS Intake Manifolds-Silver

Dry Nitrous Plate; For Sniper EFI Race Series LS Intake Manifolds; 1000+ HP Max; Incl. Plate/Gasket/Jet Holders/Jets [50/100/150/200/250]; Billet 6061-T6 Aluminum; Silver Finish;

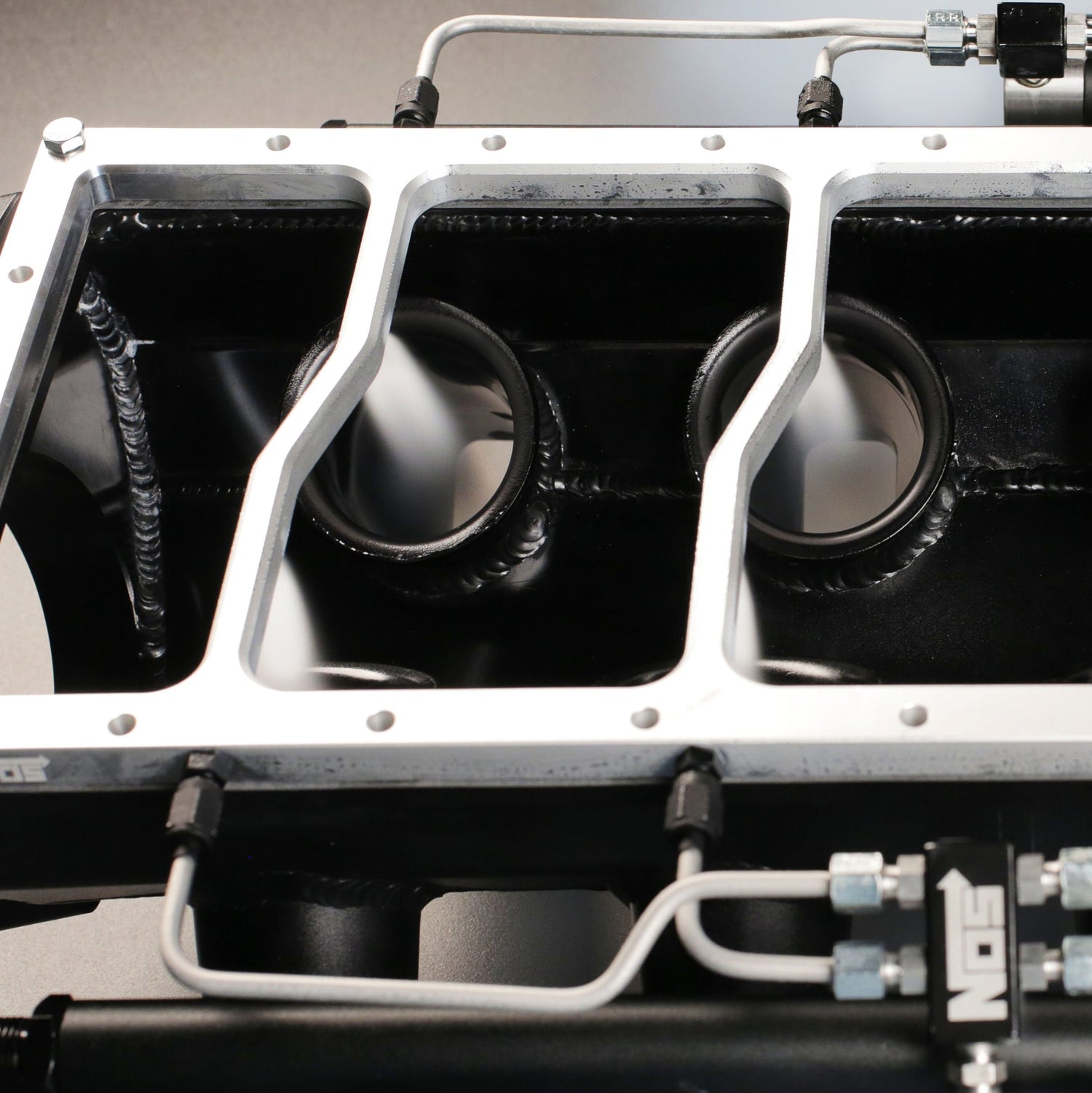

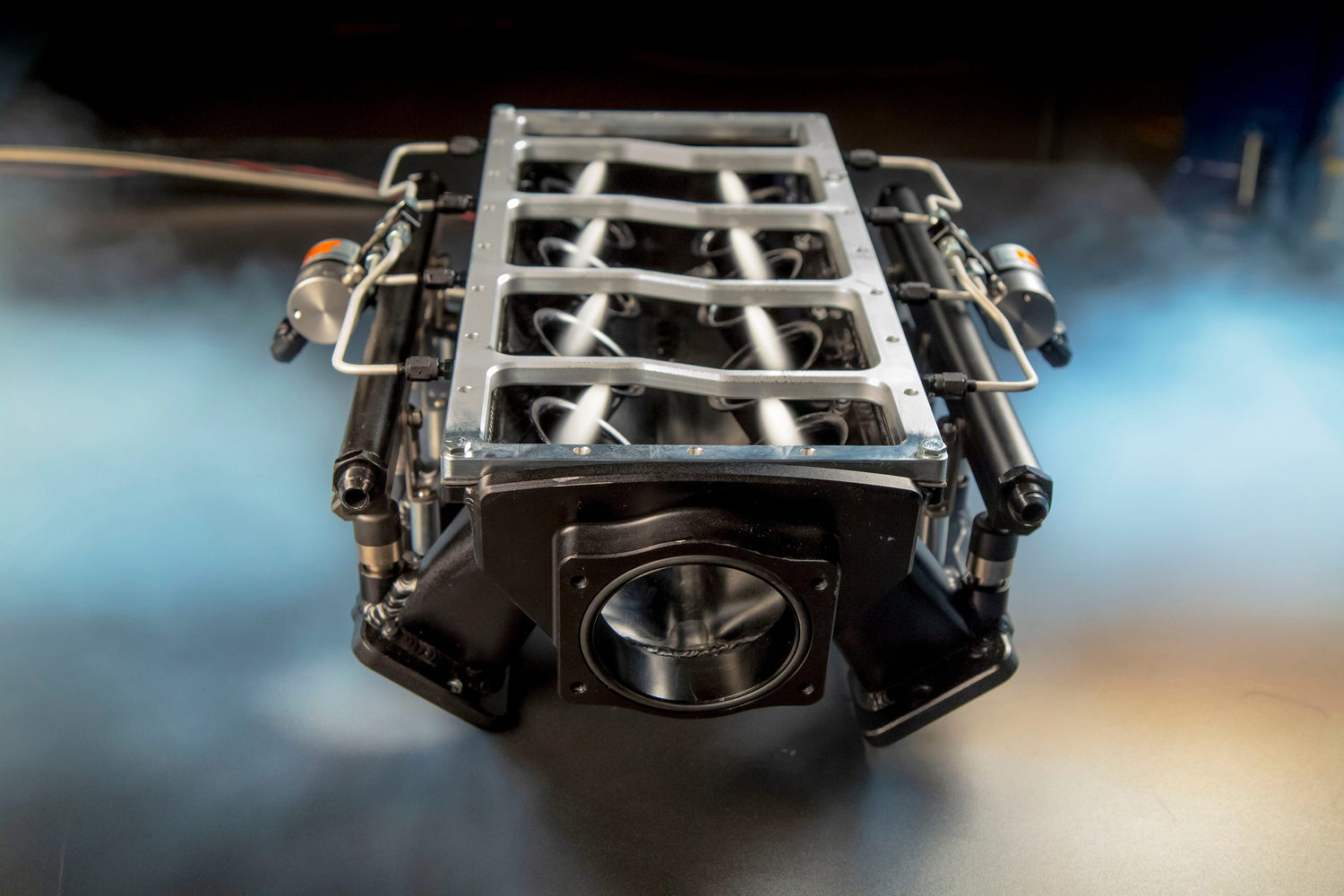

NOS now offers innovative 1-piece billet aluminum dry nitrous plates designed to bolt between the upper lid and lower intake manifold on Sniper EFI Fabricated Race Series LS manifolds. These sandwich-style plates give you an easy way to add nitrous oxide to your Sniper EFI Race Intake equipped LS engine. Our plates are machined from billet 6061-T6 aluminum, laser engraved with NOS logo, then anodized for great looks and excellent corrosion protection. Our 1-piece plate features machined passages that precisely spray into the center of each cylinder. Plate includes jetting for up to 250 horsepower but is capable of supporting 1000+ horsepower. The plate is made from billet aluminum with passages machined directly into the plate so there is no need to worry about spray bars breaking or spinning.

• Sandwiches Between Bottom Base And Top Plate
• Fits Sniper™ EFI Race Series Intake Manifolds
• Designed For Optimum Nitrous Distribution On LS-Based Engines
• Sprays Nitrous Along Center Axis Of Each Runner
• 0.125 in. Passage Feeds [8] Machined Orifices
• Made From Billet 6061-T6 Aluminum
• Laser Etched NOS Logo
• Anodized Clear For Corrosion Resistance And Appearance
• Incl. Jetting For 50/100/150/200/250 Hp Configurations
• Supports Up To 1000+ Hp [Jets Purchased Separately]
• Incl. Plate/Gasket/Hardware/Jet Holders/Jetting
