MSD 8998 - Digital Ignition Tester

MSD 8998 - Digital Ignition Tester

Ignition Tester - Single Channel Digital Ignition Tester - Test all MSD CD / DIS Single Channel Ignitions - Each

Our MSD Ignition tester makes short order of testing your MSD unit including all rev limits and events.

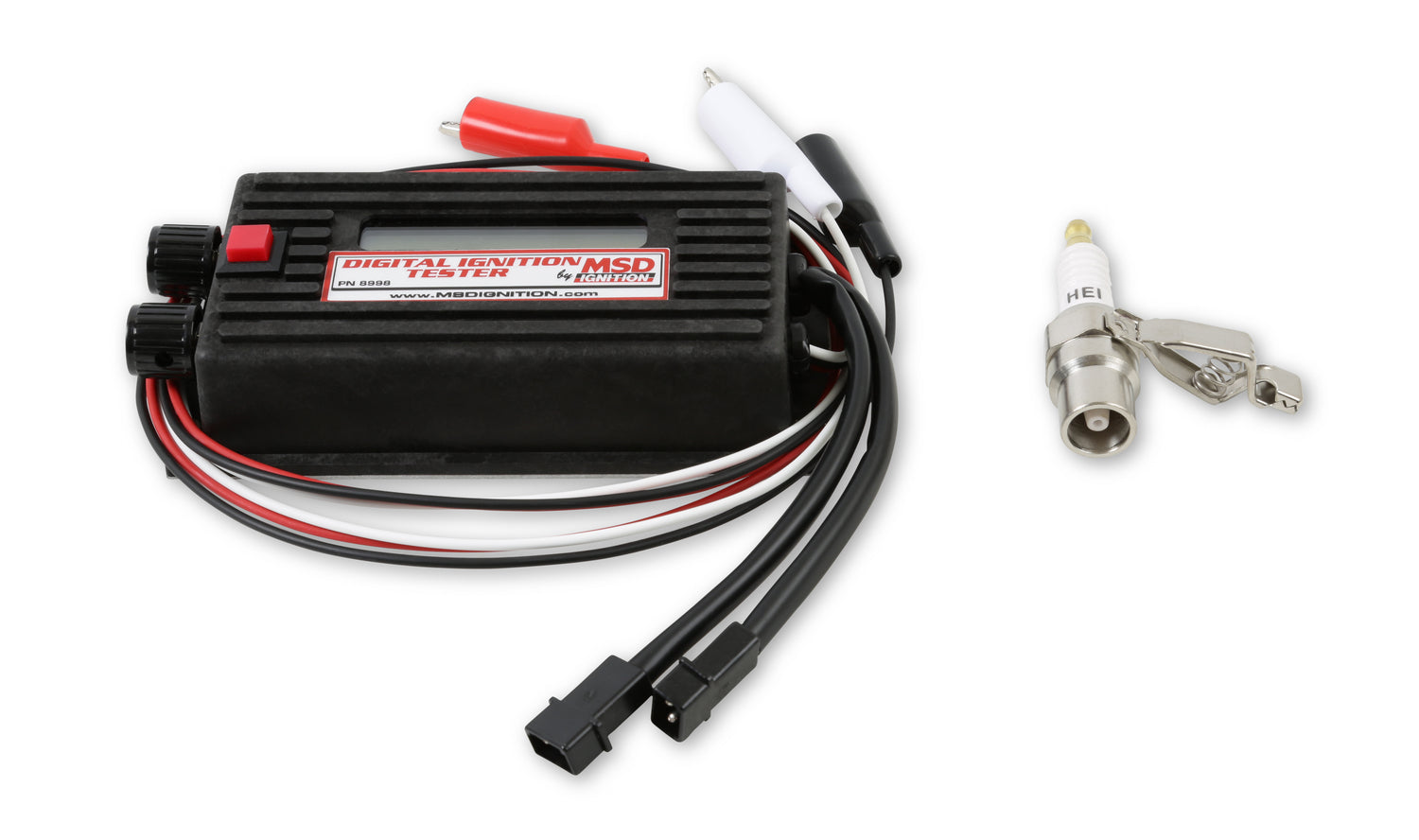

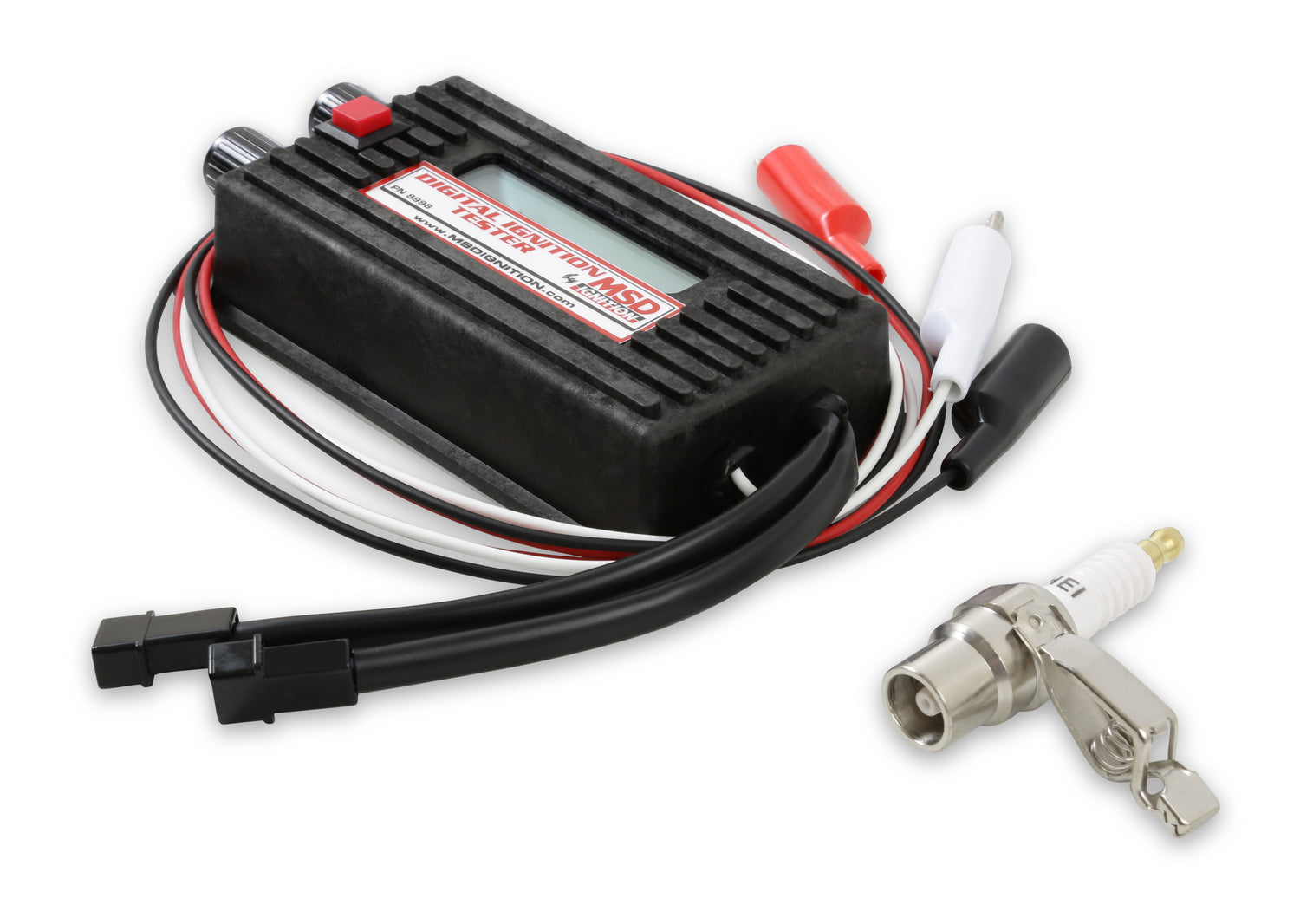

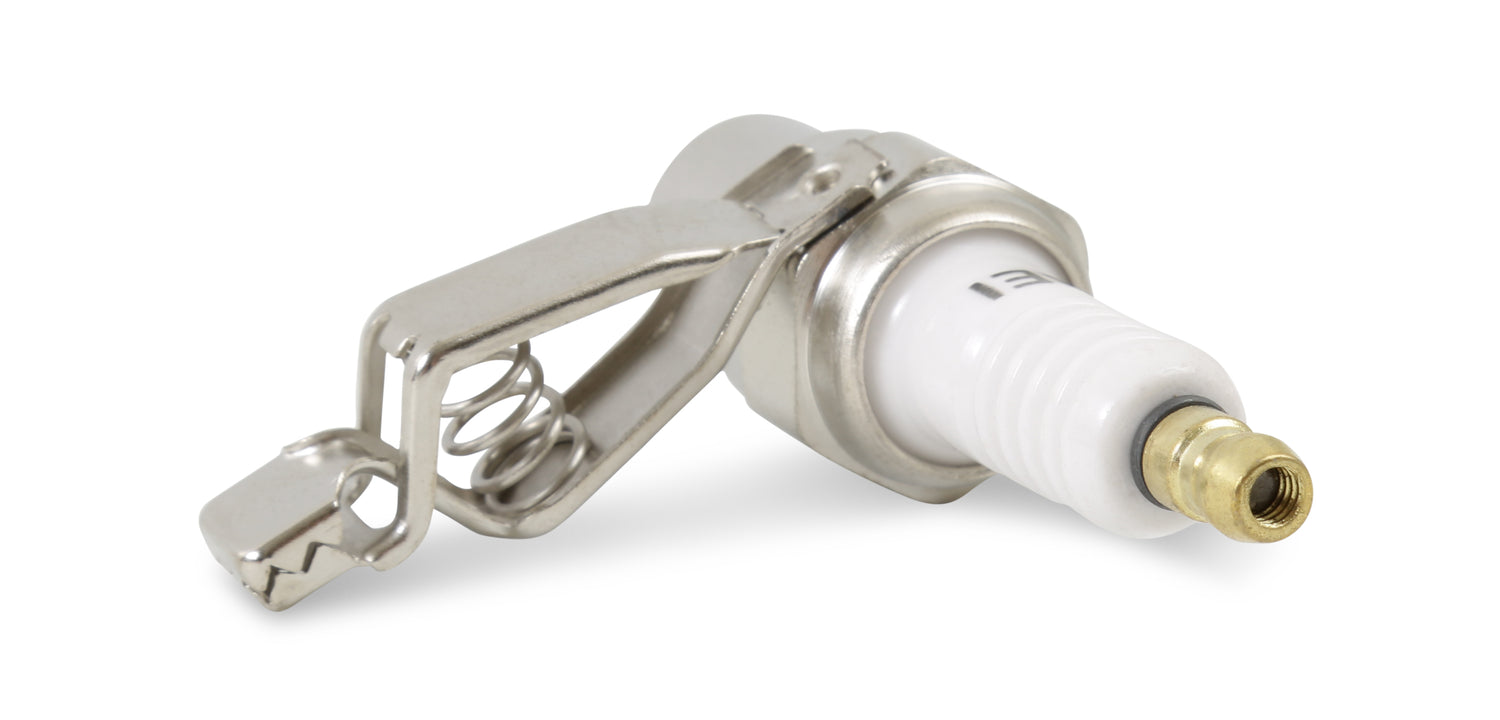

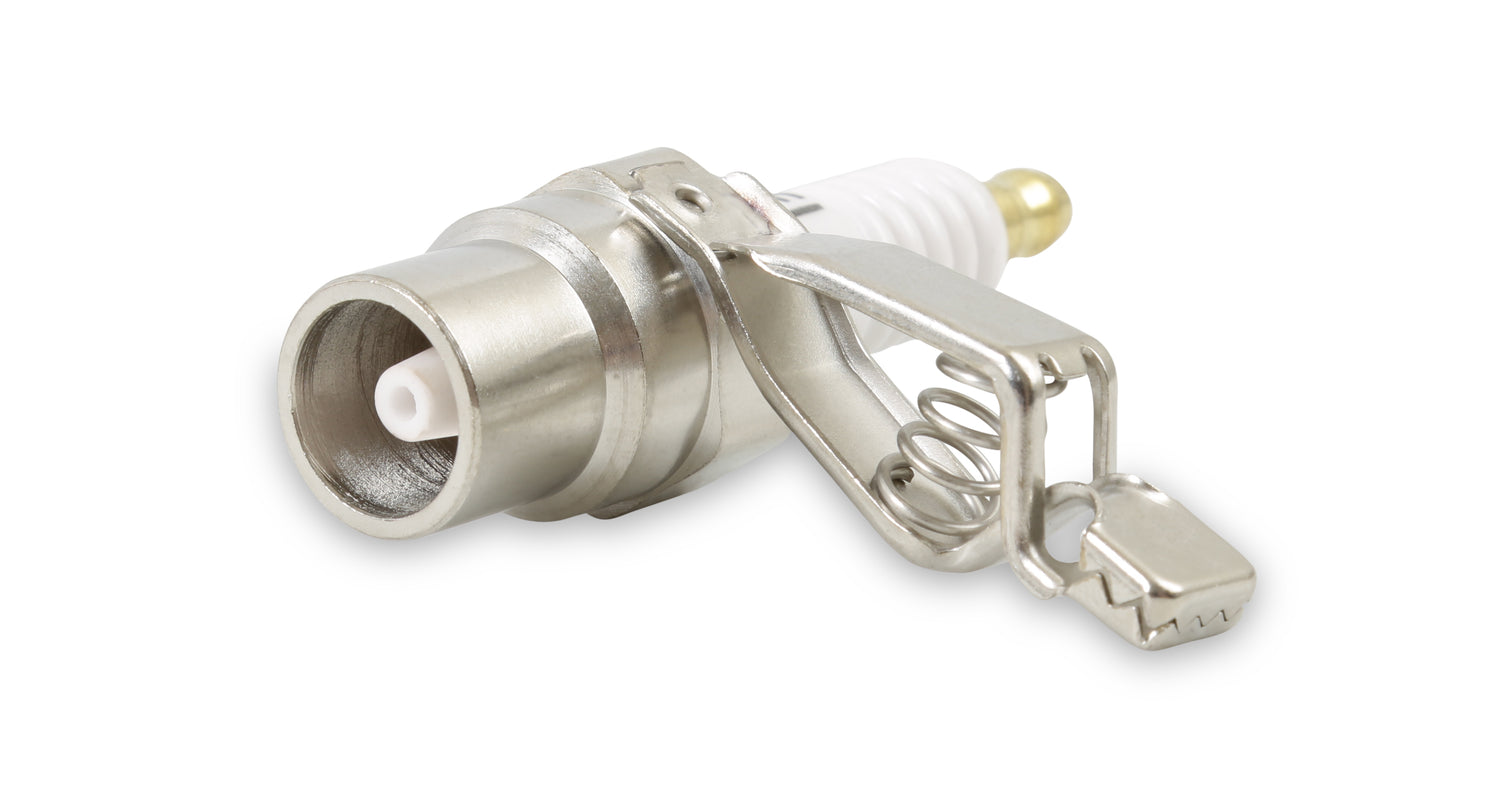

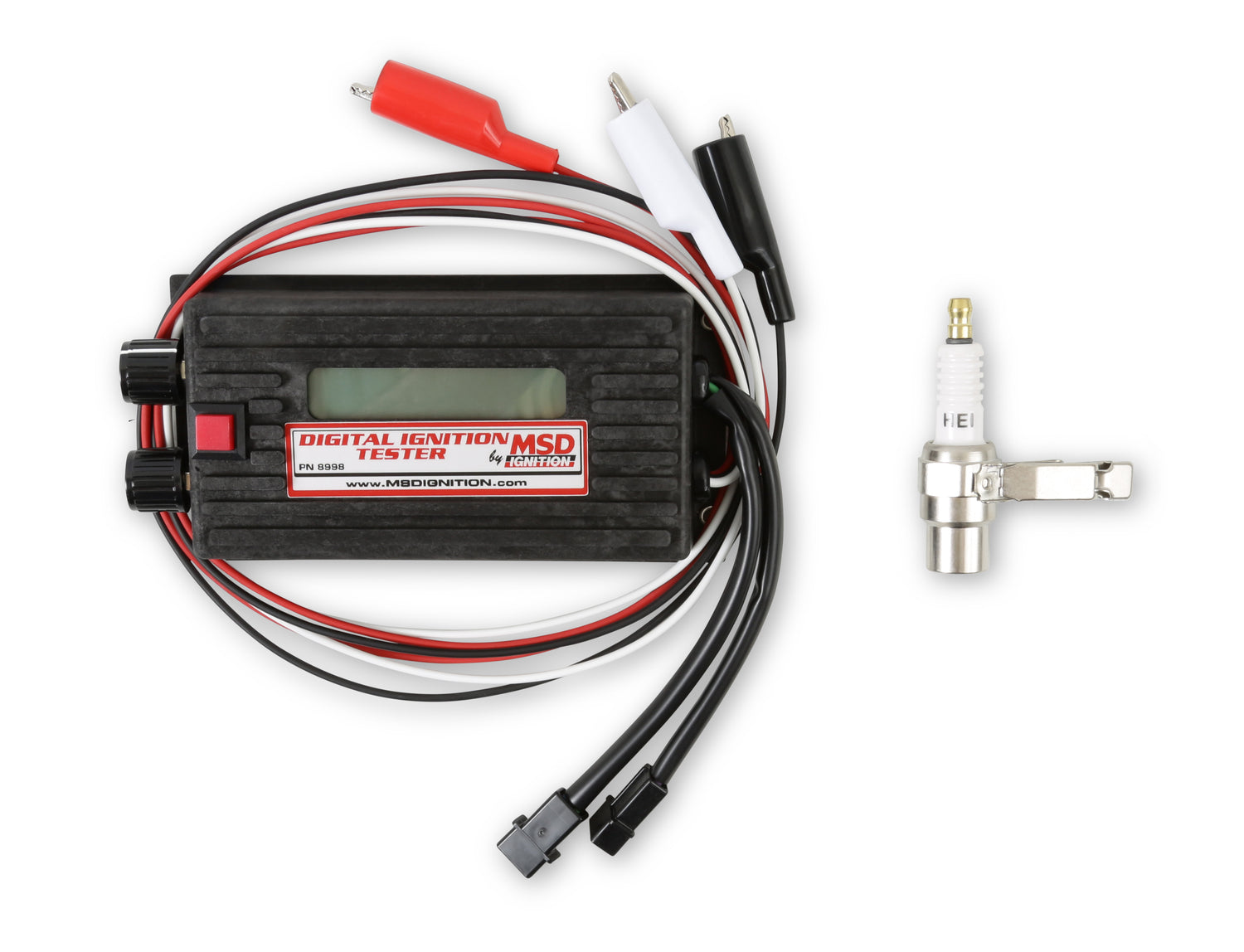

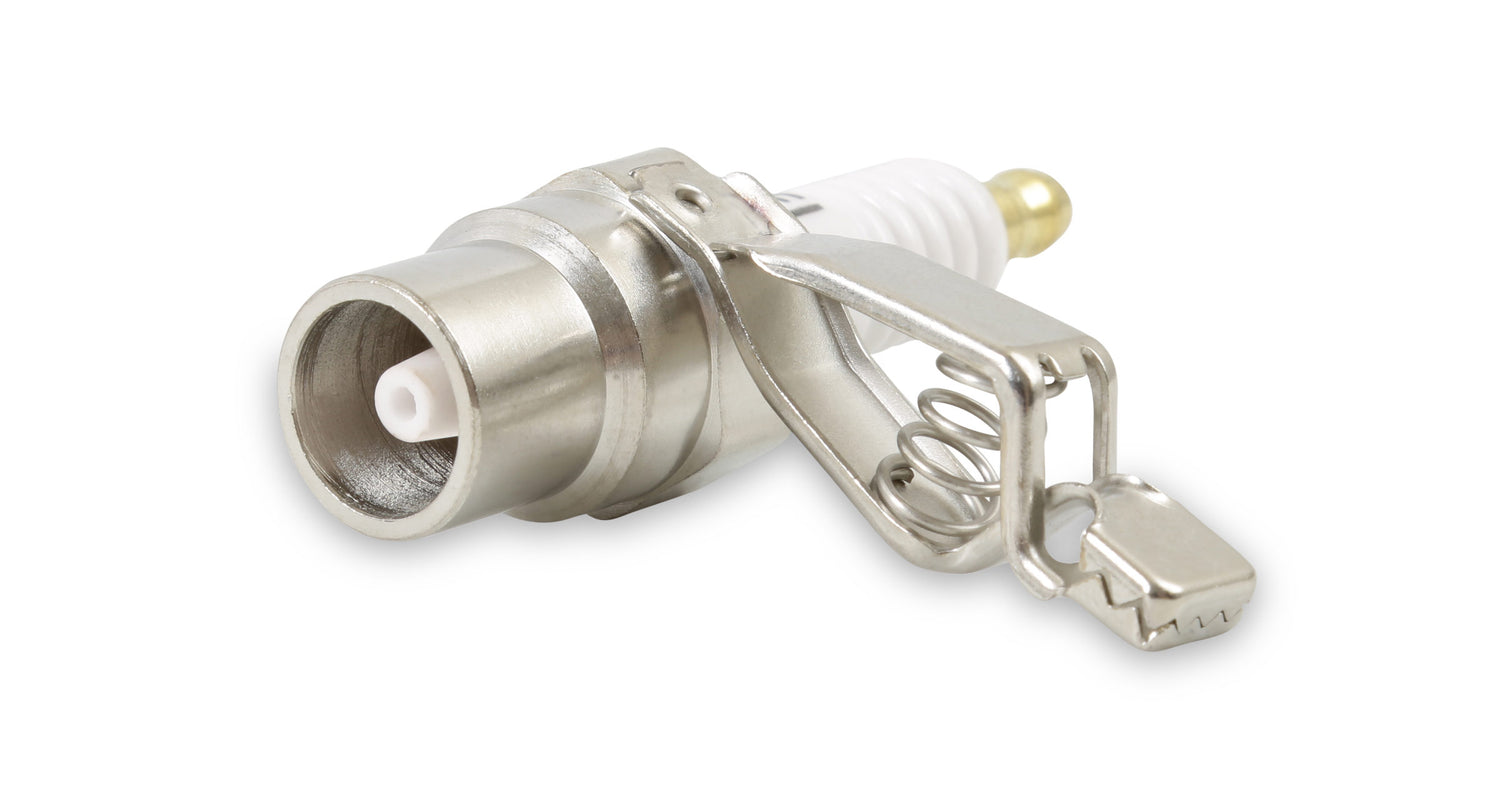

This tester will check the operation of all of MSD's single-channel CD ignition controls. Once the ignition tests good, you can continue troubleshooting and find the culprit. The tester produces a simulated trigger signal that fires the ignition just as if the engine was running. A special, load-producing clip-on spark plug is included to connect to the coil wire. If the spark is unable to jump the gap of the tester, there is an ignition problem and you can track it down. For racers with our digital programmable 7 ignition controls that are using a non-magnetic pick-up as sync signal for individual cylinder management, the tester has a circuit to check its operation too. The tester has an LCD display that clearly shows the simulated RPM. This also allows you to test the accuracy of any RPM limits, rpm-activated switches, shift light operation and your tachometer. The tester operates on 4, 6 or 8-cylinder engines and will simulate up to 16,000 revolutions per minute.

• Checks operation of MSD single channel Ignitions and coils
• For Use w/6; 7; 8 And 10 Series Ignition Controls
• LCD display shows the simulated RPM
• Additional circuit will check the operation of cam sync signals
• Triggers thru breaker points/amplifier/magnetic pickup triggers
• Can be used on 4; 6 and 8-cylinder engines
