MSD 8623-MSD - Crank Trigger Kit - Flying Magnet - Hall-Effect - LS Gen III/IV - 8.00 in

MSD 8623-MSD - Crank Trigger Kit - Flying Magnet - Hall-Effect - LS Gen III/IV - 8.00 in

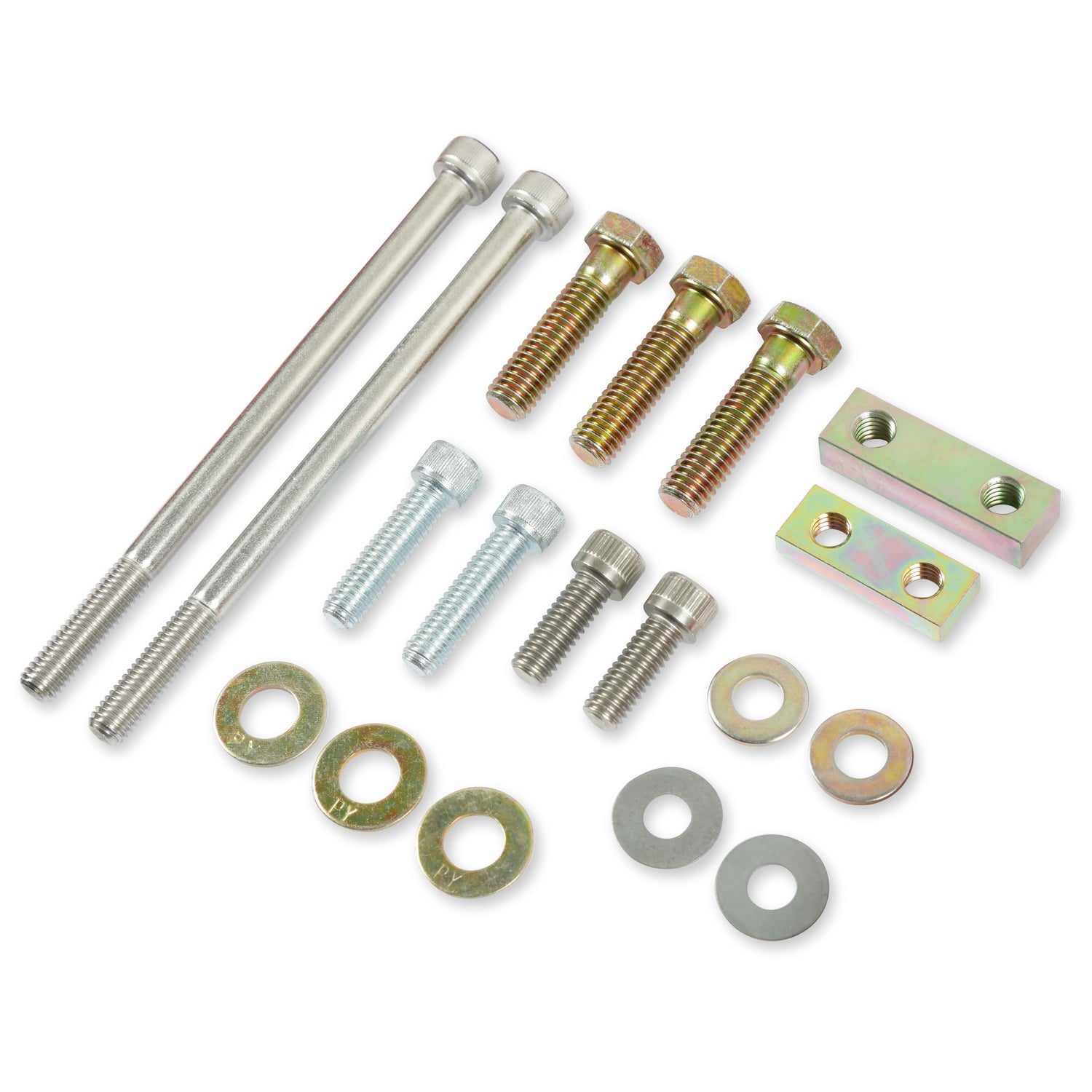

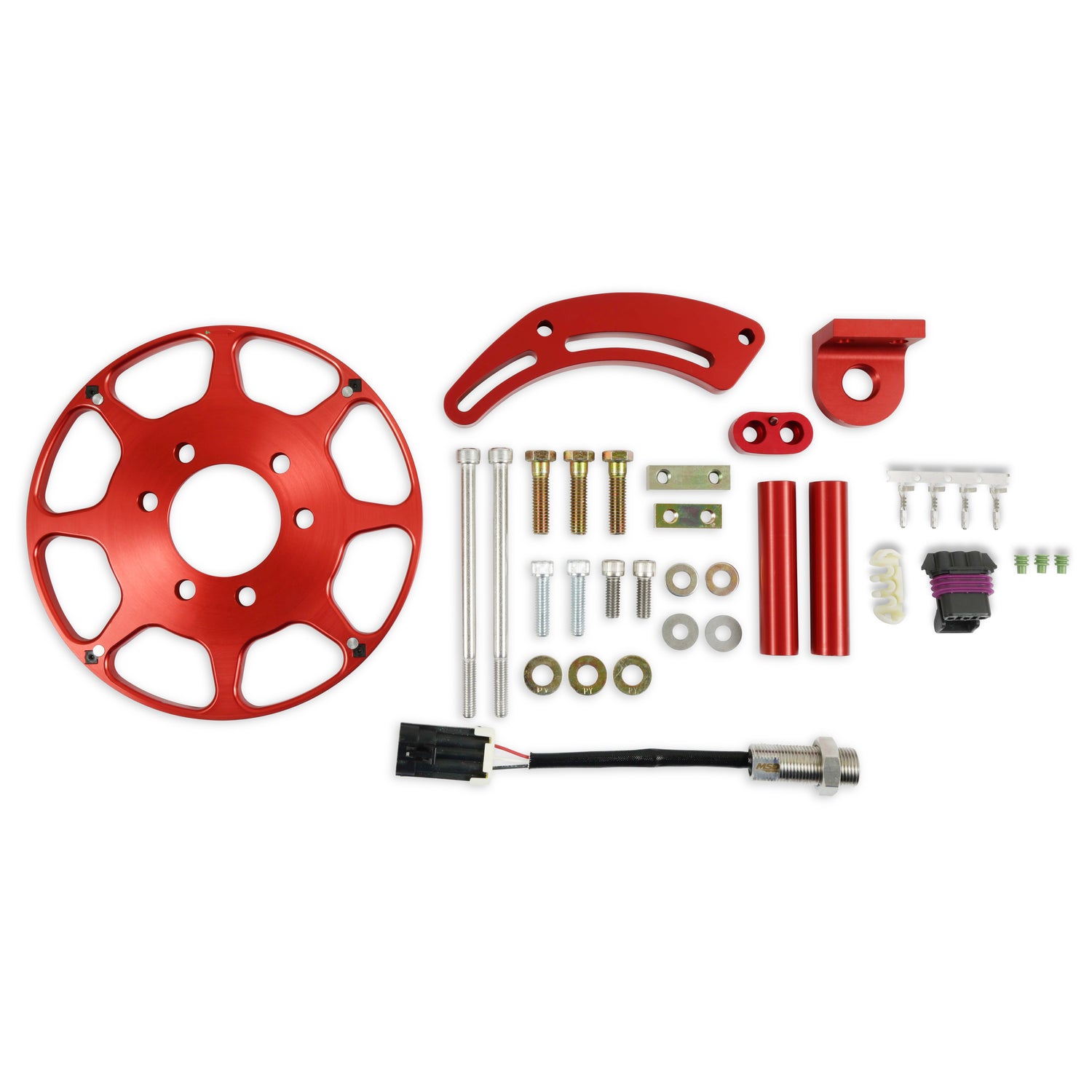

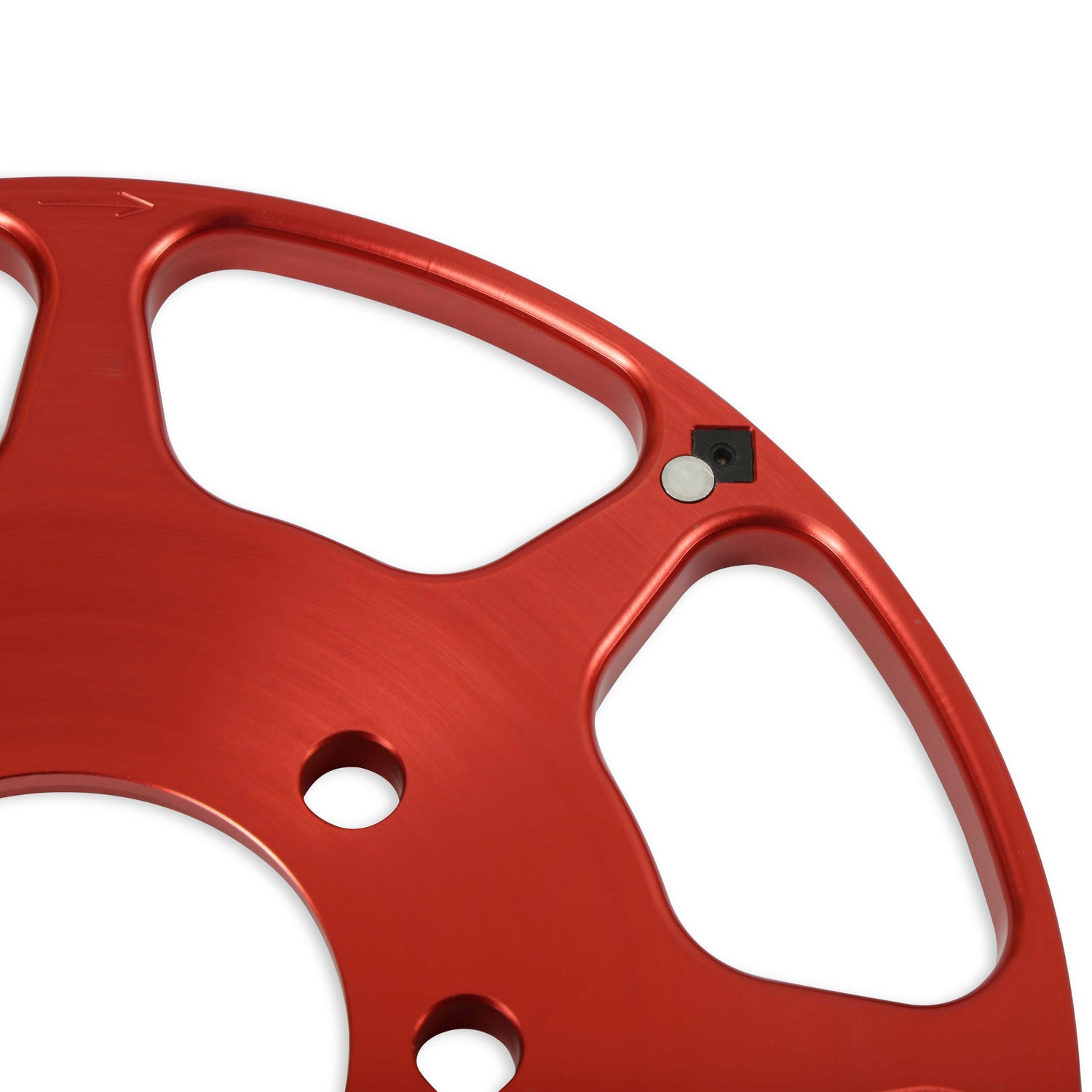

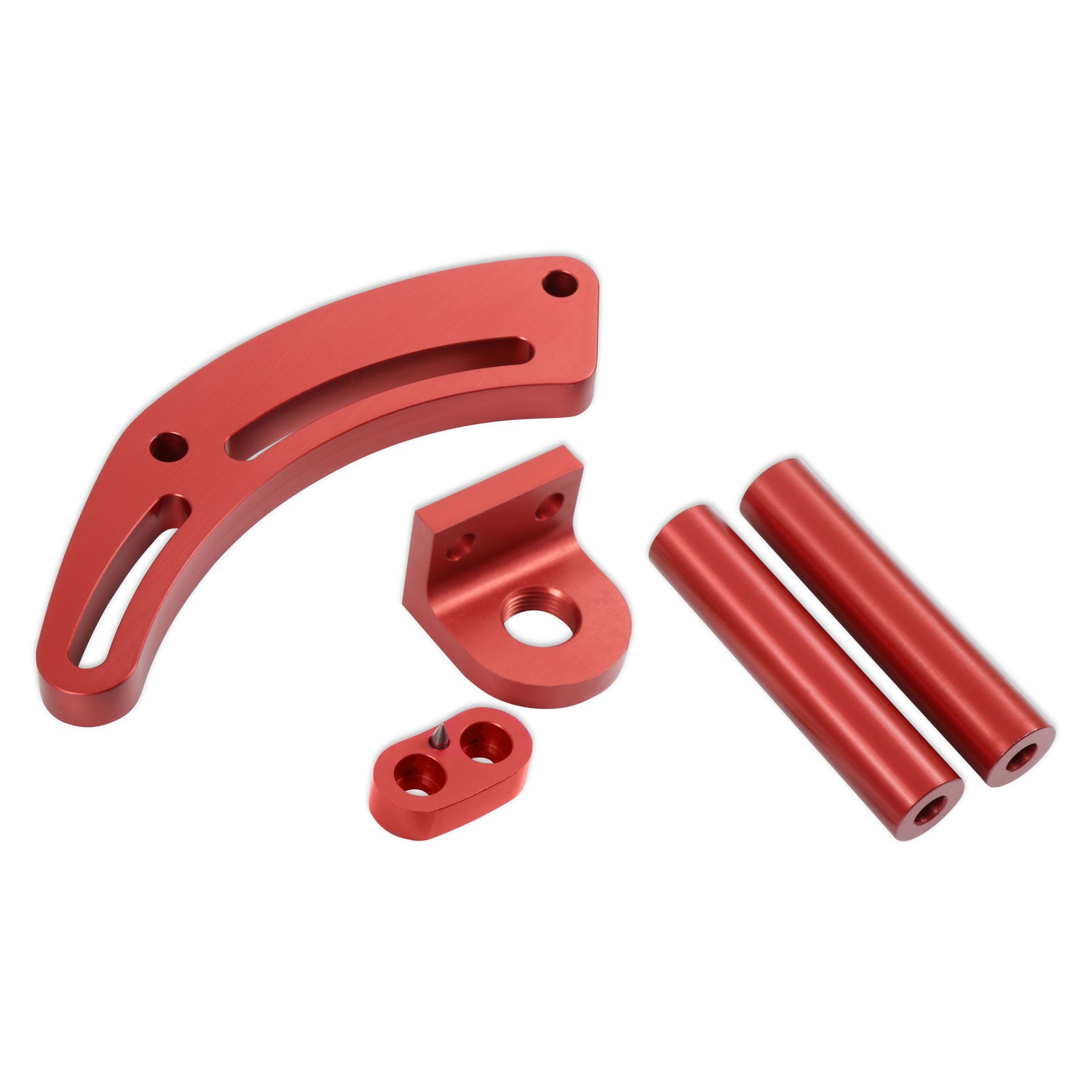

Crank Trigger Kit - Flying Magnet - Hall Effect Sensor - Trigger Wheel / Pickup / Bracket / Hardware - 8 in Balancer - GM LS-Series - Kit

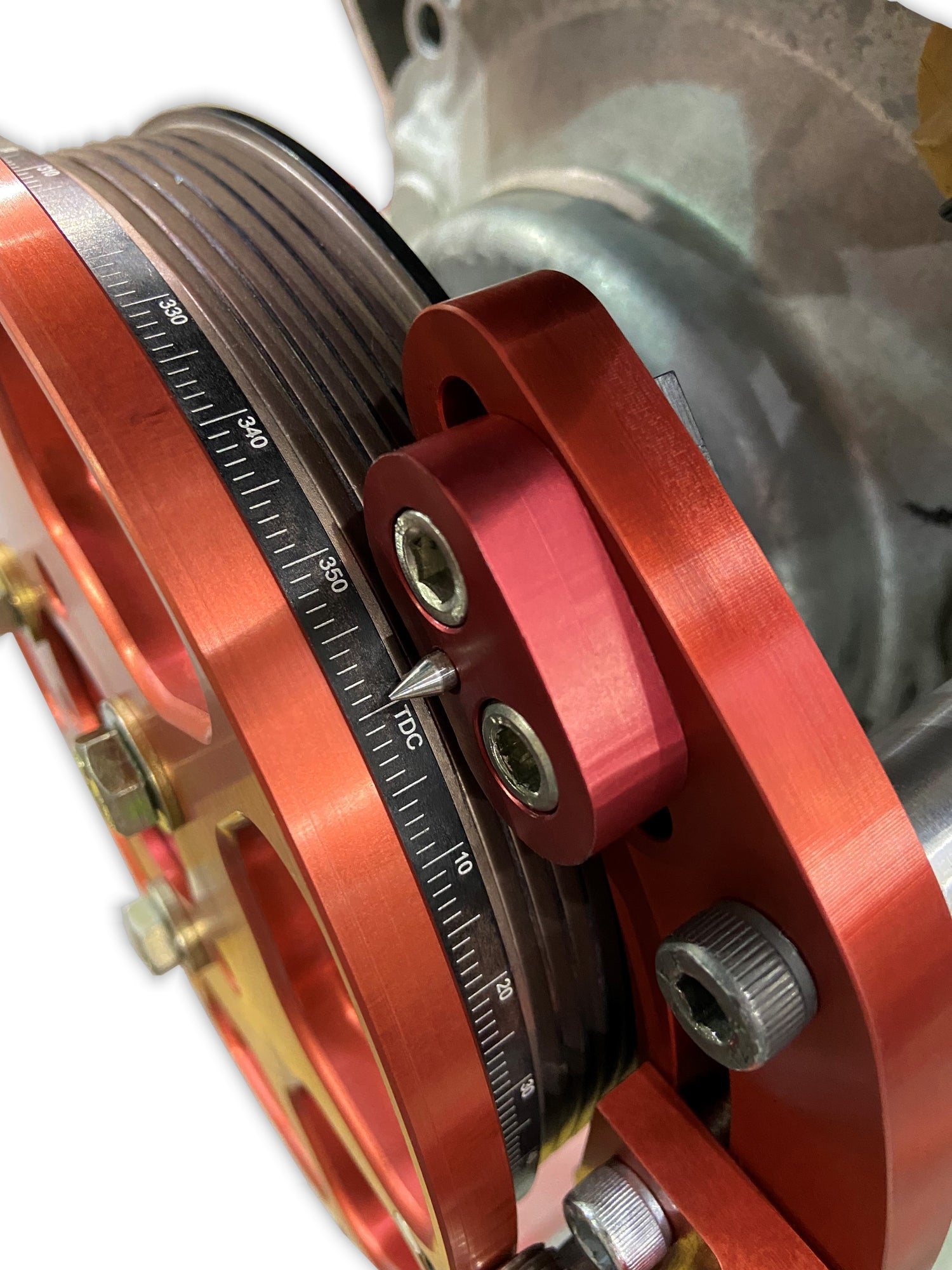

Small Block Chevrolet - Gen III/IV - Adjustable Timing Pointer - Red

Upgrading to an MSD Flying Magnet Crank Trigger Kit will deliver the precise and reliable signal that a high-performance engine requires. This kit gives you the ability to control timing electronically through a Holley EFI ECU (or other standalone engine management system/ignition controller). At the heart of the kit is the 3-wire Hall-Effect Sensor that is easier to set up, less susceptible to EMI/RFI interference/noise, and less likely to have false signals than other methods (Distributors and VR Magnetic Sensors). In addition, they are less prone to mechanical failure since there are no wear parts. With the included high-quality timing pointer and the use of a direct bolt-on, degreed balancer (ATI 917302 or 918852), youll be able to adjust timing in the precise increments required for your LS Engine. On some vehicles, the MSD Crank Trigger Kit may require slight modifications to accommodate special engine plates, pulley systems, etc. This kit is designed to be used with the ATI Harmonic Balancer 917302 or 918852 but is also compatible with 917264 and 917242. Also compatible with Meziere water pump WP333 and LSX Blocks.

• Easy To Install As Traditional MSD Crank Trigger Kit
• 3-Wire Hall-Effect Sensor Not Easily Susceptible To Interference
• Most Accurate Way To Trigger Your EFI
• Rigid Mounting
• 14 Degree Range Of Adjustment

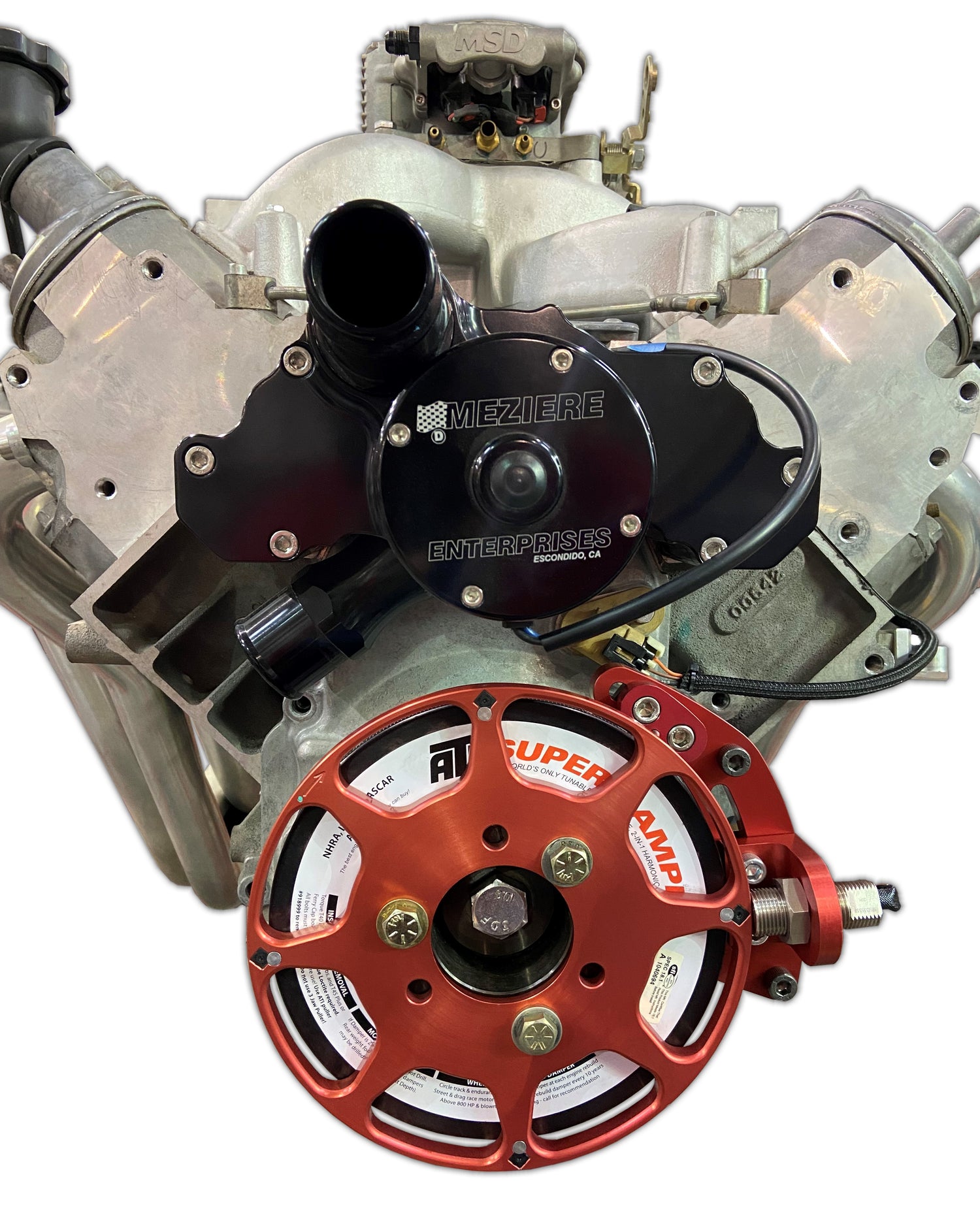

• Compatible w/LSX Block And Maziere WP333
• Kit Is Reversible Allowing Driver Or Passenger Side Mounting
