MSD 83521 - Ready-To-Run Distributor

MSD 83521 - Ready-To-Run Distributor

Distributor - Pro-Billet - Ready-To-Run - Magnetic Pickup - Mechanical / Vacuum Advance - HEI Style Terminal - Red - Small Block Ford - Each

Ready-to-run distributors include a built-in ignition module. No MSD Ignition control required. Includes a steel gear and a rev limiter

MSDs Ready-to-Run Ford Distributors are the perfect upgrade for bulky DuraSpark systems or ancient breaker point models. These distributors come complete and ready-to-run. All you need to do is drop it in the engine, connect three wires and fire the engine. Each distributor features an ignition module that produces a powerful inductive spark to improve combustion of the fuel mixture resulting in quick starts, smooth idle and increased performance. The billet aluminum housings of these distributors are 5/8 smaller in diameter to accommodate induction setups and tight engine compartments. A maintenance-free magnetic pickup is responsible for triggering the high voltage sparks while a sealed ball bearing guides an oversized shaft. Beneath the bolt down cap and MSD race rotor youll find MSDs accurate mechanical advance assembly. Different advance springs and stop bushings are supplied so you can easily tune a curve to match your needs. Plus, there is a vacuum advance canister to increase economy on long drives. For protection, there is also an easy-to-set rev limiter!

• Does not require an MSD Ignition Control
• Note: Will not fit XD and later Australian 351 Cleveland engines.
• CNC machined billet aluminum housing and billet aluminum base

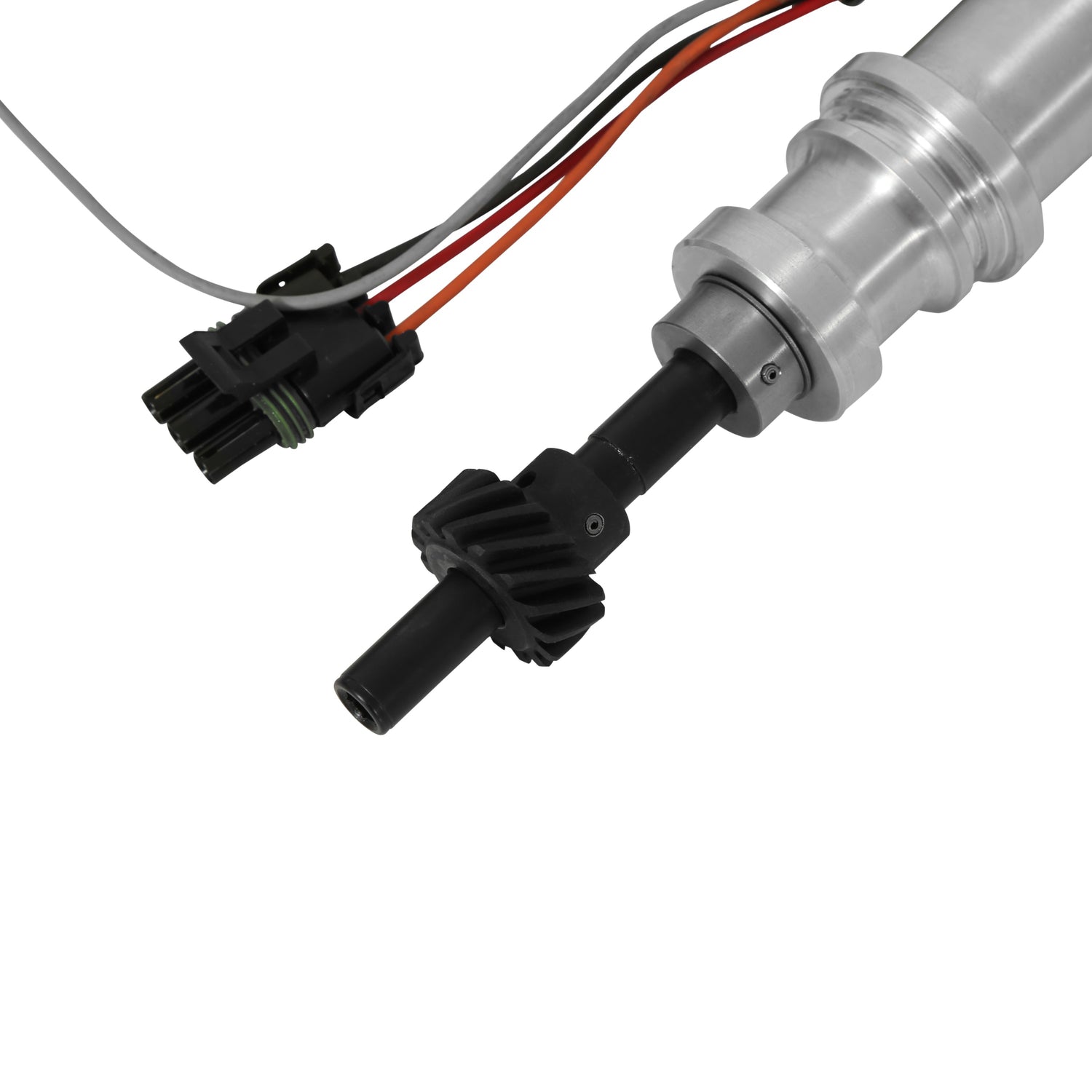

• Equipped with Steel Gear
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Mechanical advance assembly can be locked out for crank trigger systems
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Advance weight pins are staked and tig welded to the plate
• Powerful built-in module produces a 7.5 amp single spark through high rpm
• Nylon pads ensure smooth operation of the advance weights

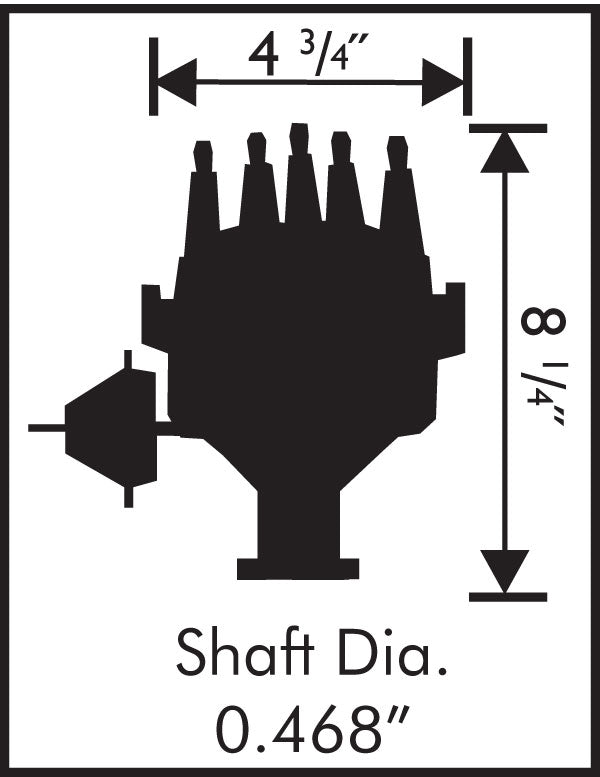

• Housing is 5/8” smaller in diameter than stock Ford distributors

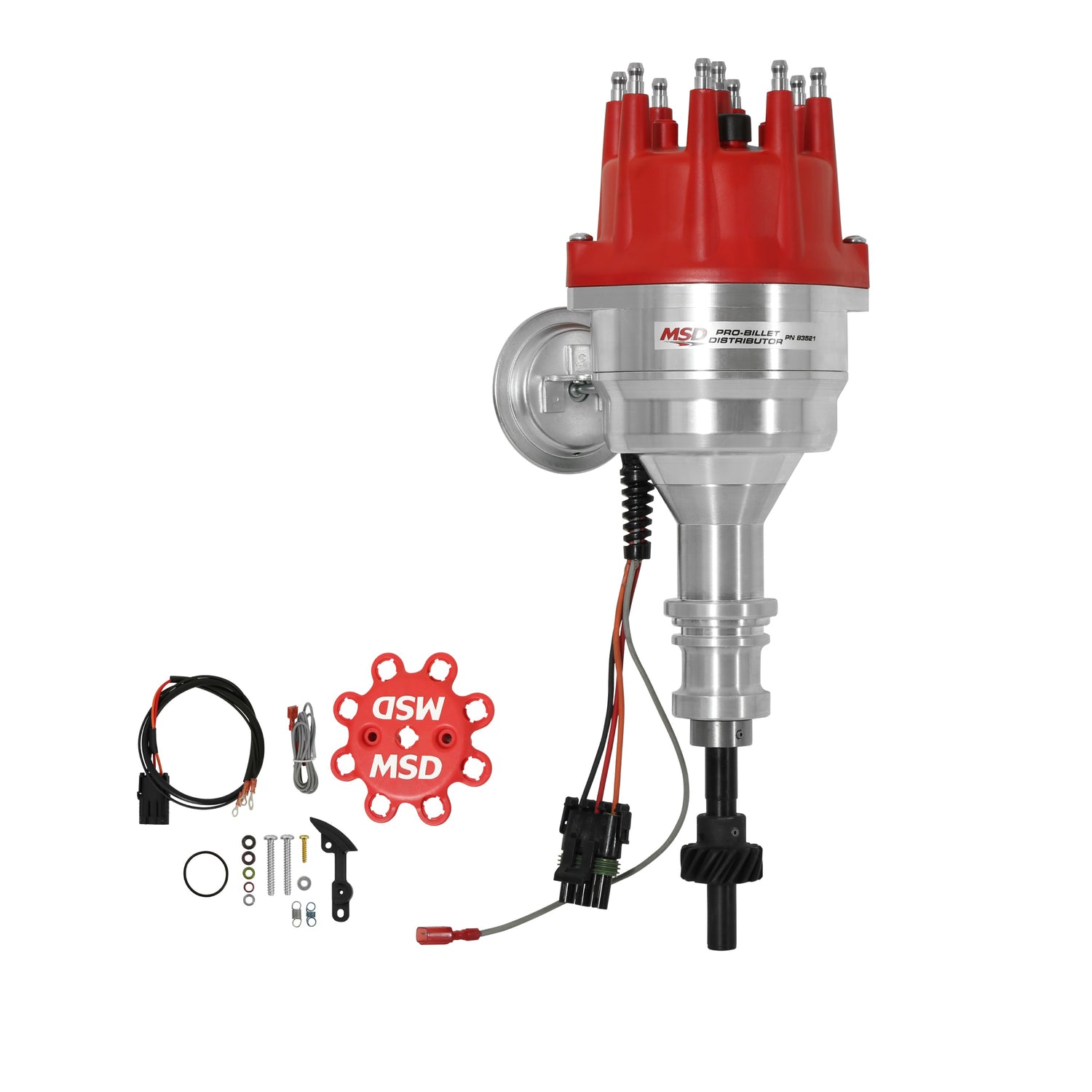

• Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt)
• Vacuum advance canister for improved economy (can be locked out)
• Includes built-in Rev Limiter!
• Simple and clean installation with only three wires to connect
• CARB E.O. Approved
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
