MSD 8253 - Blaster HVC-2 6 Series Ignition Coil

MSD 8253 - Blaster HVC-2 6 Series Ignition Coil

Ignition Coil - Blaster HVC II - U-Core - 0.160 ohm - Male HEI - 44000V - Blue - Each

Blaster HVC-2 6 Series Ignition Coil; 3.5 mH Inductance; 44000 Max Voltage; 450 mA Peak Current; 450 uS Spark Duration; 100:1 Turns Ratio; Blue;

The latest coil to be built entirely in-house at MSD is designed to be used with MSD 6 and SCI Series ignition Controls. This coil utilizes an iron u-core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from a special DuPont rynite material and wound specifically to produce the most current possible with incredible voltage and lightning quick rise time. The blue housing is also molded from high dielectric rynite material. The brass primary terminals are spaced far apart and the secondary tower is well protected for increased spark isolation. The housing is completely coated with an epoxy compound for vibration resistance and installs with sturdy vibration mounts.

• For high rpm/long duration applications using MSD 6 Series Ign.
• New U-core winding design produces more voltage and current
• 100:1 Turns Ratio
• Lower Primary Resistance Produces High Voltage Output
• Windings encased in fracture resistant compound for vibration
• Rynite housing w/isolated tower and brass primary terminals

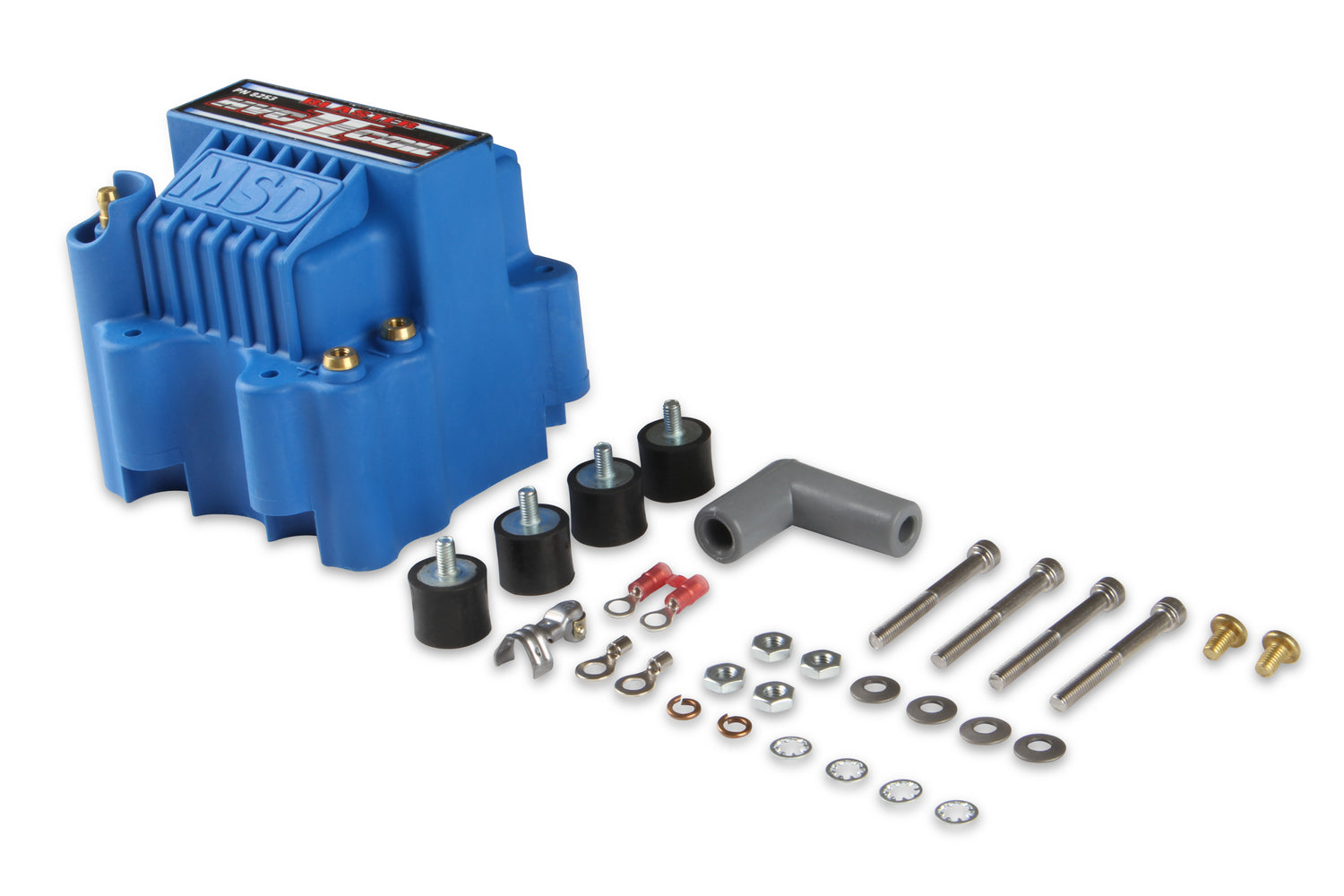

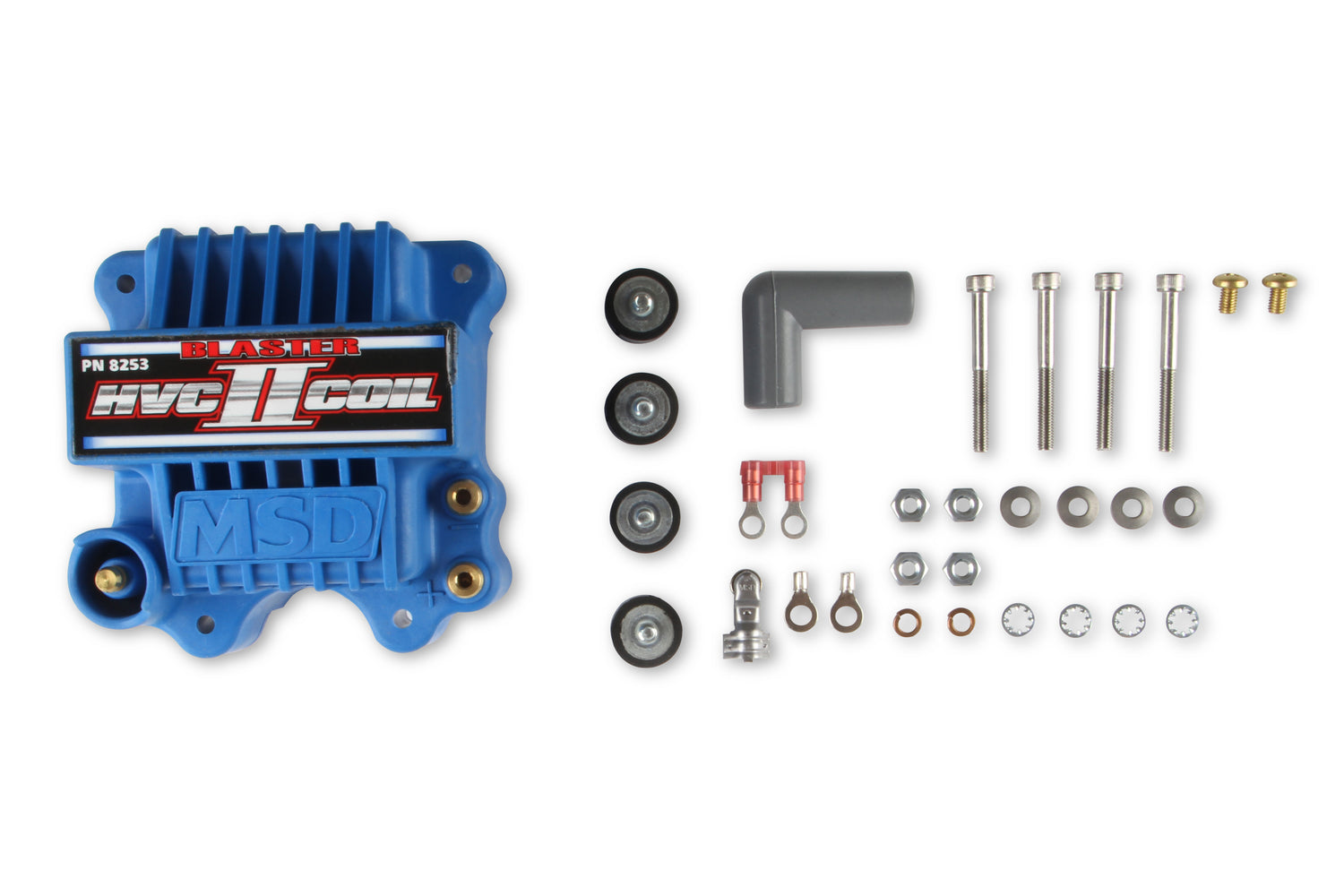

• Supplied w/Rubber Shock Mounts
• No CARB Exemption Order Number
