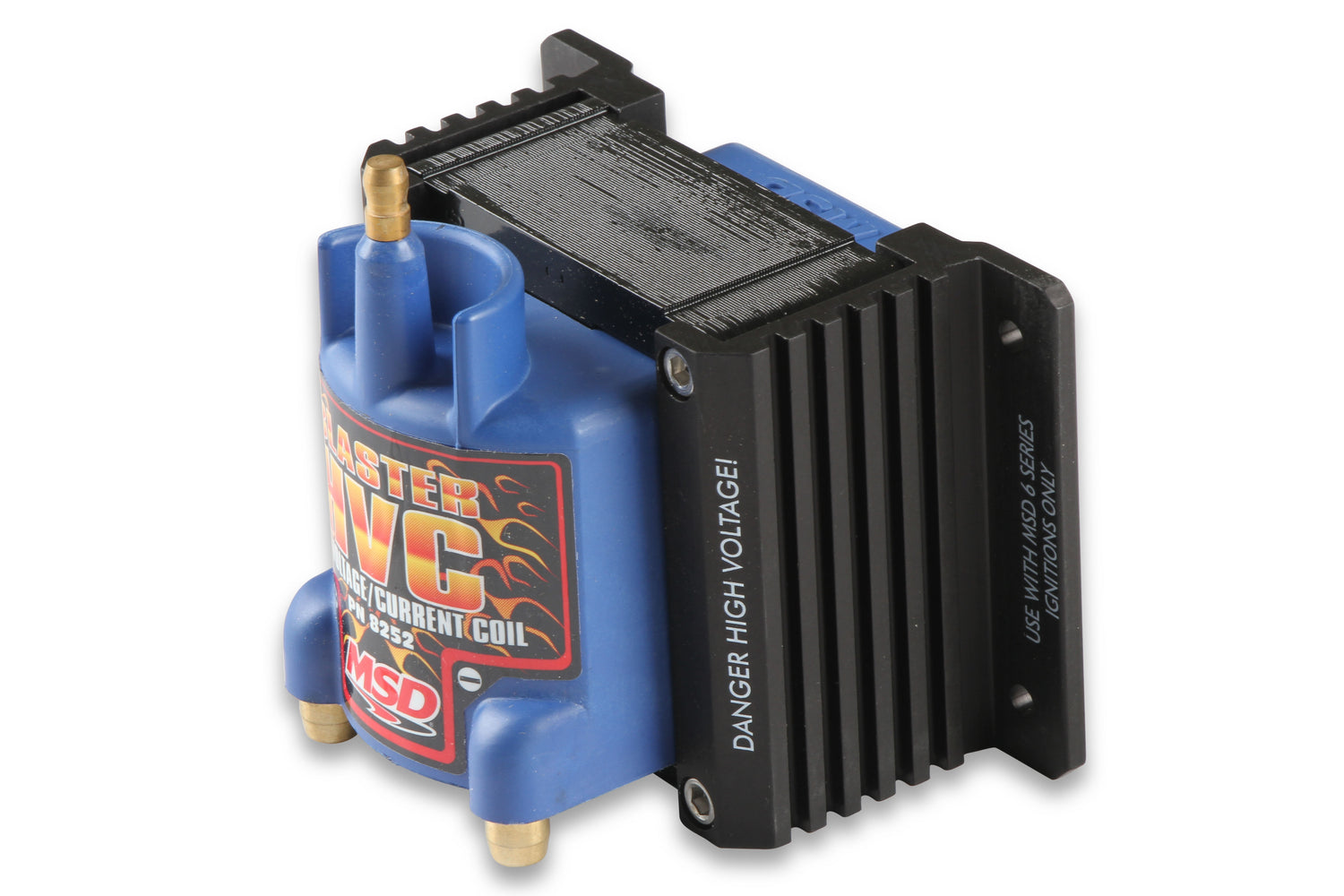

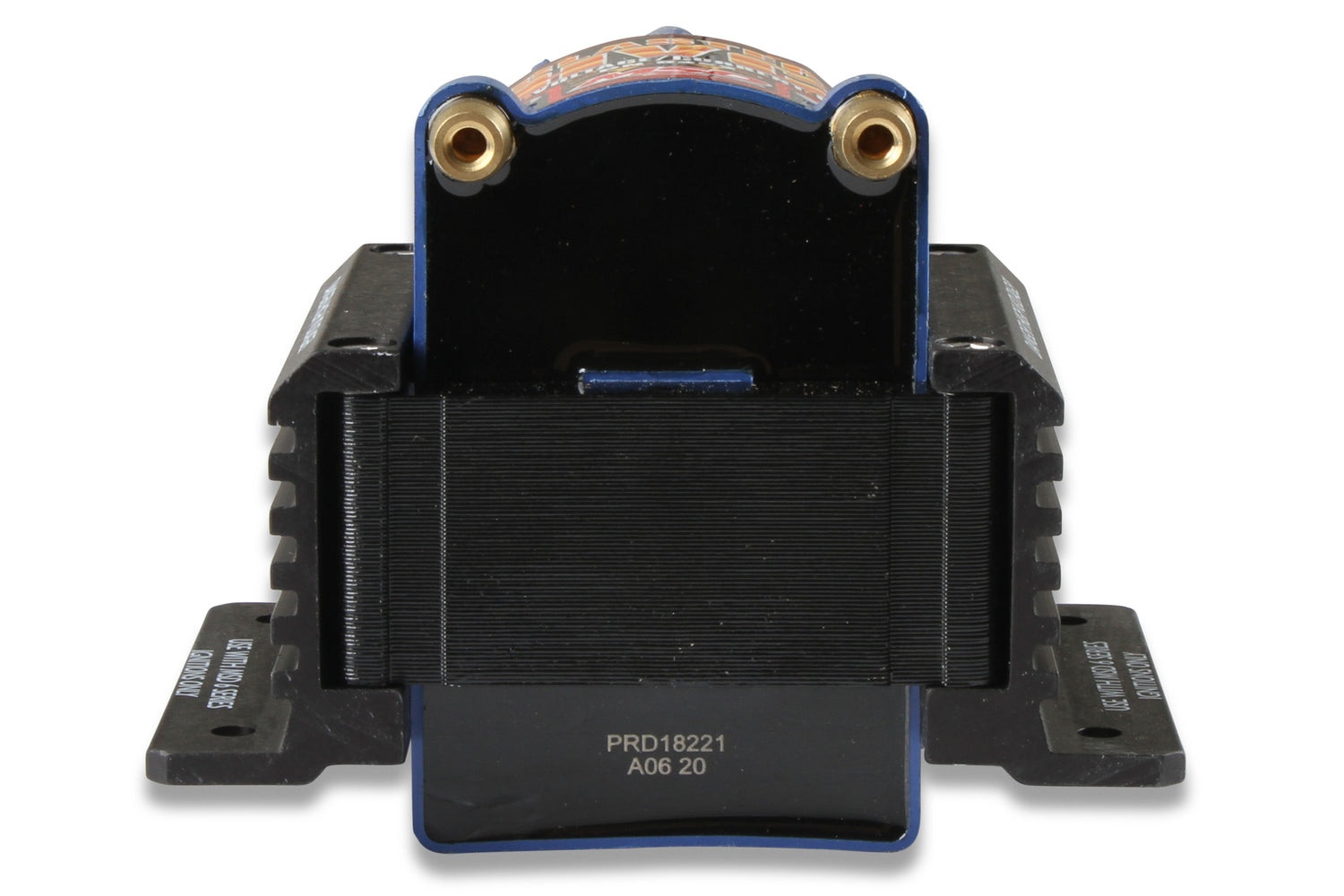

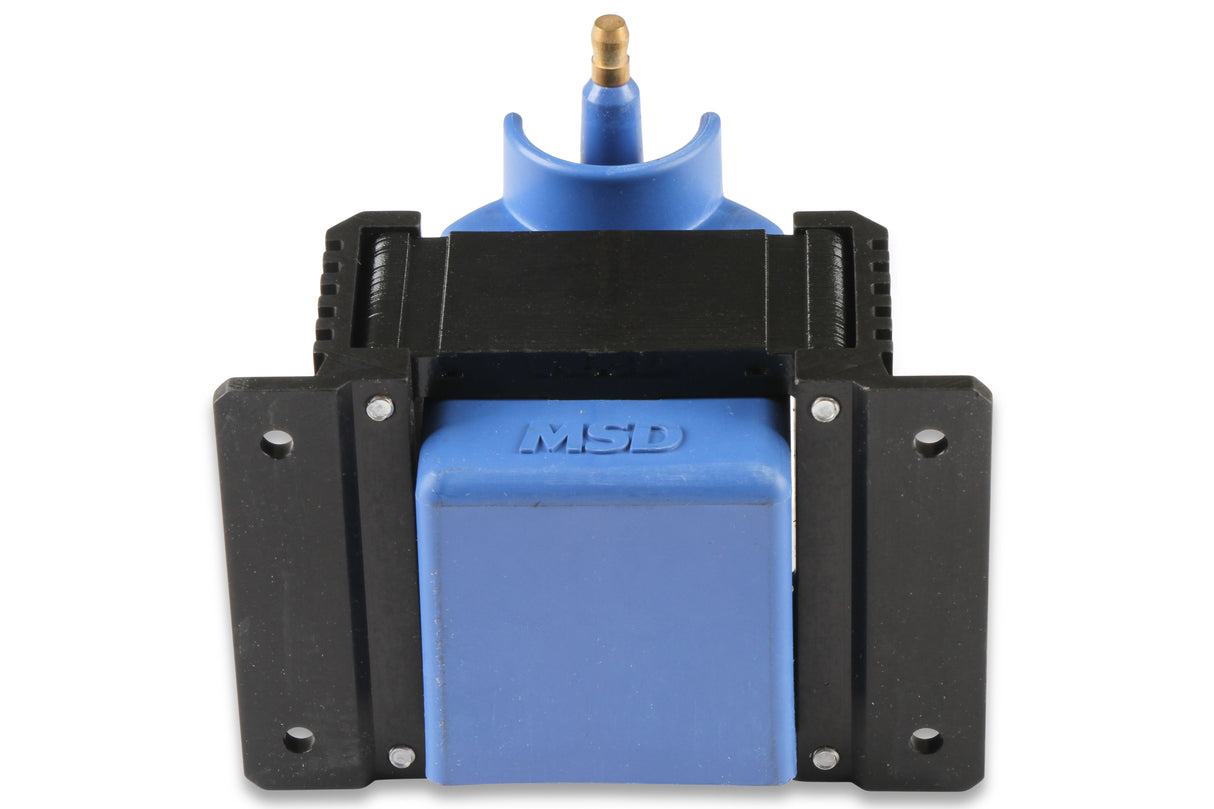

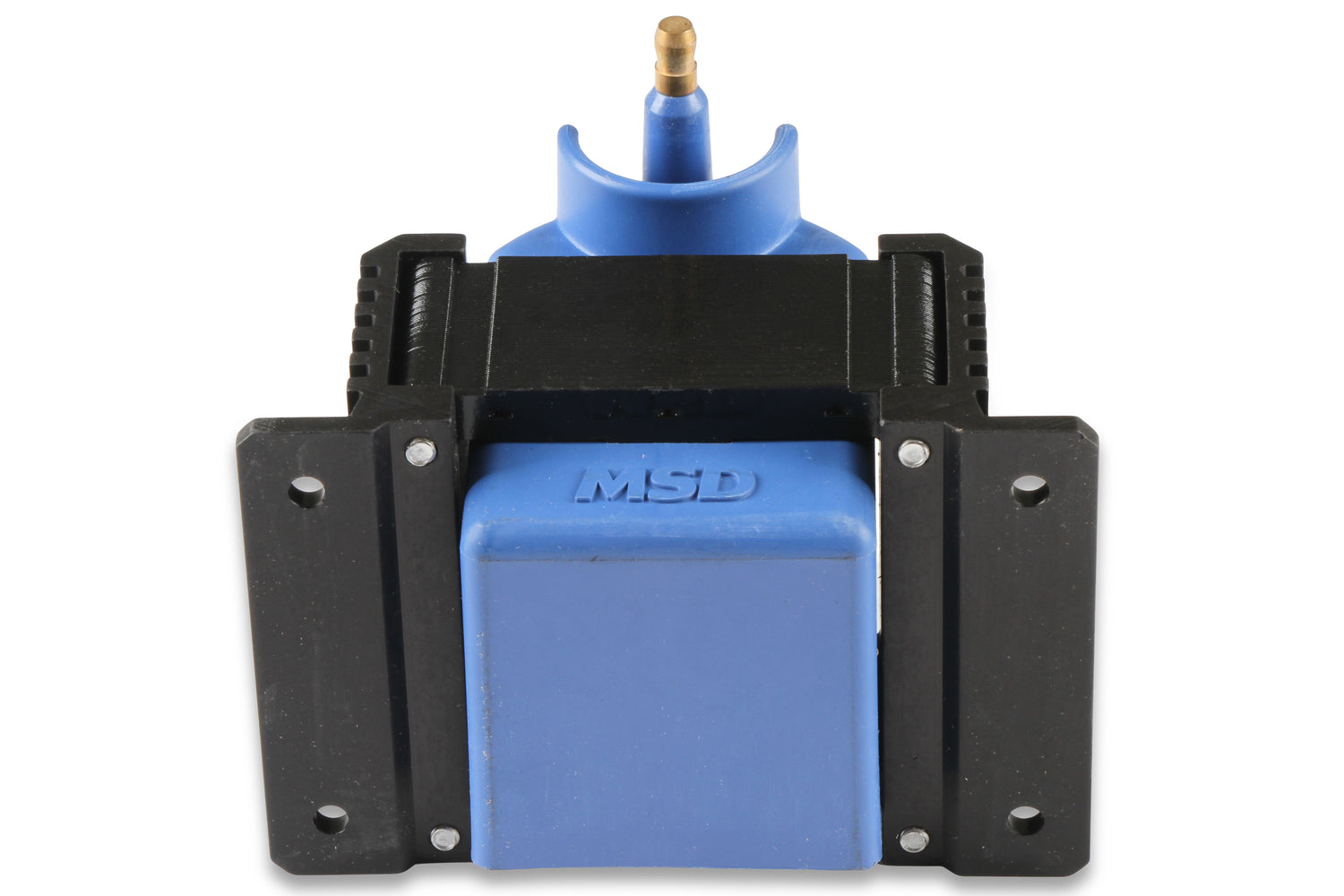

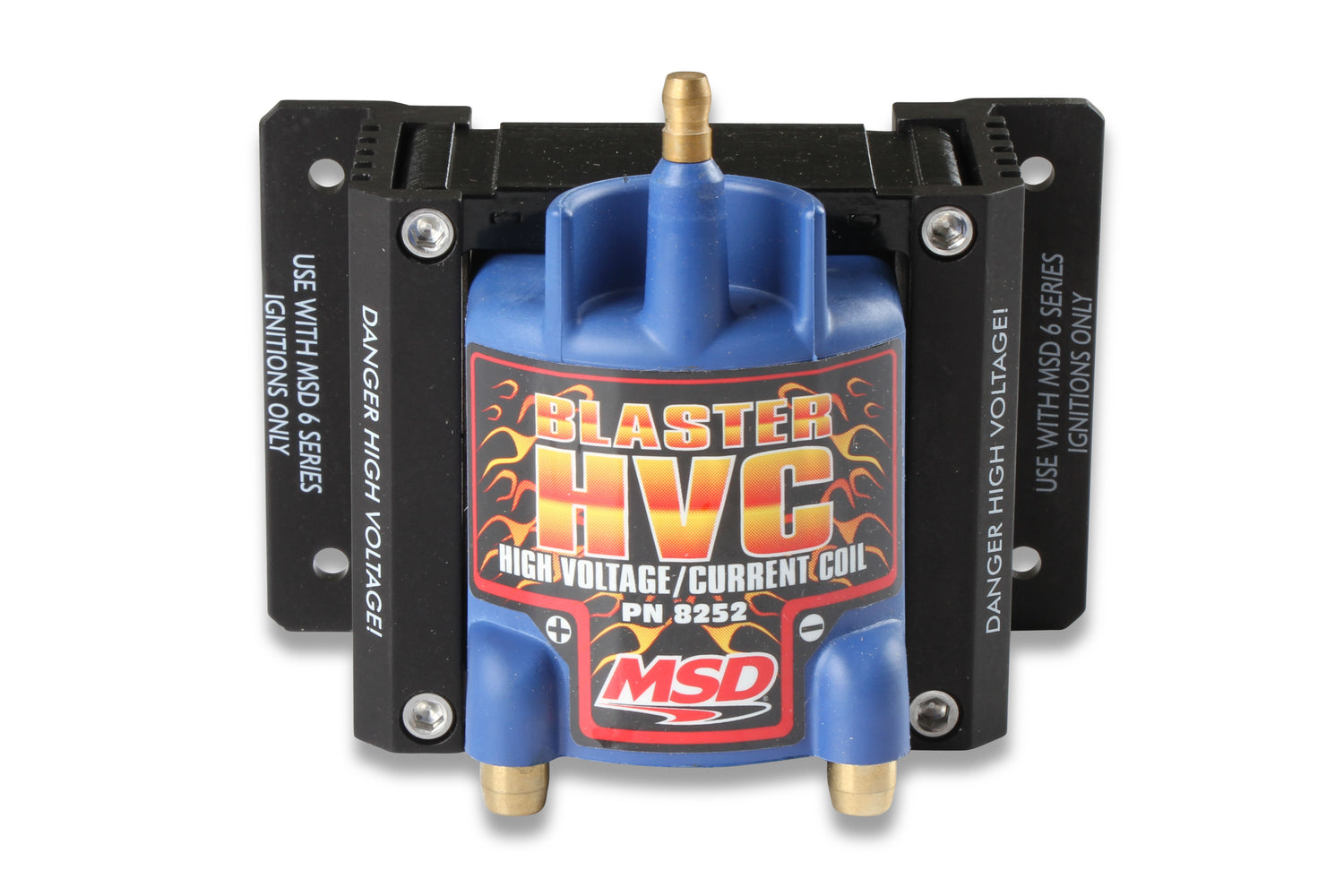

MSD 8252 - Blaster HVC Ignition Coil

MSD 8252 - Blaster HVC Ignition Coil

Ignition Coil - Blaster HVC - E-Core - 0.020 ohm - Male HEI - 42000V - Blue - Each

Blaster HVC Ignition Coil; For Use w/MSD 6 Series Ignition; 7 mH Inductance; 42000 Max Voltage; 300 mA Peak Current; 200 uS Spark Duration;

The blaster HVC is designed for high rpm, long duration applications such as road course and circle track racing using an MSD 6 series ignition. Works with electronic ignitions and MSD ignition Controls (ballast resistor required for points systems). Features 100:1 turn ratio and lower primary resistance produce high voltage output. Windings are encased in blue epoxy and secured with extruded brackets. Spark plug style terminal and threaded brass primary studs. Supplied with rubber shock mounts. Carb E.O. approved.

• Designed for high rpm; long duration applications
• Works w/Electronic Ignitions And MSD Ignition Controls
• 100:1 Turns Ratio
• Lower Primary Resistance Produces High Voltage Output
• Windings encased in blue epoxy and secured w/extruded brackets
• Spark Plug Style Terminal and Threaded Brass Primary Studs

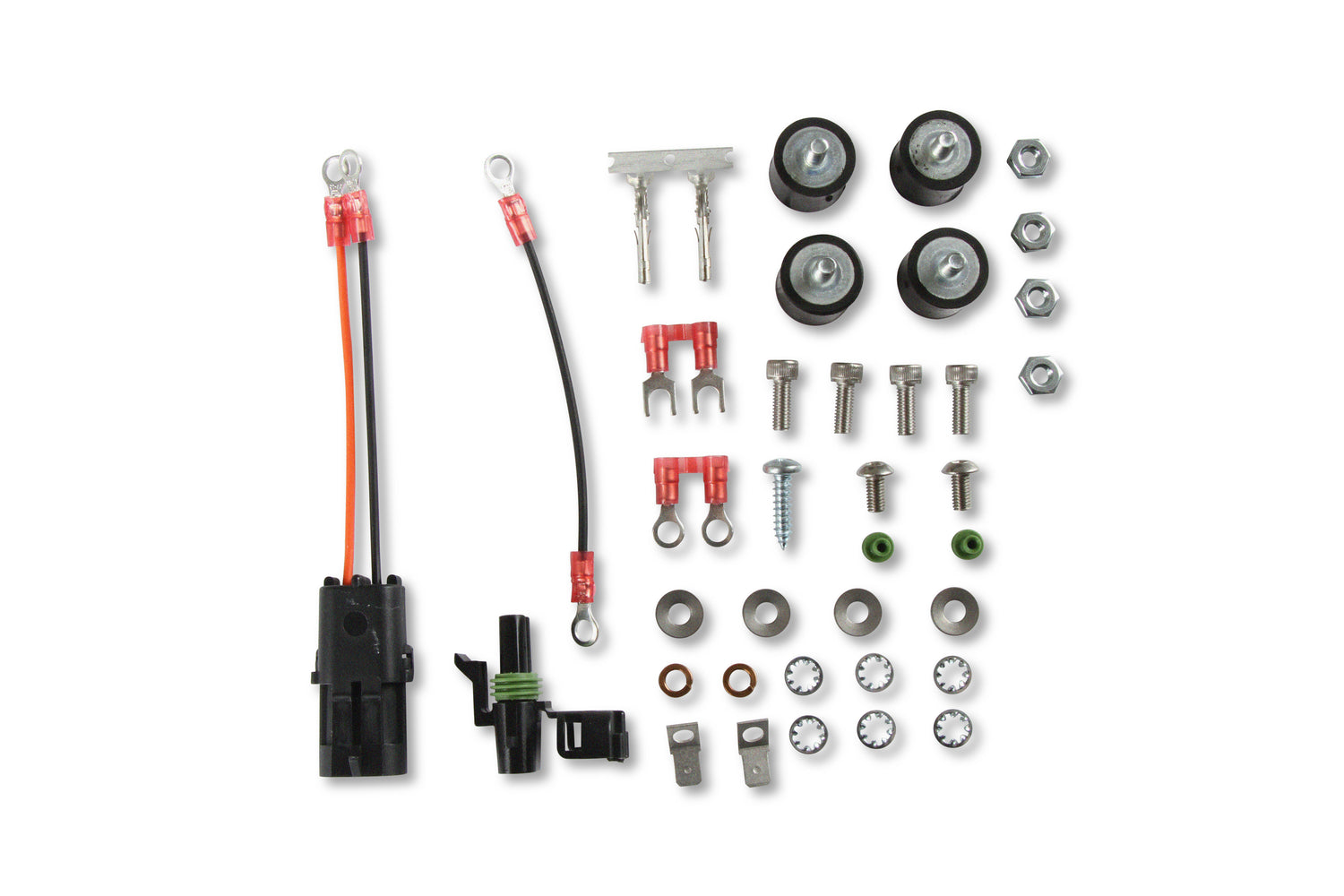

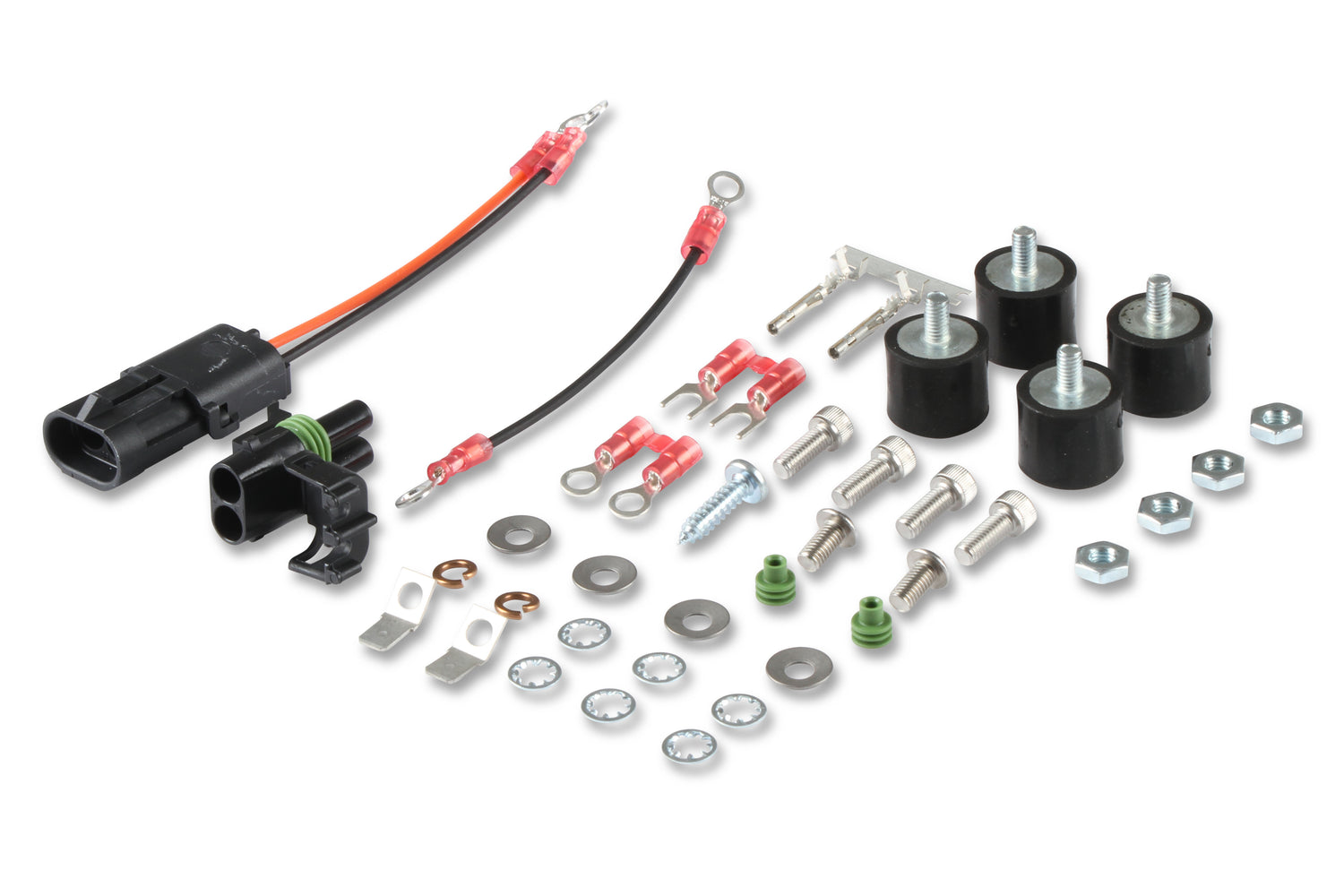

• Supplied w/Rubber Shock Mounts
• CARB E.O. Approved
