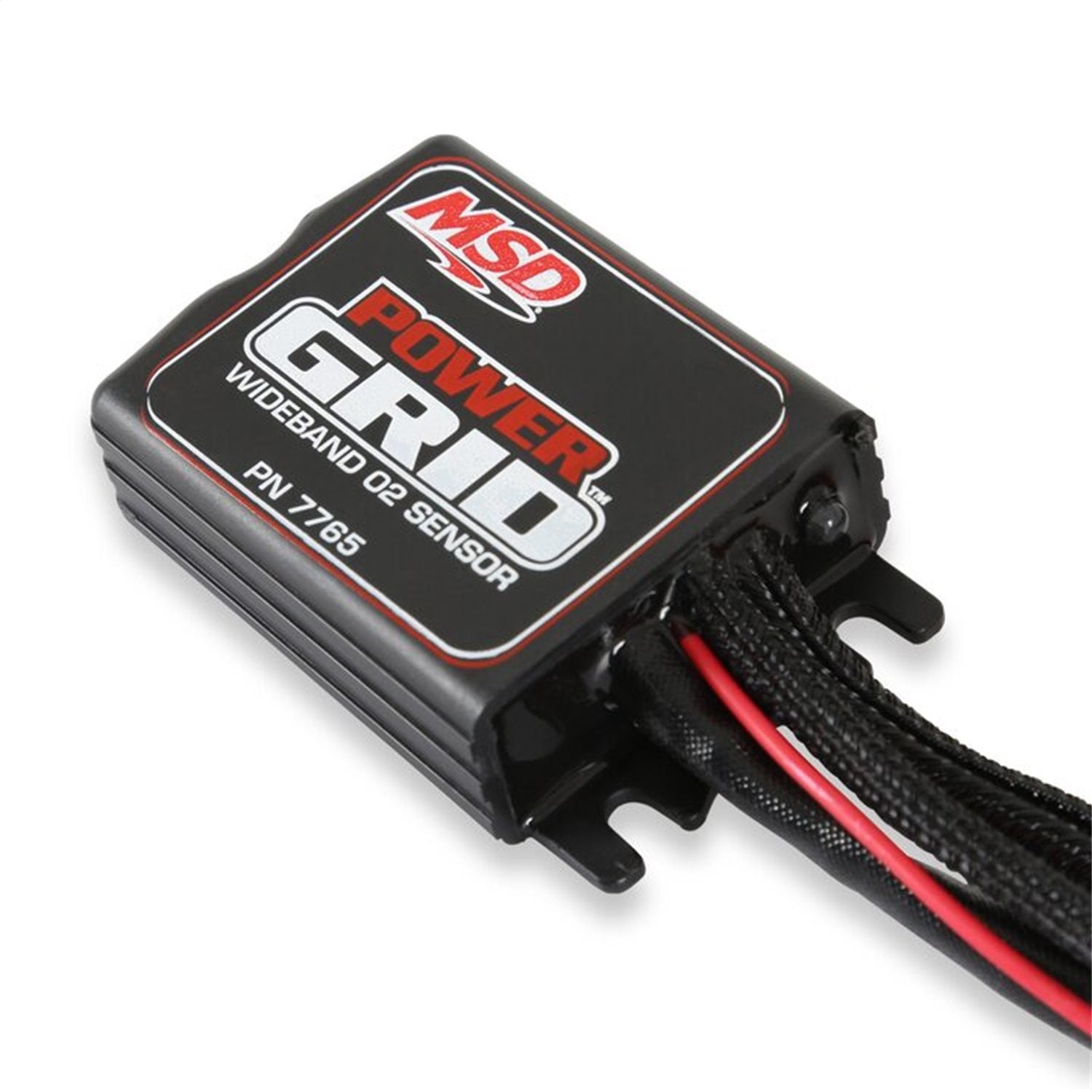

MSD 7765 - Wide Band O2 For Power Grid

MSD 7765 - Wide Band O2 For Power Grid

Ignition Control Module - Power Grid Module - Wideband O2 Module - Programmable - MSD Distributors - Each

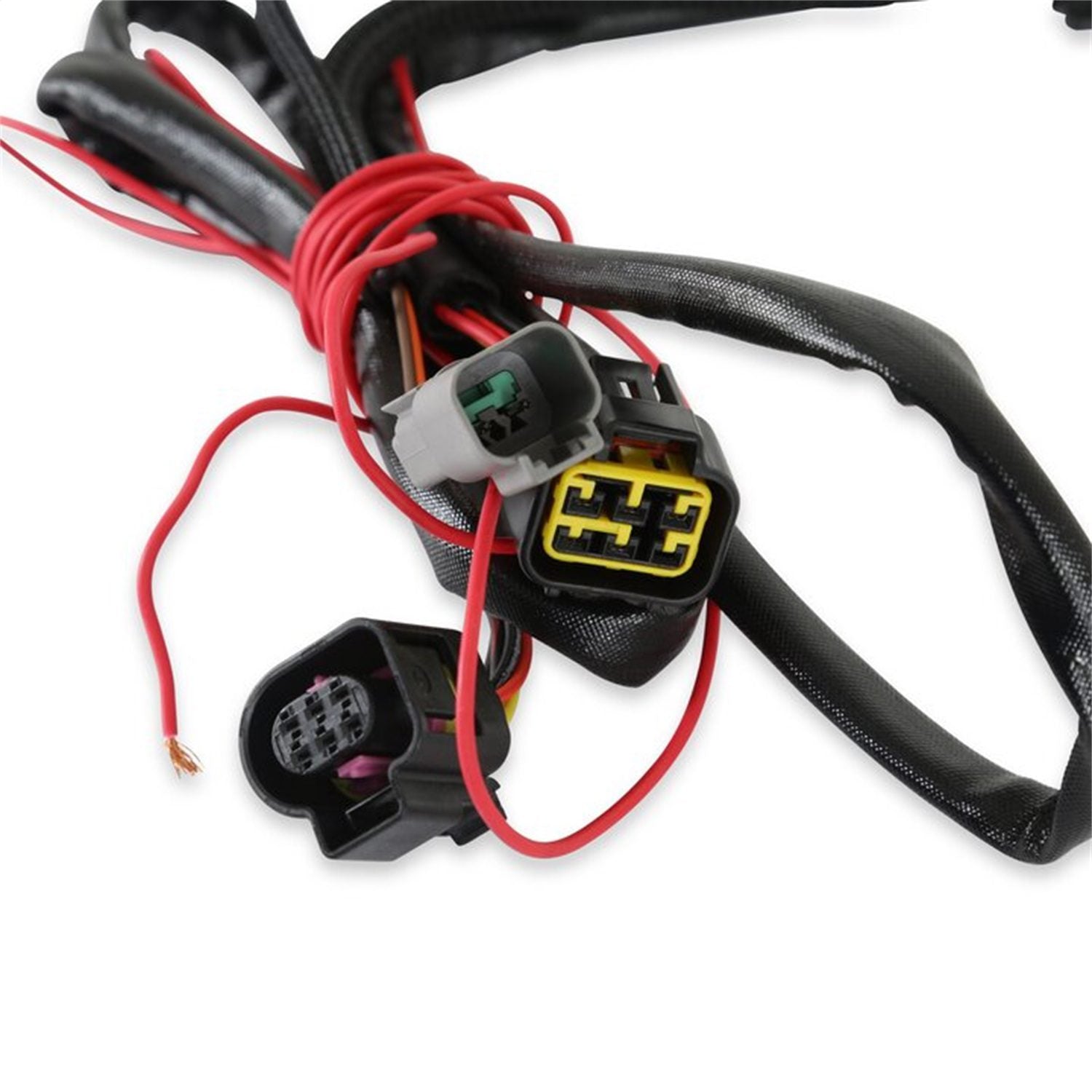

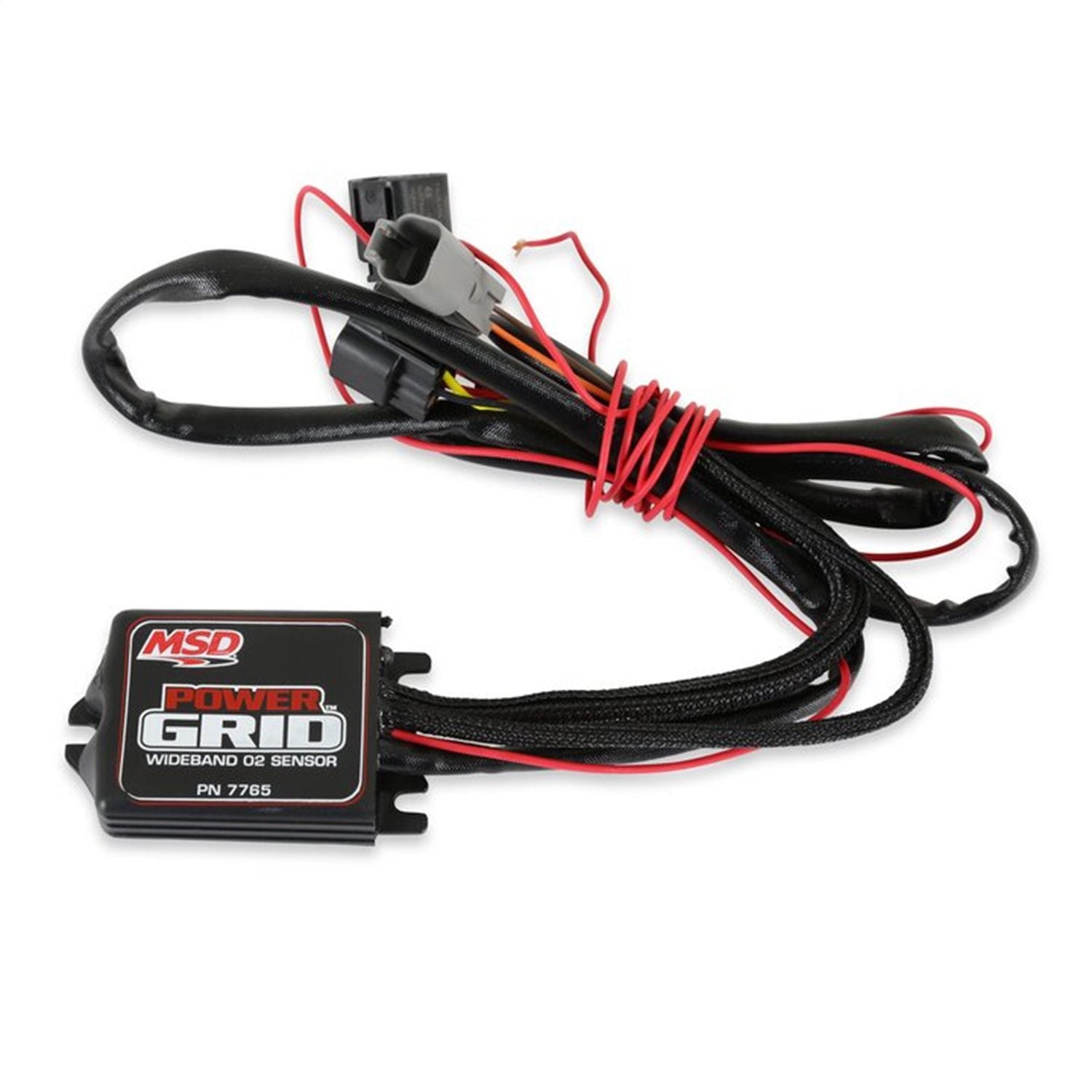

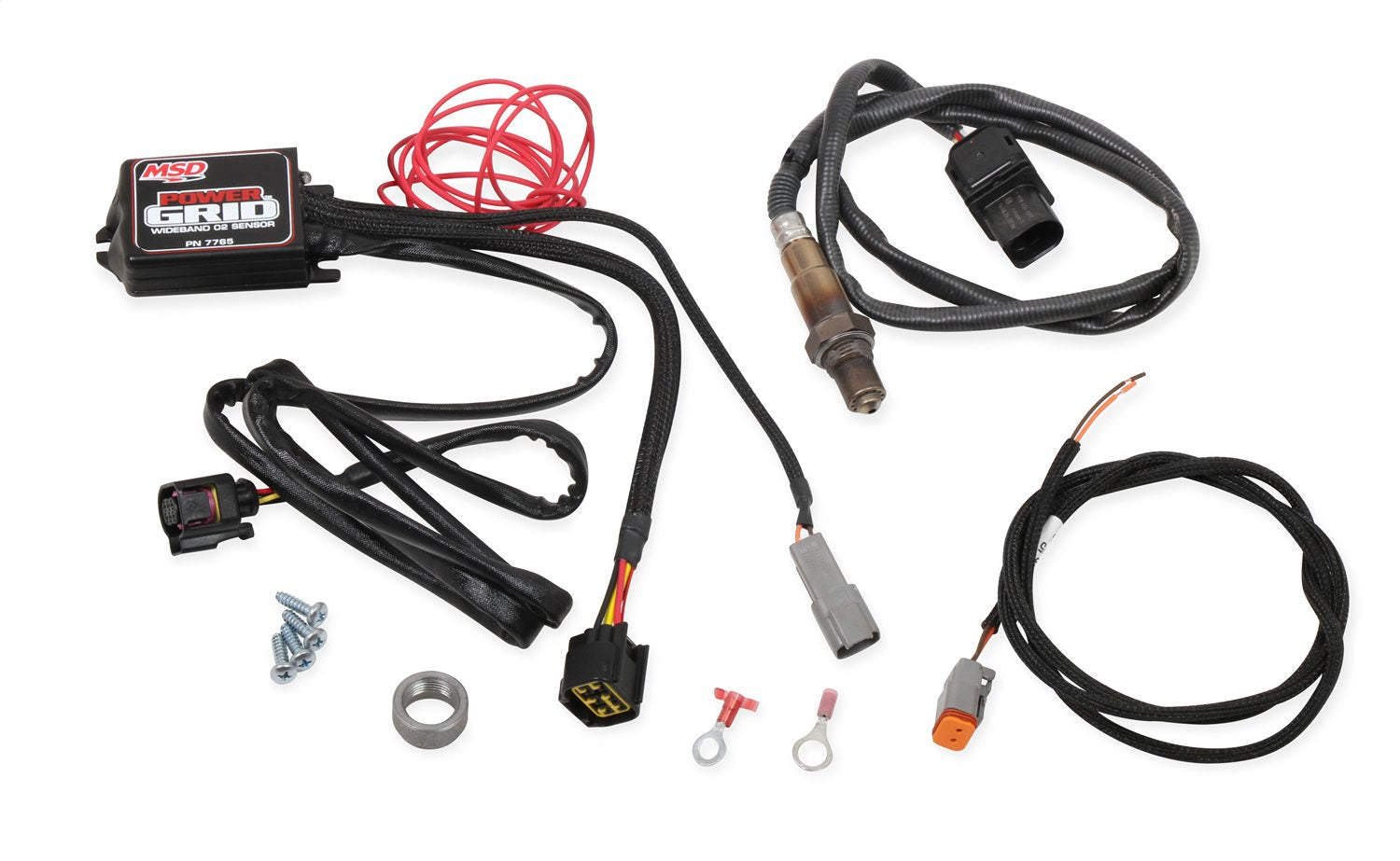

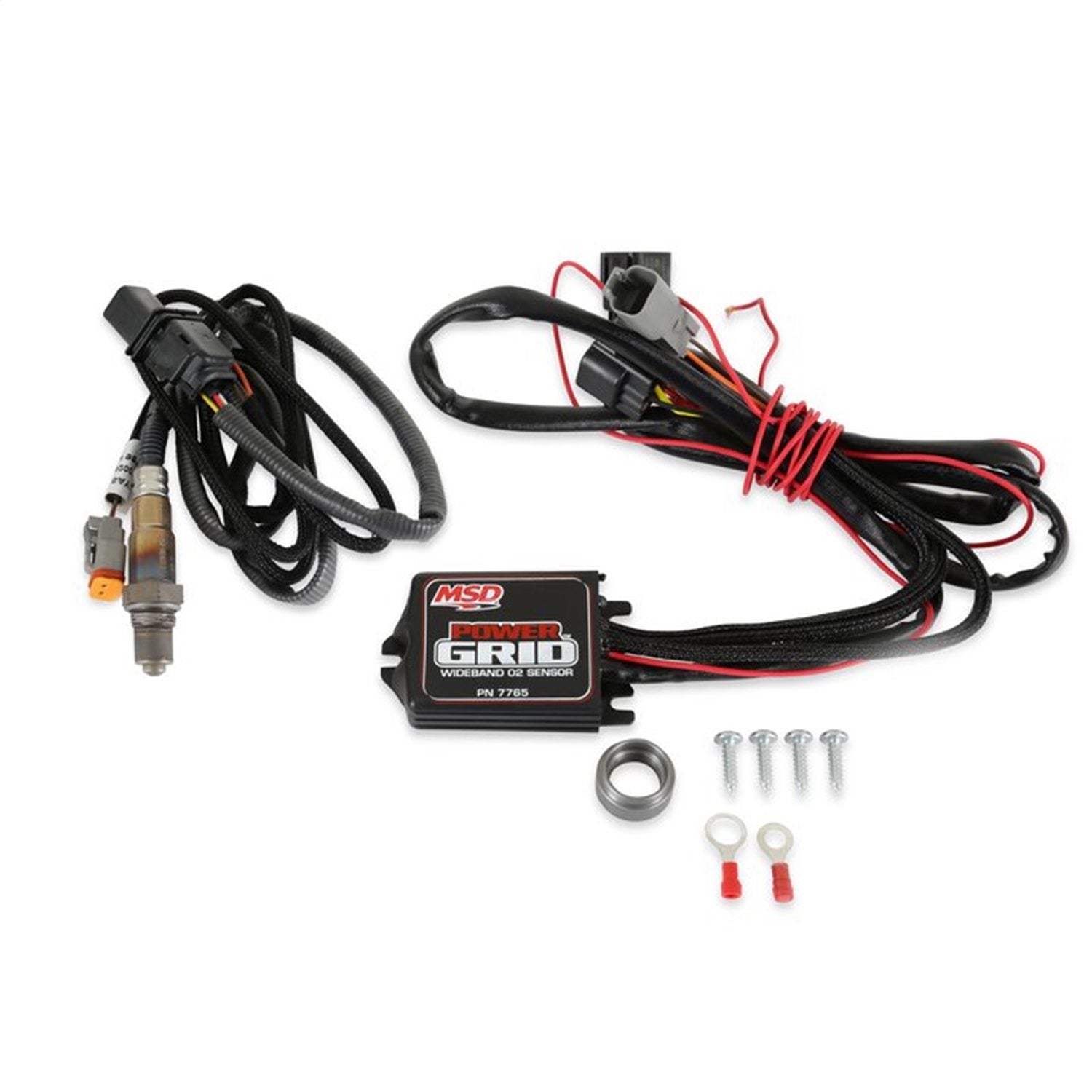

Wide Band O2 Module; Provides O2 Sensor Data Logging; Incl. Module/Sensor/Power Output/Wiring Harnesses/Hardware;

Add valuable data logging capability to your Power Grid with the addition of the plug-n-play Wide Band O2 Module. Aside from providing O2 data to your Grid, the module also provides a 0-5v output to drive an air/fuel ratio gauge or provide a signal to other data loggers. Multiple modules and sensors can be connected to a single Power Grid setup if desired. The completely sealed unit uses a Bosch 4.9 oxygen sensor, and is easy to set up and no free air calibration is required.

• Plug-N-Play w/MSD Power Grid
• Easy set-up! No free air calibration required
• Completely Sealed Unit For Durability In Race Environments

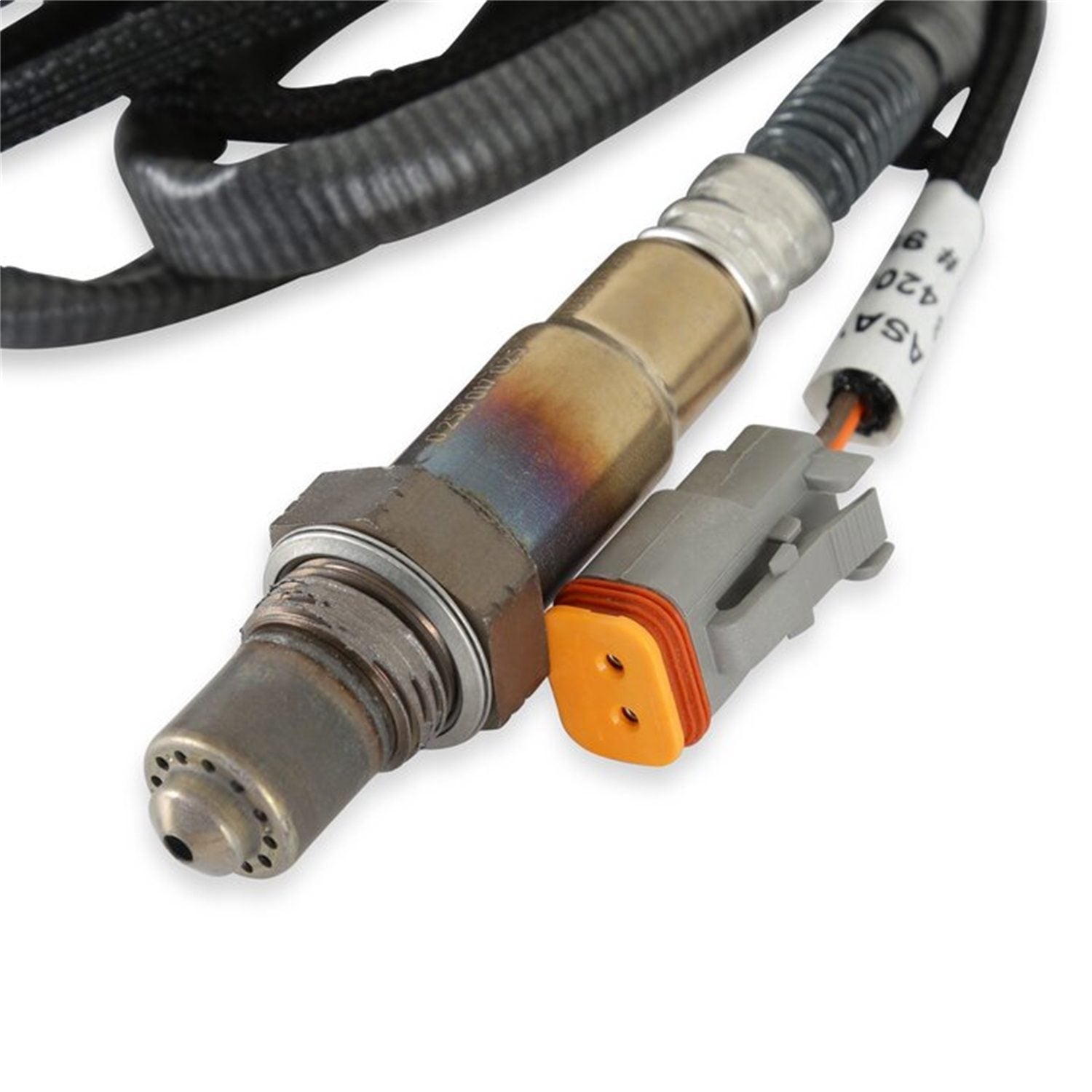

• Bosch 4.9 Oxygen Sensor
• 0-5V Output To Run An Air/Fuel Gauge or Data Logger
• Dual-color LED provides on board diagnostics
• Multiple Modules Can Be Used On A Single Power Grid
• Data logs air-fuel ratio and heater voltage
• Fuel Calibration Opt. for gas/methanol/ethanol/E85/propane/diesel
• Custom Fuel Calibration option can be programmed by user
