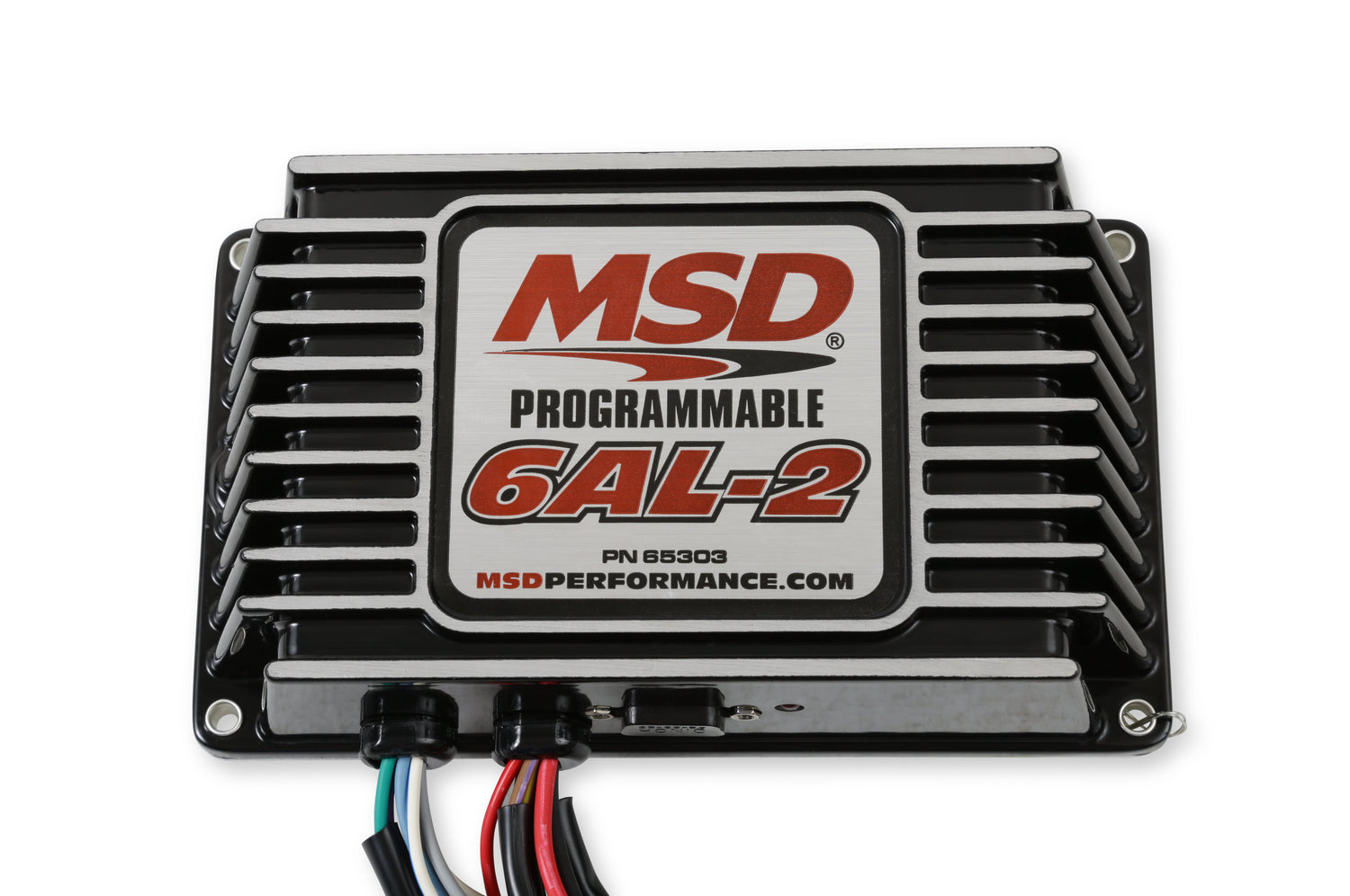

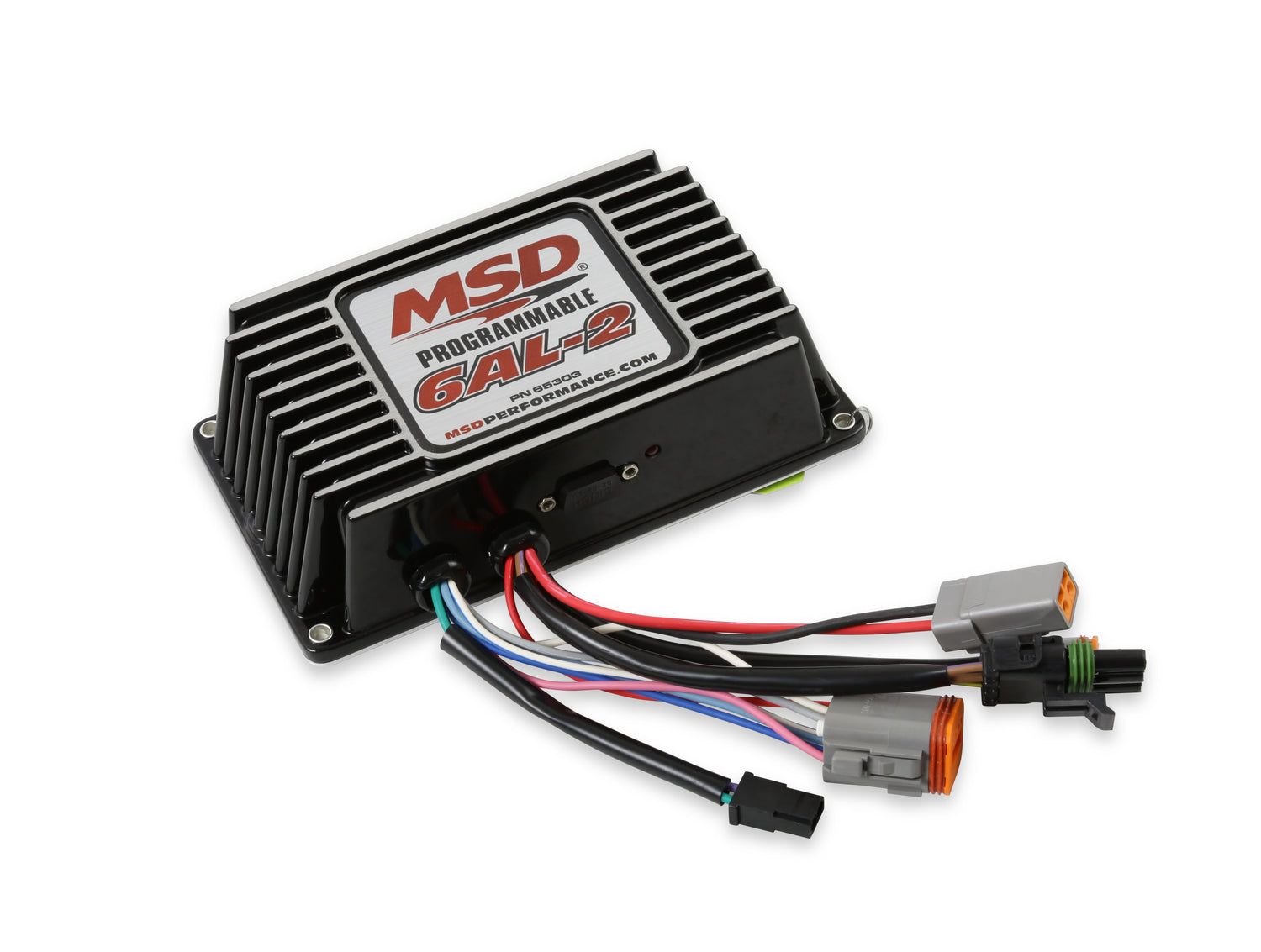

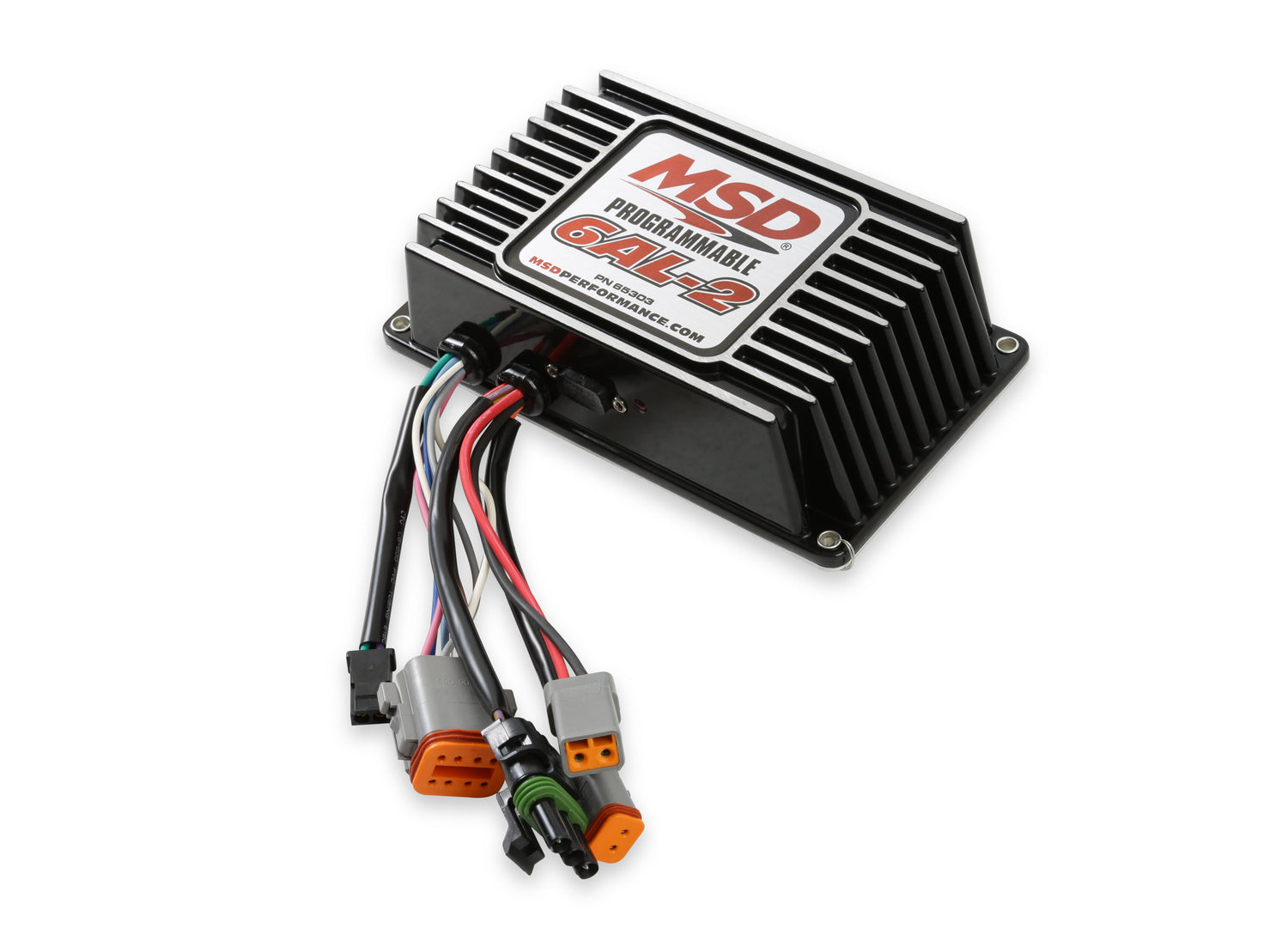

MSD 65303 - 6AL-2 Programmable Ignition Controller

MSD 65303 - 6AL-2 Programmable Ignition Controller

Ignition Box - 6AL-2 - Digital - CD Ignition - Programmable - 45000V - 2-Step Rev Limit - Programmable Timing Curves - Step Retard - Each

6AL-2 Programmable Ignition Controller; For Use In Street/Racing Applications; PC Programmable 3-Step Rev Limiter [100 RPM Increments]; Capacitive Discharge Technology; Black;

MSD is excited to announce the next generation of 6-Series ignition controls– the 6AL-2. The all new ignition control combines a new housing, new digital controls and more power in a sleek package. Inside the new cast aluminum housing you'll find an advanced micro-controller that manages the timing and rpm of the ignition. The spark output of the new box has been turned up to 535 volts of primary voltage with spark energy reaching up to 135 millijoules. The multiple sparks of the 6AL-2 burn in the cylinder for 20 degrees of crankshaft rotation to ensure complete combustion. Two more great features are the rev limits. There are two rev limiters; one for high end overrev protection and another you can activate off a clutch or transbrake to set a launch limit. This feature will help your car blast off the starting line. Adjustments are made via four rotary dials for 100 rpm increment control. The all new capacitive discharge ignition will easily connect to nearly any 12-volt negative ground distributor system.

• Plot a boost timing map with 0.1° per psi accuracy
• Step retard for nitrous applications plus a boost timing map
• .7 Amp per 1,000 RPM
• Advanced features allow for use in street and racing applications
• 12-18 Volts, Negative Ground
• EO # D-115-22
• Capacitive Discharge technology for fast rise time and maximum spark energy
• 12,500 RPM with 14.4 Volts
• Programmable 3-Step Rev Limiter (100 RPM increments)
• PC Programmable with easy-to-use Windows based Pro-Data +Software
