MSD 6520 - Digital-6 Plus Ignition Controller

MSD 6520 - Digital-6 Plus Ignition Controller

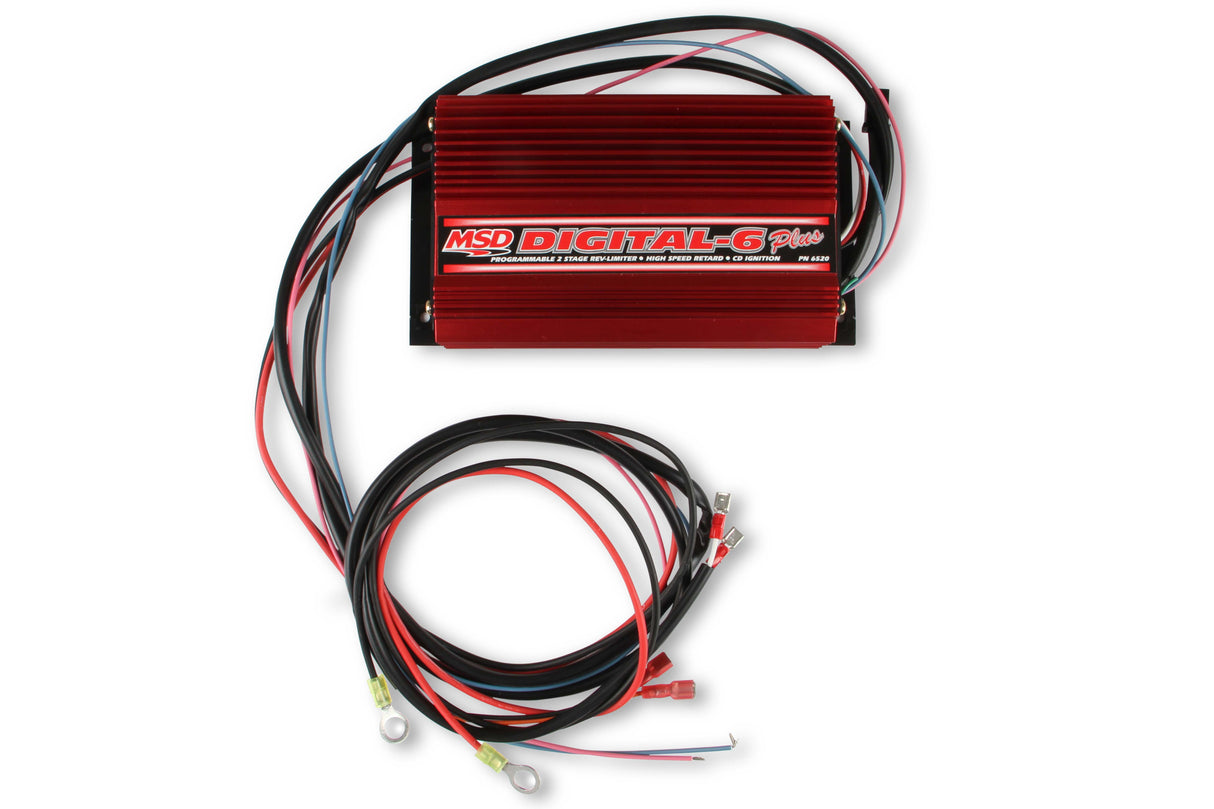

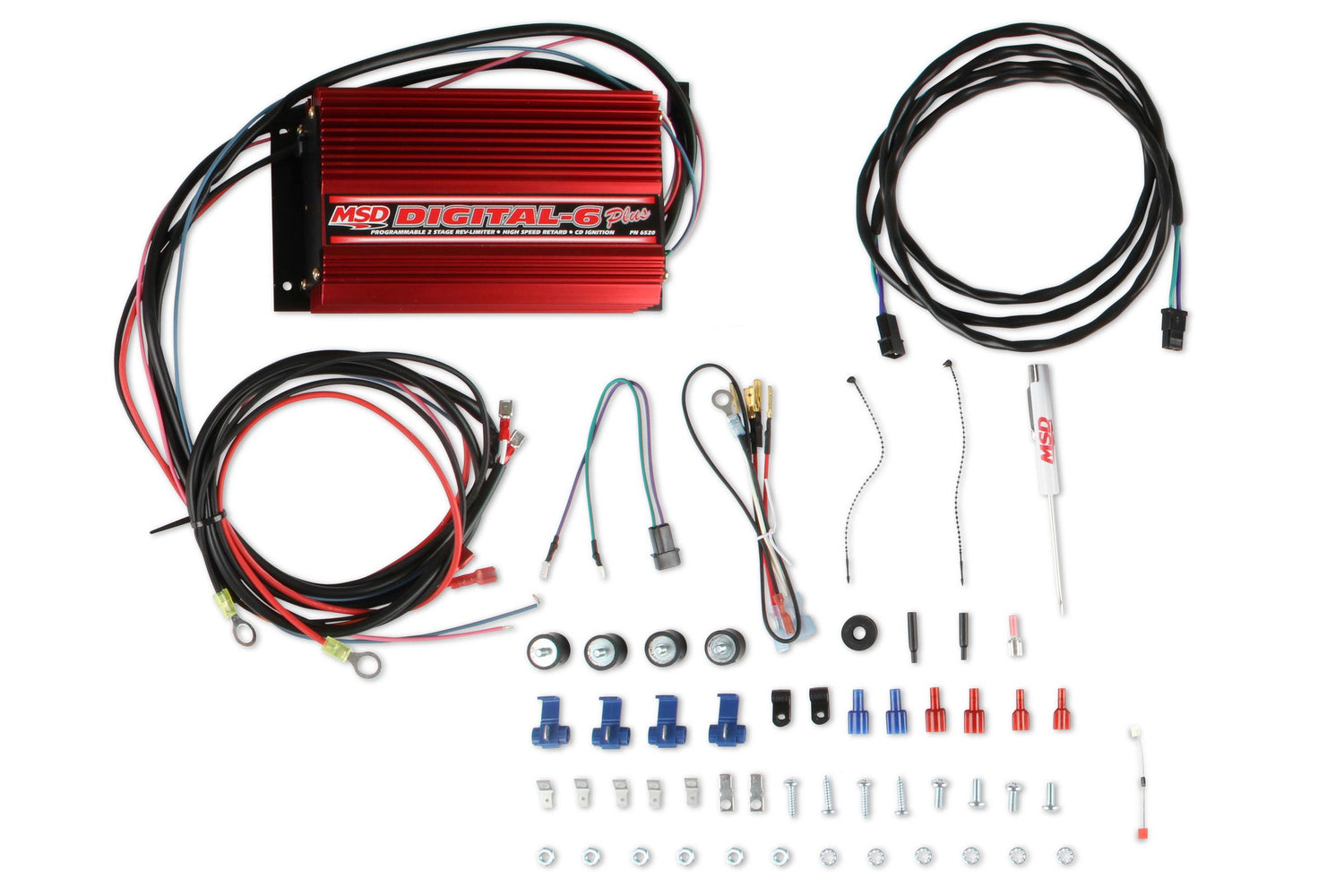

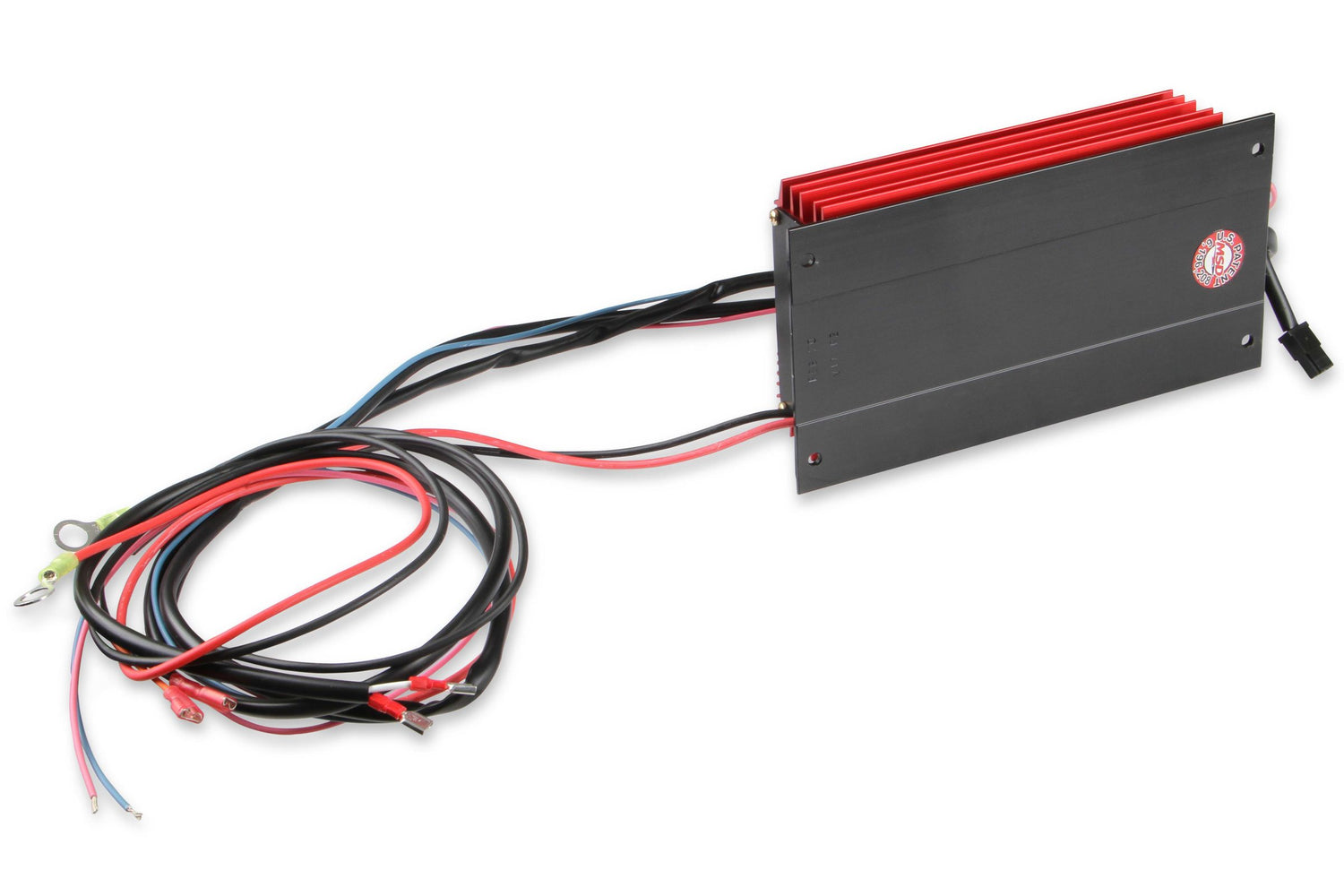

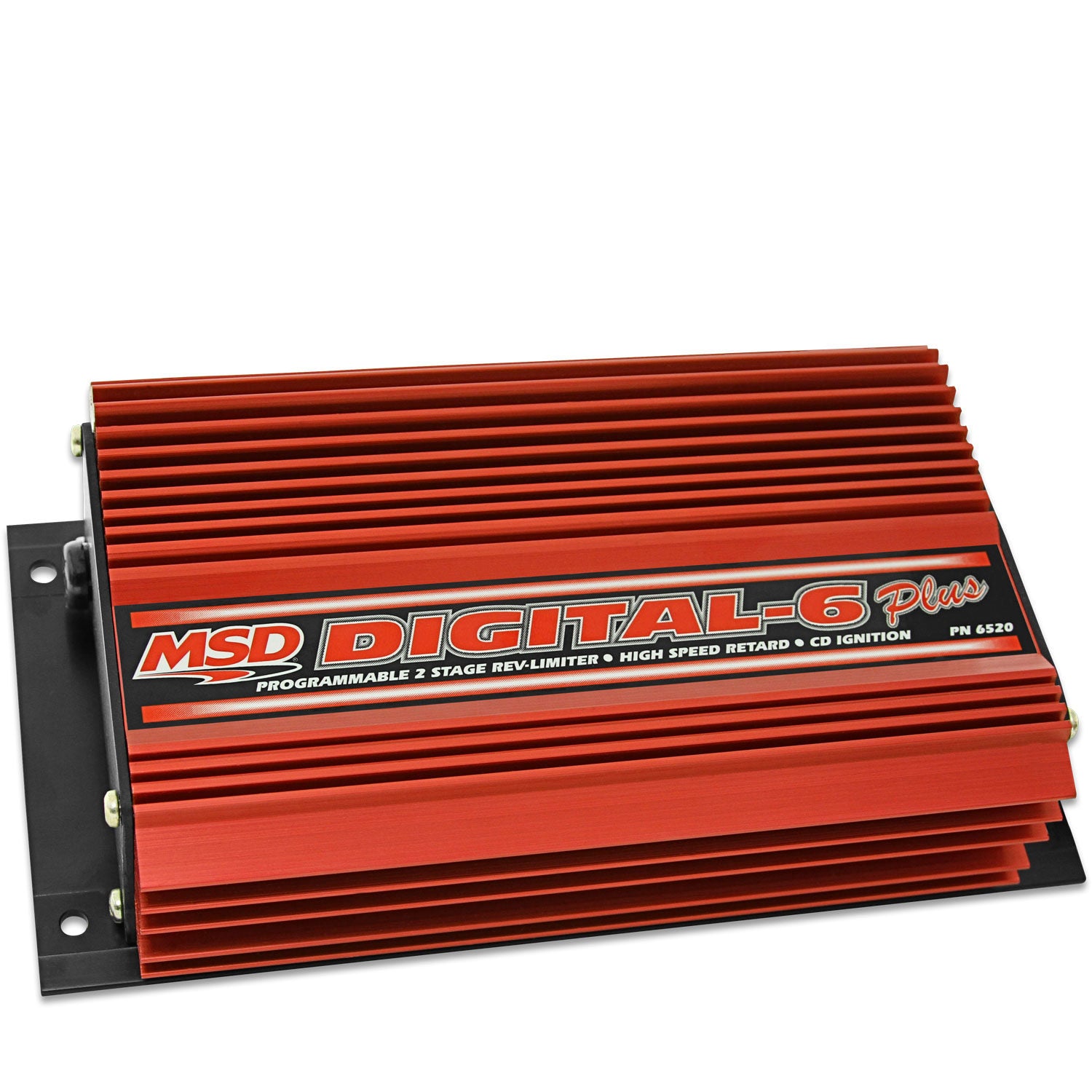

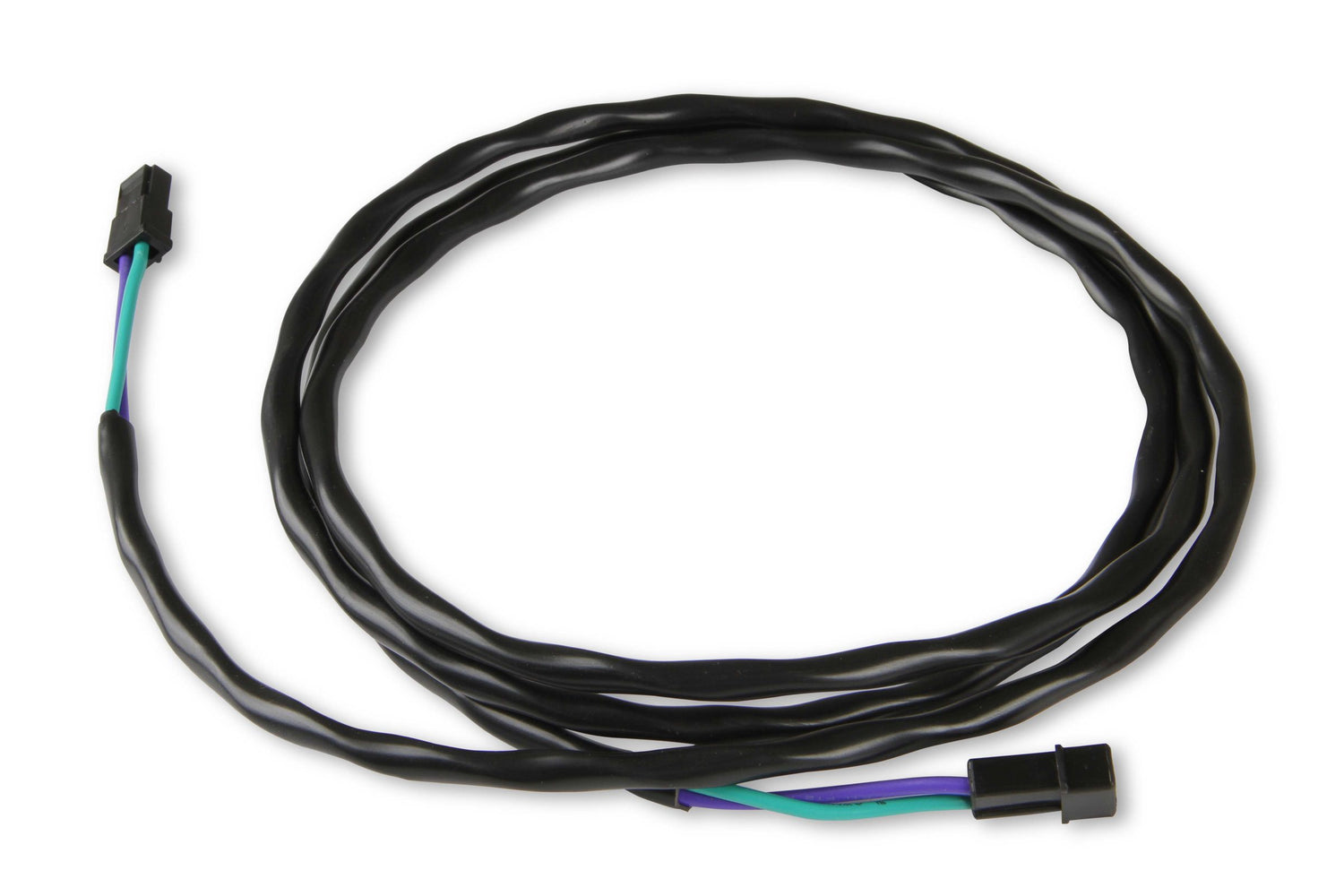

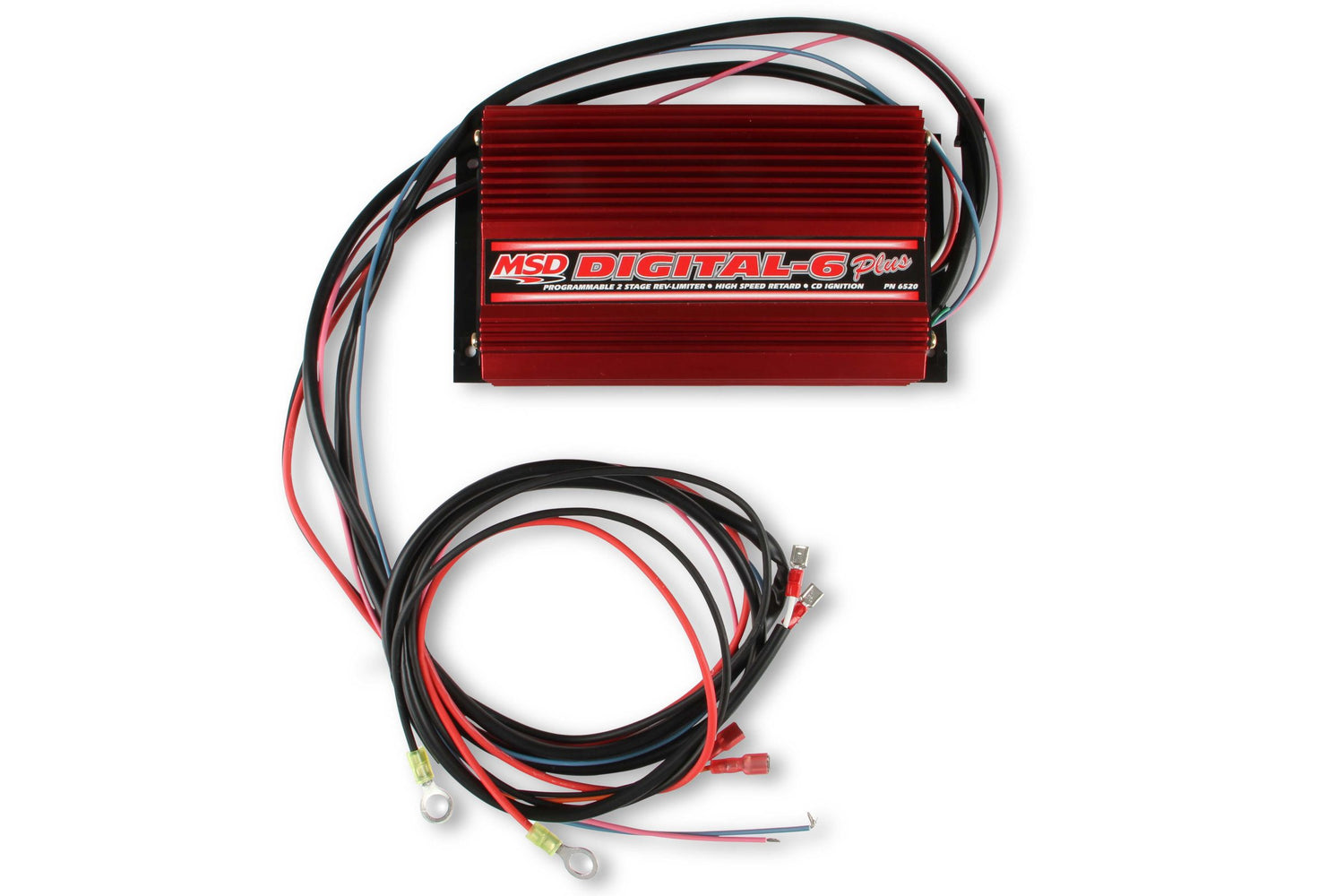

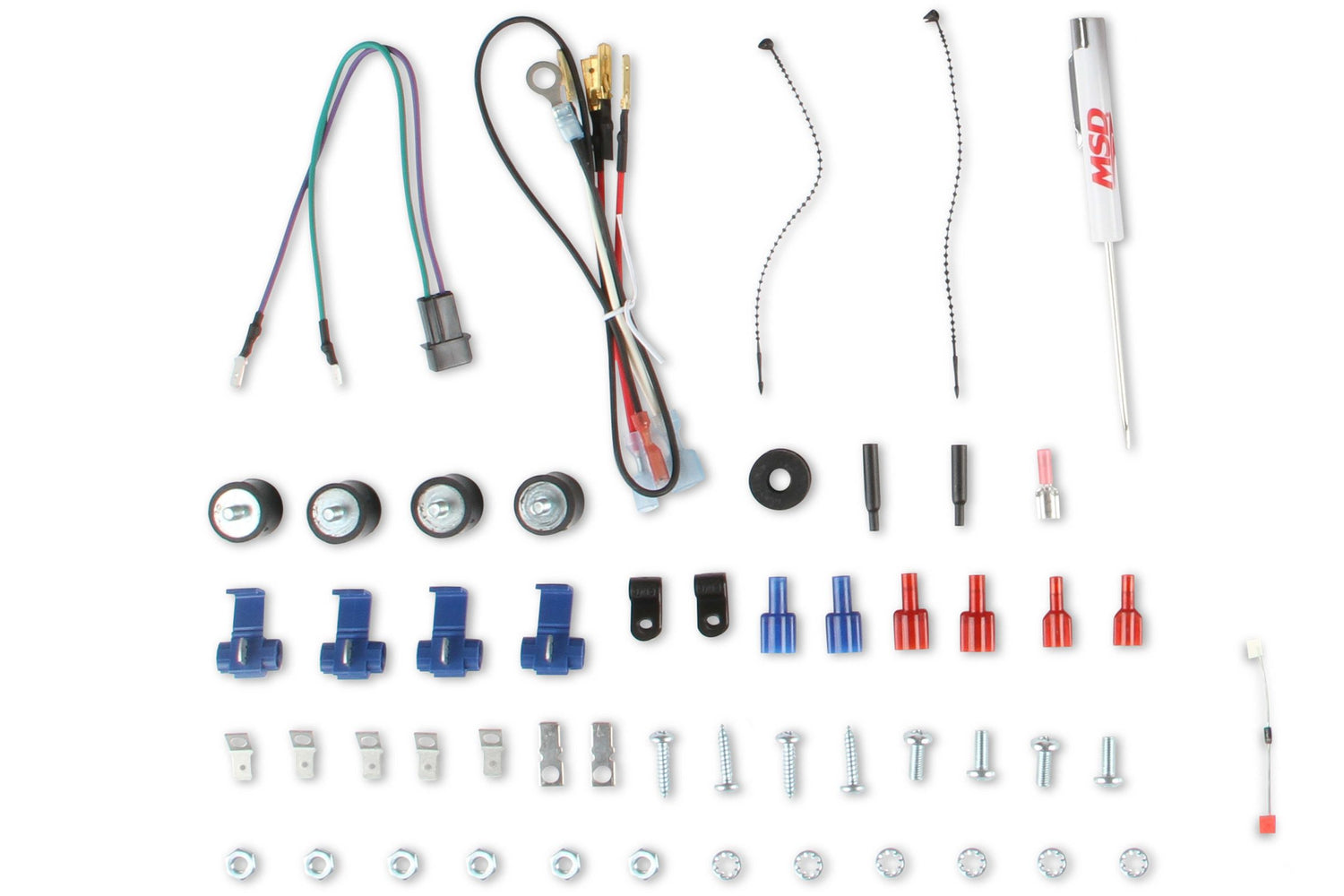

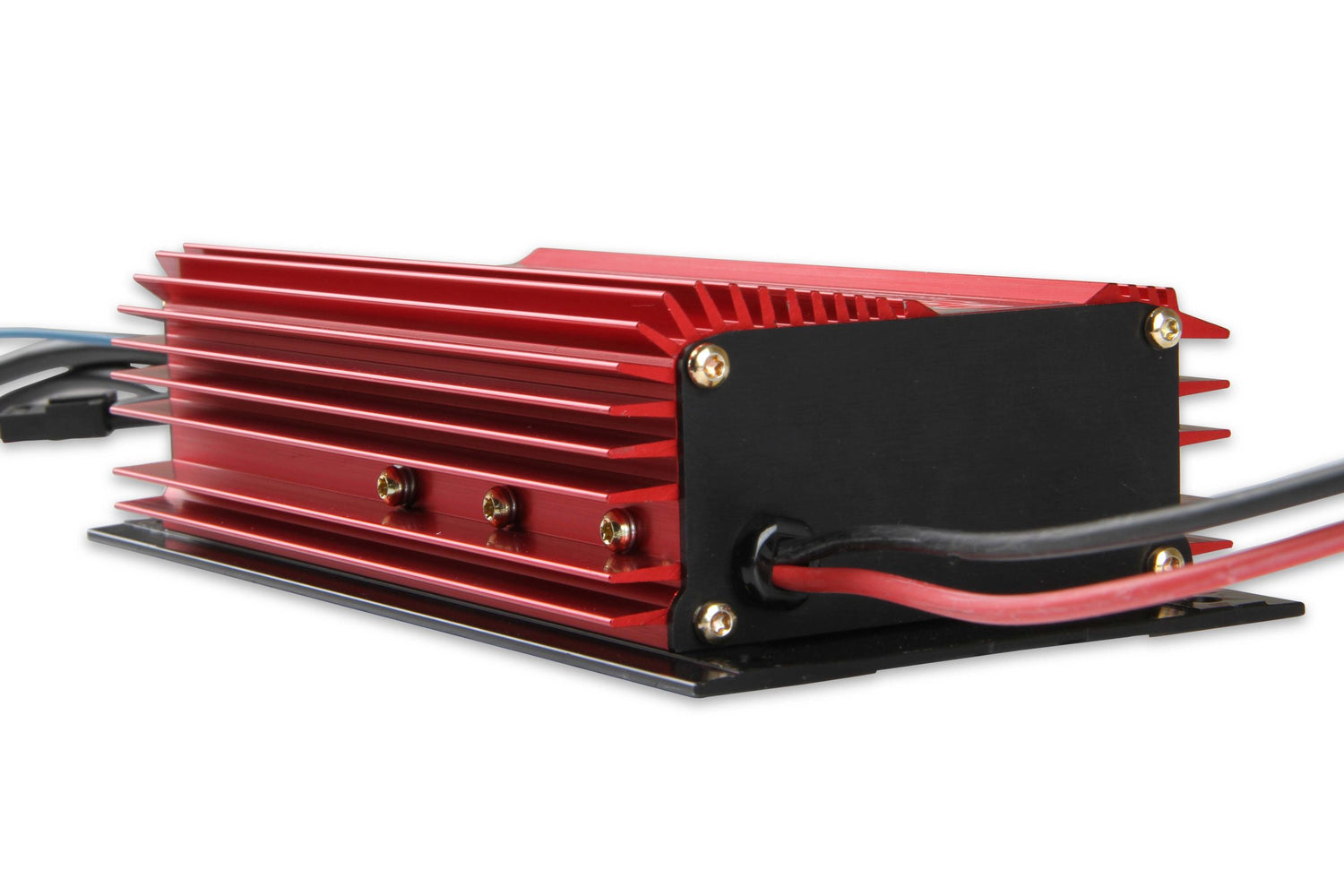

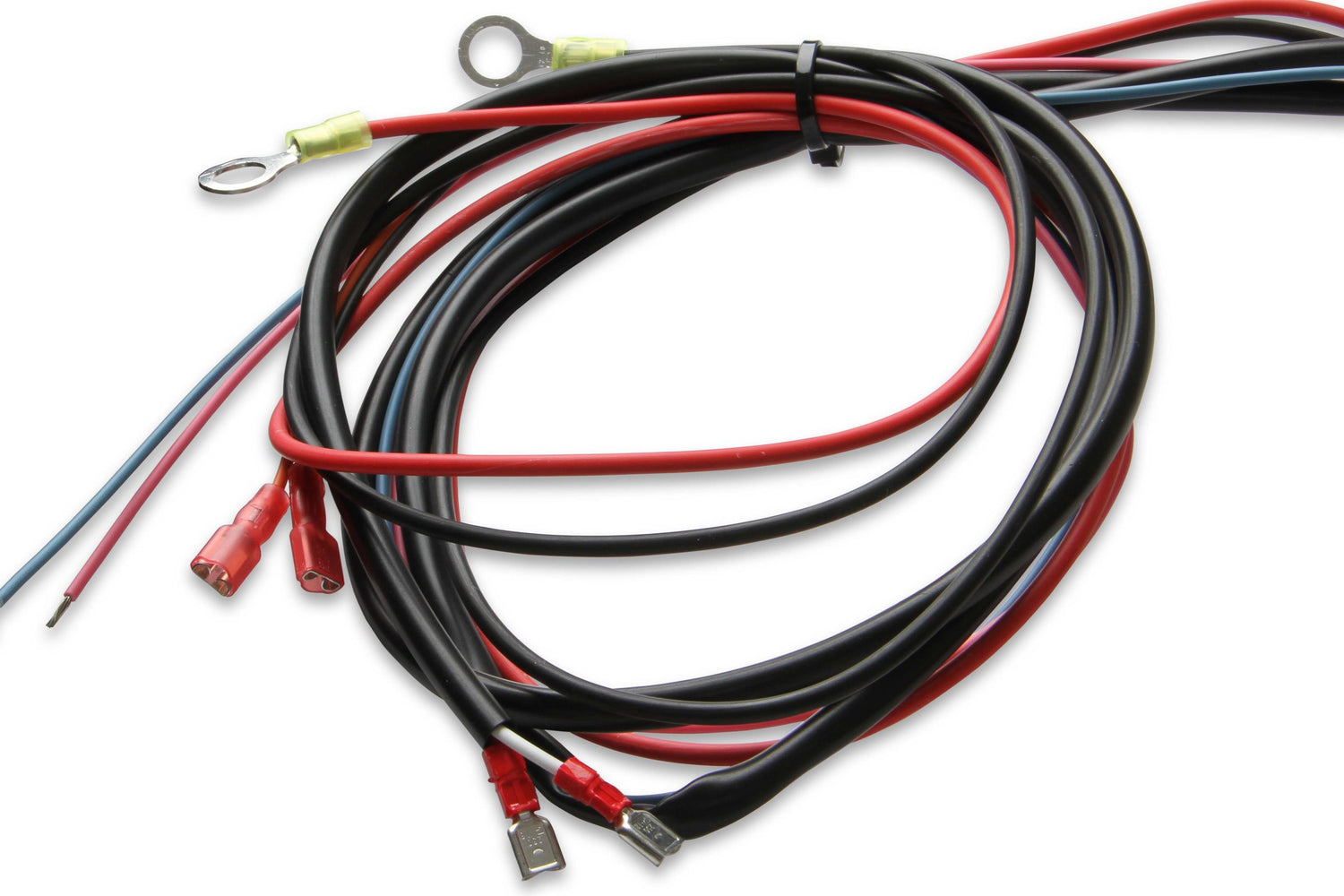

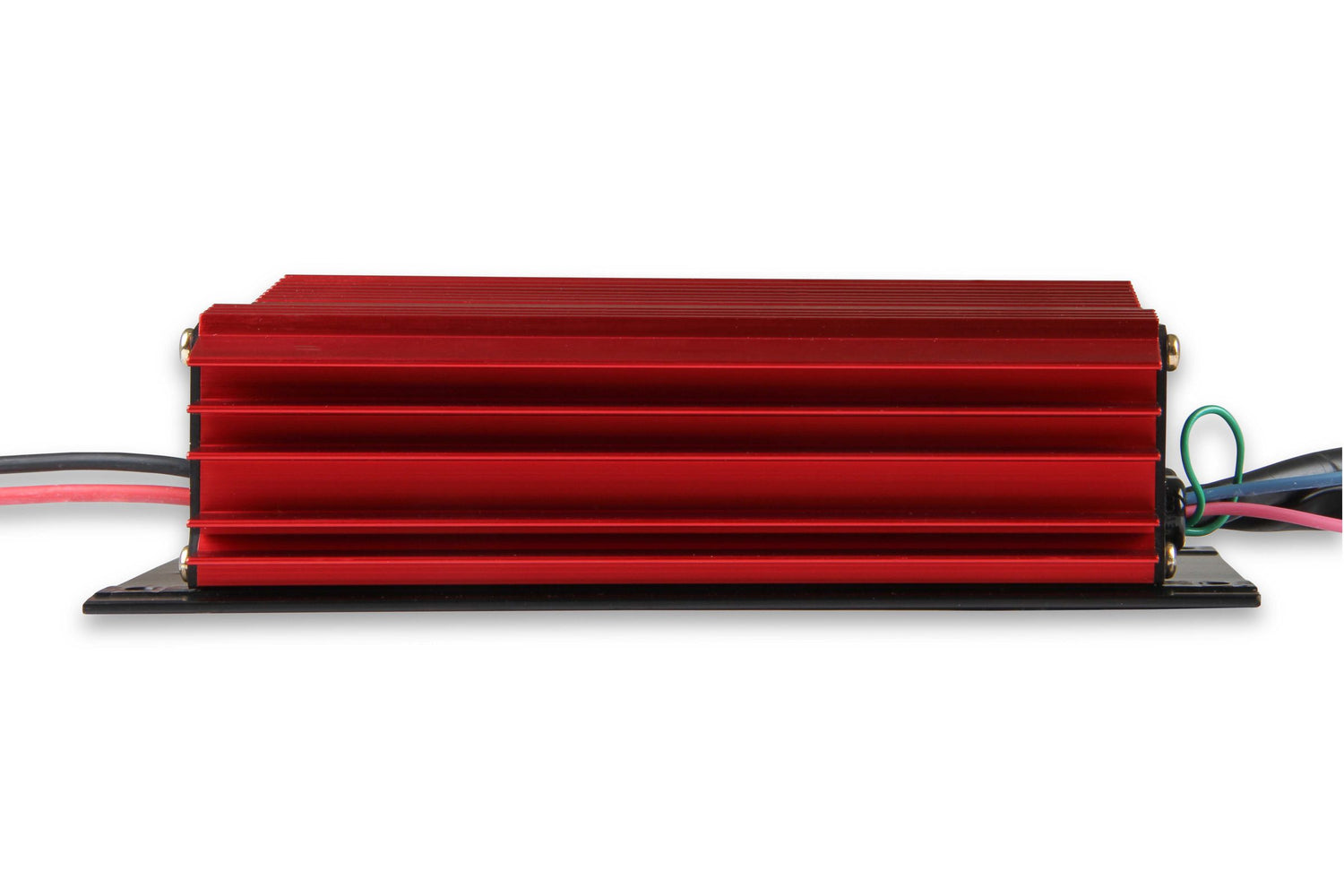

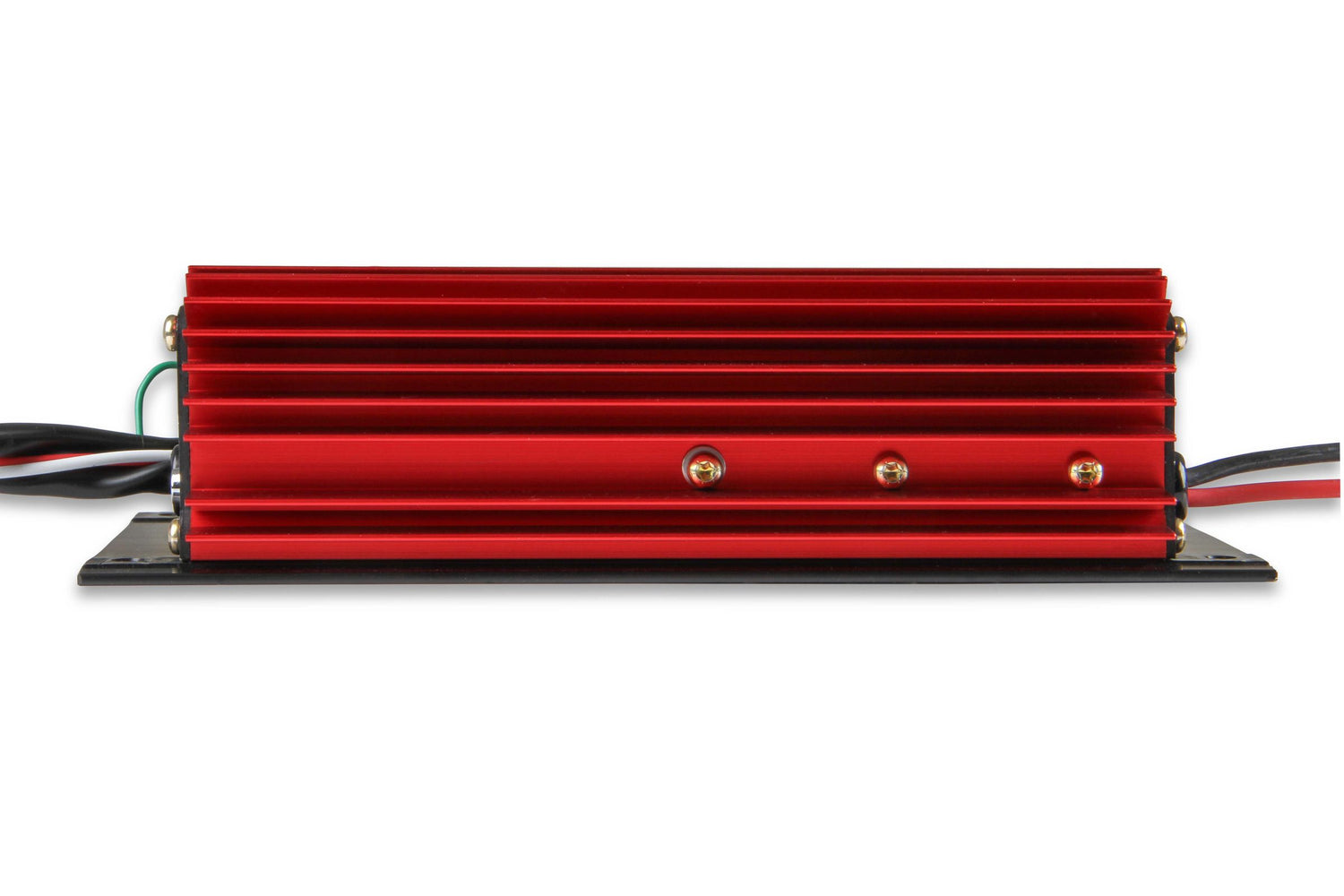

Ignition Box - Digital-6 Plus - Digital - CD Ignition - Multi-Spark - 45000V - 2-Step Rev Limiter - Step Retard - Each

Universal - Soft Touch 2 Step Rev Control - 1 Stage Retard Control - Start Retard

The MSD Digital-6 Plus Ignition Control combines terrific power, digital accuracy, and great accessories making it ideal for street/strip applications. Every spark of the Digital-6 Plus Ignition is packed with 135 millijoules of spark energy and 535 primary volts.For nitrous-equipped cars, the Digital-6 Plus offers a step retard that will retard the timing when the nitrous is activated. There is also a 2-step rev limiter for holeshot consistency and overrev protection. The Digital-6 Plus accepts points, amplifier, and mag pickup inputs and will run on 4, 6, or 8 cylinder engines. The MSD Digital 6 Plus uses a high-speed RISC microcontroller to control the ignitions output while constantly analyzing the various inputs such as supply voltage, trigger signals, and rpm. The high-speed controller can make extremely quick compensations to the output voltage, multiple spark series, timing, and rpm limits while maintaining accurate timing signals to within 1anddeg; and 1 Percent of the rpm limits. The circuits and controller of the Digital 6 Plus have been thoroughly debounced and isolated to create protection against Electro-Magnetic Interference (EMI).

• 12,500 RPM with 14.4 Volts
• Adjustable magnetic pickup compensation produces accurate trigger signals.
• Switch between two rev limits that adjust with rotary switches in 100 rpm increments.
• 12-18 Volts, Negative Ground
• LED display warns of trigger signal problems or faulty charging system.
• Start retard eases pressure on the starter, flywheel and engine.
• .7 Amp per 1,000 RPM
• Single stage retard for nitrous and top end performance.
