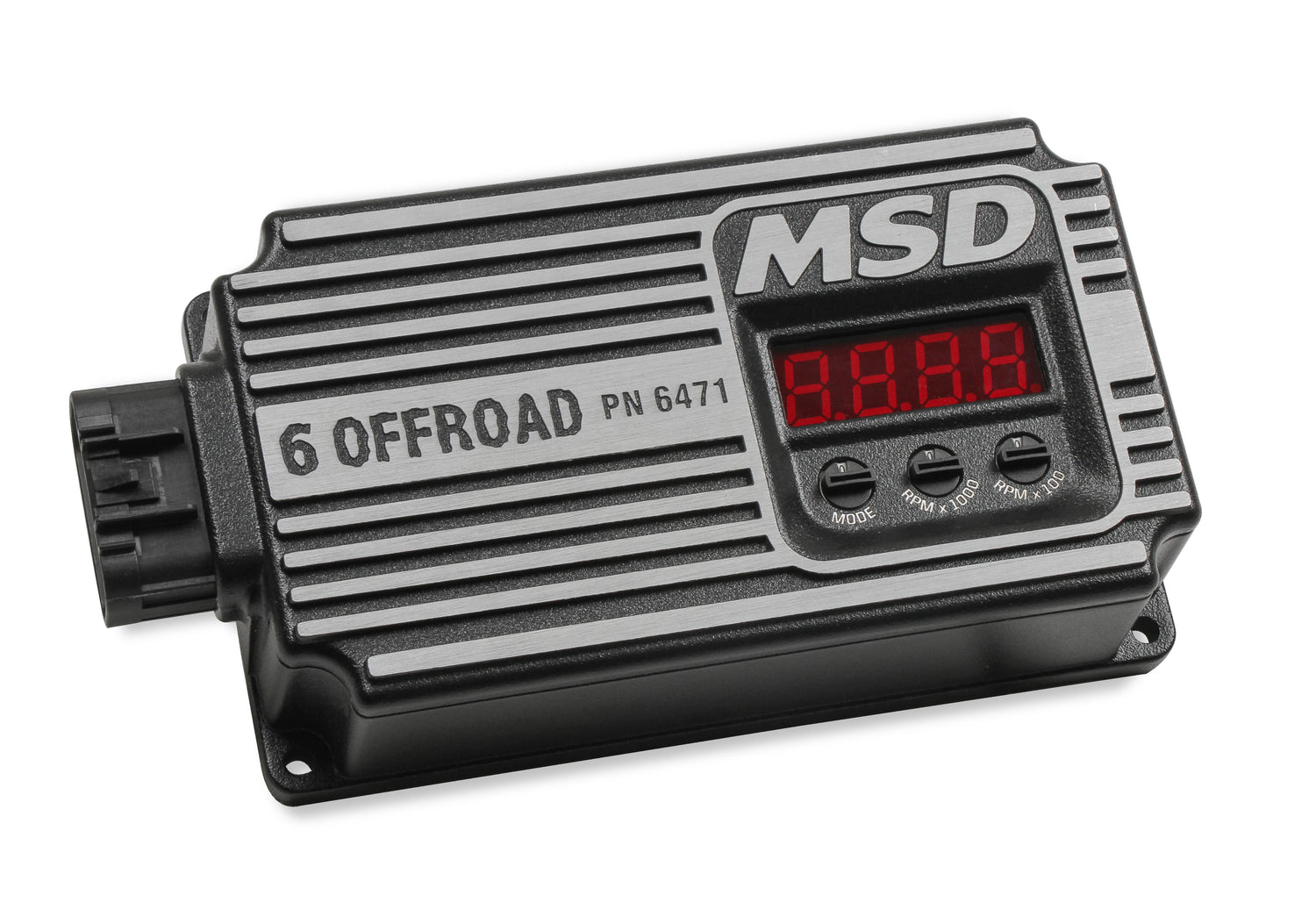

MSD 6471 - Digital 6 Offroad Ignition

MSD 6471 - Digital 6 Offroad Ignition

Ignition Box - Digital-6 OFFROAD - Digital - CD Ignition - Multi-Spark - 45000V - 2-Step Rev Limiter - Step Retard - Each

Ignition Control; Digital 6 Offroad; 12000 RPM Range; Built In Start Retard 0-20 Degree Adjustable; Black;

If youre crawling rocks, high speed desert racing, or playing in any kind of harsh terrain in your offroad rig, the MSD 6 Offorad ignition is a must. Its fully potted design provides the ruggedness and reliability needed to get your 4WD to any destination. The 6 Offroad multi-sparks below 3,000 RPM on V8s ensuring clean, crisp throttle response and complete fuel burn when crawling at low speeds. Above 3,000 RPM a powerful capacitive discharge spark keeps the fire lit until you let off the skinny pedal. A smooth, accurate rev-limiter will protect your engine from over-rev damage due to drivetrain failure or a slick spot on the trail. An easy to read LED display on the face of the unit clearly displays the rev-limit RPM. The display, in conjunction with rotary dials, is used to set the rev-limit, cylinder select, and even a timing start retard for race engines. The handy display can also show a live tach reading and even battery voltage with the quick turn of a knob.

• Rugged housing to stand up to demanding offroad and race conditions
• 0.8 Amps per 1,000 RPM

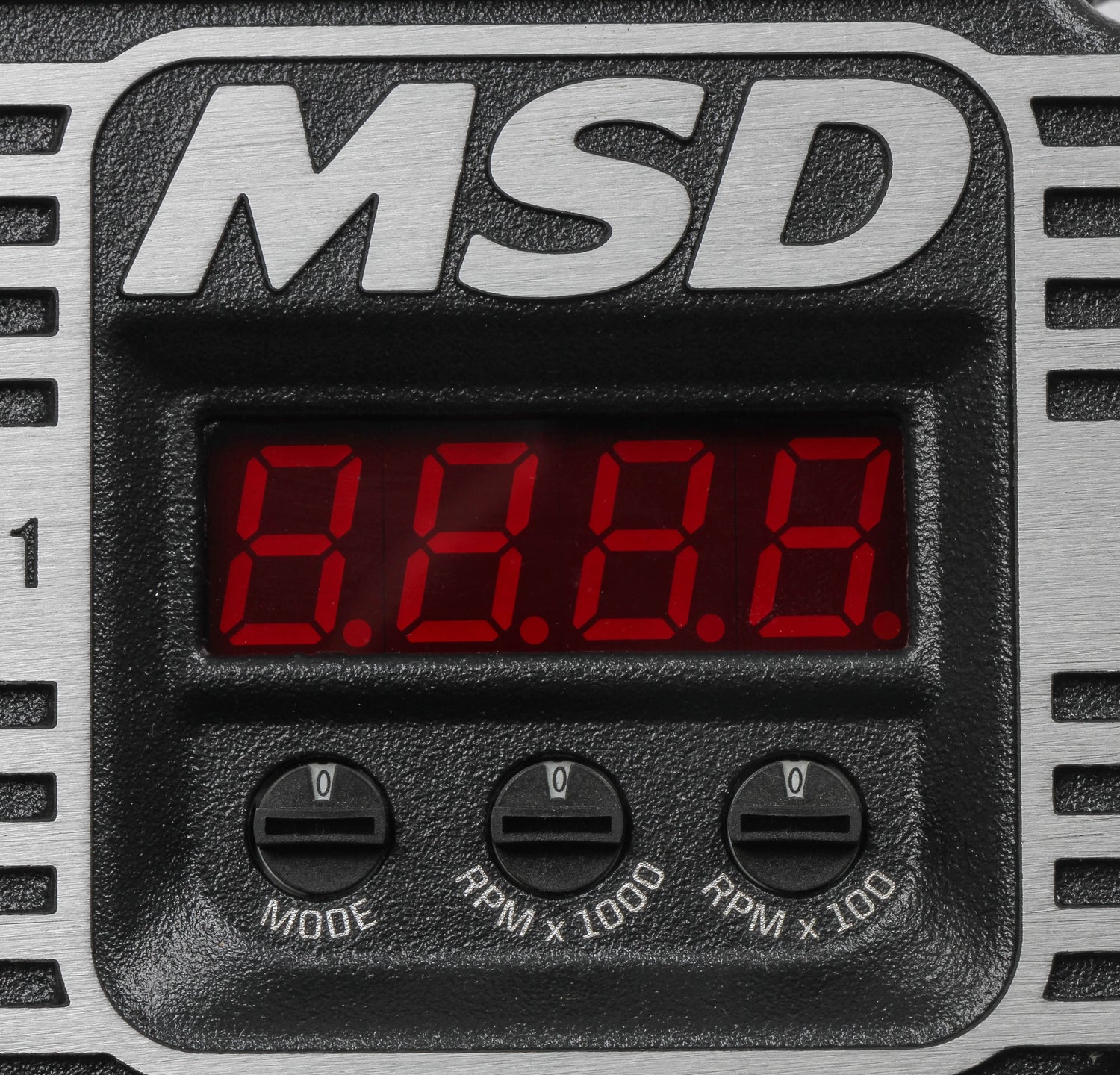

• Large, easy to read LED display
• Fully potted design provides reliability even in high vibration and wet circumstances
• Full delivery of spark energy down to 6 volts battery supply

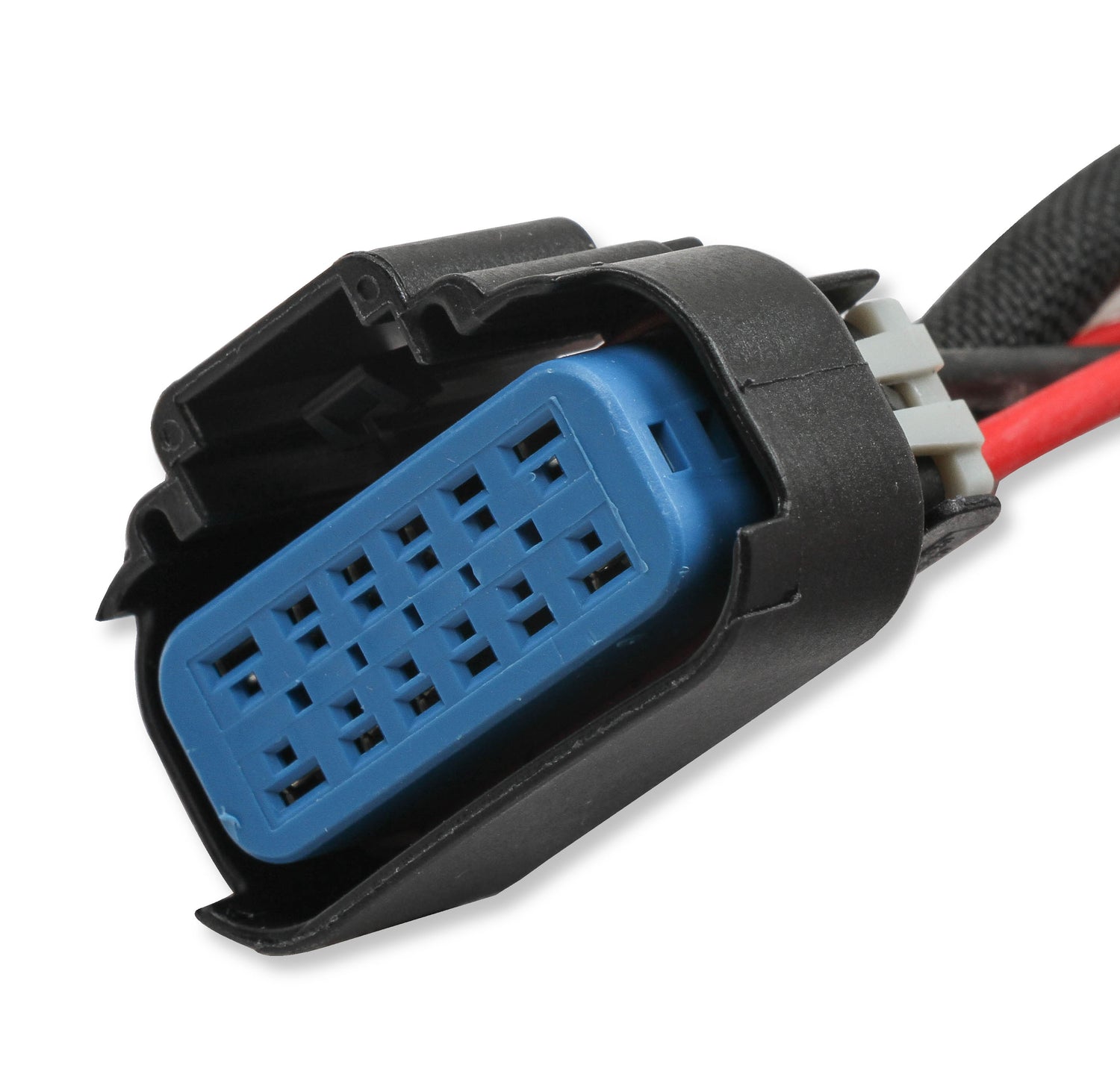

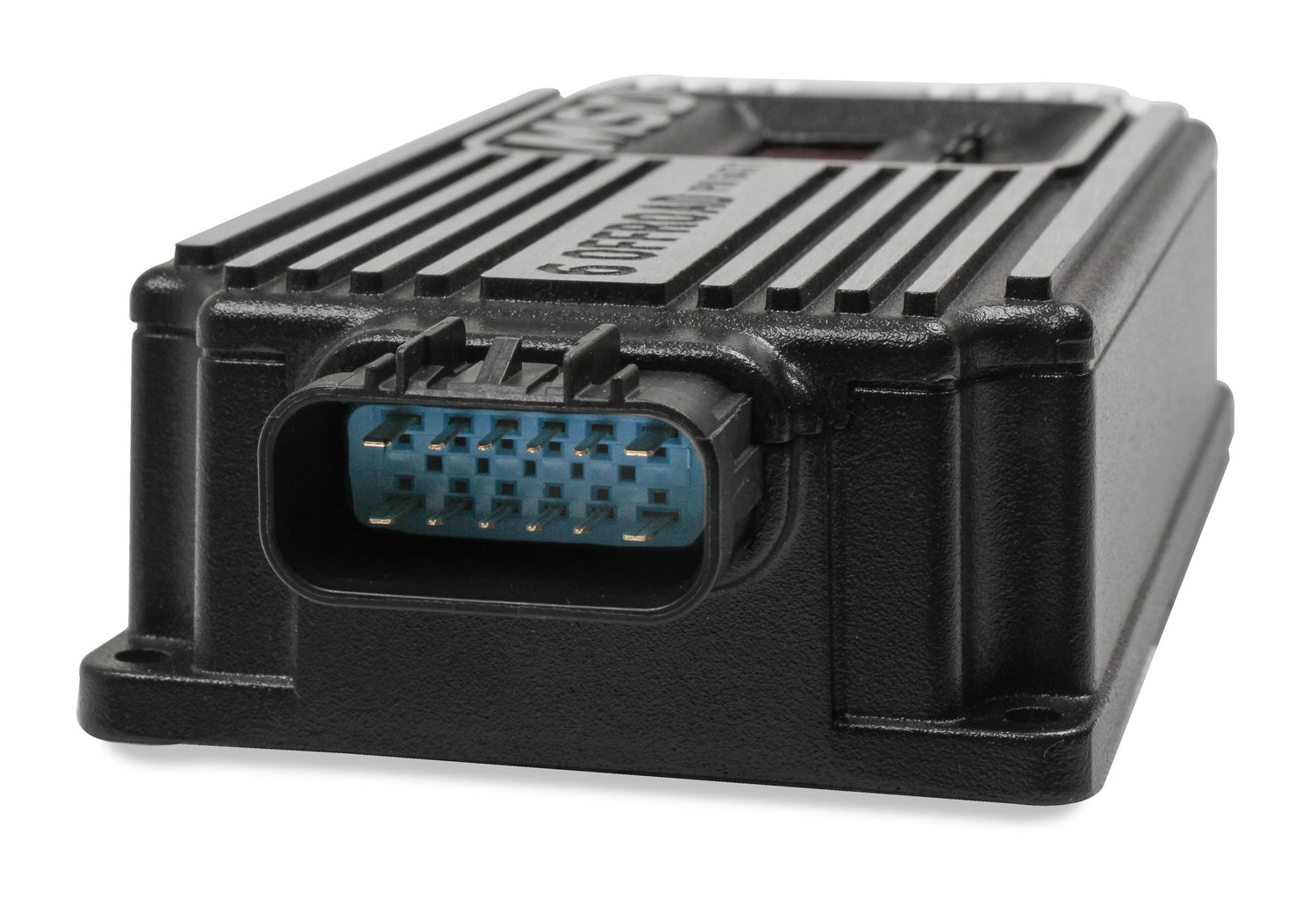

• Single plug-in connector for clean wiring
• Highly efficient, low current draw for extended battery life
• Built-in Start Retard adjustable in 0⁰, 10⁰ or 20⁰ increments for quick, easy starts and extend starter life
• LED displays rev limit, highest RMP turned, cylinder select, start retard, battery voltage and can be set to tach mode
• MSD’s smoothest rev limiter yet! Easy on your engine
• Works on 4, 6 and 8 cylinder engines
• Reverse polarity and overheat protection provide ultimate reliability
• Simple setup of features such as the rev limiter with three rotary dials on the face of the unit
• 535V w/ Blaster Coil / 550V w/ HVC Coil PN 8250
