MSD 64316 - 6AL-2 Series Multiple Spark Ignition Controller

MSD 64316 - 6AL-2 Series Multiple Spark Ignition Controller

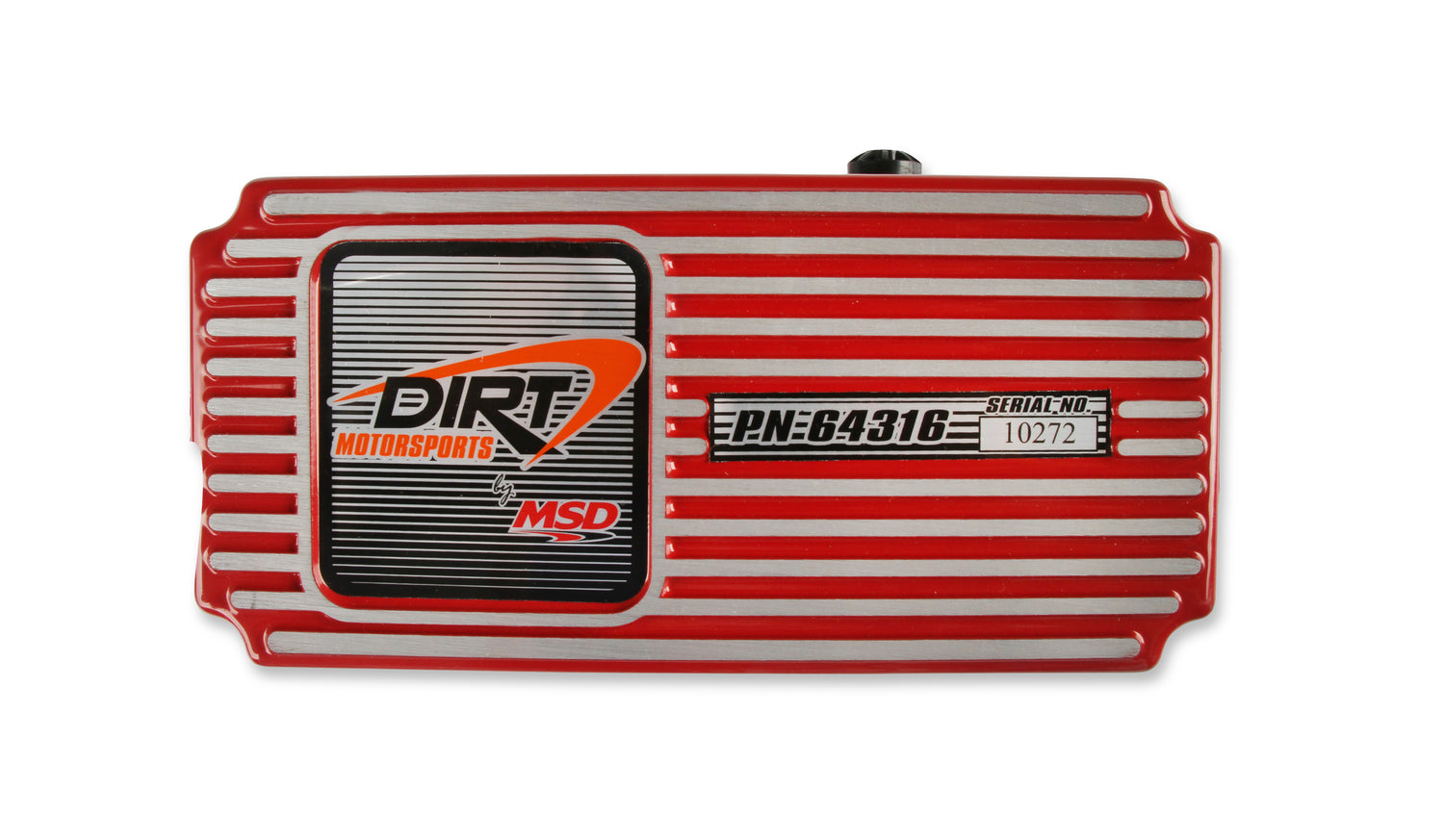

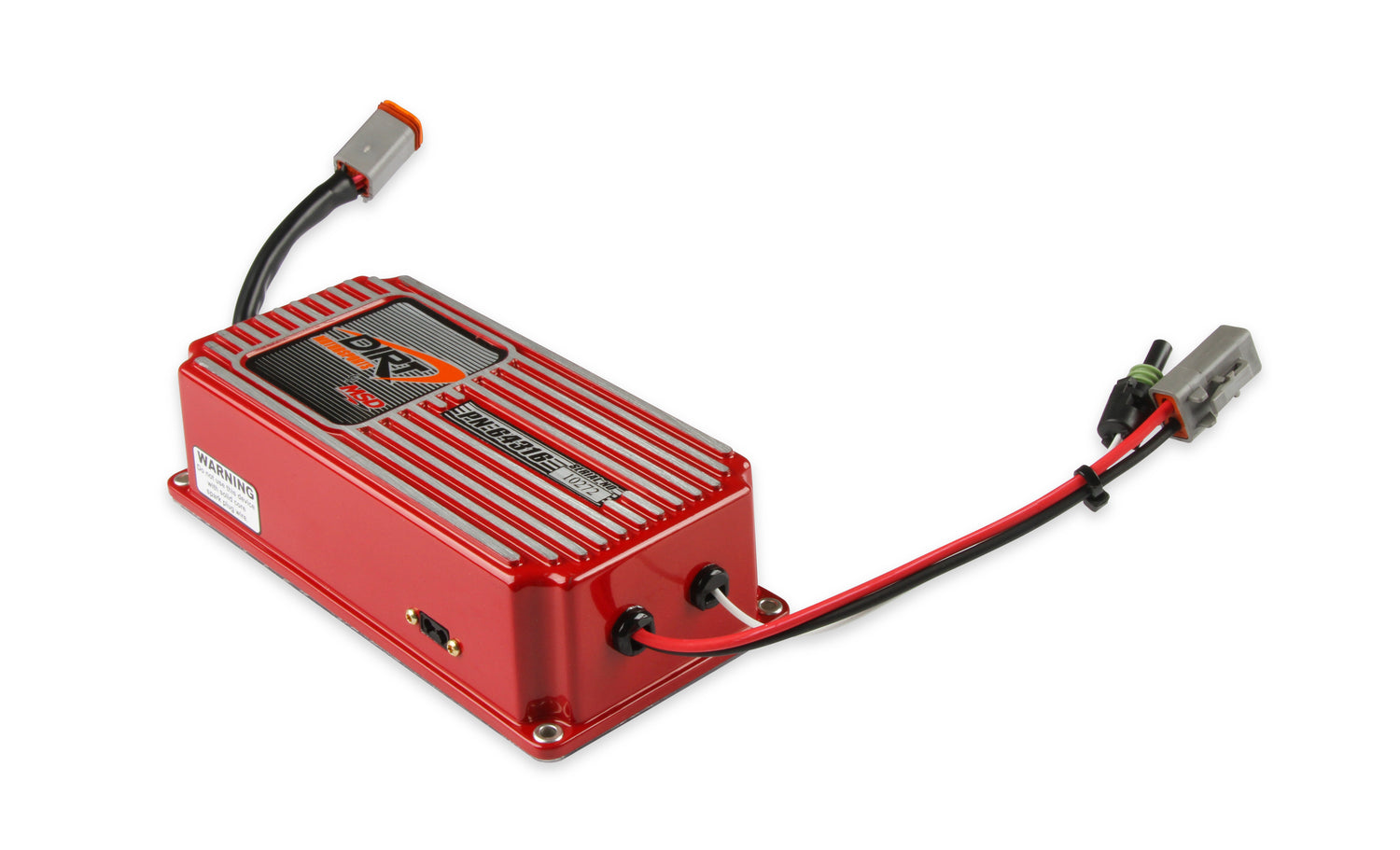

Ignition Box - Dirt Motorsports 6ALN - Analog - CD Ignition - Multi-Spark - 45000V - Rev Limiter - Weathertight Connectors - Each

Extreme duty 6ALN with fixed 7,600 RPM rev limiter can handle the harshest racing environments.

MSD is excited to announce the next generation of 6-Series ignition controls– the 6AL-2. The all new ignition control combines a new housing, new digital controls and more power in a sleek package. Inside the new cast aluminum housing you'll find an advanced micro-controller that manages the timing and rpm of the ignition. The spark output of the new box has been turned up to 535 volts of primary voltage with spark energy reaching up to 135 millijoules. The multiple sparks of the 6AL-2 burn in the cylinder for 20 degrees of crankshaft rotation to ensure complete combustion. Two more great features are the rev limits. There are two rev limiters; one for high end overrev protection and another you can activate off a clutch or transbrake to set a launch limit. This feature will help your car blast off the starting line. Adjustments are made via four rotary dials for 100 rpm increment control. The all new capacitive discharge ignition will easily connect to nearly any 12-volt negative ground distributor system.

• Clear plastic base plate for easy tech inspection

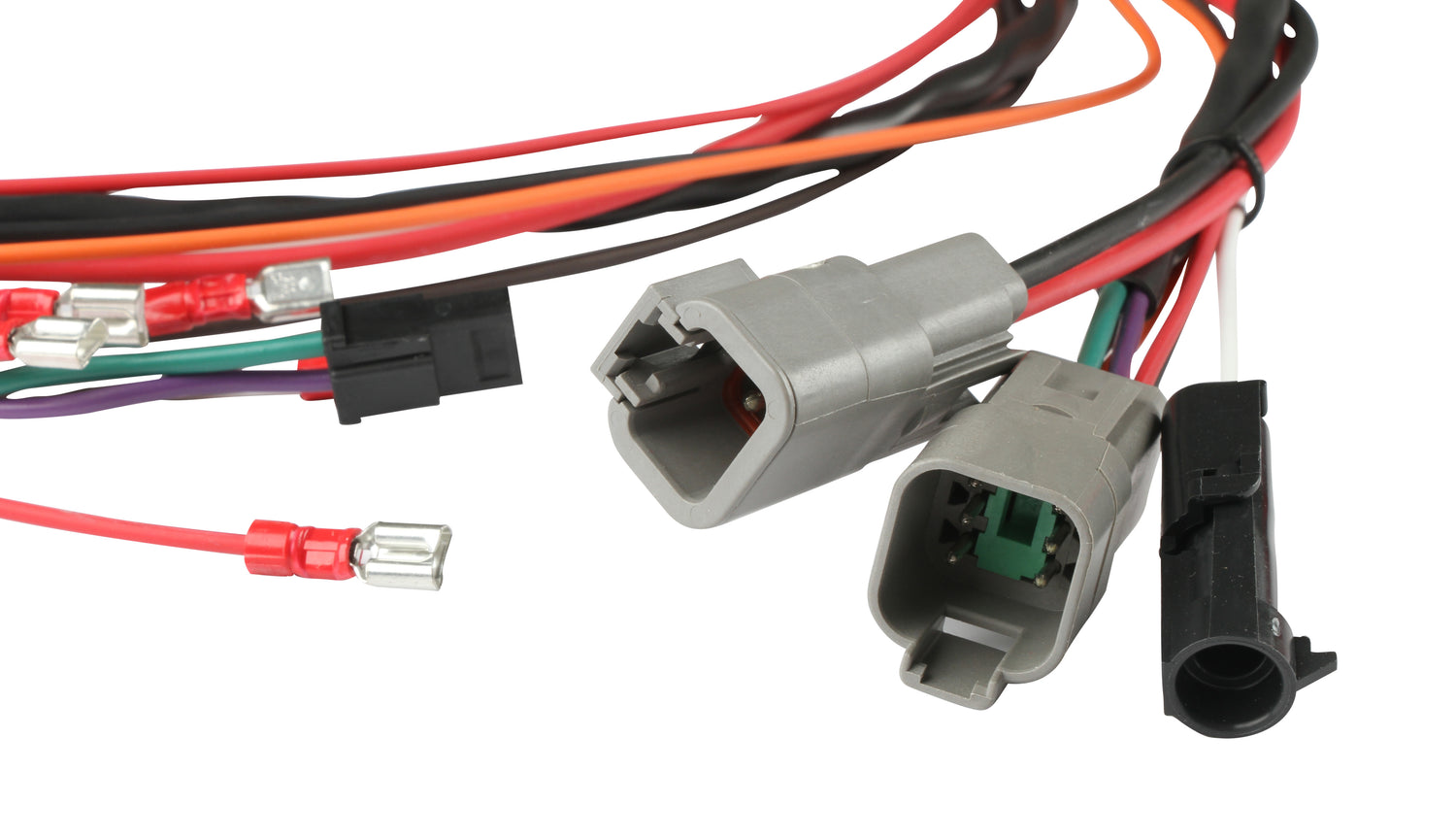

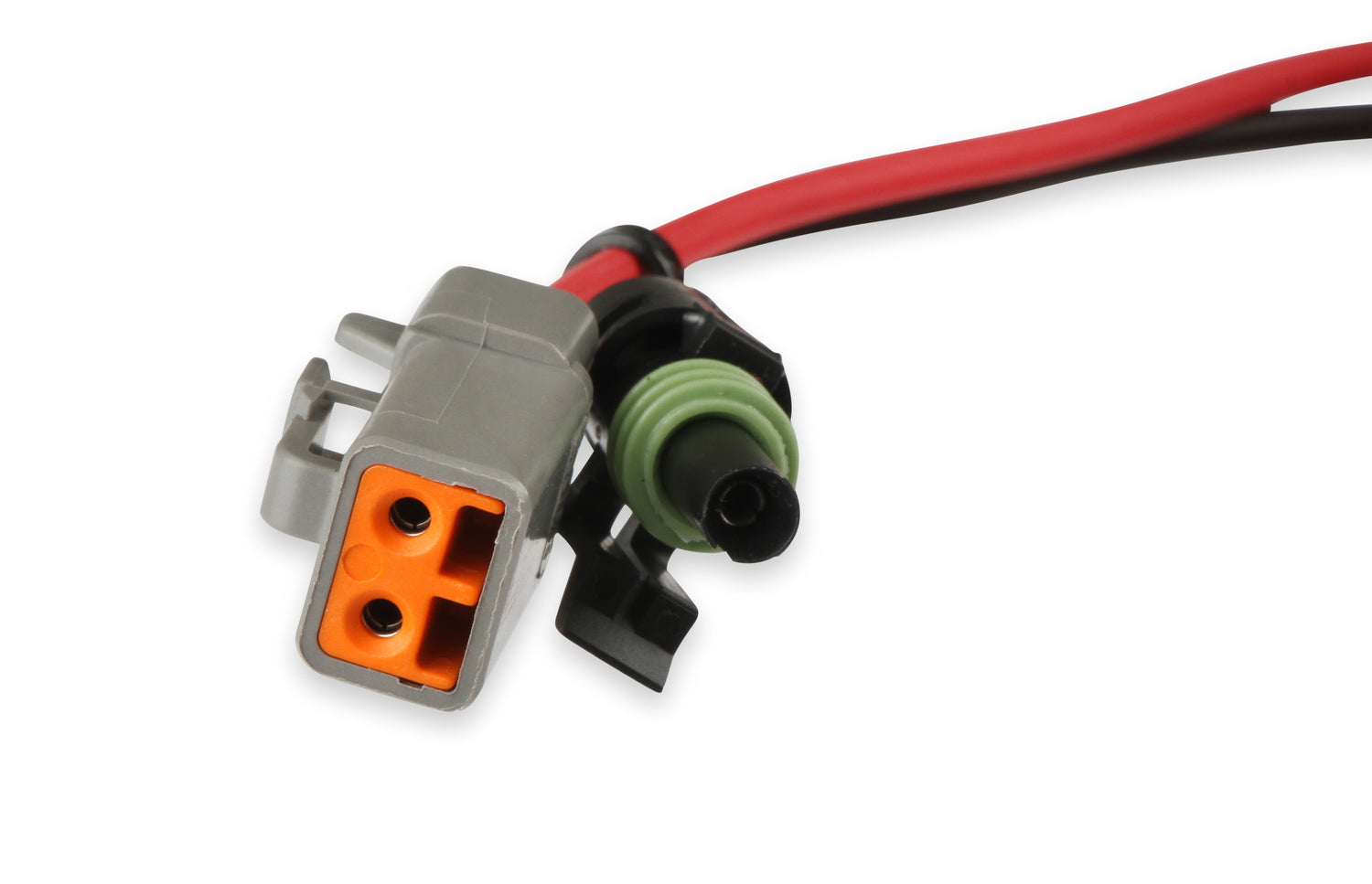

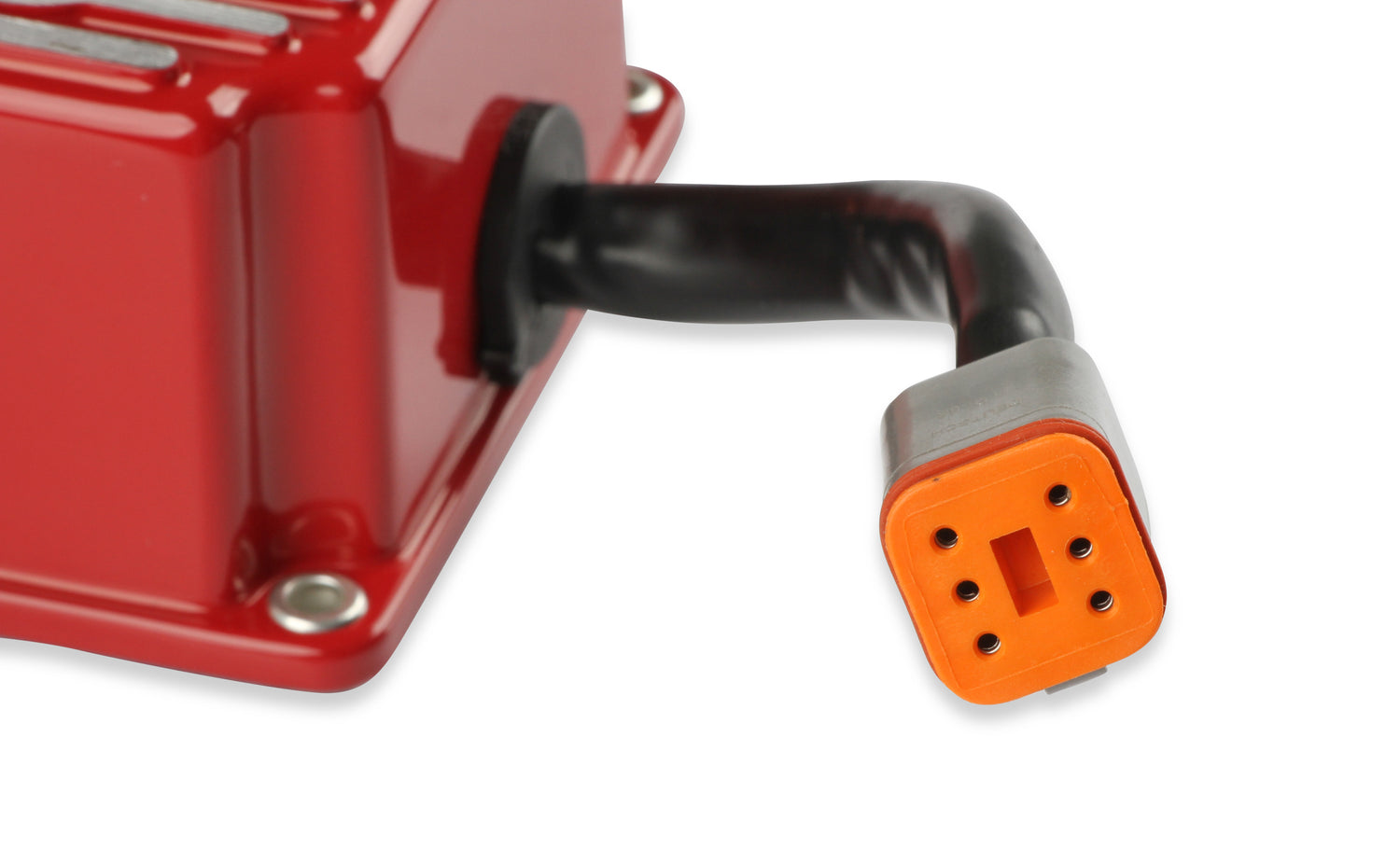

• 6-pin Weathertight connector, mandatory for NASCAR use
• 110 millijoules per spark up to 15,000 RPM
• Designed for circle track racing with NASCAR mandated connectors and clear epoxy potting compound for vibration protection

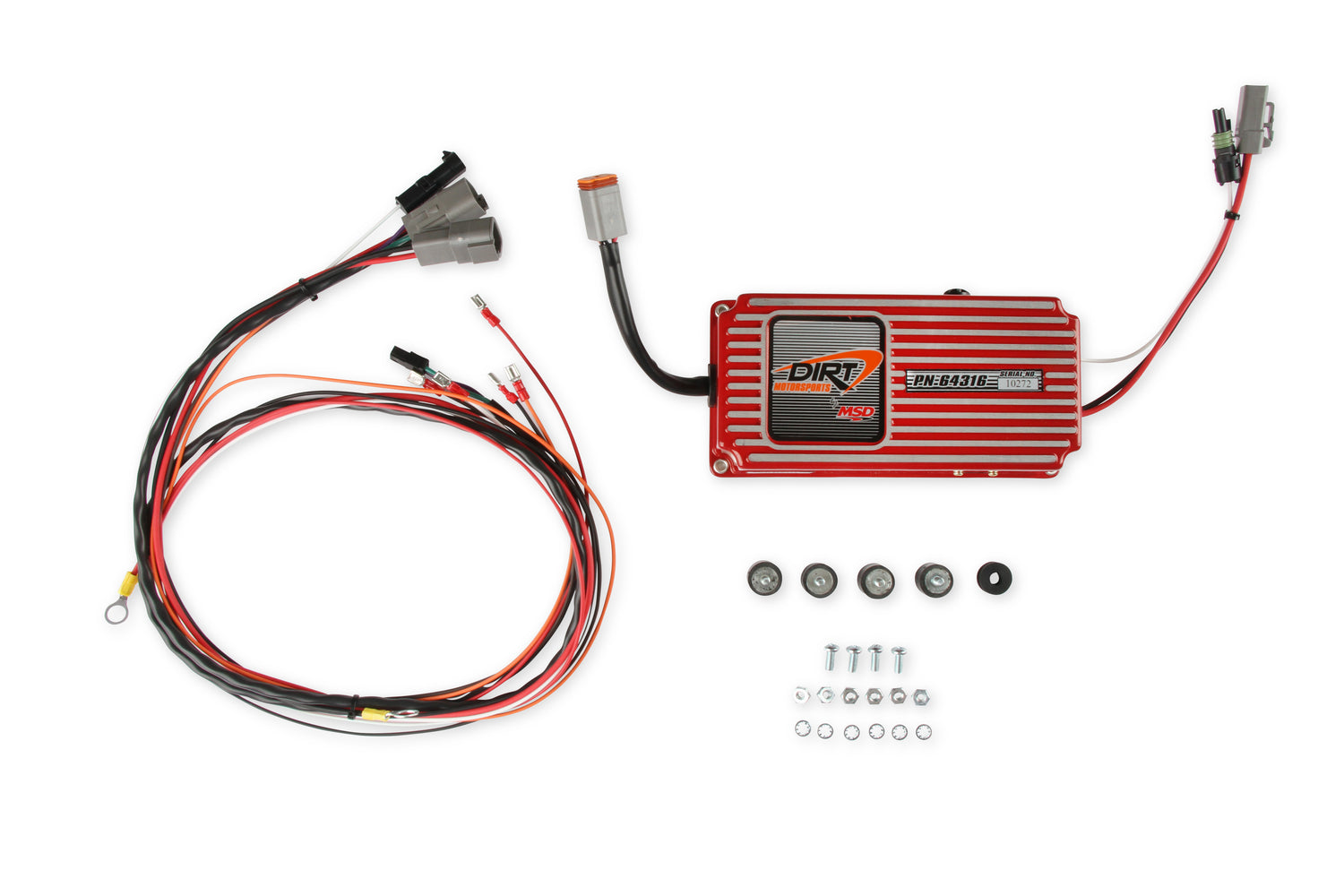

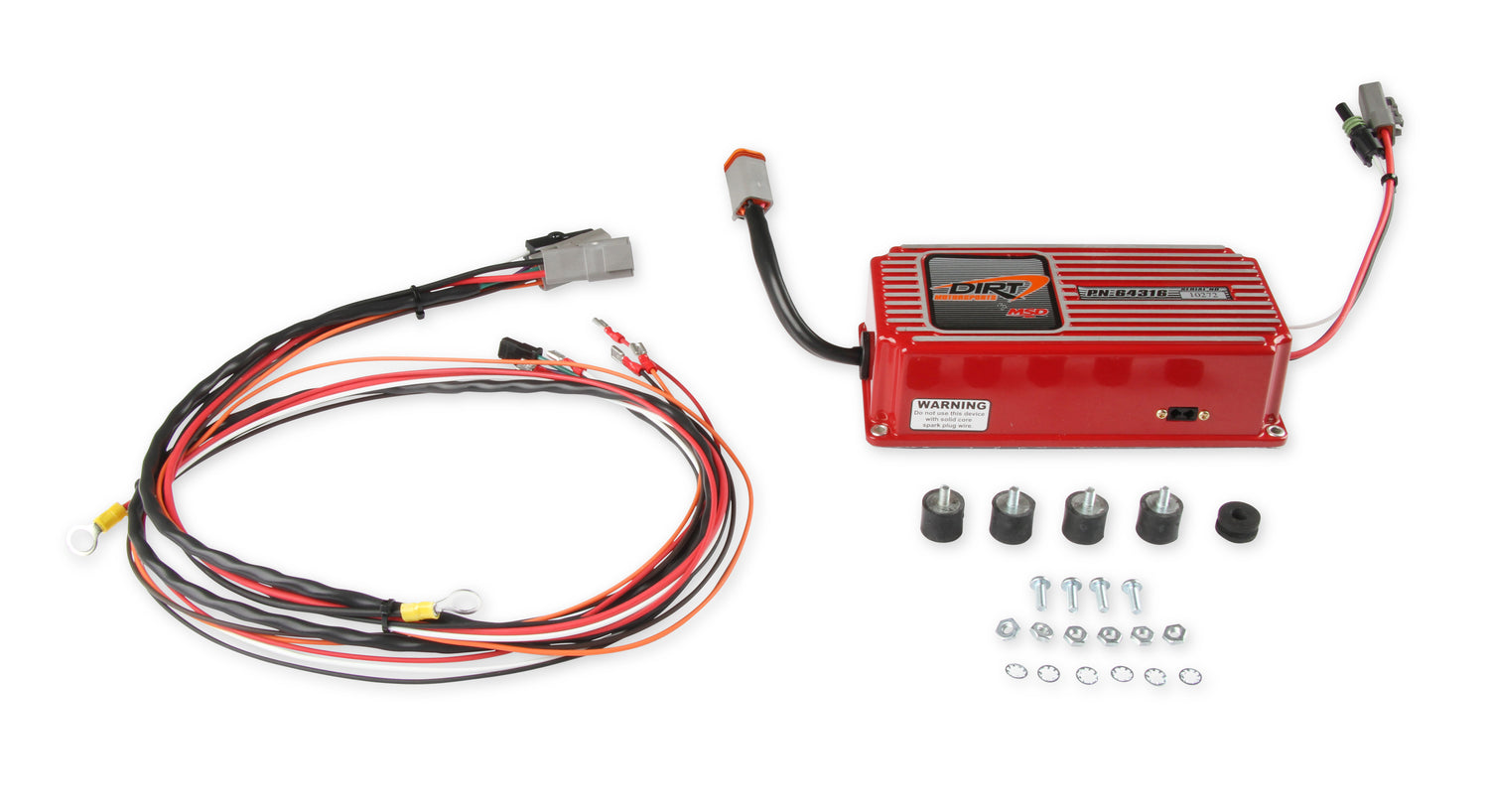

• Supplied with rubber shock mounts
• Built-in Soft Touch Rev Control is fixed to 7,600 RPM
• 470 primary voltage output to coil
• Accepts breaker points, amplifier and magnetic pickup trigger inputs
• Multiple spark, capacitive discharge ignition control
• Works on 12 - 18 volt electrical system
• Multiple sparks for 20 degrees of crankshaft rotation
• Programmable for 4, 6, or 8-cylinders by cutting red/blue wire loops
• Circuit board is encased in a clear two part silicone elastomer
