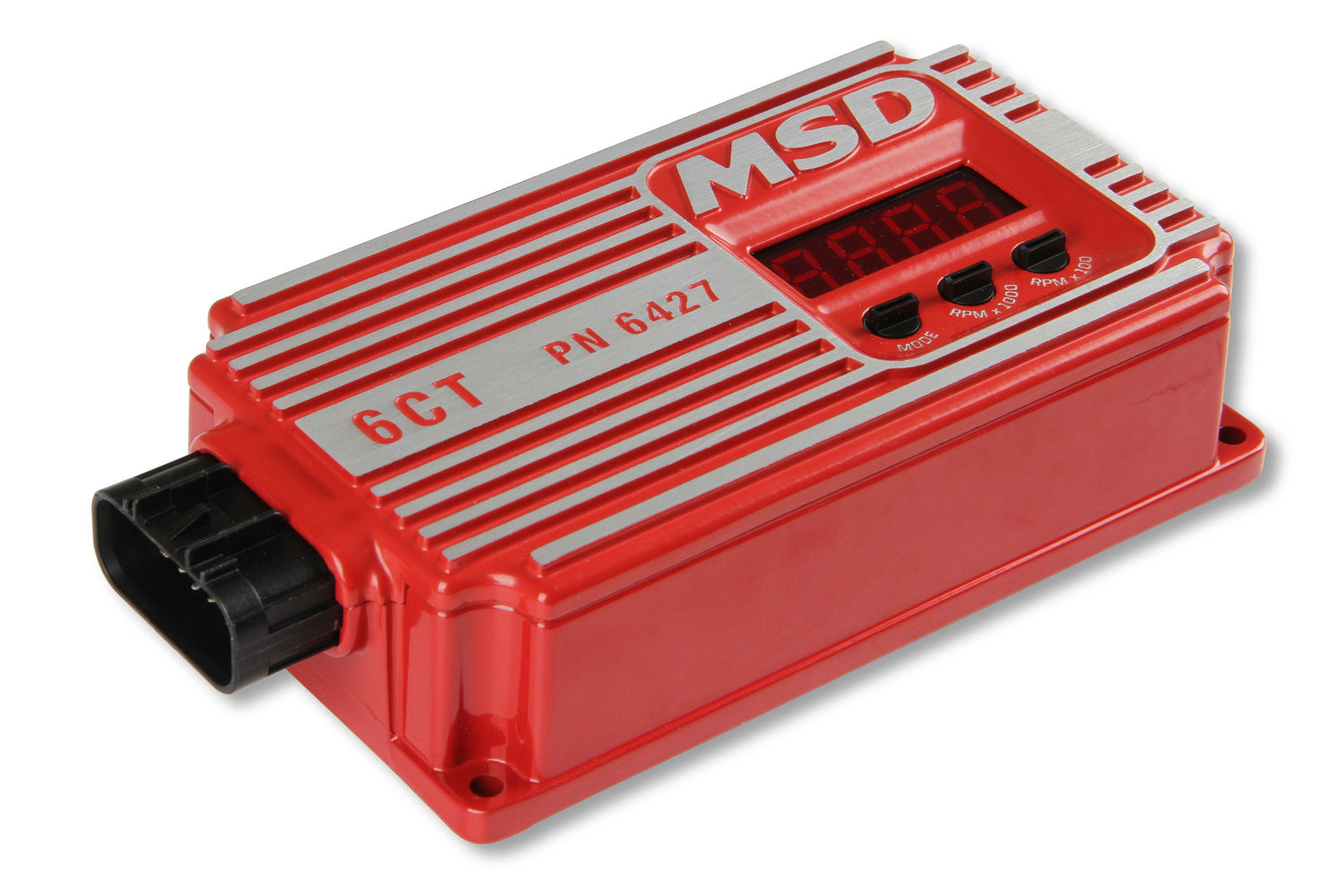

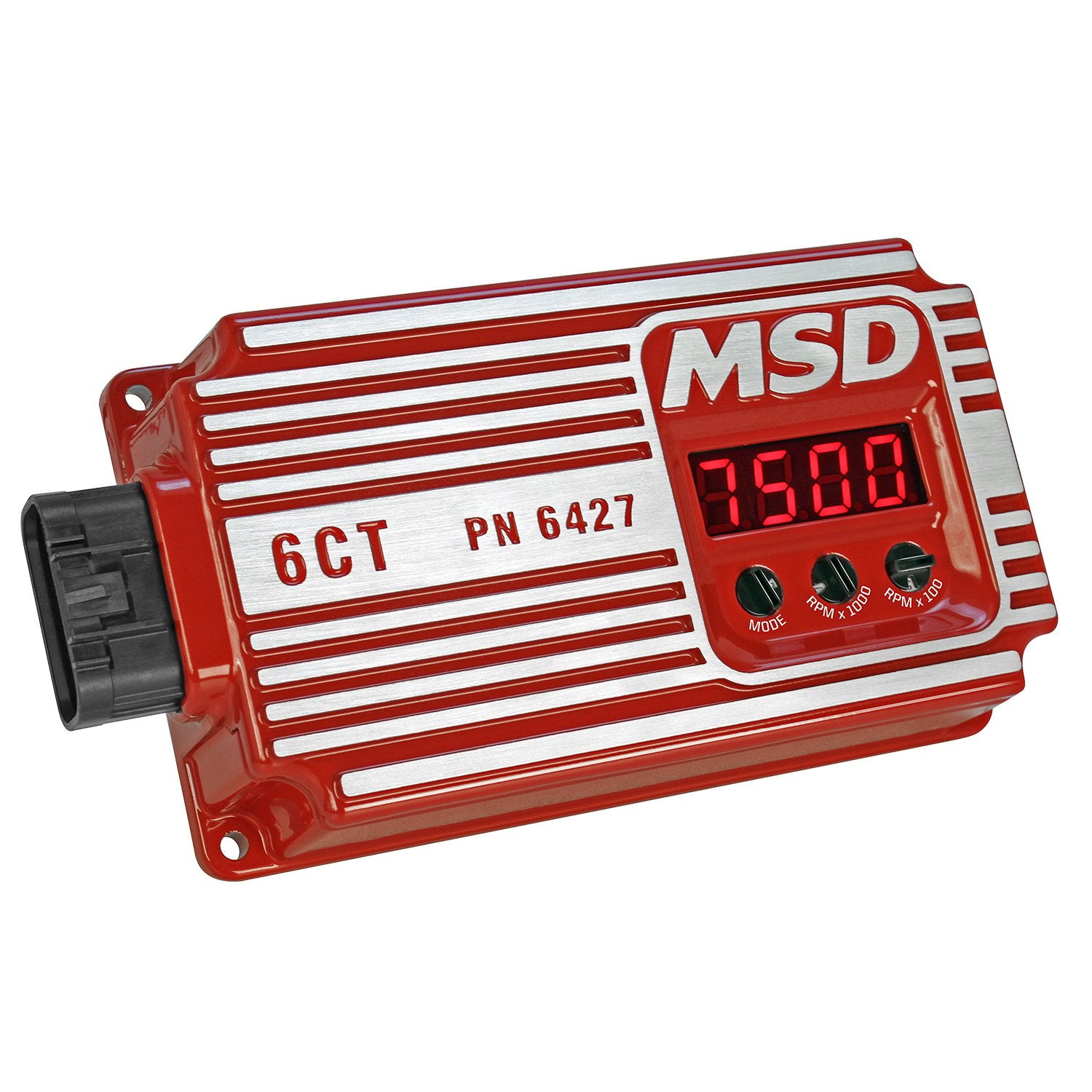

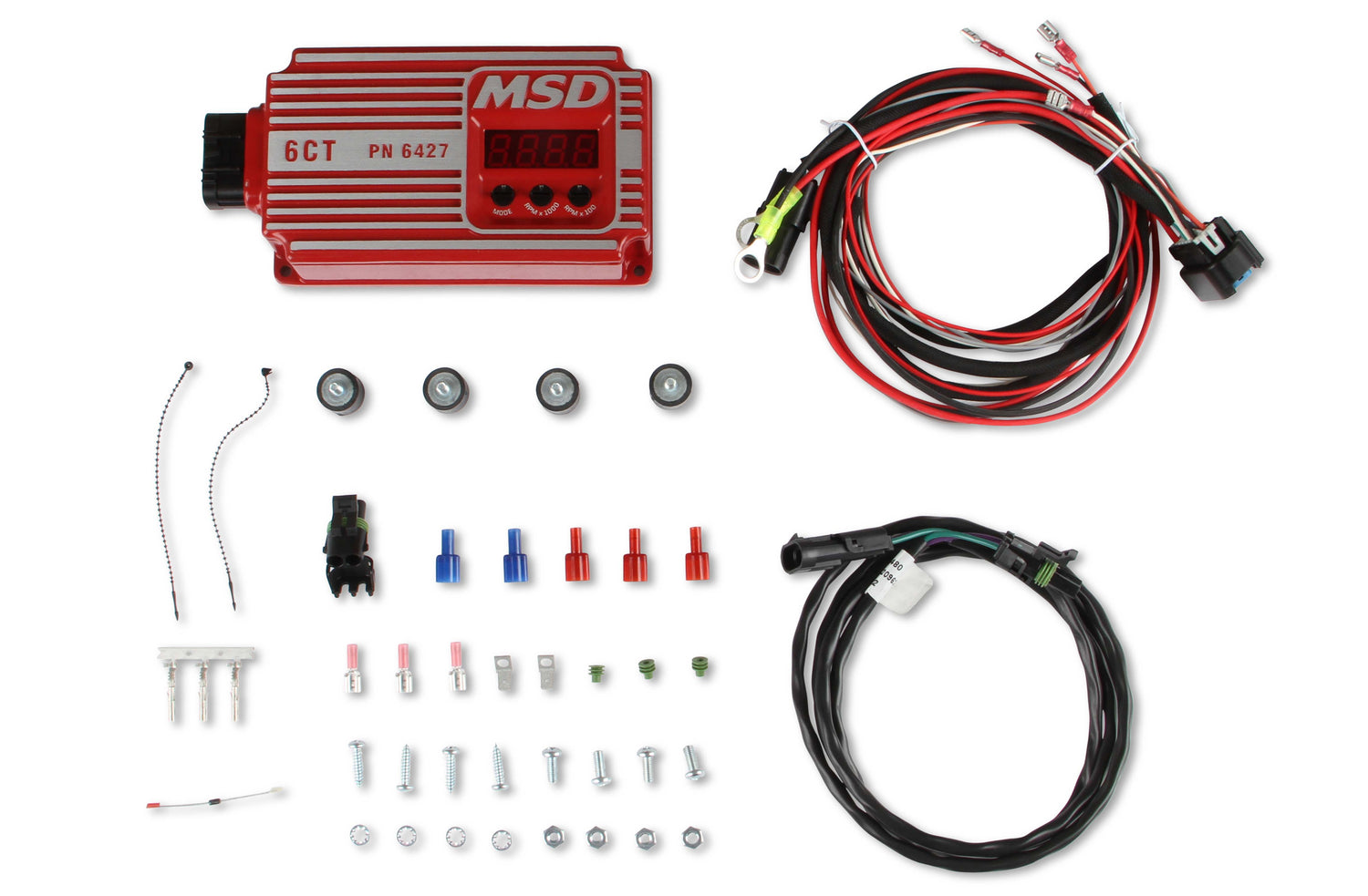

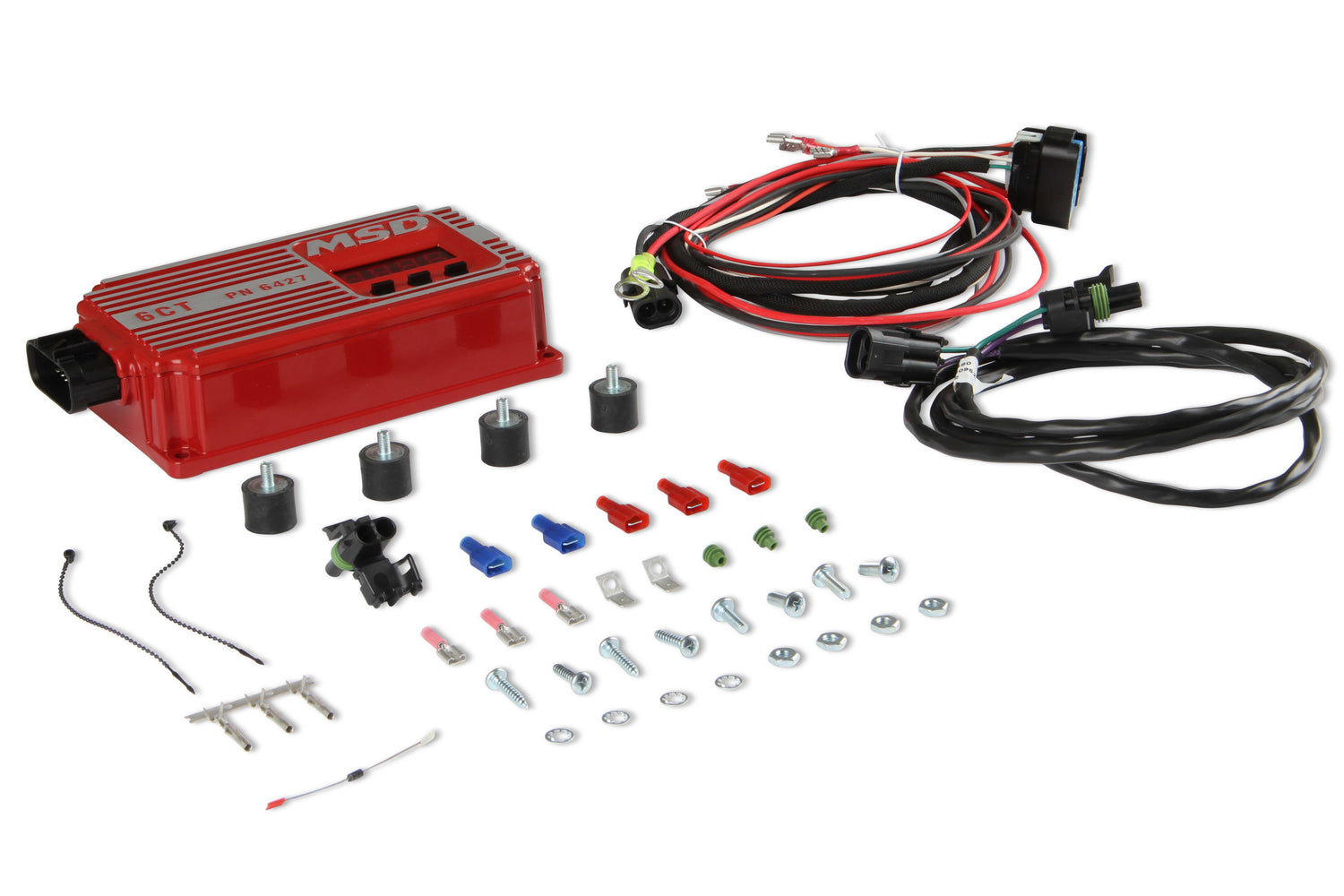

MSD 6427 - 6CT Series Circle Track Ignition Controller

MSD 6427 - 6CT Series Circle Track Ignition Controller

Ignition Box - 6CT - Digital - CD Ignition - Multi-Spark - 45000V - Rev Limiter - Red - Each

6CT Series Circle Track Ignition Controller; Built-In Start Retard; 0/10/20 Degree Increments; LED Display; Works On 4/6/8 Cyl. Engines; Single Plug-In Connector; Universal;

Superior design makes the 6CT Circle Track Ignition Control unit the most advanced and durable ignition to ever hit a circle track. Packed with legendary MSD Ignition power, the 6CT offers a slew of features. A large digital LED display makes it easier than ever to see the rev limiter setting when dialing it in using the laser etched rotary dials on the face of the unit. Rev limiting is controlled via microprocessor making it so smooth the chassis is virtually undisturbed when charging into turns. The rotary dials are also used to set cylinder select for 4, 6, and 8 cylinder engines, and to adjust the built-in start retard providing options of 0 Degree, 10 Degree or 20 Degree of timing retard for quick starts. As an added bonus the LED display can be used as a live tach or will display your racecars battery voltage. The unit records the highest RPM your engine turned during the race which can be easily recalled on the LED display as well. The 6CT offers all this and more in an epoxy filled, cast aluminum housing to prevent damage to the circuit board. Its rugged build make is ideal to handle the rigors of dirt track racing while its advanced digital control make it reliable for countless laps around the track. Its finished off with a single sealed connector to keep wiring dry and tidy.

• 0.8 Amps per 1,000 RPM
• Reverse polarity and overheat protection provide ultimate reliability
• Works on 4, 6 and 8 cylinder engines
• Full delivery of spark energy down to 6 volts battery supply
• Built-in Start Retard adjustable in 0⁰, 10⁰ or 20⁰ increments for quick, easy starts and extend starter life
• Highly efficient, low current draw for extended battery life
• MSD’s smoothest rev limiter yet! Won’t upset the chassis and easy on parts

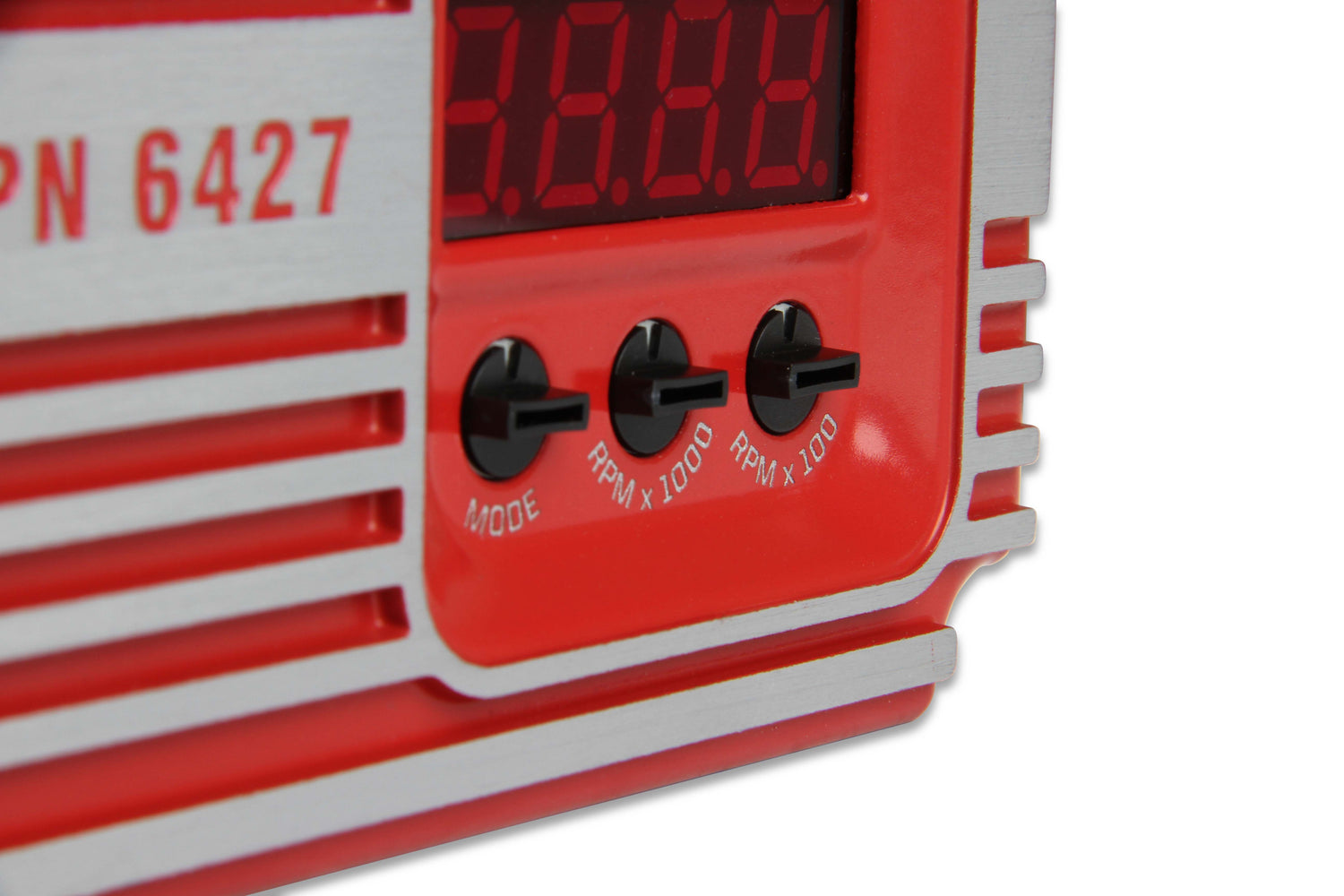

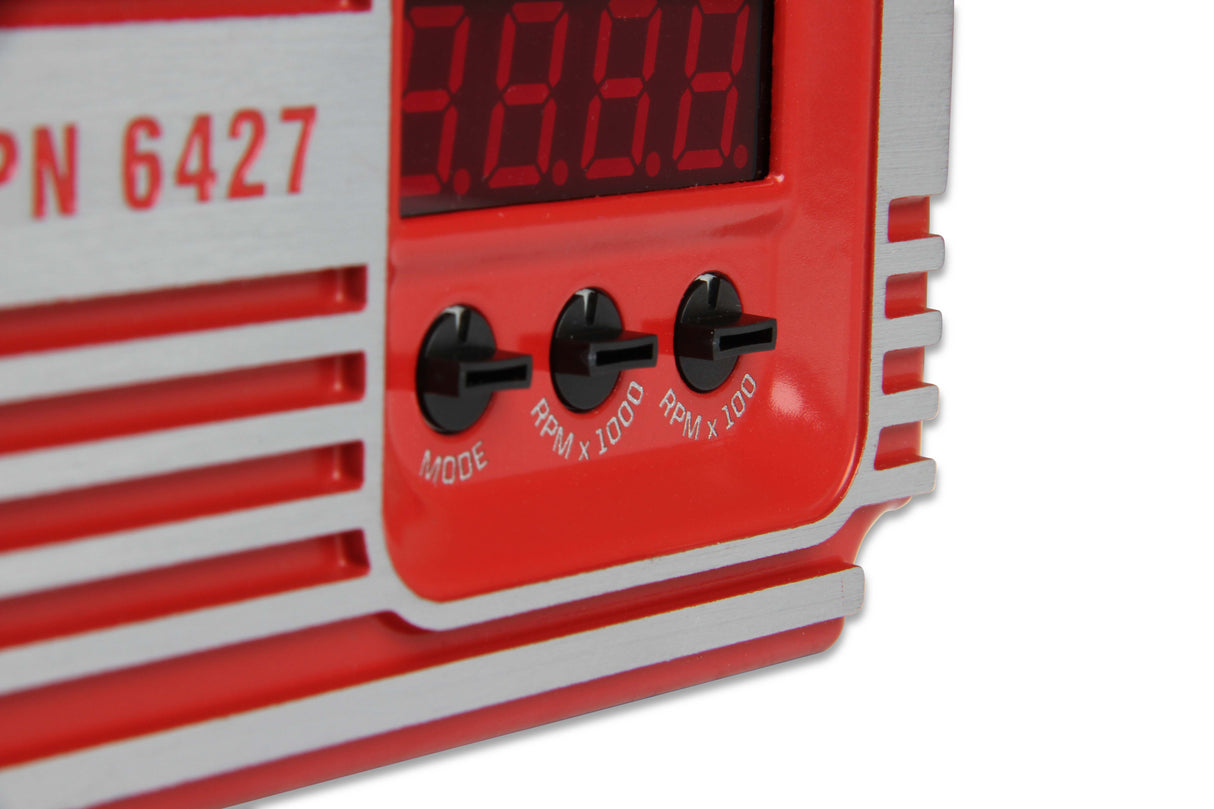

• Simple setup of features such as the rev limiter with three rotary dials on the face of the unit
• 535V w/ Blaster Coil / 550V w/ HVC Coil PN 8250

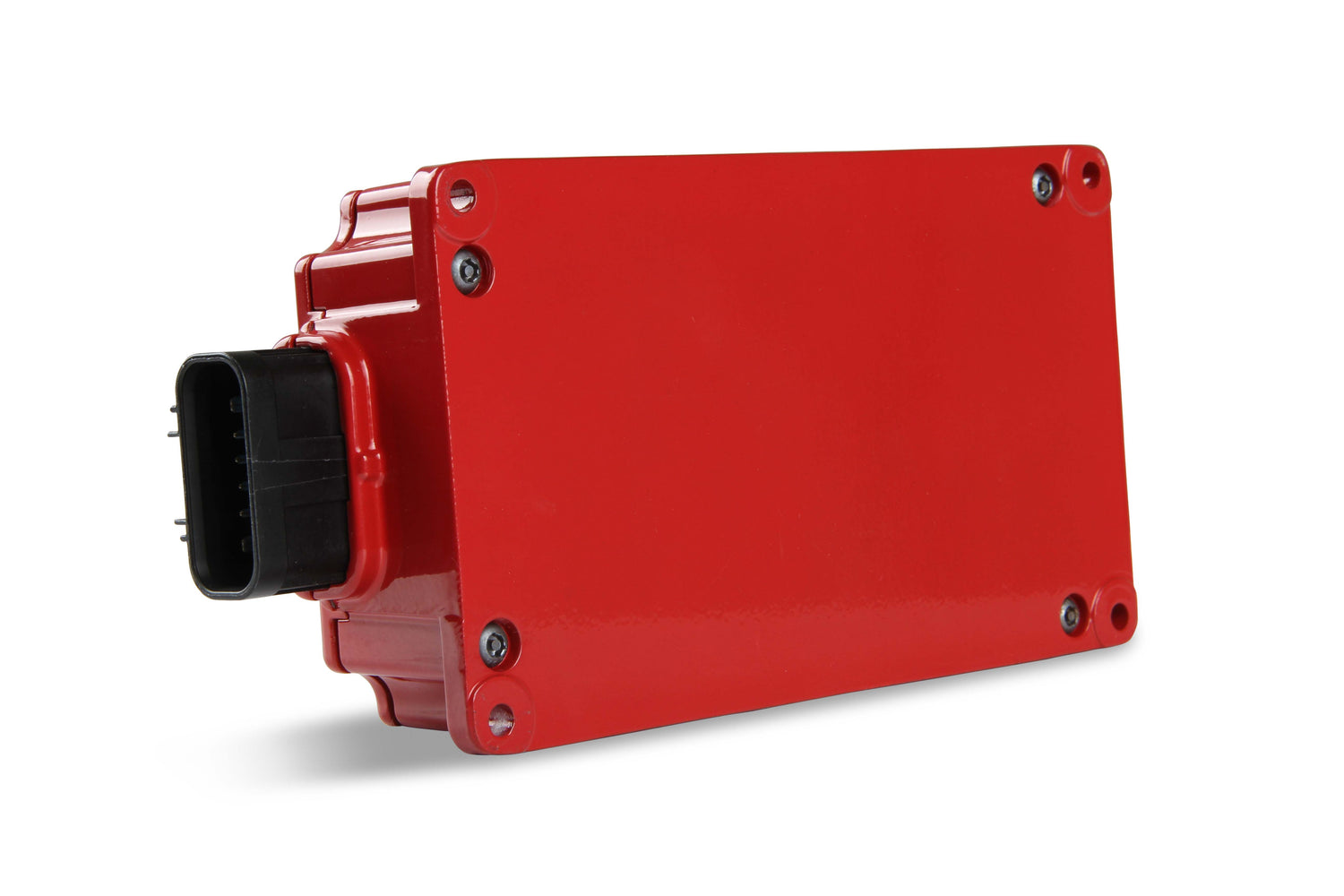

• Rugged built, epoxy filled housing protects the circuit board to stand up to demanding race conditions
• LED displays rev limit, highest RMP turned, cylinder select, start retard, battery voltage and can be set to tach mode
• Records highest RPM the engine turned for last 20 minutes of run time
• Tamper proof screws to prevent modification of unit

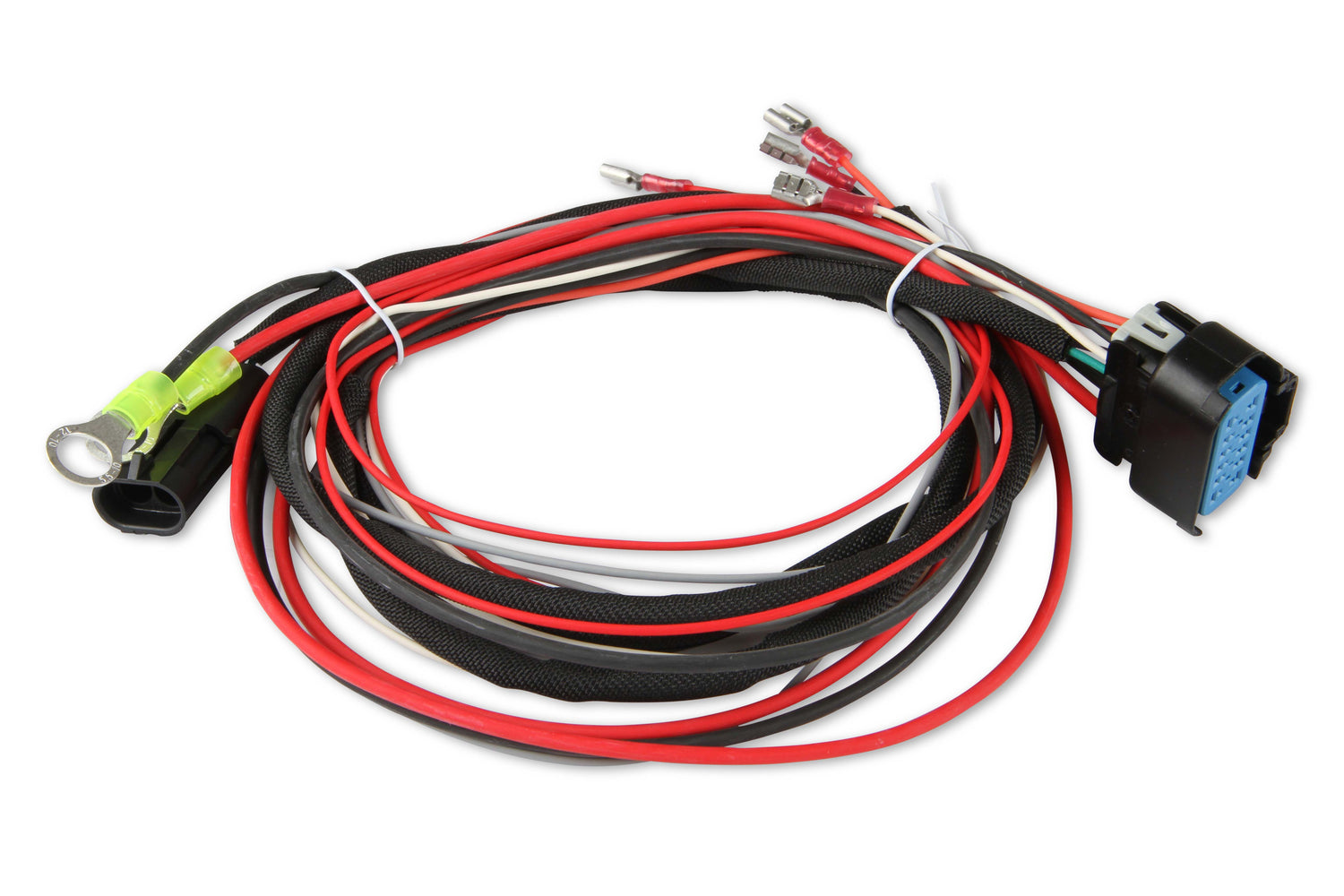

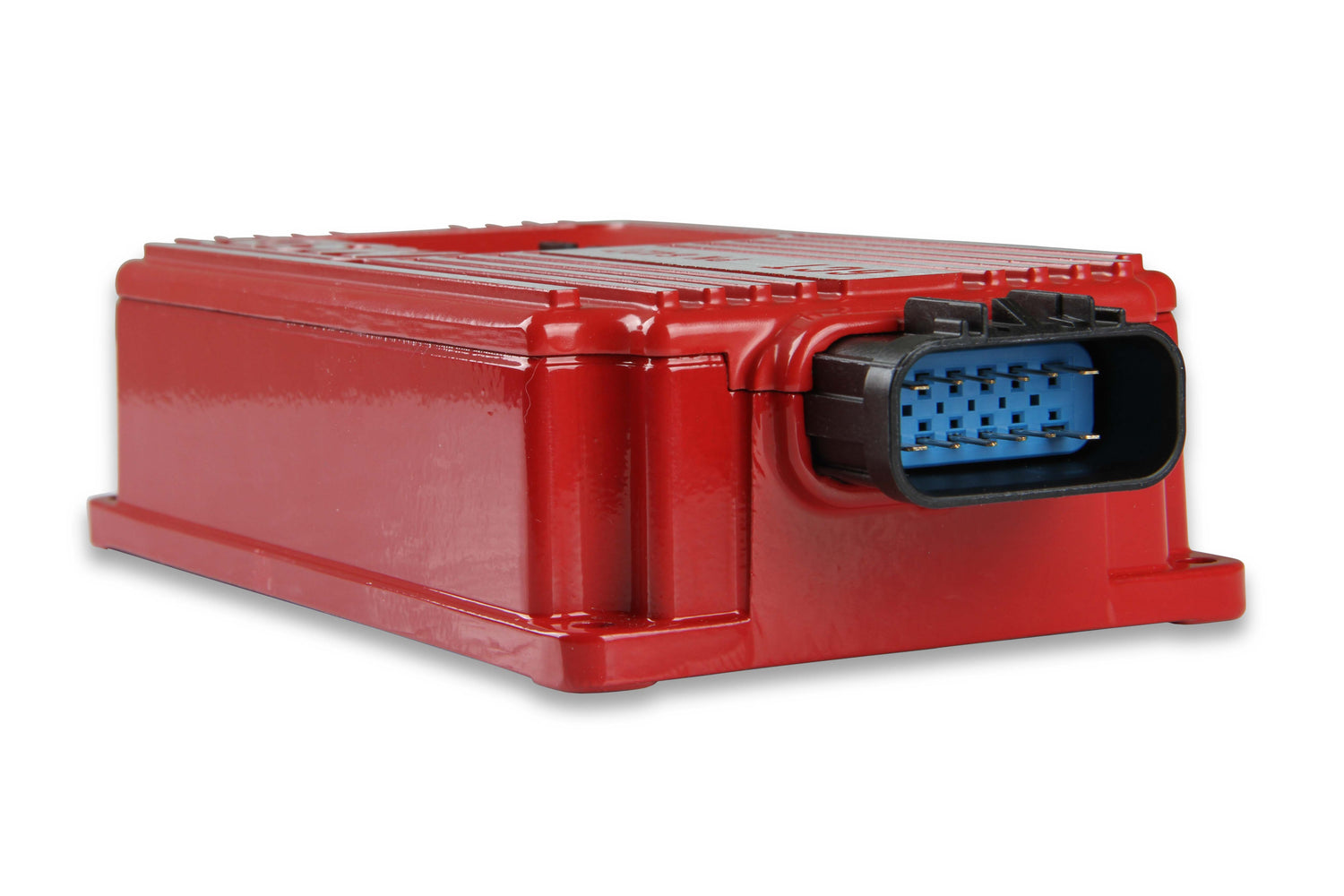

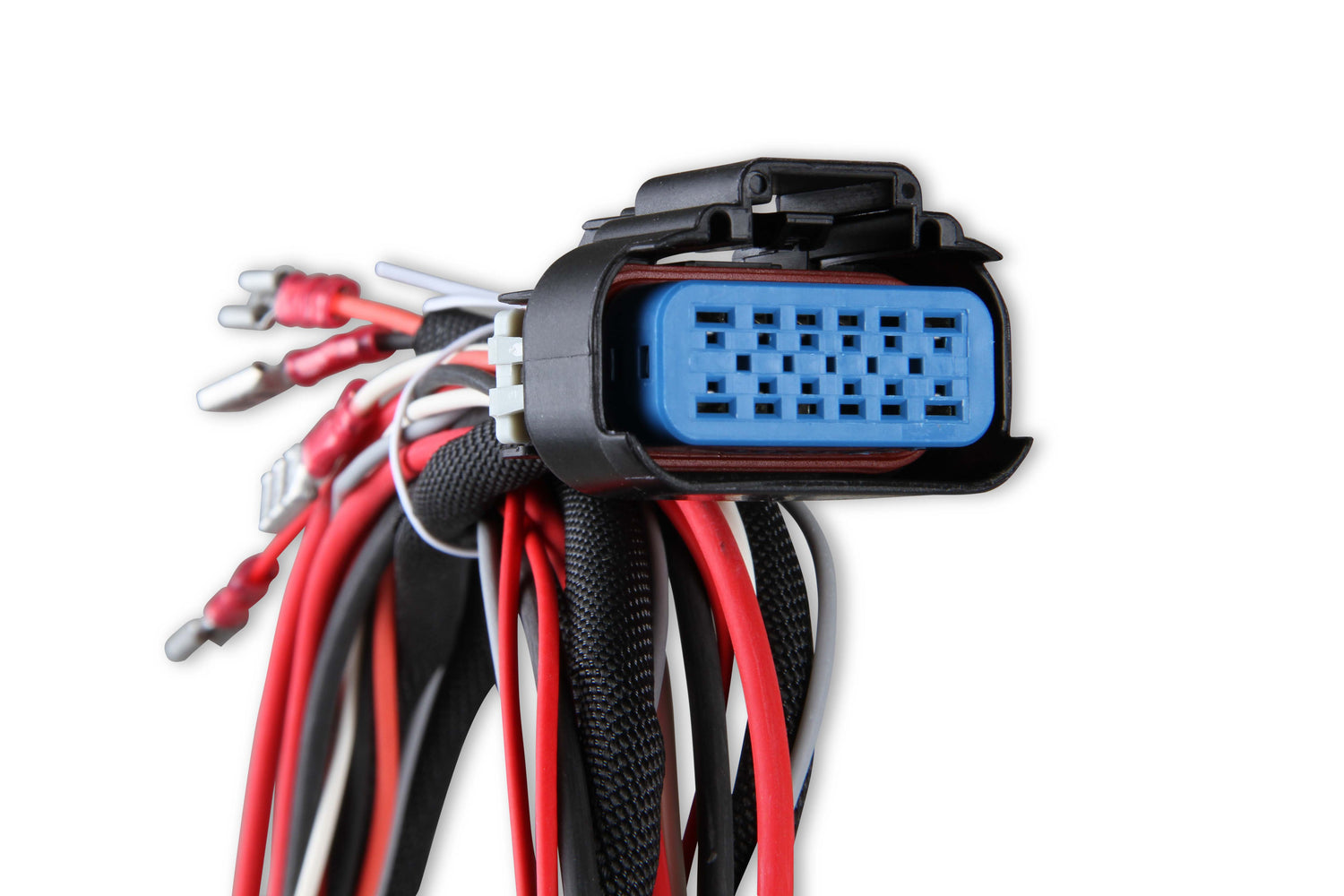

• Single plug-in connector for clean wiring

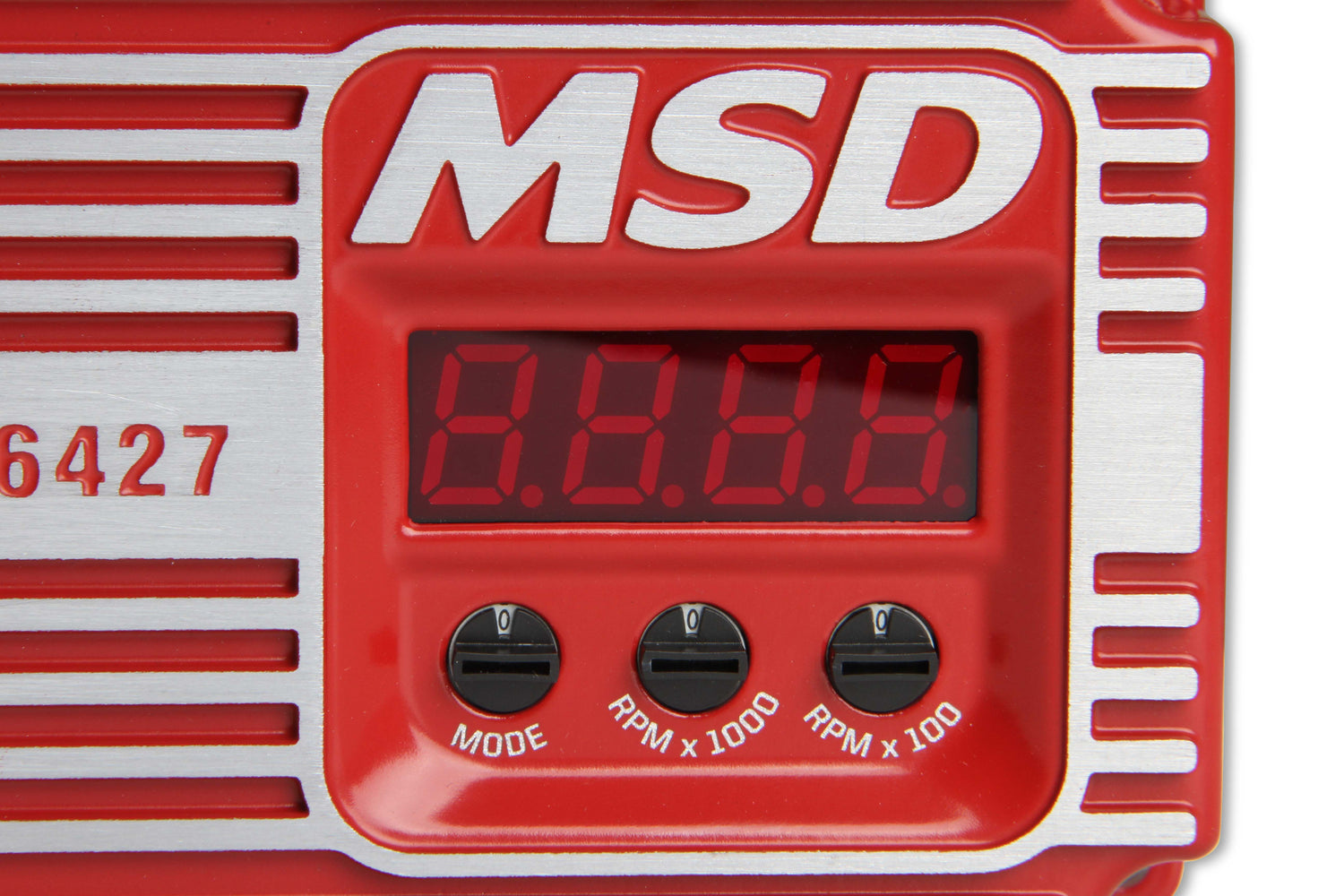

• Large, easy to read LED display
