Mr. Gasket 40100G - Waterproof Relay 30 Amp

Mr. Gasket 40100G - Waterproof Relay 30 Amp

Mr. Gasket Waterproof Relay 30 Amp

Waterproof Relay; 12V DC/30 Amp Continuous/40 Amp Momentary; 7 in. Long Wiring Pigtail;

Mr. Gasket waterproof relays are ideal for use on electric fuel pumps, water pumps, cooling fans, off-road lights, and any other application that is exposed to muddy or wet conditions. This relay handles 40 amps momentary and 30 amps for continuous use. The pigtail harness has 7 inch long leads with heavy-duty 12 & 18 gauge wire. The connector has the wires molded-in rubber and a gasket for a leak-proof seal. Ideal for use on marine applications and vehicles that are power-washed out (Jeeps, 4x4 Trucks, UTV's, and dirt track race cars).

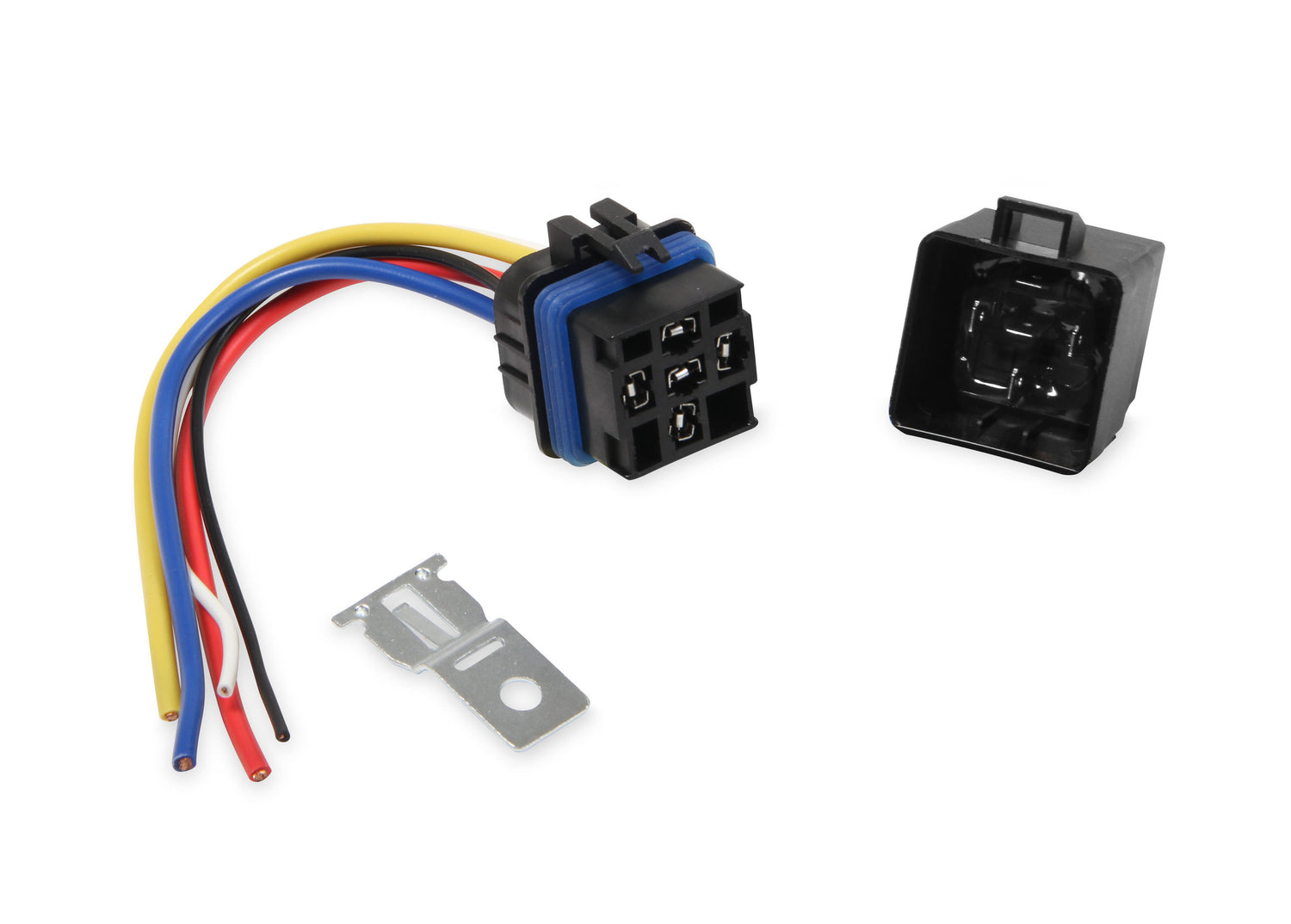

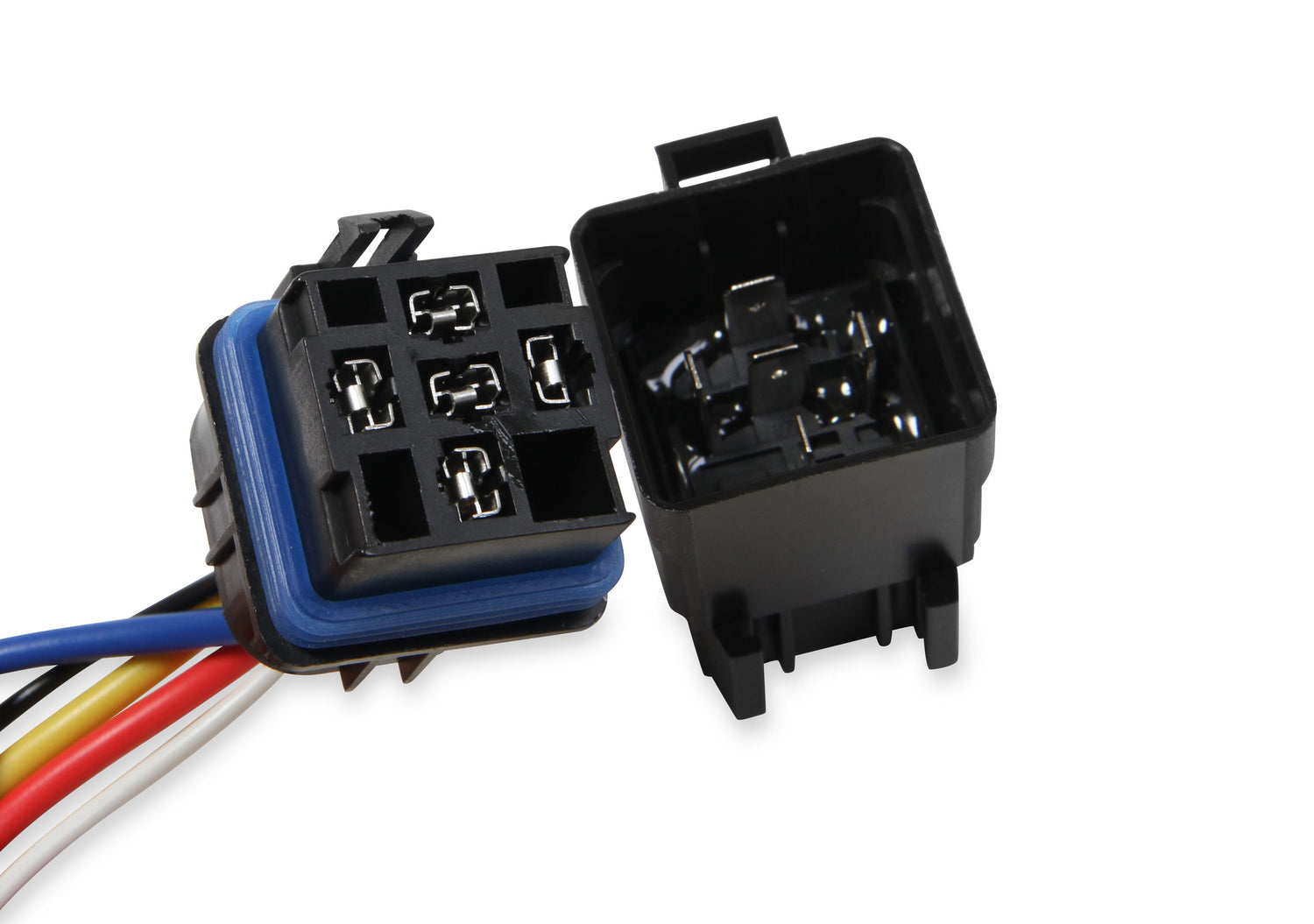

• Waterproof relay w/ pigtail harness & sealed connector
• 40/30Amp – 30 AMP continuous load & 40 AMP momentary
• 12V DC
• Works in normally open or normally closed circuits
• Pigtail wires are 7” long

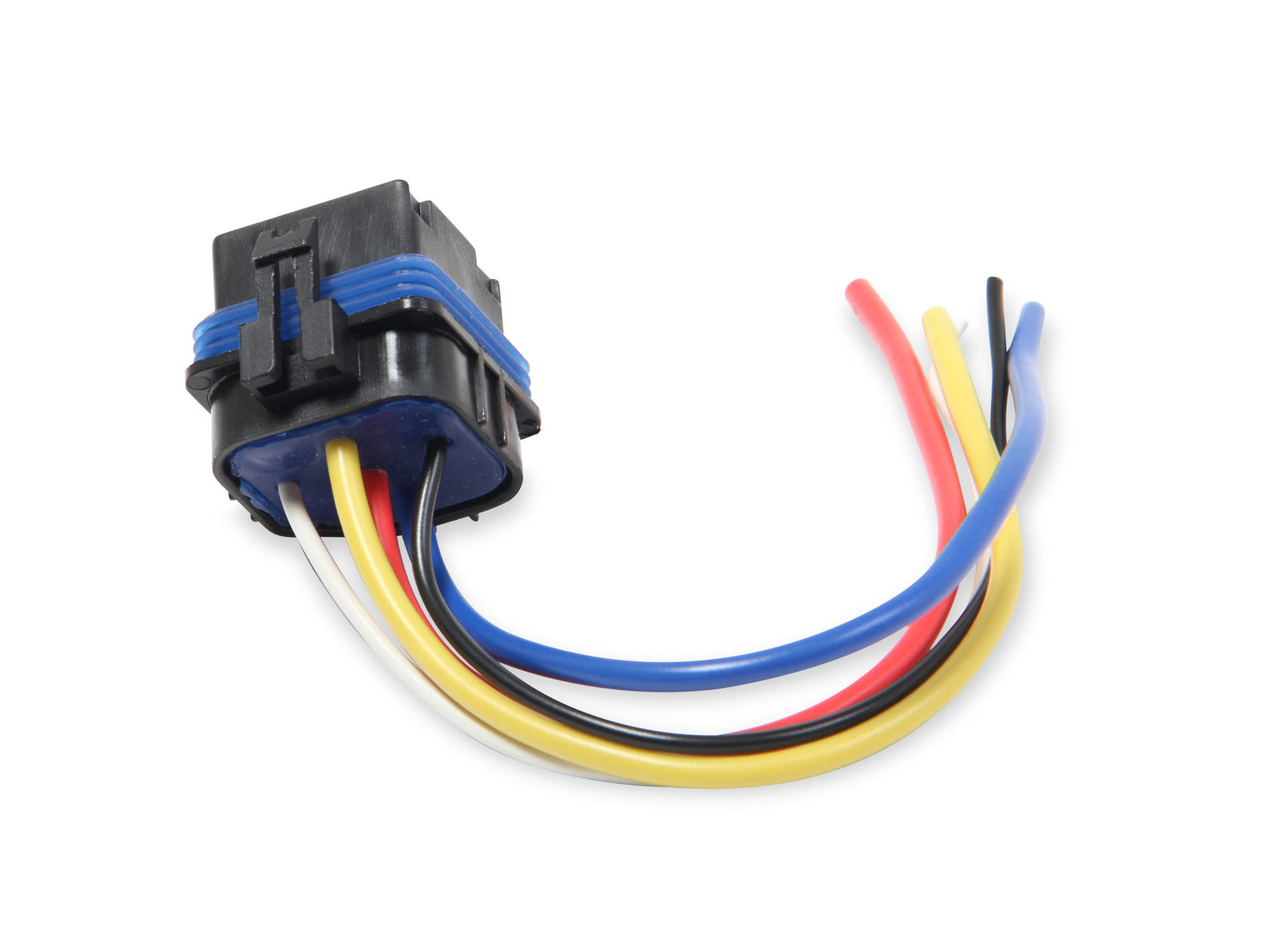

• Wire Gauge: (3) 12 gauge wires on blue (30 common), yellow (87 normally open), red (87a normally closed) – (2) 18 gauge wires on black (85 ground) & white (86 +12V)
• Metal mounting bracket – can be mounted under-hood or just about any other location on vehicle
• Ideal for use in: marine, dirt track cars, and off-road trucks & Jeeps
