Motive Gear MGK-428 - 2500 '14-'18 C9.25F/11.5R 4.56

Motive Gear  |  SKU: BHHD-MGK-428
Sale price $2,57099 Regular price $2,82809

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Motive Gear MGK-428 - 2500 '14-'18 C9.25F/11.5R 4.56

2500 '14-'18 C9.25F/11.5R 4.56

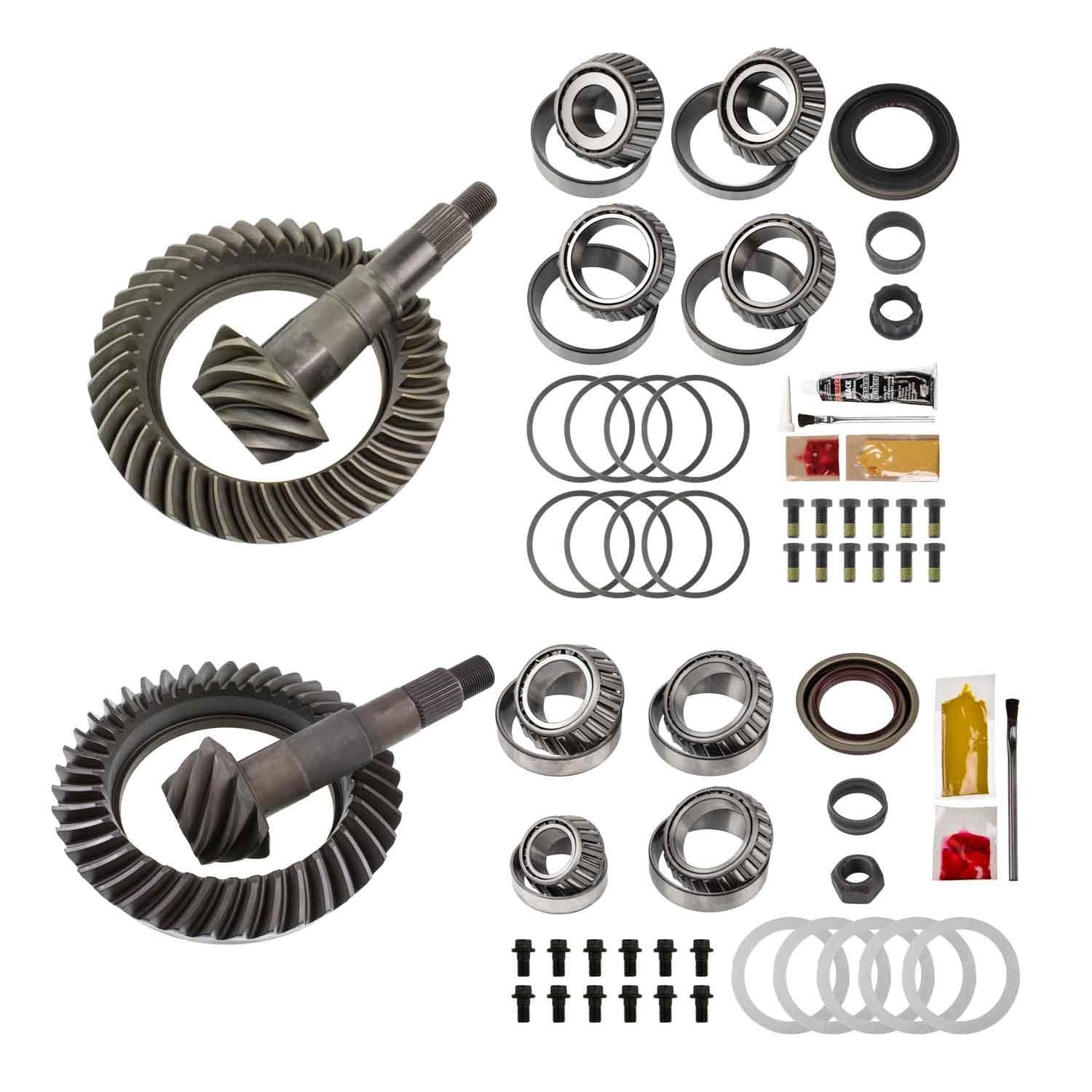

DIFFERENTIAL RING AND PINION FOR CHRYSLER 9.25" AND CHRYSLER 11.5" - RING AND PINIONS INCLUDING TIMKEN BEARING KITS; 4.56 RATIO

Motive Gear offers some of the toughest drive train components on the market today. If you are looking for the largest line of performance ring and pinion gear options available with gear sets in a wide range of ratios for nearly every application, both on and off-road, check out Motive Gear. Motive Gear products can be found in the winner's circle at racing events worldwide. The superior quality of Motive Gear components is the result of years of racing development, outstanding design and state-of-the-art manufacturing methods. Extensive testing is performed on all products by our in-house engineers.

App/Model: Chrysler 9.25 Front
App/Model: Chrysler 11.5
Position: Front and Rear
Taxonomy A: LD Differential
Taxonomy B: Ring and Pinion Gear Packages
Taxonomy C: Front and Rear
Taxonomy D: 4.56
Ring Gear Bolt Quantity: 12
Cover Bolt Quantity: 14
Gear Ratio: 4.56
Pinion Shaft Diameter: 1.37 Front (C9.25-456F-2)
Pinion Shaft Diameter: 2.005 Rear (GM11.5-456)
Ring Gear Tooth Quantity: 41
Pinion Spline Count: 30
Ring Gear Rotation: Reverse Front (C9.25-456F-2)
Ring Gear Rotation: Standard Rear (GM11.5-456)
Pinion Gear Tooth Quantity: 9
Differential Case Design Type: Chrysler 11.5
Differential Case Design Type: Chrysler 9.25 Front
Ratio: 4.56
Ring Gear Outside Diameter: 11.5 Rear (GM11.5-456)
Ring Gear Outside Diameter: 9.25 Front (C9.25-456F-2)
Ring Gear Material: 8620 Steel
