Motive Gear MGK-406 - 1500 2003-2010 C8F/C9.25R 4.56

Motive Gear  |  SKU: BHHD-MGK-406
Sale price $1,61799 Regular price $1,77979

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Motive Gear MGK-406 - 1500 2003-2010 C8F/C9.25R 4.56

1500 2003-2010 C8F/C9.25R 4.56

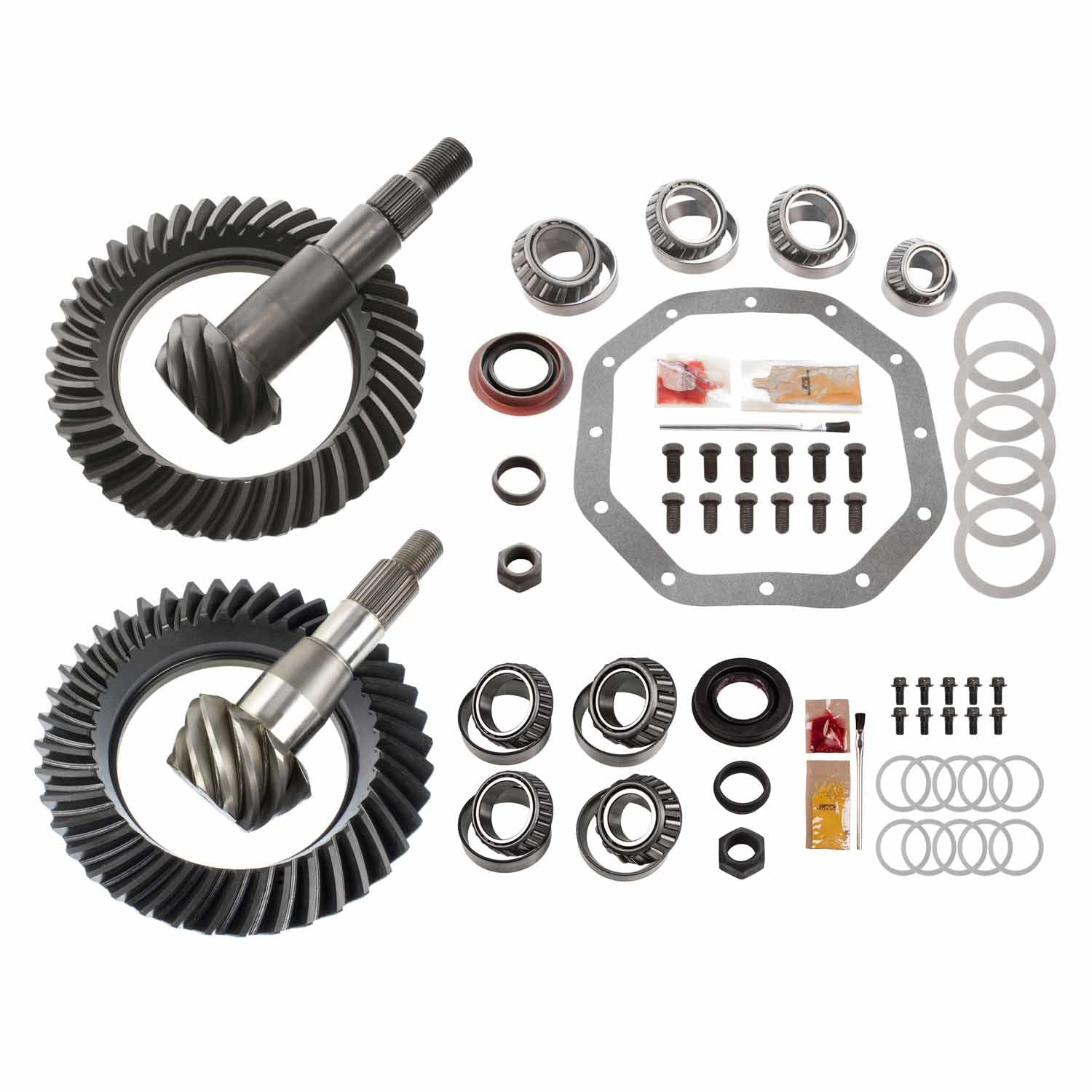

DIFFERENTIAL RING AND PINION FOR CHRYSLER 8" AND CHRYSLER 9.25" - RING AND PINIONS INCLUDING TIMKEN BEARING KITS; 4.56 RATIO; REQUIRES 3.54 AND HIGHER FRONT CARRIER

Motive Gear offers some of the toughest drive train components on the market today. If you are looking for the largest line of performance ring and pinion gear options available with gear sets in a wide range of ratios for nearly every application, both on and off-road, check out Motive Gear. Motive Gear products can be found in the winner's circle at racing events worldwide. The superior quality of Motive Gear components is the result of years of racing development, outstanding design and state-of-the-art manufacturing methods. Extensive testing is performed on all products by our in-house engineers.

App/Model: Chrysler 8.0 Standard
App/Model: Chrysler 9.25 Rear
Differential Carrier Break: 3.54 Ratio and Higher
Position: Front and Rear
Taxonomy A: LD Differential
Taxonomy B: Ring and Pinion Gear Packages
Taxonomy C: Front and Rear
Taxonomy D: 4.56
Ring Gear Bolt Quantity: 10 Front (C8-456)
Ring Gear Bolt Quantity: 12 Rear (C9.25-456)
Cover Bolt Quantity: 10 Front (C8-456)
Cover Bolt Quantity: 12 Rear (C9.25-456)
Gear Ratio: 4.56
Pinion Shaft Diameter: 1.406 Front (C8-456)
Pinion Shaft Diameter: 1.876 Rear (C9.25-456)
Ring Gear Tooth Quantity: 41
Pinion Spline Count: 27 Front (C8-456)
Pinion Spline Count: 29 Rear (C9.25-456)
Ring Gear Rotation: Standard
Pinion Gear Tooth Quantity: 9
Differential Case Design Type: Chrysler 8.0
Differential Case Design Type: Chrysler 9.25 Rear
Ratio: 4.56
Ring Gear Outside Diameter: 8 Front (C8-456)
Ring Gear Outside Diameter: 9.25 Rear (C9.25-456)
Ring Gear Material: 8620 Steel
