Motive Gear MGK-309 - F150 1992-1996 D44F/F8.8R 5.13

Motive Gear  |  SKU: BHHD-MGK-309
Sale price $1,26299 Regular price $1,38929

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Motive Gear MGK-309 - F150 1992-1996 D44F/F8.8R 5.13

F150 1992-1996 D44F/F8.8R 5.13

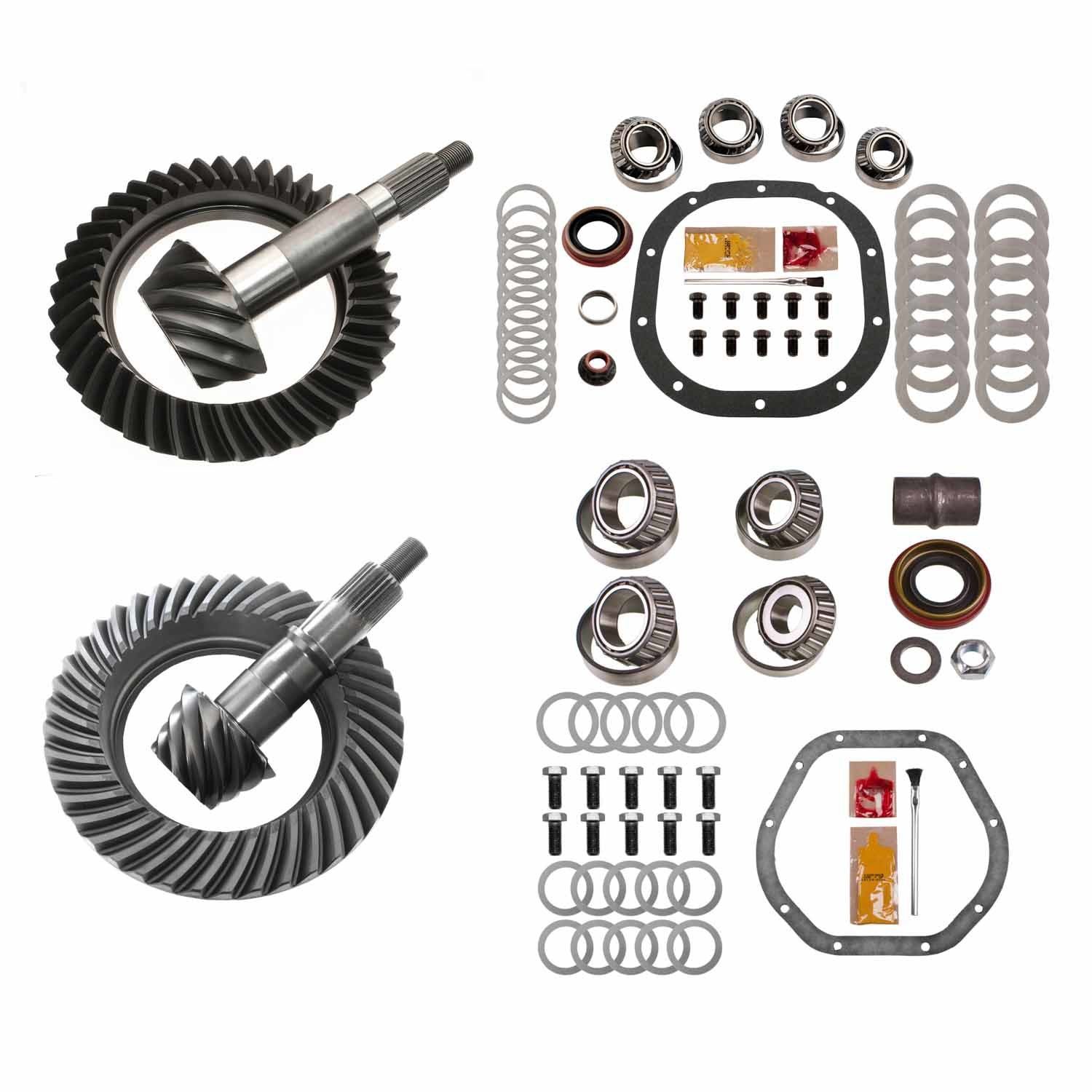

DIFFERENTIAL RING AND PINION FOR DANA 44 AND FORD 8.8" - RING AND PINIONS INCLUDING TIMKEN BEARING KITS; 5.13 RATIO; REQUIRES 3.92 AND HIGHER FRONT CARRIER

Motive Gear offers some of the toughest drive train components on the market today. If you are looking for the largest line of performance ring and pinion gear options available with gear sets in a wide range of ratios for nearly every application, both on and off-road, check out Motive Gear. Motive Gear products can be found in the winner's circle at racing events worldwide. The superior quality of Motive Gear components is the result of years of racing development, outstanding design and state-of-the-art manufacturing methods. Extensive testing is performed on all products by our in-house engineers.

App/Model: Dana 44 Reverse
App/Model: Ford 8.8
Differential Carrier Break: 3.92 Ratio and Higher
Position: Front and Rear
Taxonomy A: LD Differential
Taxonomy B: Ring and Pinion Gear Packages
Taxonomy C: Front and Rear
Taxonomy D: 5.13
Ring Gear Bolt Quantity: 10
Cover Bolt Quantity: 10
Gear Ratio: 5.13
Gear Ratio: 5.14
Pinion Shaft Diameter: 1.376 Front (D44-513F)
Pinion Shaft Diameter: 1.626 Rear (F888514)
Ring Gear Tooth Quantity: 41
Pinion Spline Count: 26 Front (D44-513F)
Pinion Spline Count: 30 Rear (F8)
Ring Gear Rotation: Reverse Front (D44-513F)
Ring Gear Rotation: Standard Rear (F888514)
Pinion Gear Tooth Quantity: 8
Differential Case Design Type: Dana 44 Reverse
Differential Case Design Type: Ford 8.8
Ratio: 5.13
Ring Gear Outside Diameter: 8.5 Front (D44-513F)
Ring Gear Outside Diameter: 8.8 Rear (F888514)
Ring Gear Material: 8620 Steel
