Motive Gear MGK-227 - K30 1979-87 D60F/GM10.5R 4.10

Motive Gear  |  SKU: BHHD-MGK-227
Sale price $1,61799 Regular price $1,77979

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Motive Gear MGK-227 - K30 1979-87 D60F/GM10.5R 4.10

K30 1979-87 D60F/GM10.5R 4.10

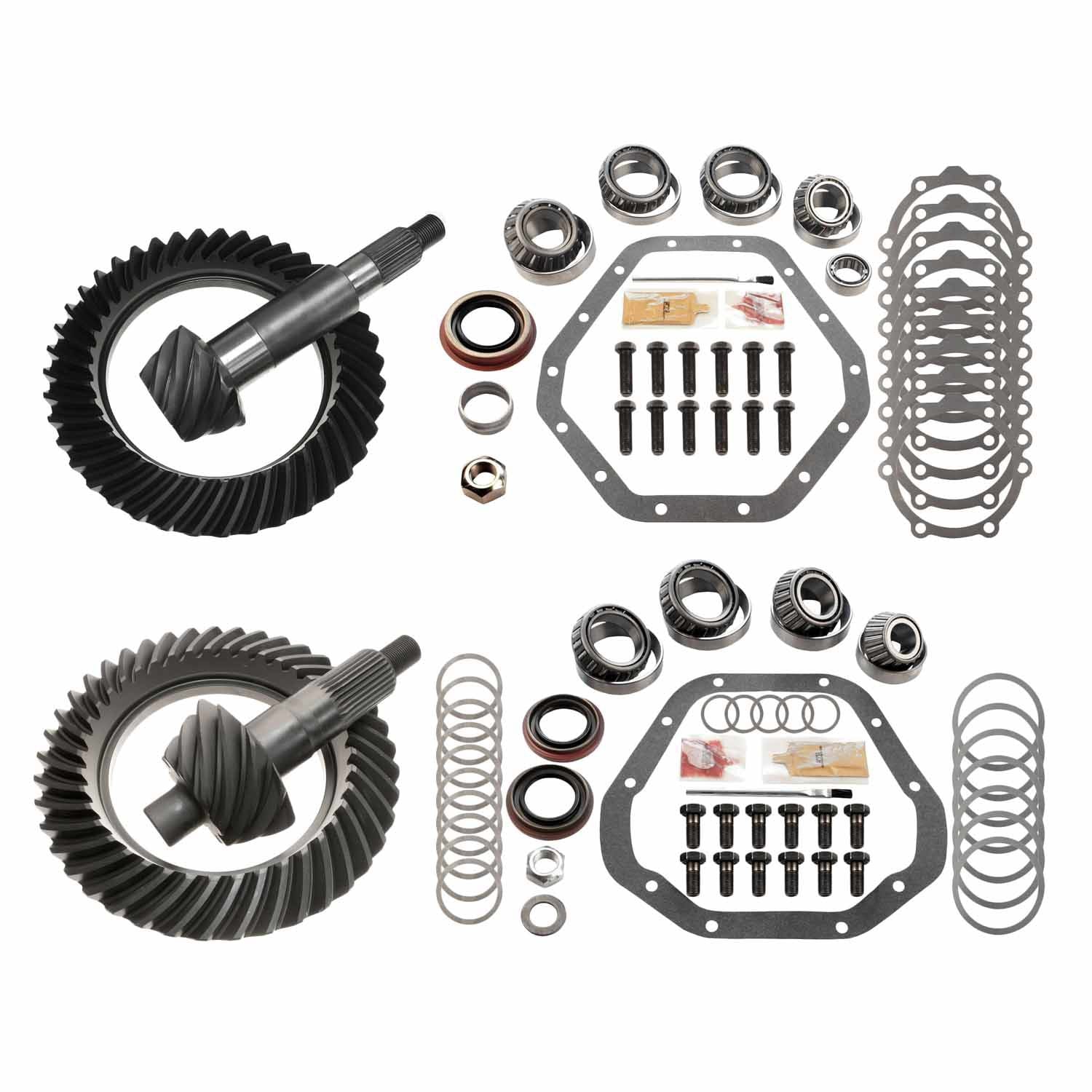

DIFFERENTIAL RING AND PINION FOR DANA 60 AND GM 10.5" - RING AND PINIONS INCLUDING TIMKEN BEARING KITS; 4.10 RATIO; REQUIRES 4.10 AND LOWER FRONT CARRIER; REQUIRES 4.10 AND LOWER REAR CARRIER

Motive Gear offers some of the toughest drive train components on the market today. If you are looking for the largest line of performance ring and pinion gear options available with gear sets in a wide range of ratios for nearly every application, both on and off-road, check out Motive Gear. Motive Gear products can be found in the winner's circle at racing events worldwide. The superior quality of Motive Gear components is the result of years of racing development, outstanding design and state-of-the-art manufacturing methods. Extensive testing is performed on all products by our in-house engineers.

Ring Gear Tooth Quantity: 41 Front (D60-410)
Ring Gear Tooth Quantity: 45 Rear (GM10.5-410)
Pinion Spline Count: 29 Front (D60-410)
Pinion Spline Count: 30 Rear (GM10.5-410)
Ring Gear Rotation: Standard
Pinion Gear Tooth Quantity: 10 Front (D60-410)
Pinion Gear Tooth Quantity: 11 Rear (GM10.5-410)
Differential Case Design Type: Dana 60 Standard
Differential Case Design Type: GM 10.5
Ratio: 4.10
Ring Gear Outside Diameter: 10.5 Rear (GM10.5-410)
Ring Gear Outside Diameter: 9.75 Front (D60-410)
Ring Gear Material: 8620 Steel
App/Model: Dana 60 Standard
App/Model: GM 10.5
Differential Carrier Break: 4.10 Ratio and Lower
Position: Front and Rear
Taxonomy A: LD Differential
Taxonomy B: Ring and Pinion Gear Packages
Taxonomy C: Front and Rear
Taxonomy D: 4.10
Ring Gear Bolt Quantity: 12
Cover Bolt Quantity: 10 Front (D60-410)
Cover Bolt Quantity: 14 Rear (GM10.5-410)
Gear Ratio: 4.1
Pinion Shaft Diameter: 1.626 Front (D60-410)
Pinion Shaft Diameter: 1.75 Rear (GM10.5-410)
