Motive Gear D70-488 - RP DANA 70 4.88 MG

Motive Gear  |  SKU: BHHD-D70-488
$65399 $71939

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

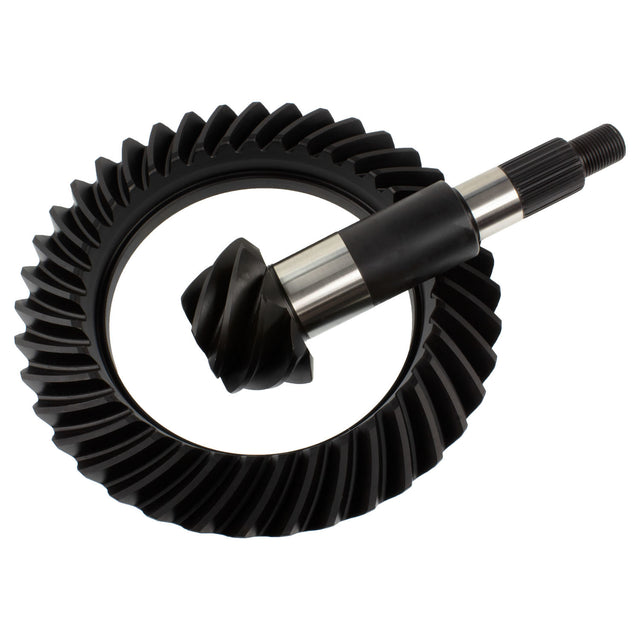

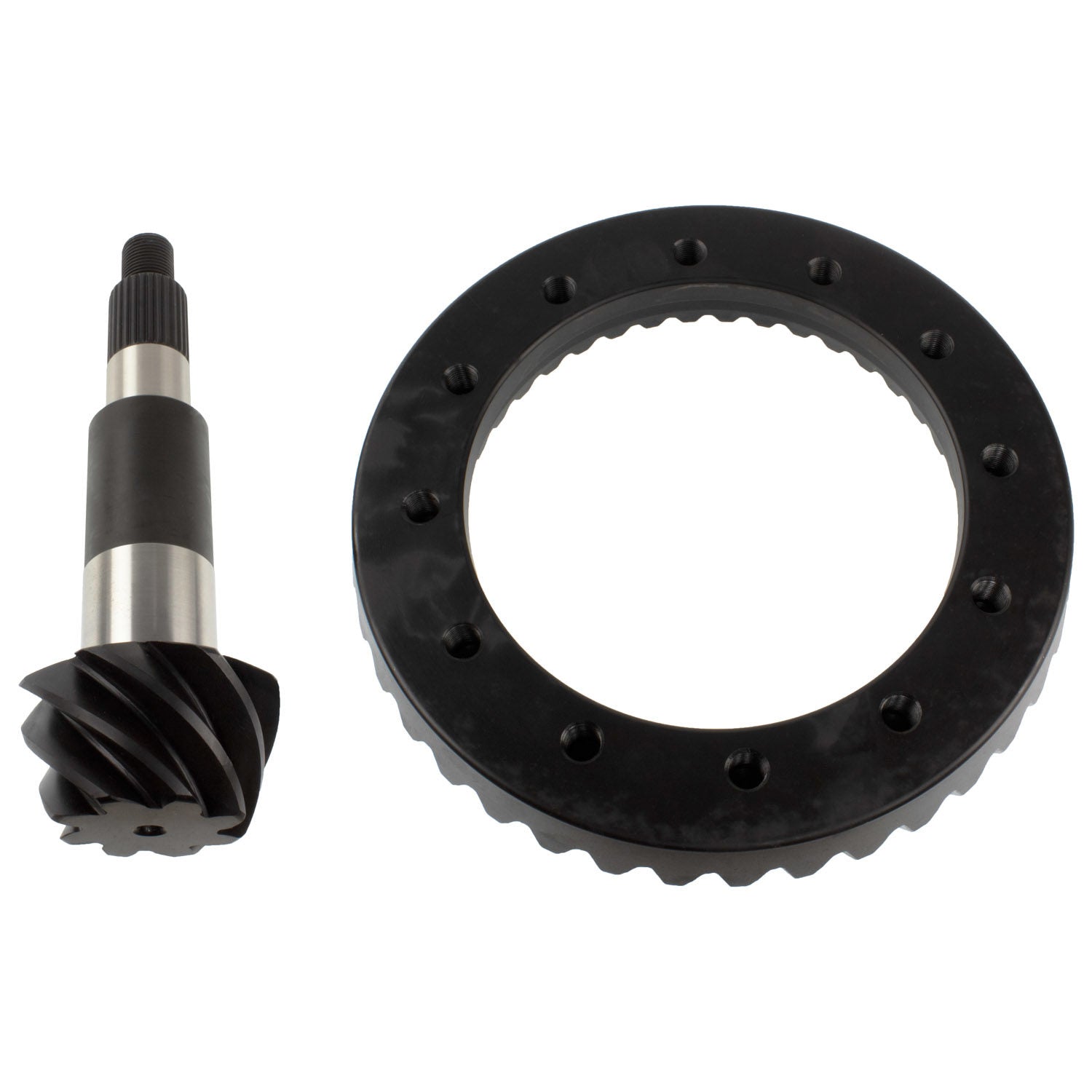

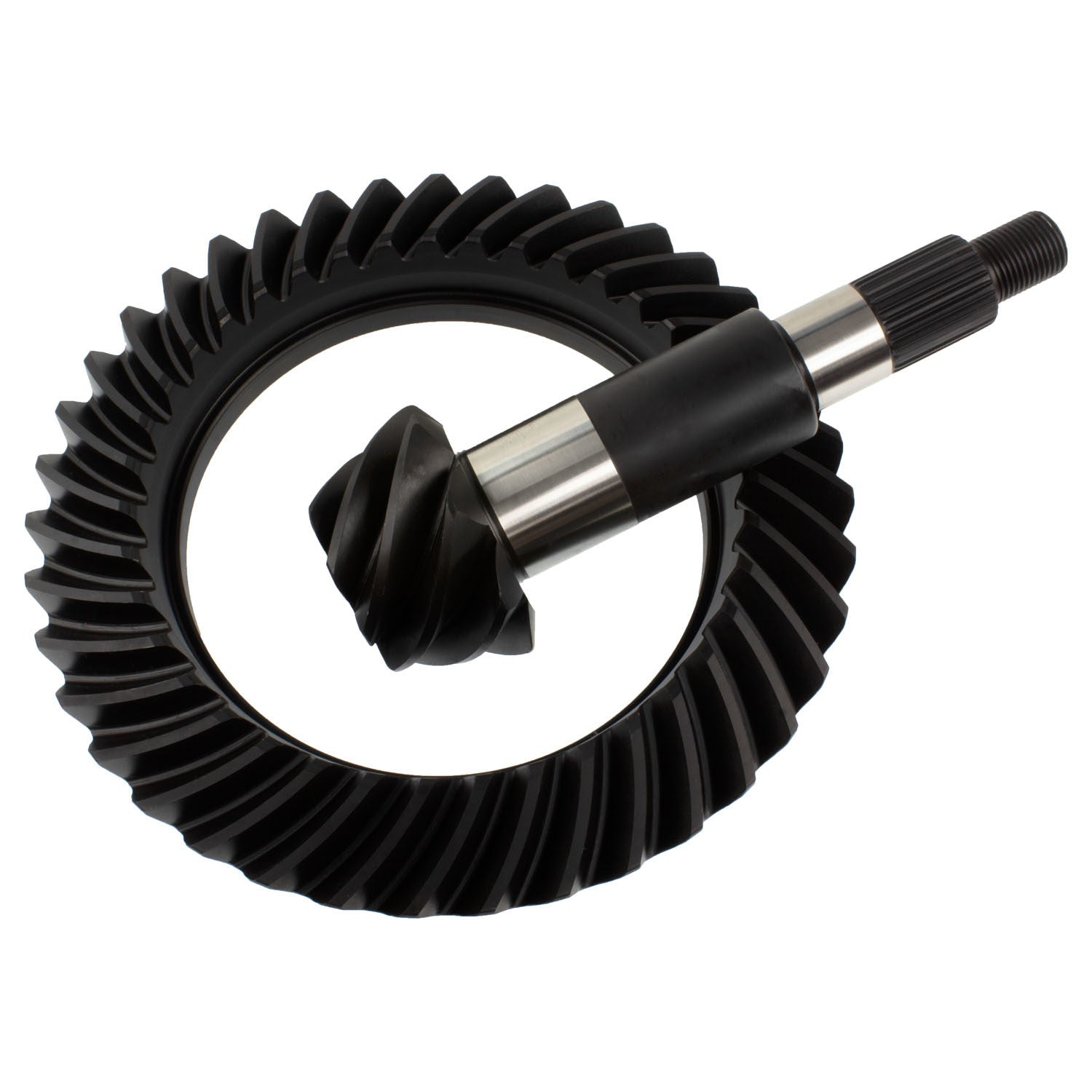

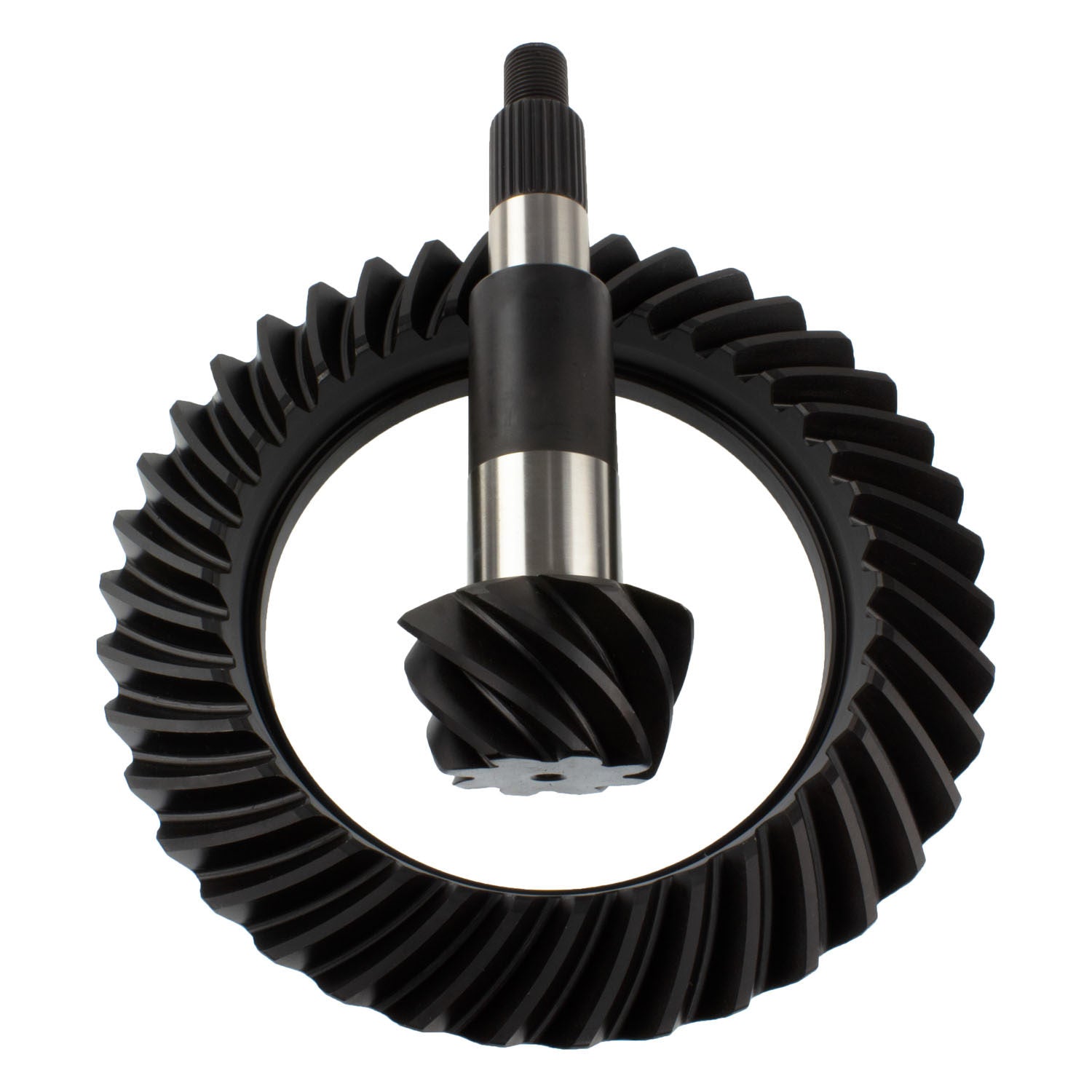

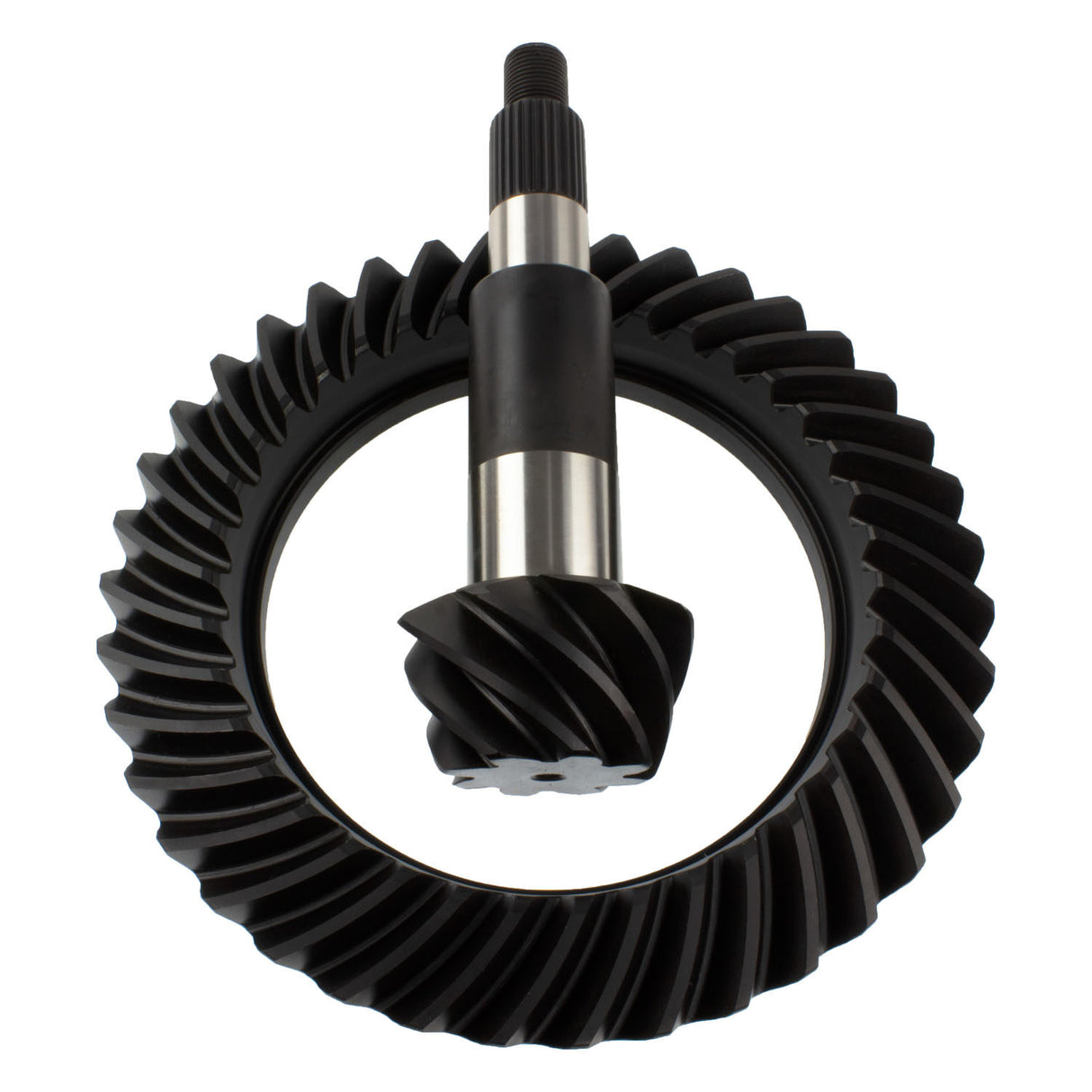

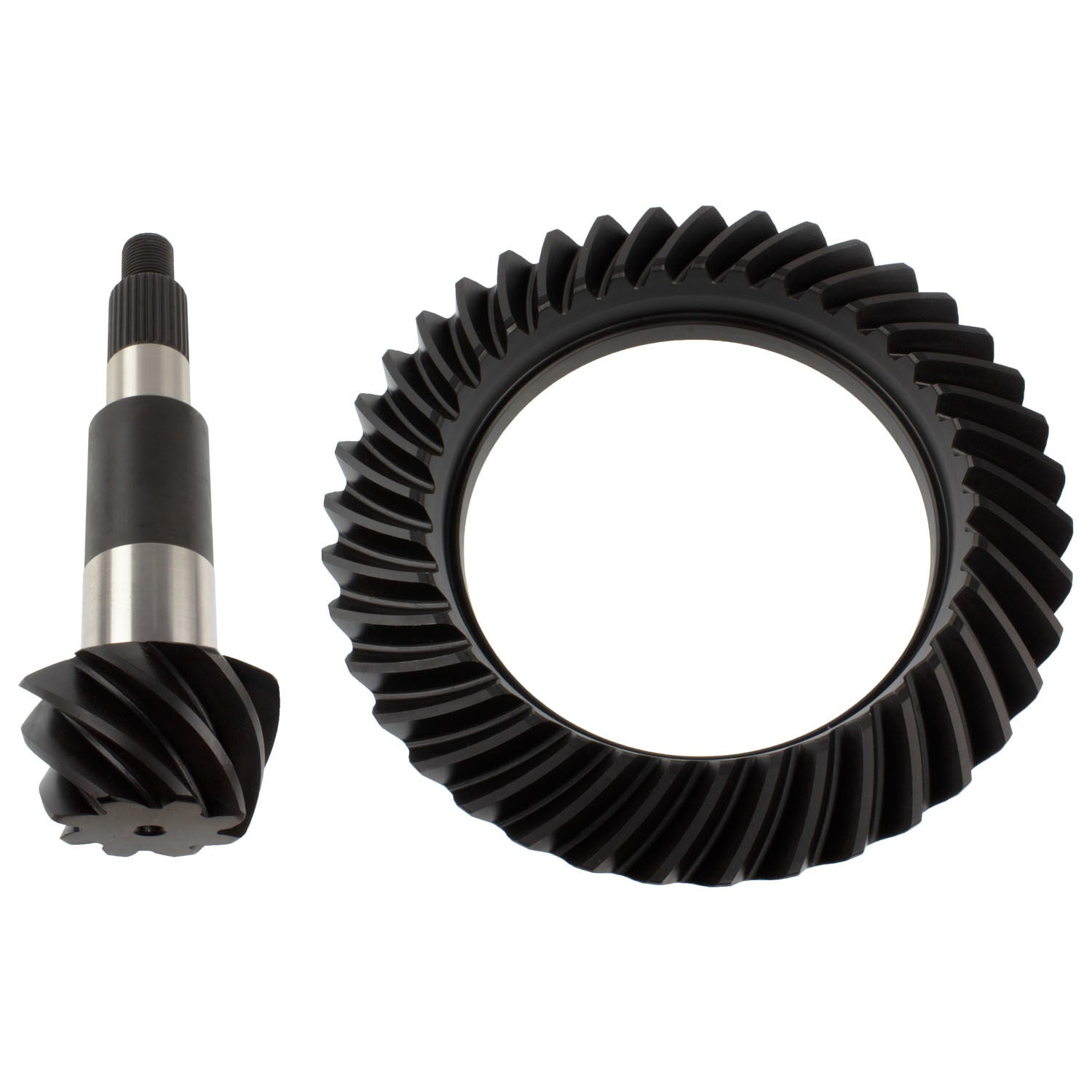

Motive Gear D70-488 - RP DANA 70 4.88 MG

RP DANA 70 4.88 MG

Motive Gear offers some of the toughest drive train components on the market today. If you are looking for the largest line of performance ring and pinion gear options available with gear sets in a wide range of ratios for nearly every application, both on and off-road, check out Motive Gear. Motive Gear products can be found in the winner's circle at racing events worldwide. The superior quality of Motive Gear components is the result of years of racing development, outstanding design and state-of-the-art manufacturing methods. Extensive testing is performed on all products by our in-house engineers.

Gear Ratio: 4.88
Pinion Shaft Diameter: 1.75
Ring Gear Tooth Quantity: 39
Pinion Spline Count: 29
Ring Gear Rotation: Standard
Pinion Gear Tooth Quantity: 8
Differential Case Design Type: Dana 70
Differential Case Design Type: Dana 70 HD
Differential Case Design Type: Dana 70 U
Ratio: 4.88
Ring Gear Outside Diameter: 10.5
Ring Gear Material: 8620 Steel
App/Model: Dana 70
App/Model: Dana 70 HD
App/Model: Dana 70 U
Differential Carrier Break: 4.56 Ratio and Higher
Position: Rear
Taxonomy A: LD Differential
Taxonomy B: Ring and Pinions
Taxonomy C: Rear
Taxonomy D: 4.88
Ring Gear Bolt Quantity: 12
Cover Bolt Quantity: 10
