Motive Gear 26050549 - AXLE GM7.6" 28SPL 28.82" 5 LUG

Motive Gear  |  SKU: BHHD-26050549
Sale price $36498 Regular price $40148

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

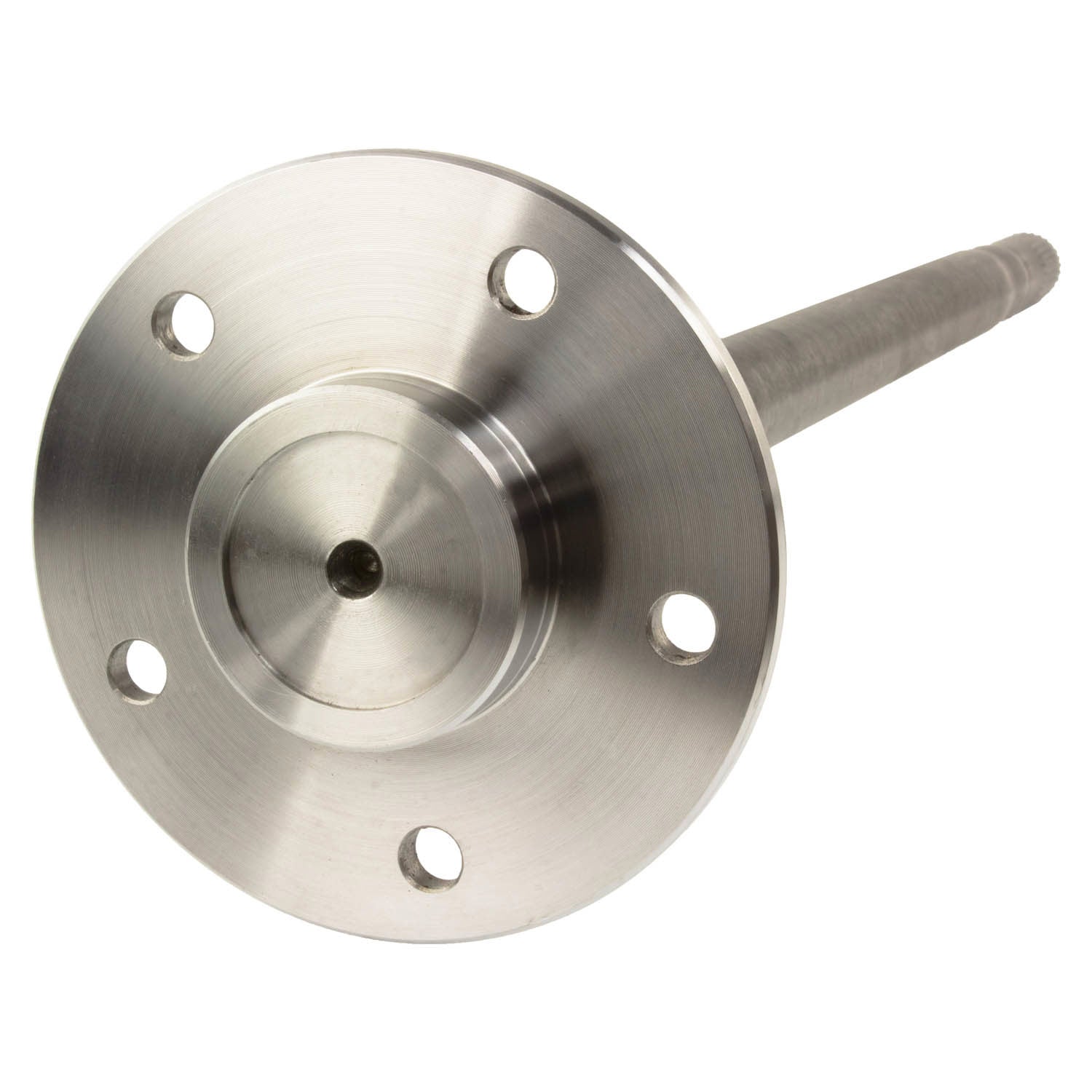

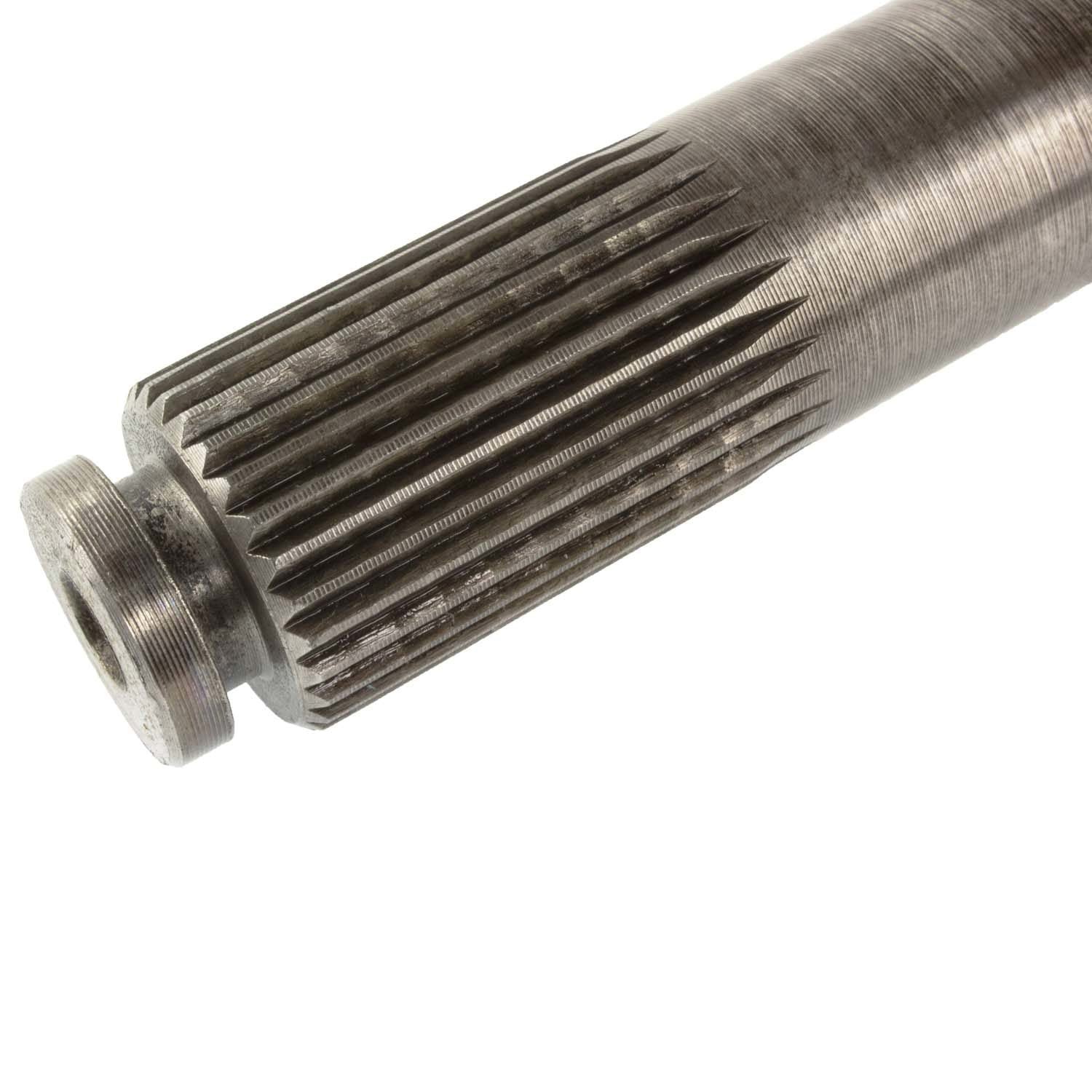

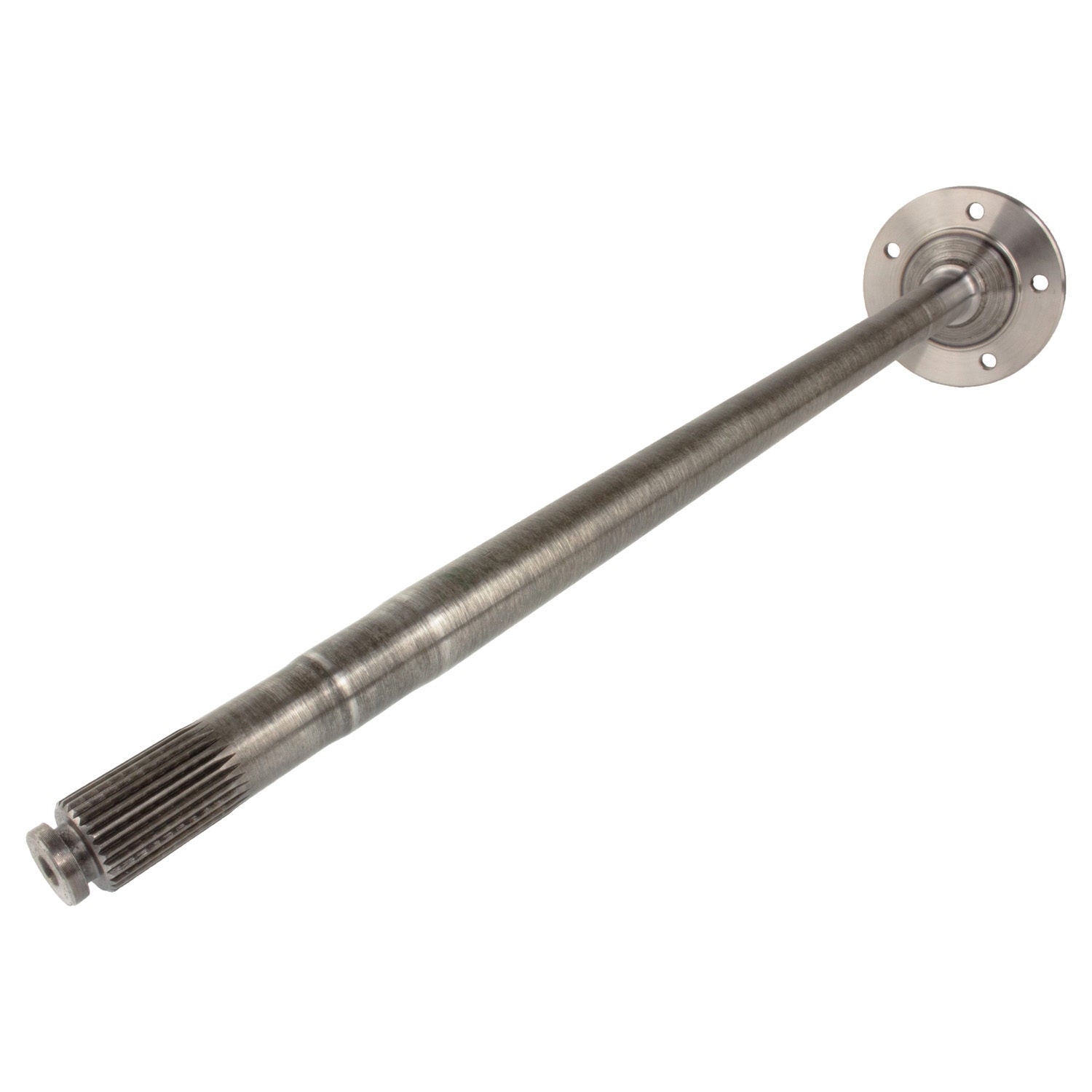

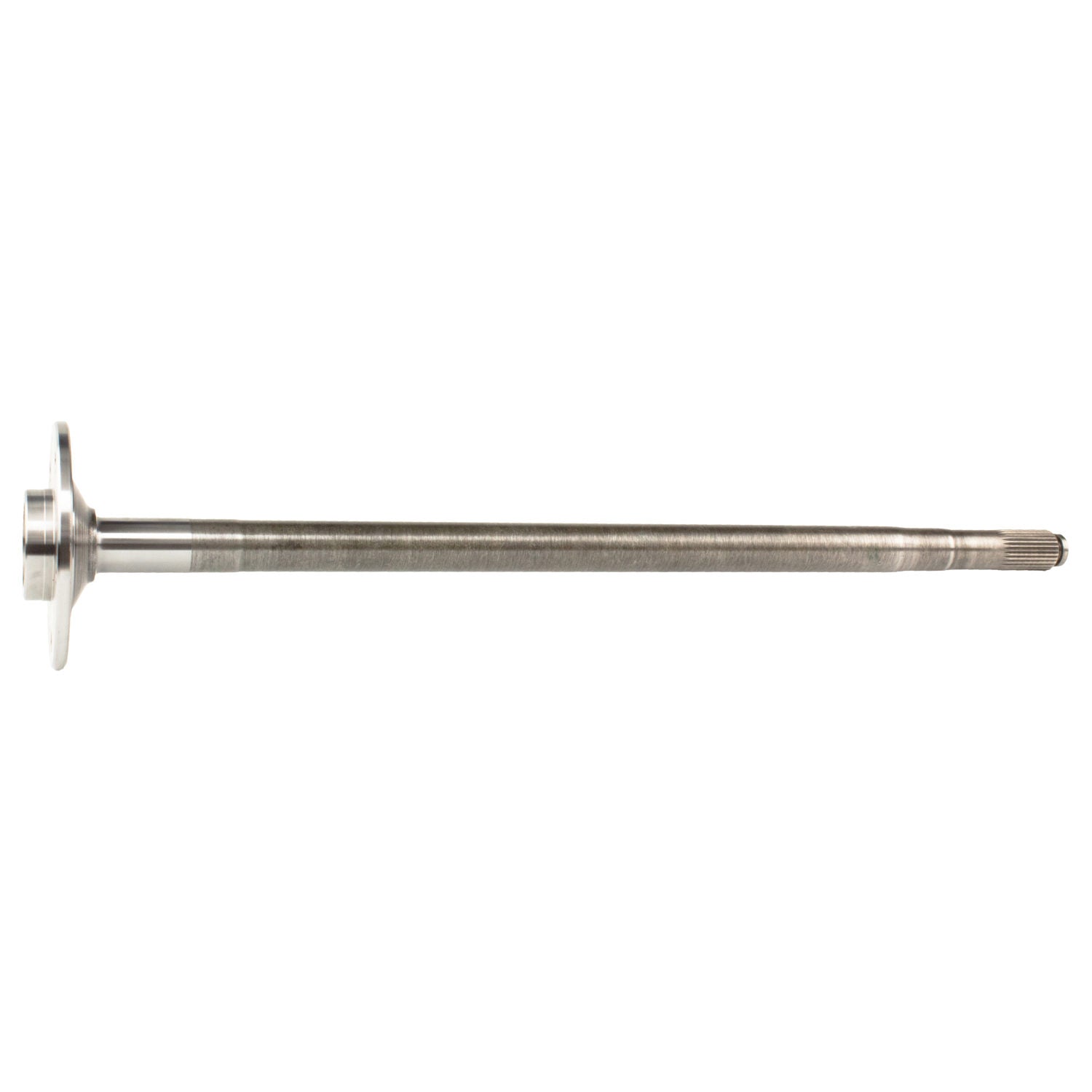

Motive Gear 26050549 - AXLE GM7.6" 28SPL 28.82" 5 LUG

AXLE GM7.6" 28SPL 28.82" 5 LUG

DRIVE AXLE SHAFT FOR GM 7.625" (10 BOLT); 28.8125" OVERALL LENGTH; 5 X 4.75 LUG PATTERN; 28 SPLINE

Motive Gear offers some of the toughest drive train components on the market today. If you are looking for the largest line of performance ring and pinion gear options available with gear sets in a wide range of ratios for nearly every application, both on and off-road, check out Motive Gear. Motive Gear products can be found in the winner's circle at racing events worldwide. The superior quality of Motive Gear components is the result of years of racing development, outstanding design and state-of-the-art manufacturing methods. Extensive testing is performed on all products by our in-house engineers.

App/Model: GM 7.625
Position: Rear
Side: Left (Driver)
Side: Right (Passenger)
Taxonomy A: LD Differential
Taxonomy B: Axle Shafts
Taxonomy C: Axles - Rear
Taxonomy D: Left (Driver)
Taxonomy D: Right (Passenger)
Wheel Bolt Pattern Size: 5 x 4.75
Shaft Length: 28.813
Shaft Material: 1541 Manganese
Axle Type: Semi-Floating
Cover Bolt Quantity: 10
Differential Case Design Type: GM 7.625
Brake Pilot Diameter: 2.831
Inboard Spline Quantity: 28
Bearing(s) Included: No
Axle Flange Bolt Hole Quantity: 10
Wheel Stud Thread Diameter: 0.607
Seal Included: No
