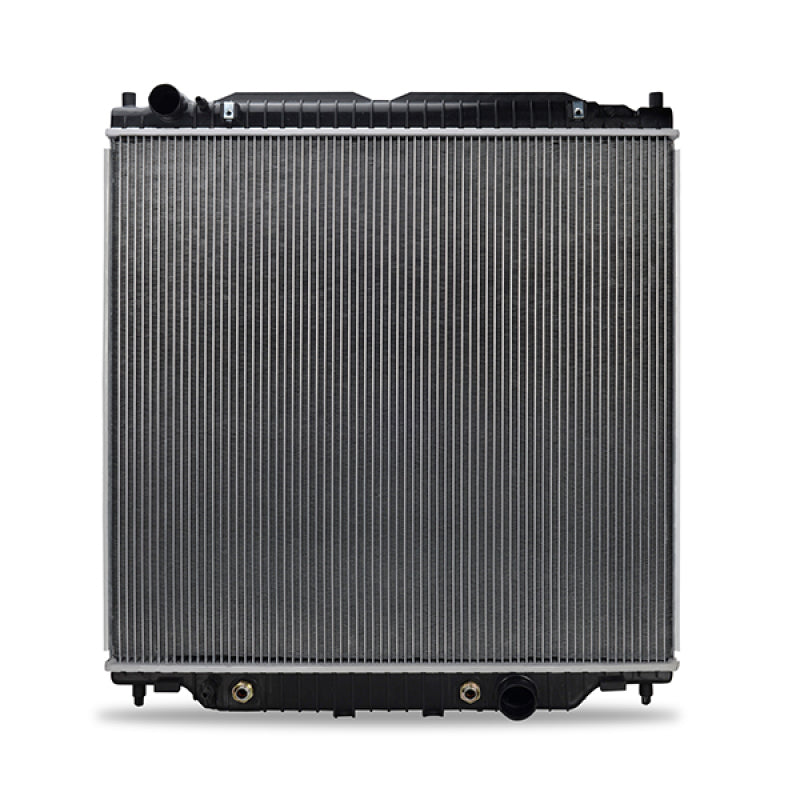

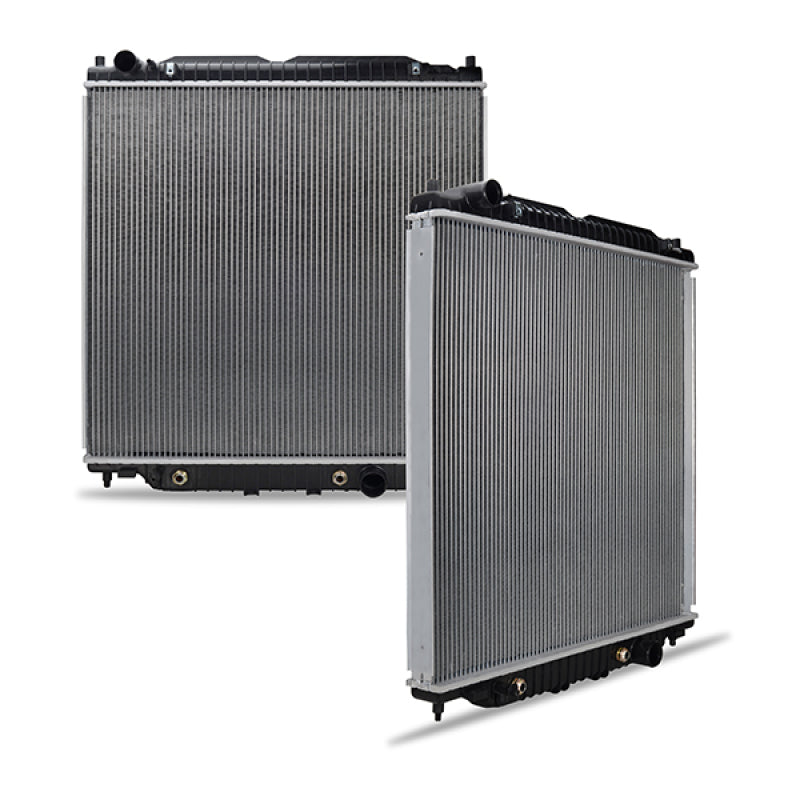

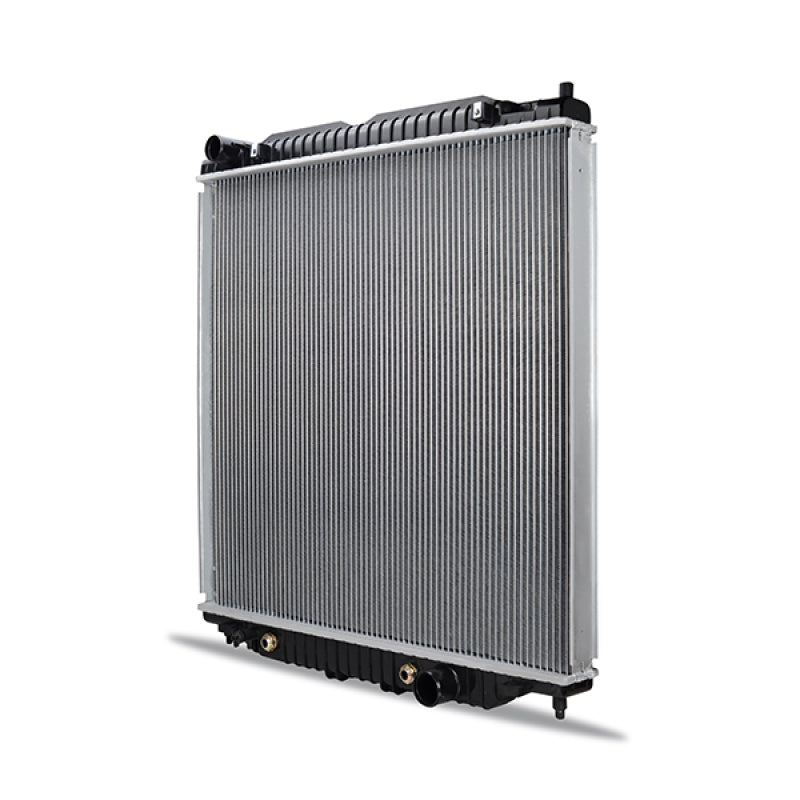

Mishimoto R2887-AT - Ford 6.0L Powerstroke Replacement Radiator 2005-2007
2005-2007 Ford F-Series Super Duty 6.0L V8 Diesel Radiator Replacement
Plastic end tank radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
This 2005-2007 Ford F-Series Super Duty 6.0L V8 Diesel radiator is a direct OEM replacement for your old stock unit. There is no need to bend, cut, or modify anything to ensure a proper fitment in your vehicle. This radiator features OEM spec plastic end tanks attached to an aluminum core for stock cooling efficiency. At some point the inevitable happens to original stock radiators. They either spring a leak, get clogged up, or a plastic inlet or outlet cracks due to years of constant clamp pressure. This Ford F-Series Super Duty radiator is a perfect replacement to keep your cooling system in top notch shape, and just like all Mishimoto parts, comes with the Mishimoto Lifetime Warranty.
- Ideal replacement for an aged, clogged, or leaking stock radiator
- Functions with all stock engine bay equipment
- Mishimoto Lifetime Warranty
End Tank Color: Black
End Tank Construction: Cast
End Tank Finish: Uncoated
End Tank Material: Plastic / Aluminum
Engine Oil Cooler Included: No
Frame Included: No
Grade Type: Standard Replacement
Mounting Hardware Included: No
Mounting Type: OEM
Tank Material: Plastic
Thermostat Included: No
TechSpec Overall Length (in): N/A
TechSpec Overall Width (ins): N/A
TechSpec Core Length (in): 30.125
TechSpec Core Height (in): 28.44
TechSpec Fluid Capacity (gal): N/A
TechSpec Rows: 1
TechSpec Inlet (in): 1.75
TechSpec Outlet (in): 2
TechSpec Core Thickness (in): 1.57
TechSpec Drain Plug Thread Size: N/A
TechSpec DPI: 2887
TechSpec Material: N/A
TechSpec Applications: 2005-2007 Ford F-250 Super Duty 6.0L V8 Diesel--2005-2007 Ford F-250 Super Duty 6.8L V10--2005-2007 Ford F-350 Super Duty 6.0L V8 Diesel--2005-2007 Ford F-350 Super Duty 6.8L V10--2005-2007 Ford F-450 Super Duty 6.0L V8 Diesel--2005-2007 Ford F-450 Super Duty 6.8L V10--2005-2007 Ford F-550 Super Duty 6.0L V8 Diesel--2005-2007 Ford F-550 Super Duty 6.8L V10
TechSpec Engine Codes: N/A
TechSpec Chassis Codes: N/A
TechSpec Note: Cooler Fitting Size: 5/8-in internal thread with joint
TechSpec Includes: Mishimoto Replacement Radiator--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the 2005-2007 Ford F-Series Super Duty 6.0L V8 Diesel
SellingPoint02: Ideal replacement for an aged, clogged, or leaking stock radiator
SellingPoint03: Functions with all stock engine bay equipment
SellingPoint04: Mishimoto Lifetime Warranty
SellingPoint05: N/A
SellingPoint06: N/A
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
CAPA Certified: No
Coolant Hose Inlet Connection Type: Hose Barb with Clamps
Coolant Hose Outlet Connection Type: Hose Barb with Clamps
Coolant Level Indicator Port: No
Core Color: Silver
Core Construction: Tube-and-Fin
Core Finish: Uncoated
Core Material: Aluminum
Core Type: Tube-and-Fin
