Mishimoto R13856 - 19-23 Hyundai Kona I30 Replacement Radiator

Mishimoto  |  SKU: R13856
$21795 $24000

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

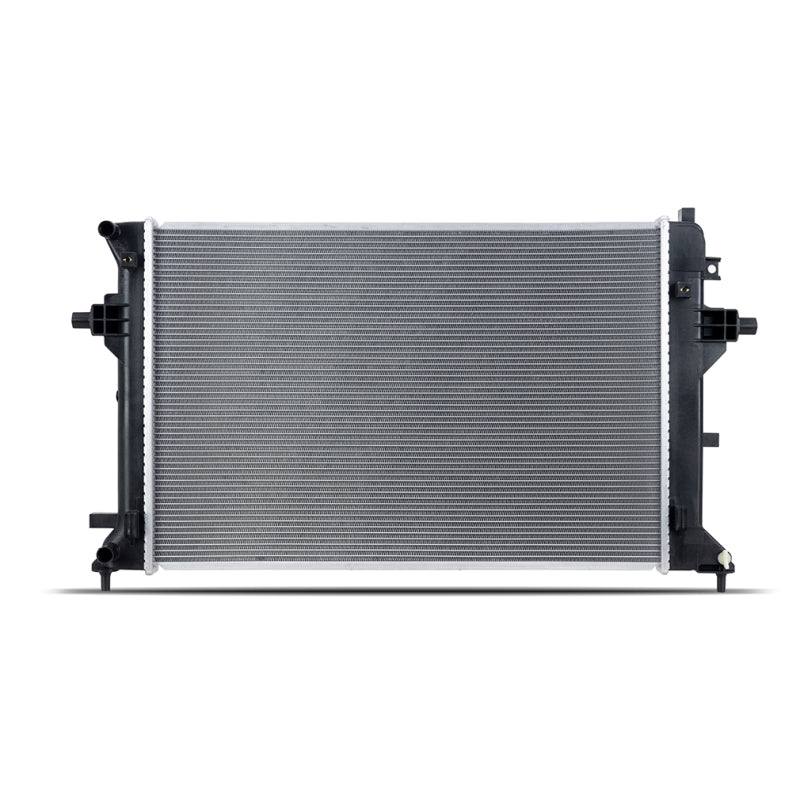

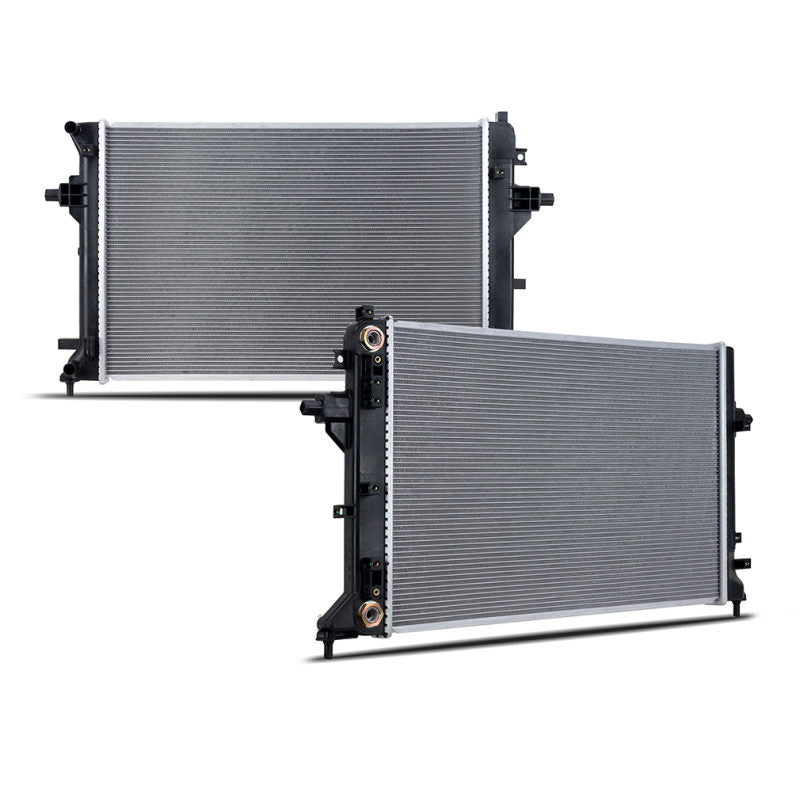

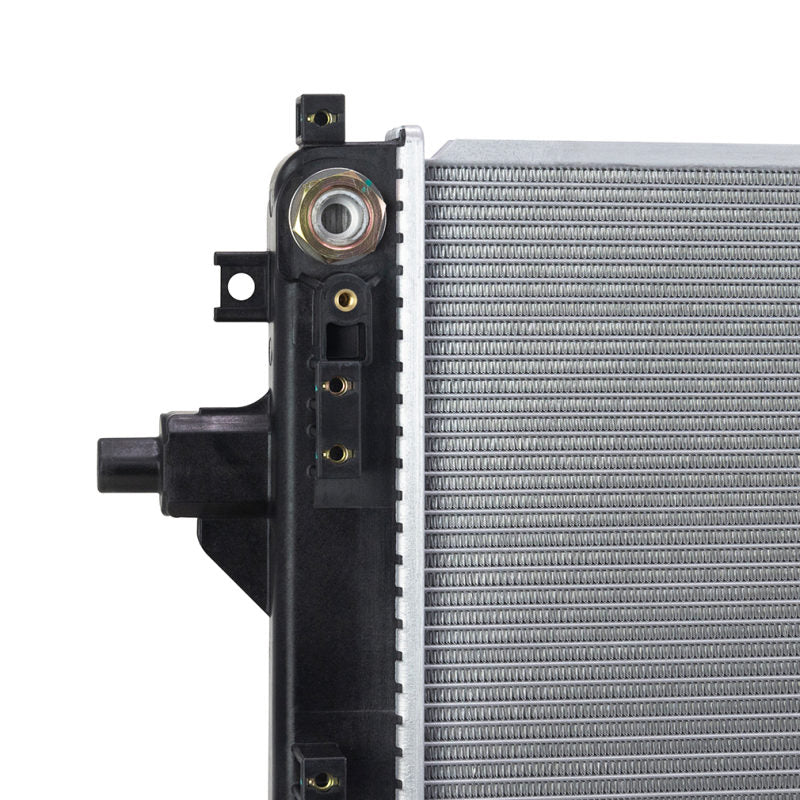

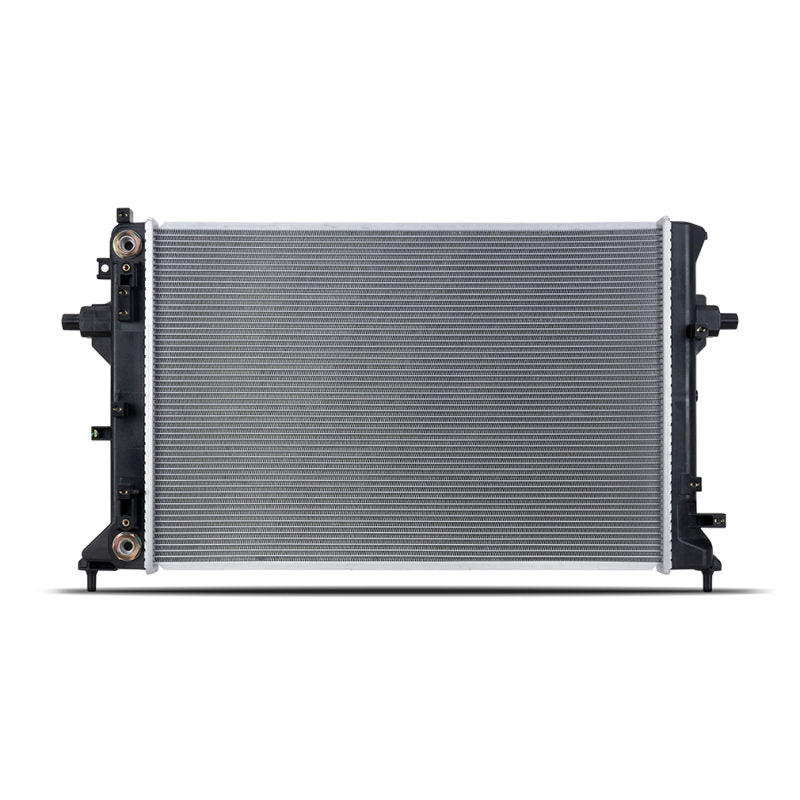

Mishimoto R13856 - 19-23 Hyundai Kona I30 Replacement Radiator

Replacement Radiator, fits Hyundai KONA Electric 2019-2023

Plastic end tank radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.

This 2019-2023 Hyundai KONA Electric radiator is a direct OEM replacement for your old stock unit. There is no need to bend, cut, or modify anything to ensure a proper fitment in your vehicle. This radiator features OEM spec plastic end tanks attached to an aluminum core for stock cooling efficiency. At some point the inevitable happens to original stock radiators. They either spring a leak, get clogged up, or a plastic inlet or outlet cracks due to years of constant clamp pressure. This 2019-2023 Hyundai KONA Electric Replacement Radiator radiator is a perfect replacement to keep your cooling system in top notch shape, and just like all Mishimoto parts, comes with the Mishimoto Lifetime Warranty.

  • Ideal replacement for an aged, clogged, or leaking stock radiator
  • Functions with all stock engine bay equipment
  • Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the Hyundai KONA Electric 2019-2023
SellingPoint02: Ideal replacement for an aged, clogged, or leaking stock radiator
SellingPoint03: Functions with all stock engine bay equipment
SellingPoint04: Mishimoto Lifetime Warranty
SellingPoint05: N/A
SellingPoint06: N/A
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Overall Height (in): 17.63
TechSpec Overall Length (in): 30.6
TechSpec Overall Width (ins): 4.35
TechSpec Core Length (in): 24.02
TechSpec Core Height (in): 15.63
TechSpec Fluid Capacity (gal): N/A
TechSpec Rows: 1
TechSpec Inlet (in): 0.76
TechSpec Outlet (in): 0.76
TechSpec Core Thickness (in): 0.63
TechSpec Drain Plug Thread Size: N/A
TechSpec DPI: 13856
TechSpec Material: Aluminum & Glass Filled Nylon
TechSpec Applications: 2019-2023 Hyundai Kona Electric-- 2019-2022 Kia Niro Electric
TechSpec Engine Codes: Permanent Magnet Synchronous Motor
TechSpec Chassis Codes: I30
CAPA Certified: No
Coolant Hose Inlet Connection Type: Hose Barb with Clamps
Coolant Hose Outlet Connection Type: Hose Barb with Clamps
Coolant Level Indicator Port: No
Core Color: Silver
Core Construction: Tube-and-Fin
Core Finish: Uncoated
Core Material: Aluminum
Core Type: Tube-and-Fin
End Tank Color: Black
End Tank Construction: Cast
End Tank Finish: Uncoated
End Tank Material: Plastic / Aluminum
Engine Oil Cooler Included: No
Frame Included: No
Grade Type: Standard Replacement
Mounting Hardware Included: No
Mounting Type: OEM
Tank Material: Plastic
Thermostat Included: No
