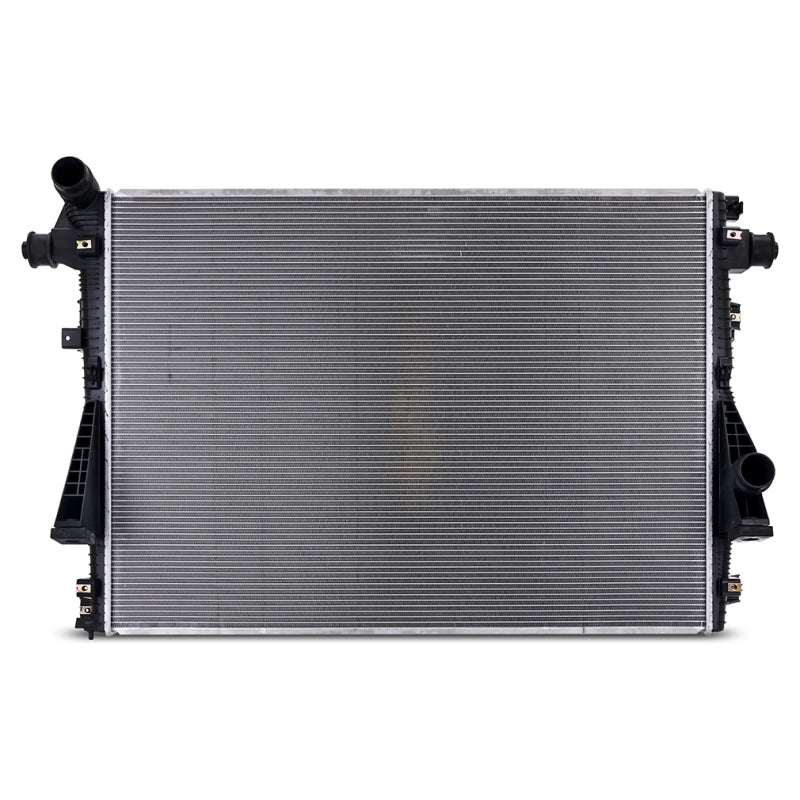

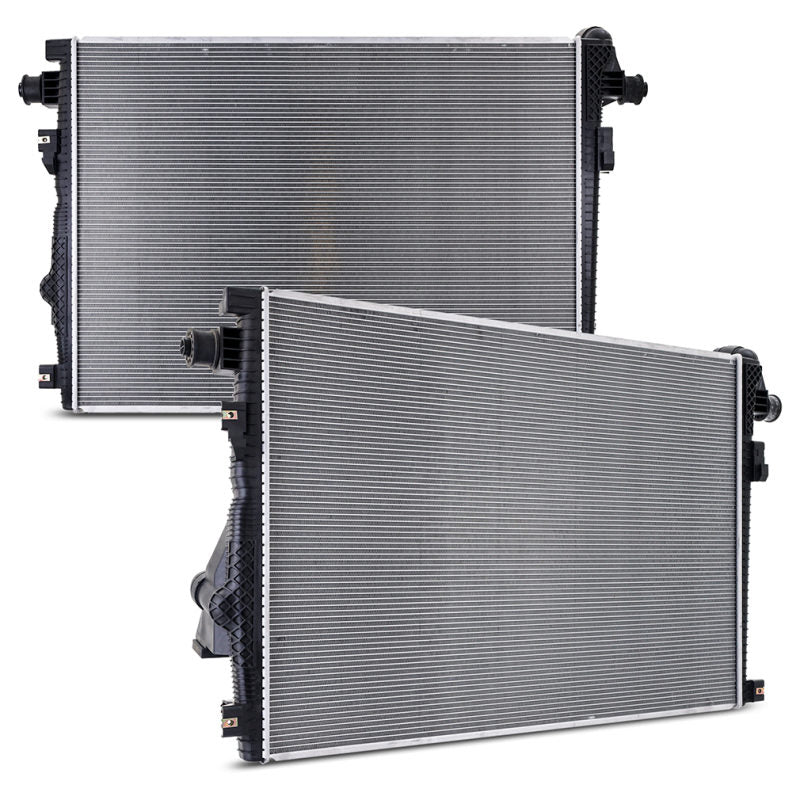

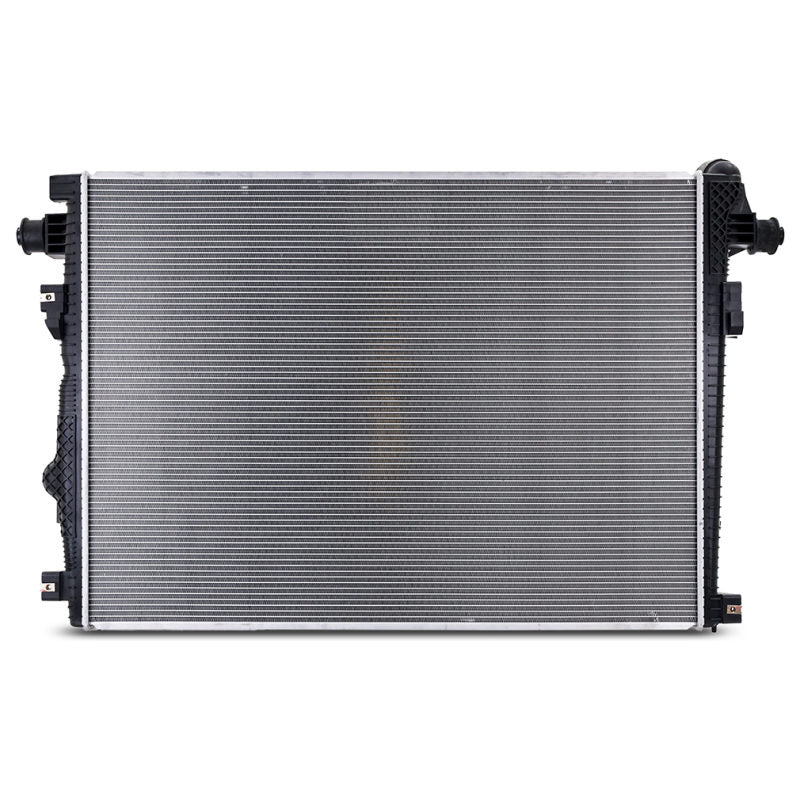

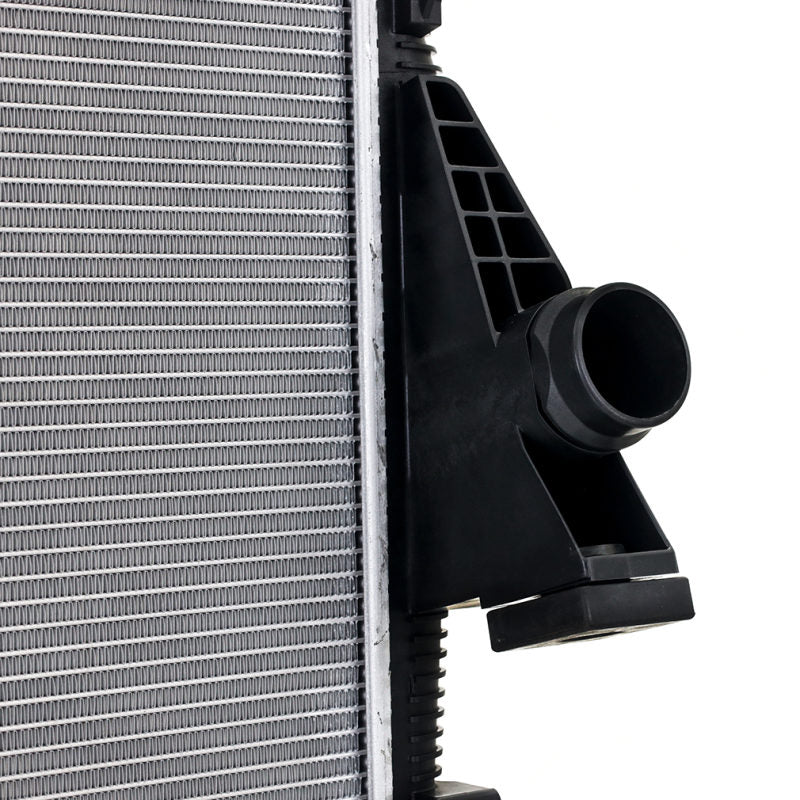

Mishimoto R13230 - 11-16 Ford F250 6.7L Powerstroke Primary Plastic Radiator
Replacement Radiator, fits Ford F-Series 6.7L Powerstroke, Primary 2011-2016
Plastic end tank radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
There's nothing worse than being stranded on the side of the road with a growing puddle of coolant under your vehicle. That's why it's important to take care of problems, like a leaking radiator, quickly, or before they even start. Mishimoto replacement radiators are an easy and budget-friendly way to avoid costly tow truck bills or even more costly engine damage. This replacement primary radiator for your 2011-2016 Ford F-Series 6.7L Powerstroke is designed to meet OEM specifications to keep your engine as cool as the day it rolled off the lot. This radiator is a drop in fit, making it easy to get back on the road fast. With Mishimoto's Lifetime Warranty, you can drive easy knowing we have your back as long as you own the vehicle.
- Direct fit replacement for 2011-2016 Ford F-Series 6.7L Powerstroke primary radiator
- Cost-effective solution to a leaking, clogged, or damaged radiator
- Designed to meet OEM specifications
SellingPoint01: Direct fit replacement for 2011-2016 Ford F-Series 6.7L Powerstroke primary radiator
SellingPoint02: Cost-effective solution to a leaking, clogged, or damaged radiator
SellingPoint03: Designed to meet OEM specifications
SellingPoint04: Drop-in fit to get you back on the road quickly
SellingPoint05: Mishimoto Lifetime Warranty
SellingPoint06: N/A
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Attribute Set Name: Radiators
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (ins): N/A
TechSpec Core Length (in): 38.38
TechSpec Core Height (in): 25.5
TechSpec Fluid Capacity (gal): N/A
TechSpec Rows: N/A
TechSpec Inlet (in): 2.19
TechSpec Outlet (in): 2.19
TechSpec Core Thickness (in): 1.56
TechSpec Drain Plug Thread Size: N/A
TechSpec DPI: N/A
TechSpec Material: N/A
TechSpec Applications: Ford F-250 Super Duty 6.7L V8 2011-2016--Ford F-350 Super Duty 6.7L V8 2011-2016--Ford F-450 Super Duty 6.7L V8 2011-2016--Ford F-550 Super Duty 6.7L V8 2011-2016
TechSpec Engine Codes: N/A
TechSpec Chassis Codes: N/A
TechSpec Note: N/A
TechSpec Includes: (1) Replacement Radiator--Mishimoto Lifetime Warranty
Install Difficulty: 2
CAPA Certified: No
Coolant Hose Inlet Connection Type: Hose Barb with Clamps
Coolant Hose Outlet Connection Type: Hose Barb with Clamps
Coolant Level Indicator Port: No
Core Color: Silver
Core Construction: Tube-and-Fin
Core Finish: Uncoated
Core Material: Aluminum
Core Type: Tube-and-Fin
End Tank Color: Black
End Tank Construction: Cast
End Tank Finish: Uncoated
End Tank Material: Plastic / Aluminum
Engine Oil Cooler Included: No
Frame Included: No
Grade Type: Standard Replacement
Mounting Hardware Included: No
Mounting Type: OEM
Tank Material: Plastic
Thermostat Included: No
