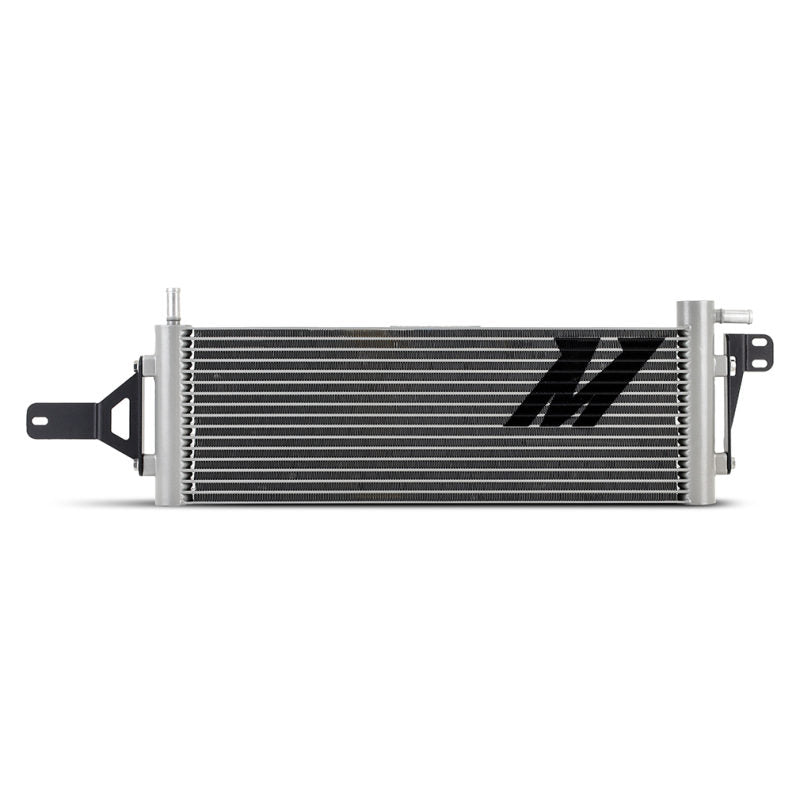

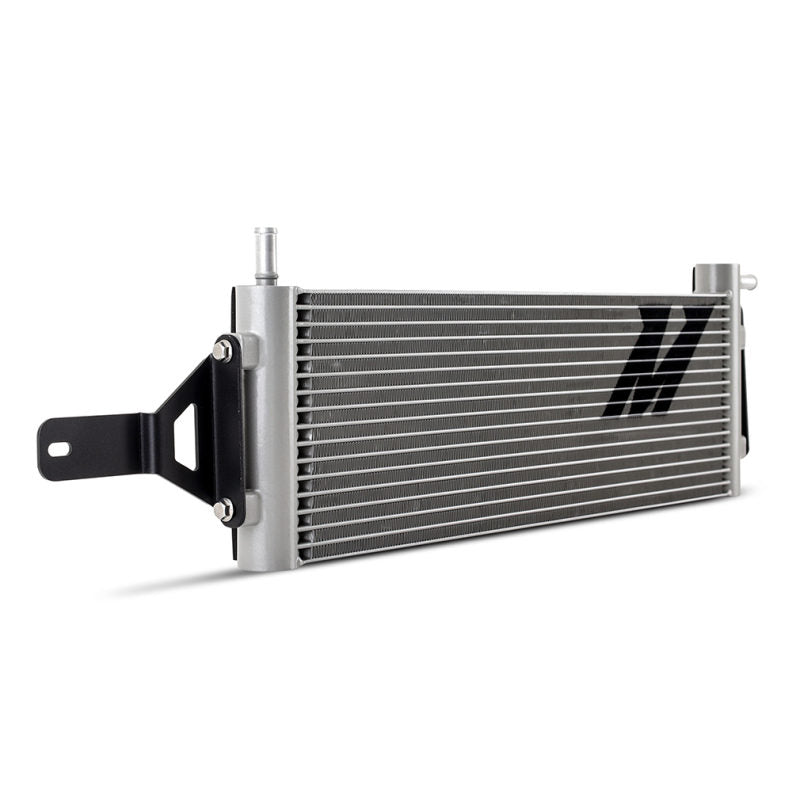

Mishimoto MMTC-RAM-10 - 10-12 Ram 2500/3500 6.7L Cummins Transmission Cooler
Transmission Cooler, Silver, fits Dodge Ram 2500/3500 6.7L Cummins 2010-2012
Automatic transmission oil cooler designed to regulate fluid temperature and prevent overheating. Enhances transmission longevity, maintains performance, and features durable construction with a precise fit.

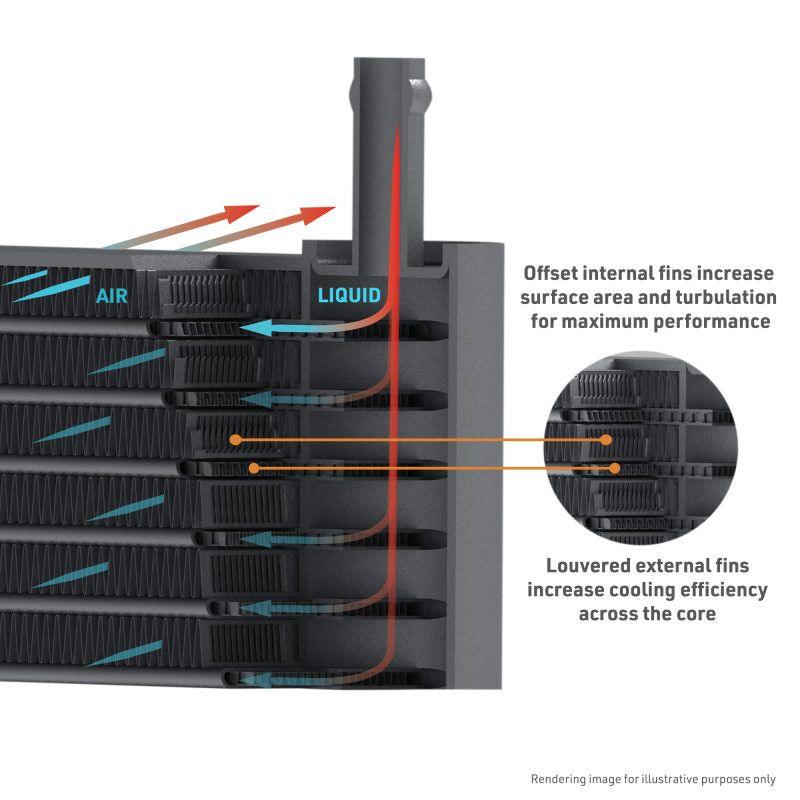

Mishimoto's transmission cooler is designed to be a direct fit for the 2010-2012 Dodge 2500/3500 6.7L Cummins and features a tube and fin design optimal for heavy load towing and rapid load changes. This transmission cooler boasts a 60% increase in core volume and an 86% increase in external fin area for superior cooling and heat dissipation. It also pairs with an optional line kit that helps bypass the factory transmission cooler, as a transmission failure can contaminate that.
- Available optional line kit to bypass OEM cooler and integrated A/C condenser
- 60% increase in core volume for superior cooling capability
- Works with stock and Mishimoto transmission coolers
SellingPoint15: N/A
TechSpec Rows: 15
TechSpec Core Construction: Tube-And-Fin
TechSpec Core Length (in): 19.29
TechSpec Core Height (in): 6.18
TechSpec Core Thickness (in): 1.26
TechSpec Engine Codes: 6.7L Cummins
TechSpec Chassis Codes: N/A
TechSpec Transmission Codes: 68RFE--AS68RC
TechSpec Installation Notes: N/A
TechSpec Caution: N/A
TechSpec Overall Height (in): 7.87
TechSpec Overall Length (in): 22.48
TechSpec Overall Width (in): 1.54
TechSpec Inlet: 1/2"
TechSpec Outlet: 1/2"

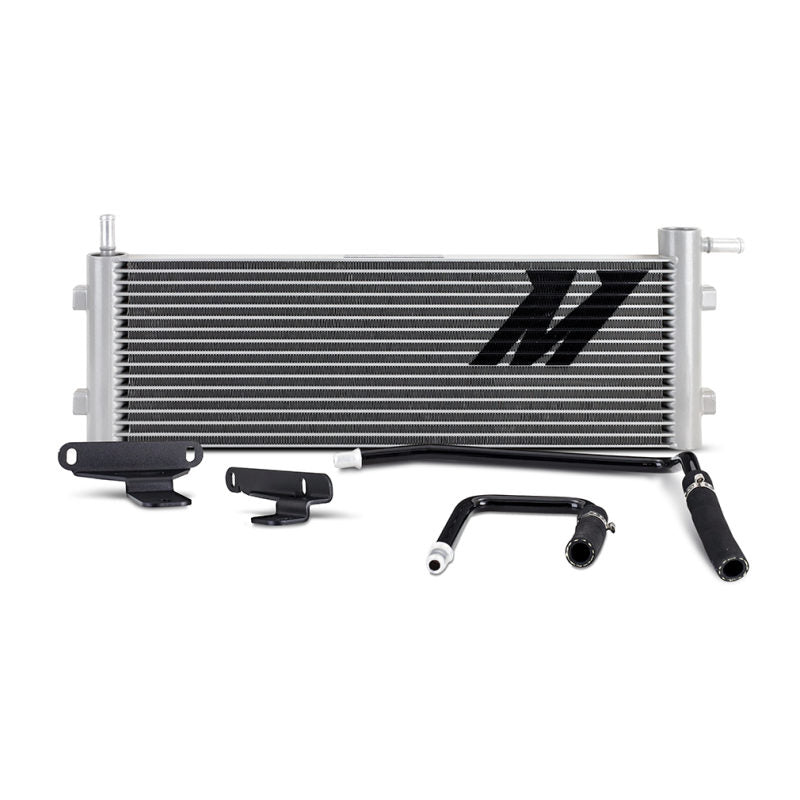

TechSpec Includes: (1) Mishimoto Transmission Cooler--(1) Mounting Bracket & Hardware Kit--(1) Line Kit--Mishimoto Lifetime Warranty
TechSpec Fluid Capacity (qts): 0.7 (total cooler capacity including lines where applicable)
TechSpec Note: Available optional line kit to bypass OEM cooler and integrated A/C condenser: MMTC-RAM-10LK
Install Difficulty: 2
TechSpec Applications: Dodge Ram 2500 5.7L V8 2010--Dodge Ram 2500 6.7L L6 2010--Dodge Ram 3500 6.7L L6 2010--Ram 2500 6.7L L6 2011-2013--Ram 2500 5.7L V8 2011-2012--Ram 3500 6.7L L6 2011-2013--Ram 3500 5.7L V8 2011-2012
Core Height: 6.18
Core Material: Aluminum
Core Thickness: 1.26
Core Width: 19.29
Electric Fan: No
Finish: Natural Aluminum
Grade Type: Performance
Height: 7.87
Inlet Diameter: 0.5
Line Included: Yes
Mounting Hardware Included: Yes
Outlet Diameter: 0.5
Thickness: 1.54
Width: 0
SellingPoint04: Works with stock and Mishimoto transmission coolers
SellingPoint05: 86% increase in external fin area for improved heat dissipation
SellingPoint06: Tube and fin design perfect for heavy towing and rapid load changes
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the 2010-2012 Dodge 2500/3500 6.7L Cummins
SellingPoint02: Available optional line kit to bypass OEM cooler and integrated A/C condenser [HYPERLINK TO MMTC-RAM-10LK]
SellingPoint03: 60% increase in core volume for superior cooling capability
