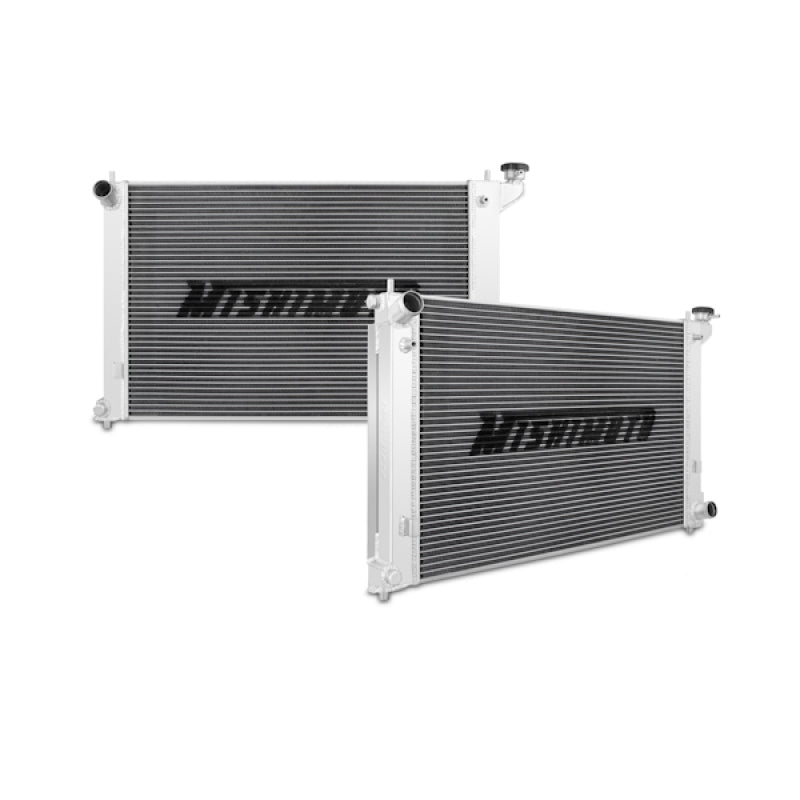

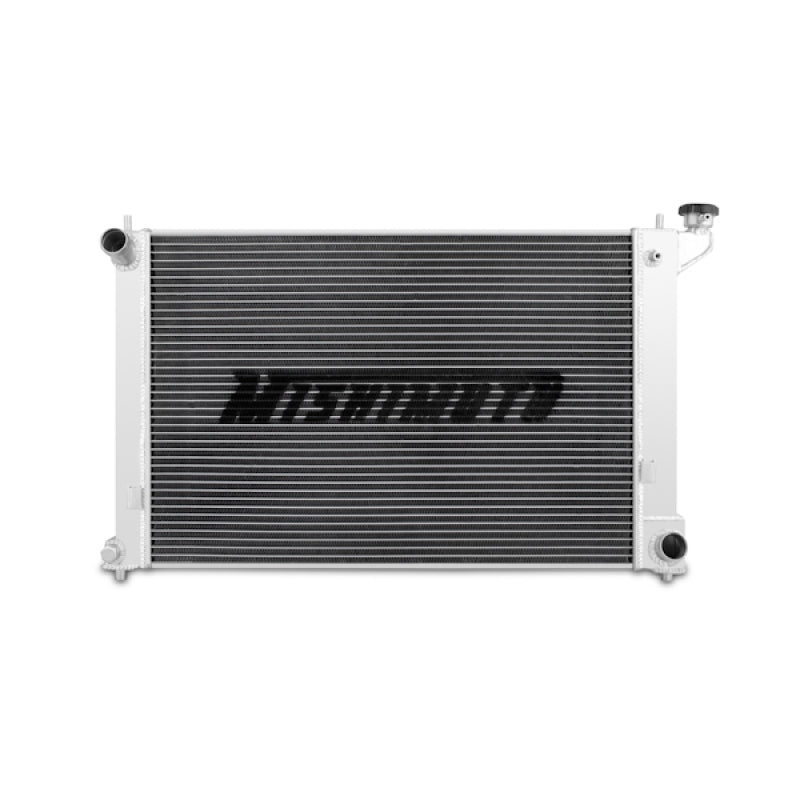

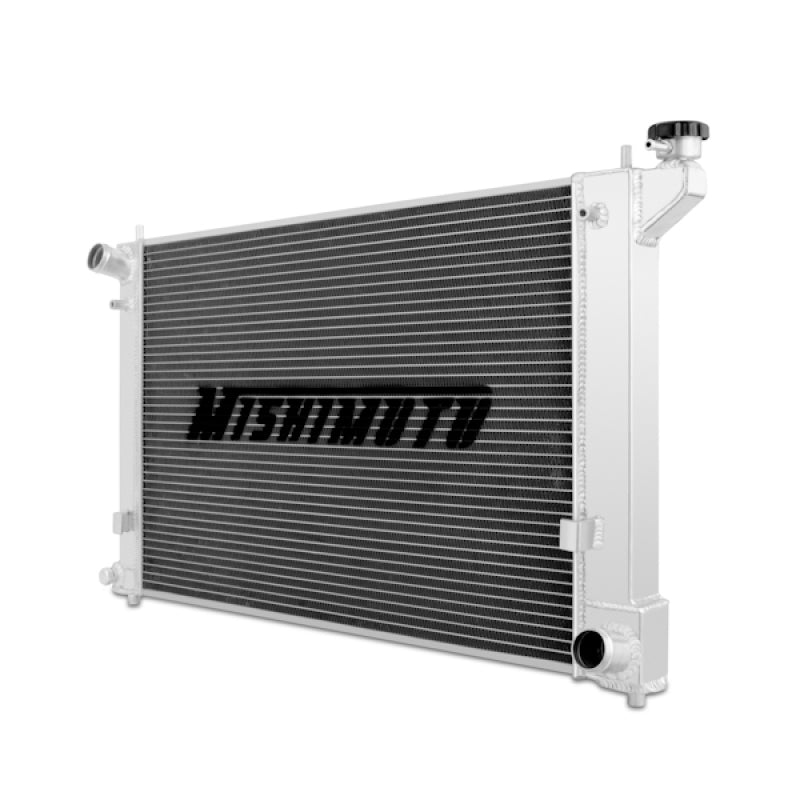

Mishimoto MMRAD-TC-05 - 05-10 Scion tC Manual Aluminum Radiator
Performance Aluminum Radiator, fits Scion tC 2005-2010
Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
The Mishimoto Performance Aluminum Radiator for the Scion tC has been designed and engineered to maximize cooling efficiency by up to 30-percent and protect your car from overheating.Mishimoto now offers the first performance radiator available for the 2005-2010 Scion tC featuring a lightweight dual core, 100-percent brazed aluminum, and polished end tanks.Every Mishimoto performance radiator is designed for a direct OEM fit making installation effortless with no cutting or modification required.This is the perfect upgrade to your stock Scion tC radiator.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty including accident protection! For even more cooling efficiency check out the Mishimoto'scion tC hose kit.

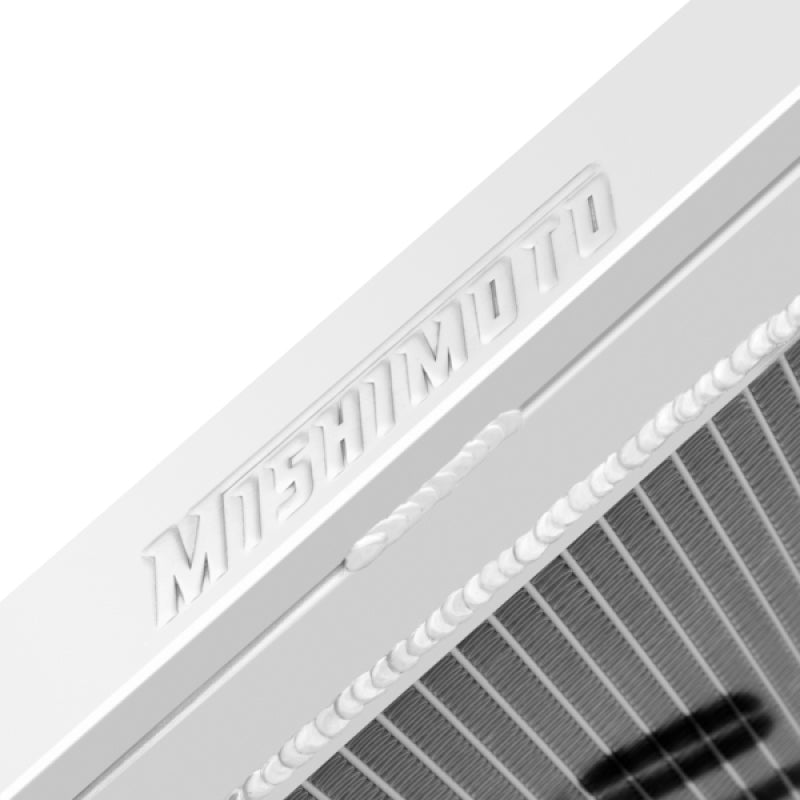

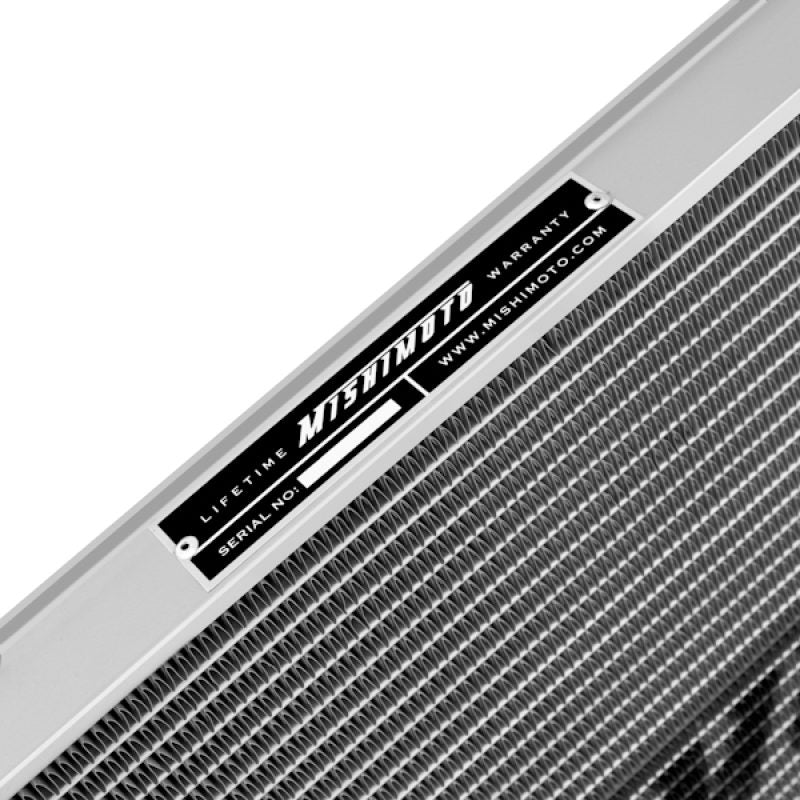

- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.57-in thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
SellingPoint03: Features a two-row, 1.57-in thick, efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and optimal heat dissipation
SellingPoint05: Provides efficient temperature reduction for use on the street or track

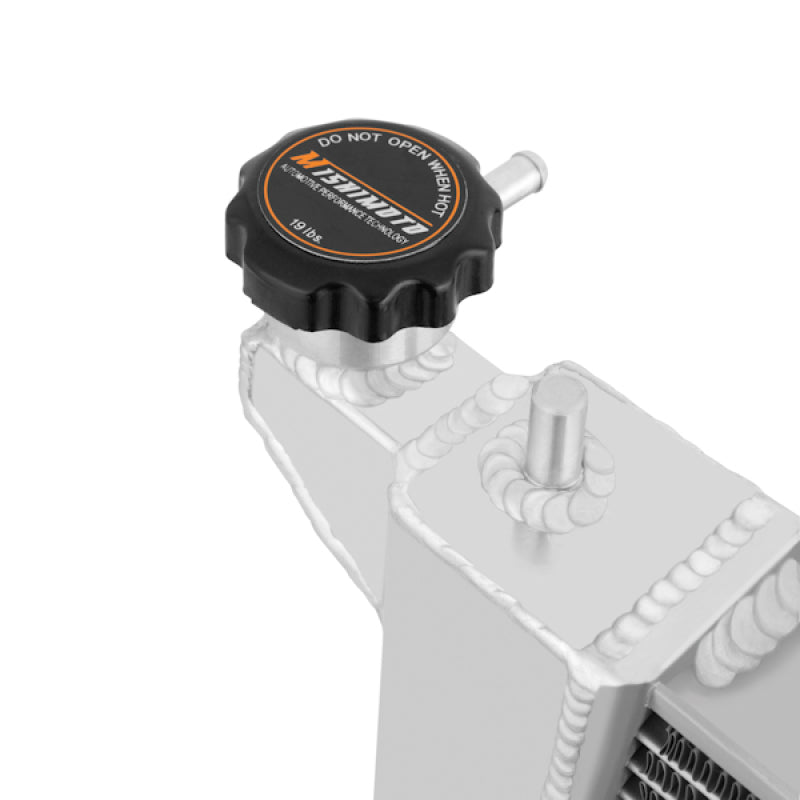

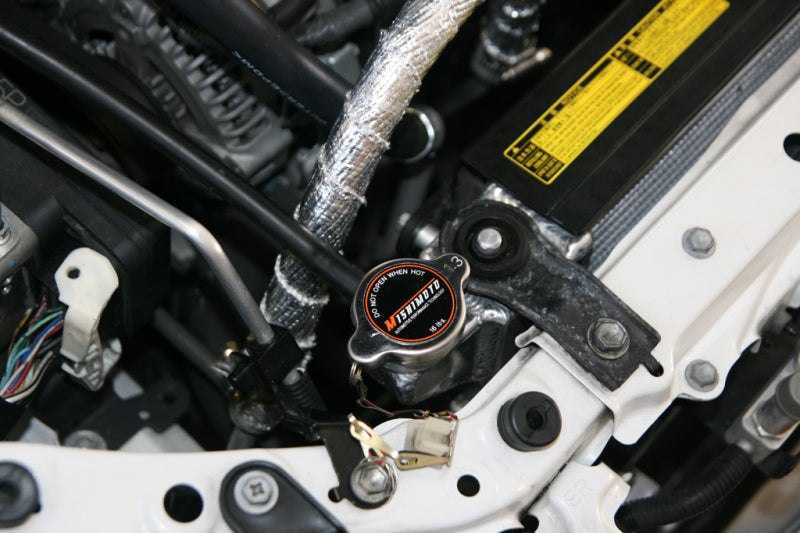

SellingPoint06: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint07: Engineered for use with both stock and highly modified vehicles
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint10: N/A
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint15: N/A
Install Difficulty: 3
Core Finish: Uncoated
Core Height: 16.06
Core Length: 23.62
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 1.57
Down Flow Or Cross Flow Type: Cross Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 2.03
Inlet Diameter: 1.34
Inlet Location: Top Left
Outlet Diameter: 1.34
Outlet Location: Bottom Right
Overall Height: 30.5
Overall Length: 18.2
Overall Width: 2.07
Radiator Cap Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
TechSpec Overall Height (in): 30.5
TechSpec Overall Length (in): 18.2
TechSpec Overall Width (in): 2.07
TechSpec Core Length (in): 23.62
TechSpec Core Height (in): 16.06
TechSpec Fluid Capacity (gal): 2.03
TechSpec Rows: 2
TechSpec Inlet (in): 1.34
TechSpec Outlet (in): 1.34
TechSpec Core Thickness (in): 1.57
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 2776
TechSpec Material: Aluminum
TechSpec Applications: 2007-2008 Scion tC SPEC
TechSpec Engine Codes: 2AZFE
TechSpec Chassis Codes: ANT20
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the 2005-2010 Scion tC 2.4L
SellingPoint02: Full aluminum construction including durable, TIG-welded end tanks
