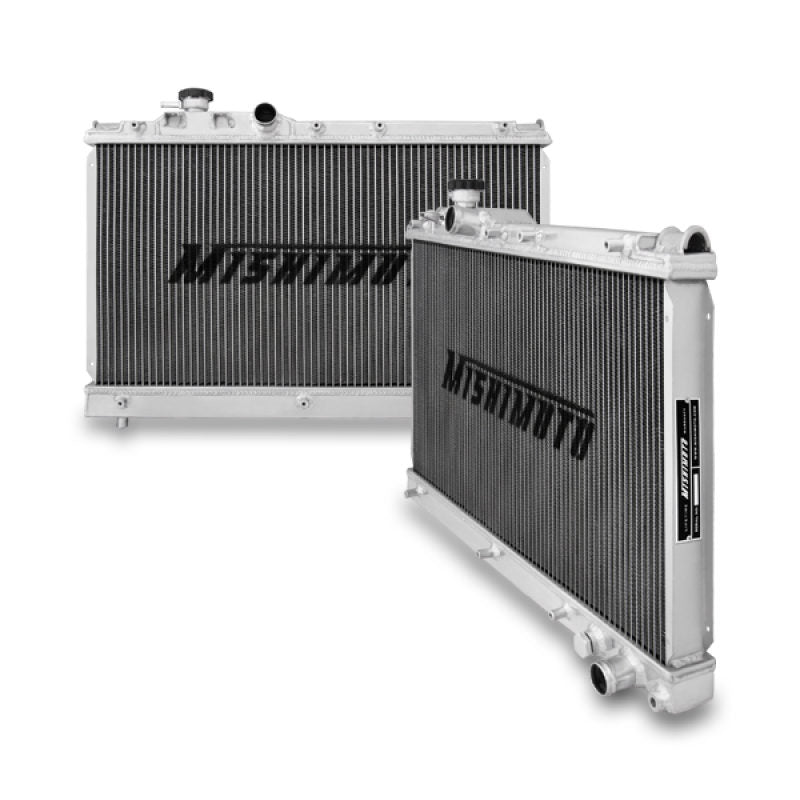

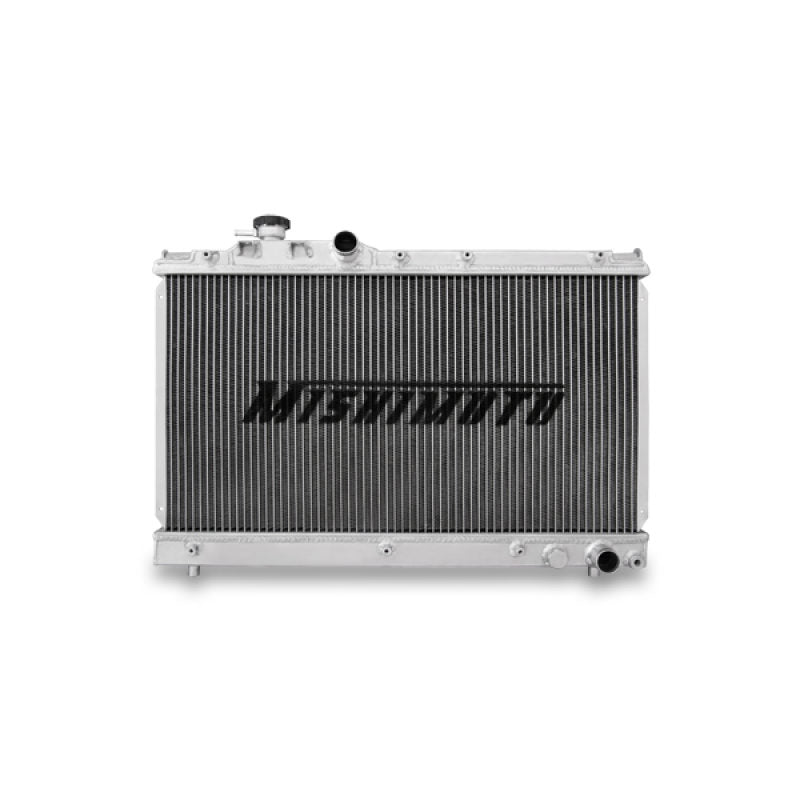

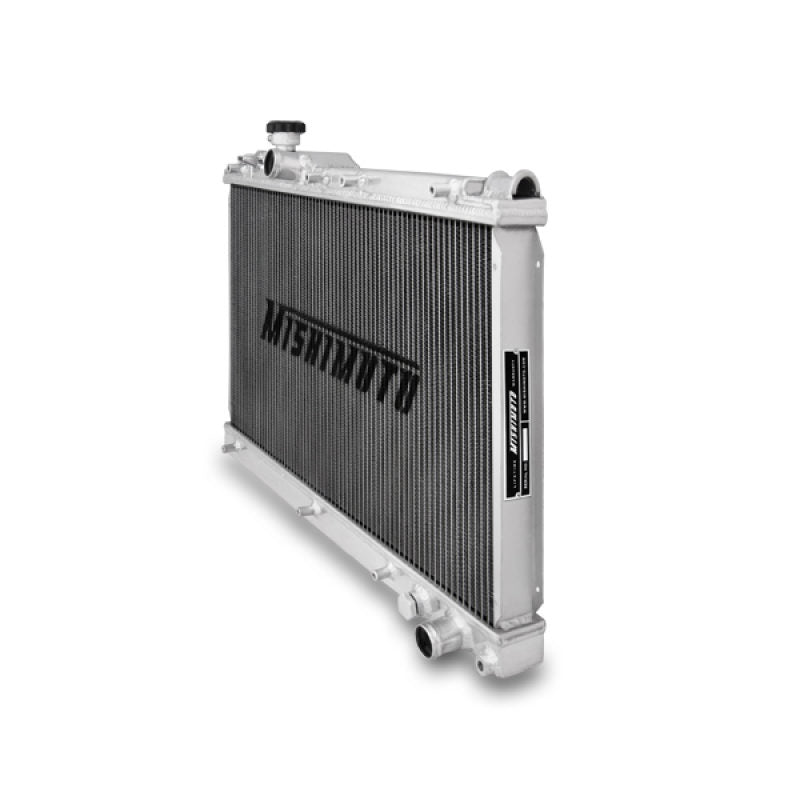

Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
The Toyota Celica is ideal for engine upgrades and modifications that can provide substantial horsepower and torque increases.By replacing your current Celica radiator with a Mishimoto performance aluminum radiator, you will undoubtedly notice a cooler running engine.The Mishimoto Toyota Celica aluminum radiators are designed and engineered to maximize cooling efficiency and protect your car from the overheating.Installation is effortless with a direct OEM fit - no cutting or modification is required.
TechSpec Material: Aluminum
TechSpec Applications: 1994-1998 Celica 1999Celica GT
TechSpec Engine Codes: 5SFE
TechSpec Chassis Codes: ST202
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the 1994-1999 Toyota Celica GT/GT4 2.0L
SellingPoint02: Full aluminum construction including durable, TIG-welded end tanks
SellingPoint03: Features a two-row, 2.05-in thick, efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and optimal heat dissipation
SellingPoint05: Provides efficient temperature reduction for use on the street, track, autocross, or rally stage

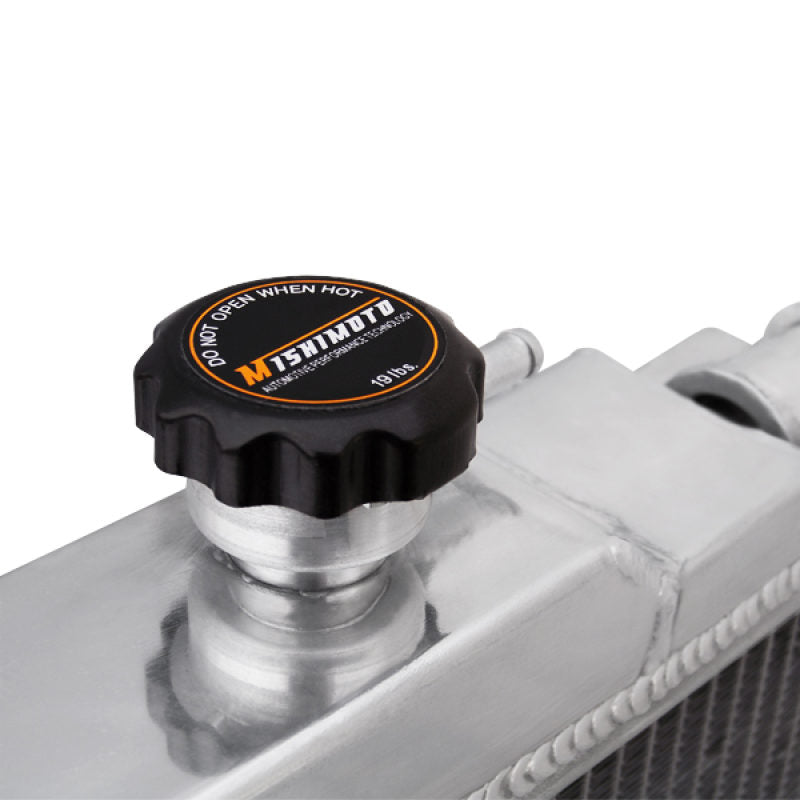

SellingPoint06: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint07: Engineered for use with both stock and highly modified vehicles
SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
Core Finish: Uncoated
Core Height: 13.78
Core Length: 24.71
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 2.05
Down Flow Or Cross Flow Type: Down Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 2
Inlet Diameter: 1.26
Inlet Location: Top Left
Outlet Diameter: 1.26
Outlet Location: Bottom Right
Overall Height: 25.97
Overall Length: 19.35
Overall Width: 2.55
Radiator Cap Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
TechSpec Overall Height (in): 25.97
TechSpec Overall Length (in): 19.35
TechSpec Overall Width (in): 2.55
TechSpec Core Length (in): 24.71
TechSpec Core Height (in): 13.78
TechSpec Fluid Capacity (gal): 2
TechSpec Rows: 2
TechSpec Inlet (in): 1.26
TechSpec Outlet (in): 1.26
TechSpec Core Thickness (in): 2.05
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 1575
