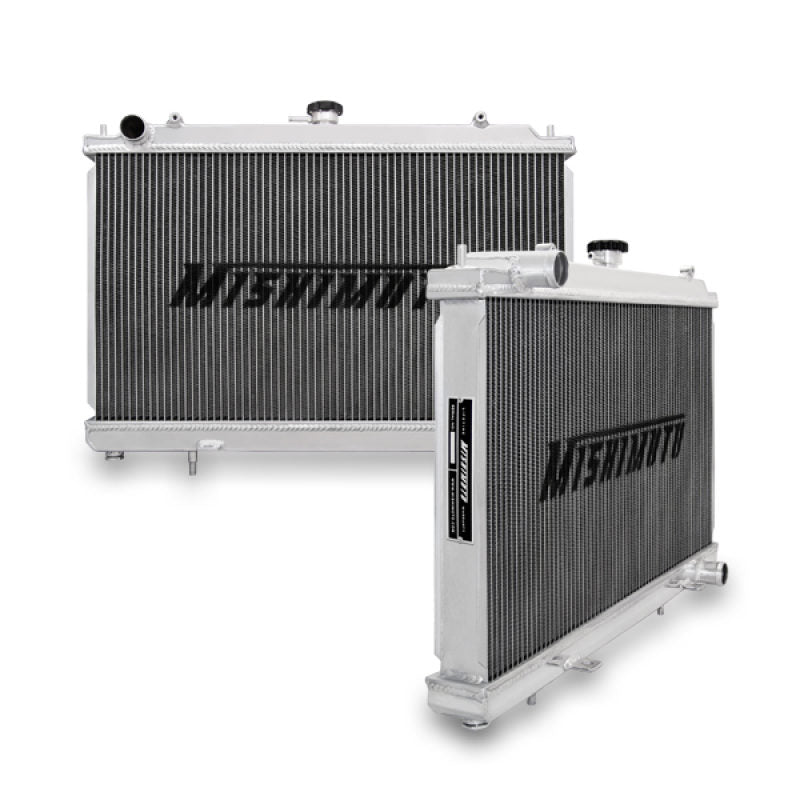

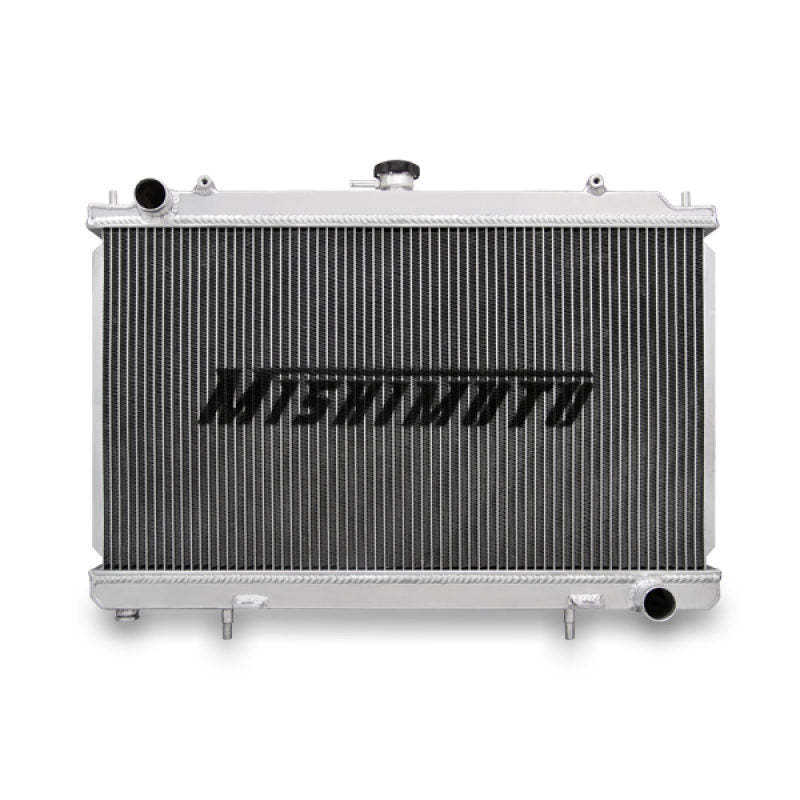

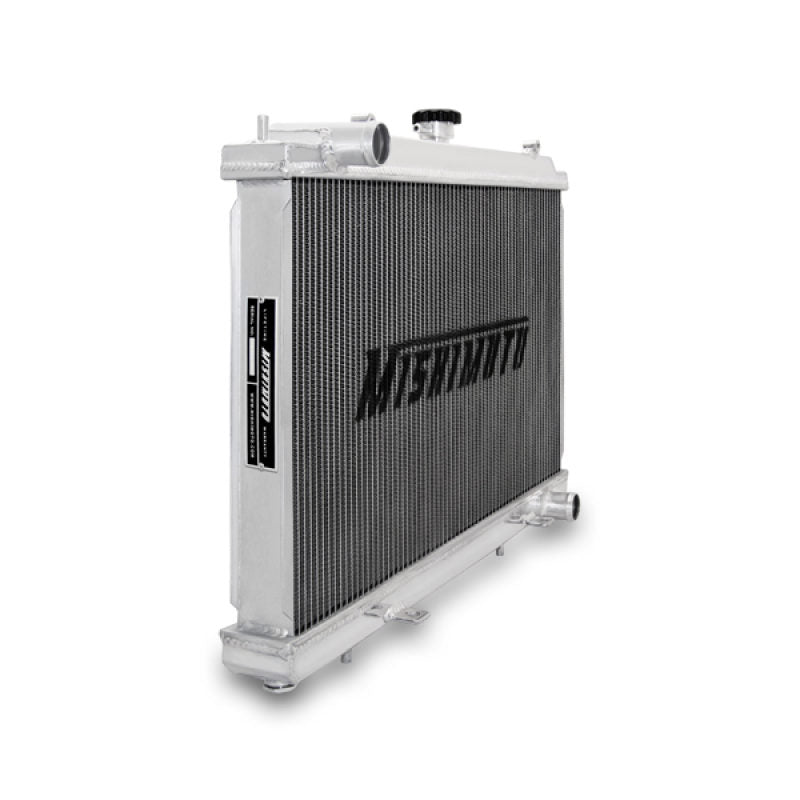

Mishimoto MMRAD-S14-95SR - 95-98 Nissan 240sx S14 SR20DET Aluminum Radiator
Performance Aluminum Radiator, fits Nissan 240SX SR20 Engine 1995-1998
Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
The Mishimoto performance aluminum radiator for the Nissan 240SX is designed and engineered to maximize cooling efficiency by up to 30-percent, boost engine functions, and most importantly, protect your car from overheating whether you drive your vehicle daily or take it for track runs. The Mishimoto aluminum Nissan 240SX radiator features a lightweight dual core, 100-percent brazed aluminum, and polished end tanks, enhancing the overall performance of your engine. Every Mishimoto aluminum radiator is a direct OEM fit, making installation effortless with no cutting or modification required. This is the ideal upgrade to the stock Nissan 240SX radiator. All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty including accident protection. A perfect match to the Mishimoto lightweight aluminum Nissan 240sx fan shroud. Also fits Nissan S15
- Provides a bolt-in cooling solution which simplifies the engine-swap process
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.97-in thick, efficient brazed aluminum core
TechSpec Drain Plug Thread Size: M10 x 1.25
TechSpec DPI: N/A
TechSpec Material: N/A
TechSpec Applications: 1997 Nissan 240sx LE--1995-1997 Nissan 240sx SE
TechSpec Engine Codes: SR20DESR20DET
TechSpec Chassis Codes: S14
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the 1995-1998 Nissan 240SX S14 with SR20 engine swap
SellingPoint02: Provides a bolt-in cooling solution which simplifies the engine-swap process
SellingPoint03: Full aluminum construction including durable, TIG-welded end tanks
SellingPoint04: Features a two-row, 1.97-in thick, efficient brazed aluminum core
SellingPoint05: Increased fluid capacity and optimal heat dissipation
SellingPoint06: Provides efficient temperature reduction for street and/or track use

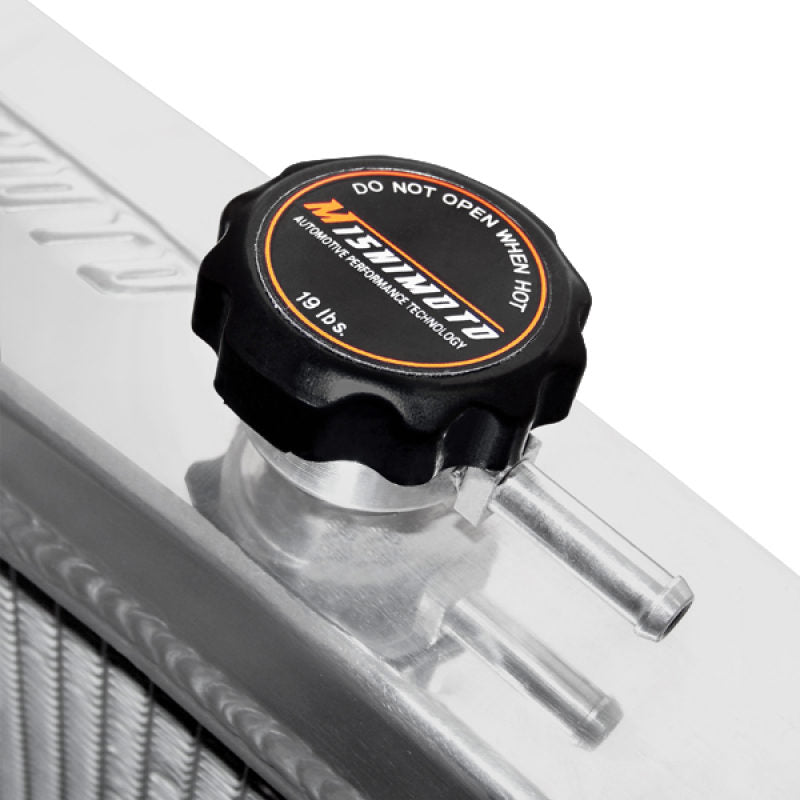

SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
Core Finish: Uncoated
Core Height: 25.12
Core Length: 14.13
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 1.97
Down Flow Or Cross Flow Type: Down Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M10 - 1.25
Fluid Capacity: 1.85
Inlet Diameter: 1.25
Inlet Location: Top Left
Outlet Diameter: 1.25
Outlet Location: Bottom Right
Overall Height: 26.4
Overall Length: 20
Overall Width: 2.47
Radiator Cap Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
TechSpec Overall Height (in): 26.4
TechSpec Overall Length (in): 20
TechSpec Overall Width (in): 2.47
TechSpec Core Length (in): 14.13
TechSpec Core Height (in): 25.12
TechSpec Fluid Capacity (gal): 1.85
TechSpec Rows: 2
TechSpec Inlet (in): 1.25
TechSpec Outlet (in): 1.25
TechSpec Core Thickness (in): 1.97
