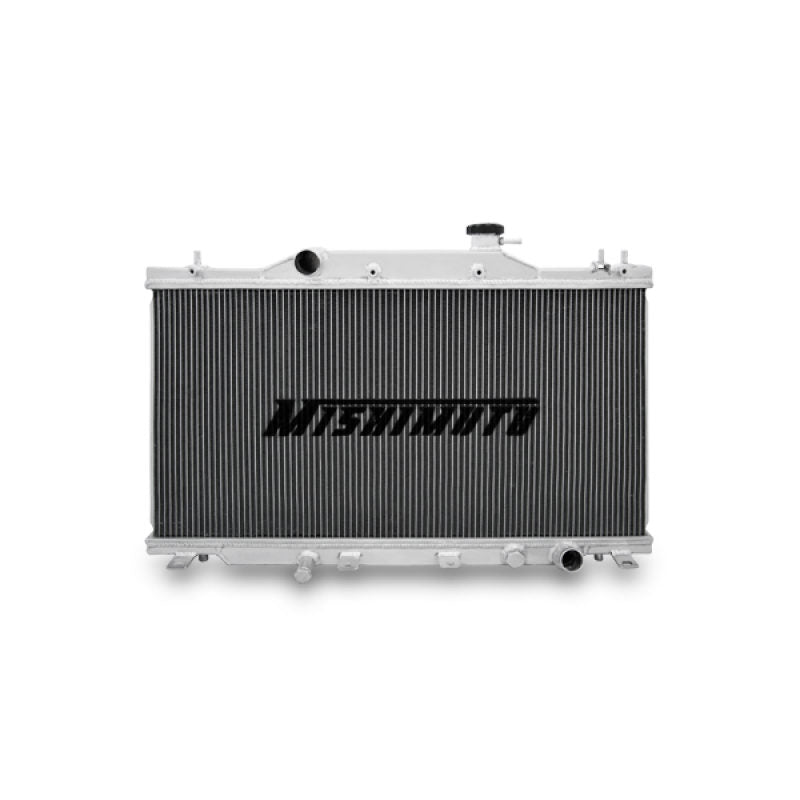

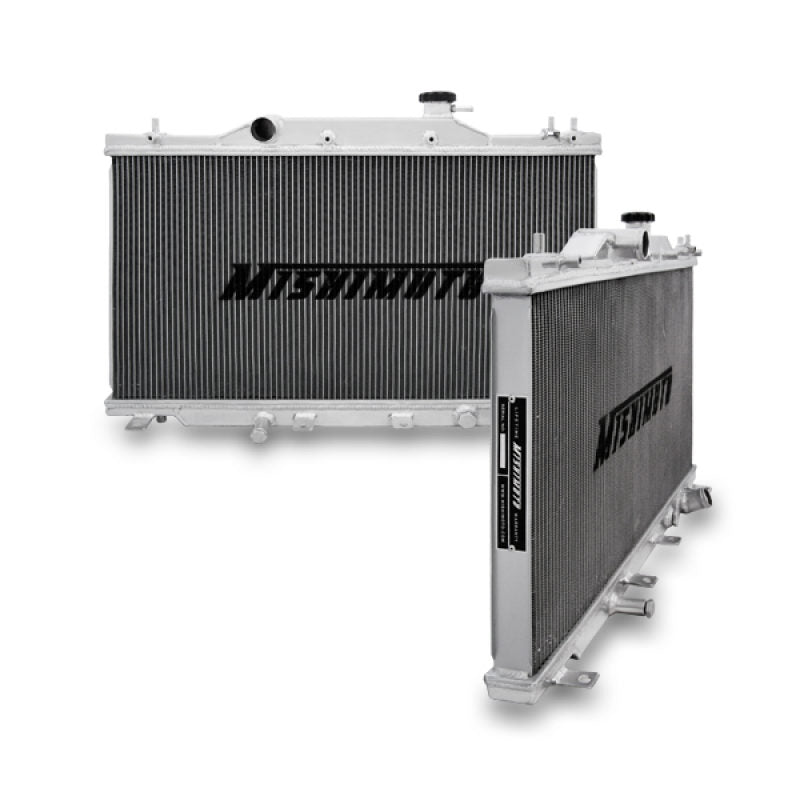

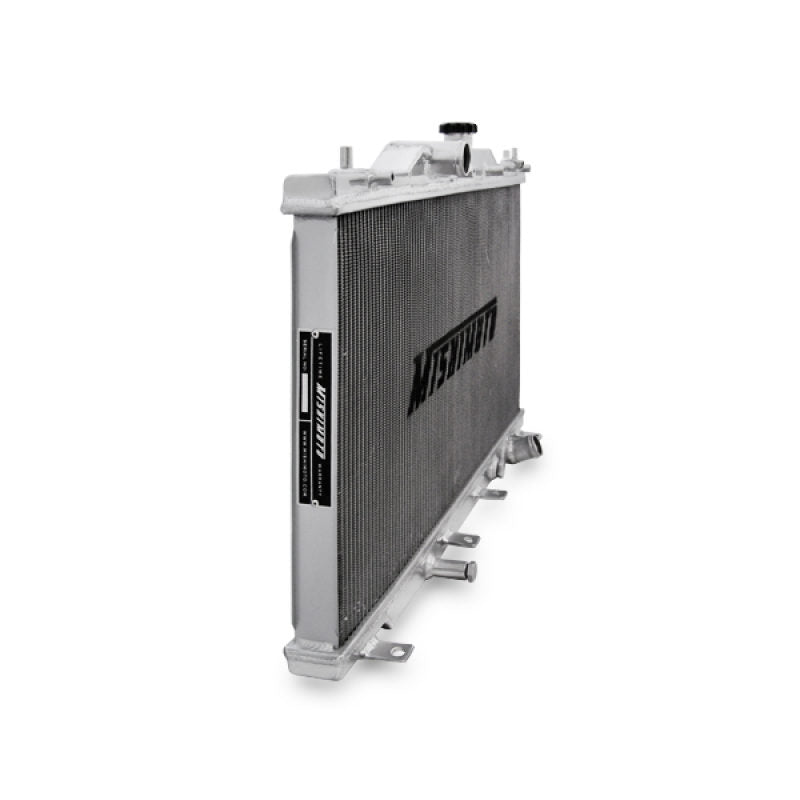

Mishimoto MMRAD-RSX-02 - 02-04 Acura RSX Manual Aluminum Radiator
Performance Aluminum Radiator, fits Acura RSX 2002-2006
Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
By replacing your current stock RSX radiator with a top of the line Mishimoto performance aluminum radiator, you will immediately notice a cooler more efficient running engine.All Mishimoto Acura RSX radiators are designed and engineered to maximize cooling efficiency, boost engine functions, and most importantly protect your car from overheating.All Mishimoto performance radiators feature a lightweight dual core, 100-percent brazed aluminum and polished end tanks.The direct OEM fit makes installation effortless and no cutting or modification is required.It is the ideal upgrade to the stock radiator.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap, magnetic drain plug and an excellent warranty.
- 2002-2006 Acura RSX
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.4-in thick, efficient brazed aluminum core
TechSpec Overall Height (in): 18.8
TechSpec Overall Length (in): 27.6
TechSpec Overall Width (in): 1.9
TechSpec Core Length (in): 27.52
TechSpec Core Height (in): 13.75
TechSpec Fluid Capacity (gal): 1.91
TechSpec Rows: 2
TechSpec Inlet (in): 1.25
TechSpec Outlet (in): 1.25
TechSpec Core Thickness (in): 1.4
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 2412
TechSpec Material: N/A
TechSpec Applications: 2002-2006 Acura RSX Type S
TechSpec Engine Codes: K20a3--K20a1--K20z1
TechSpec Chassis Codes: DC5
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
SellingPoint01: 2002-2006 Acura RSX
SellingPoint02: Full aluminum construction including durable, TIG-welded end tanks
SellingPoint03: Features a two-row, 1.4-in thick, efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and optimal heat dissipation
SellingPoint05: Provides efficient temperature reduction for both street and track use
SellingPoint06: Efficient temperature regulation for both stock and modified vehicles

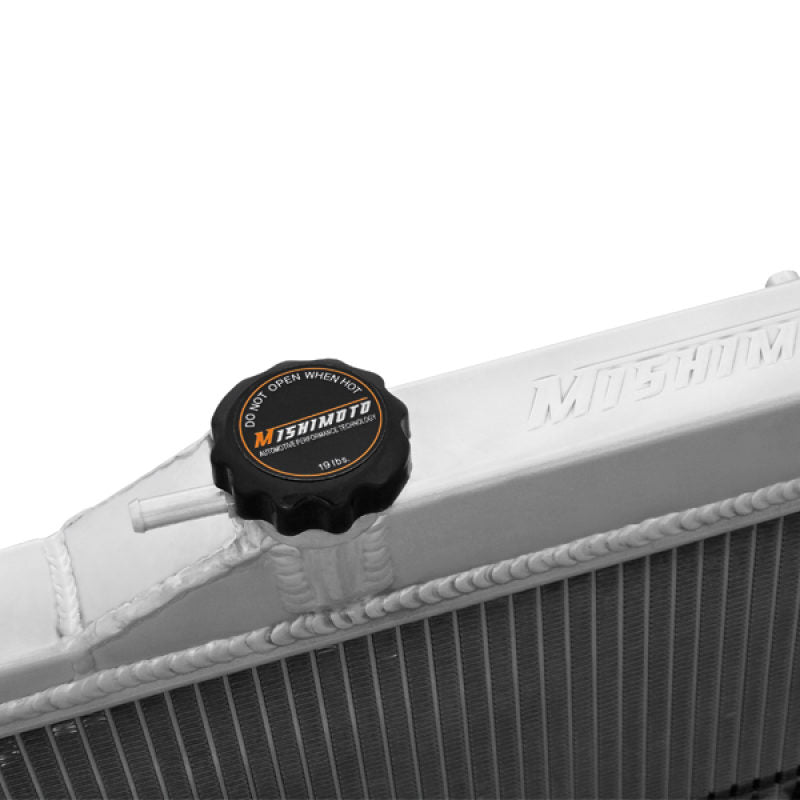

SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
Core Finish: Uncoated
Core Height: 13.75
Core Length: 27.52
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 1.4
Down Flow Or Cross Flow Type: Down Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 1.91
Inlet Diameter: 1.25
Inlet Location: Top Left
Outlet Diameter: 1.25
Outlet Location: Bottom Right
Overall Height: 18.8
Overall Length: 27.6
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
Radiator Cap Included: Yes
Overall Width: 1.9
