Mishimoto MMRAD-RAM-13 - 13+ Ram 2500/3500 6.7L Cummins Aluminum Radiator

Mishimoto  |  SKU: MMRAD-RAM-13
$1,02495 $1,12700
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

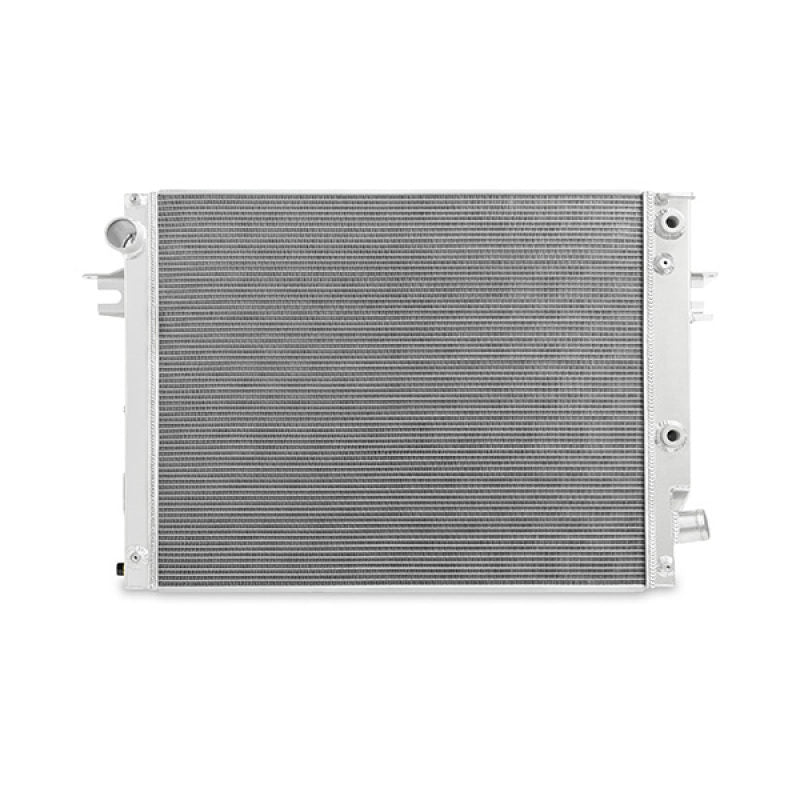

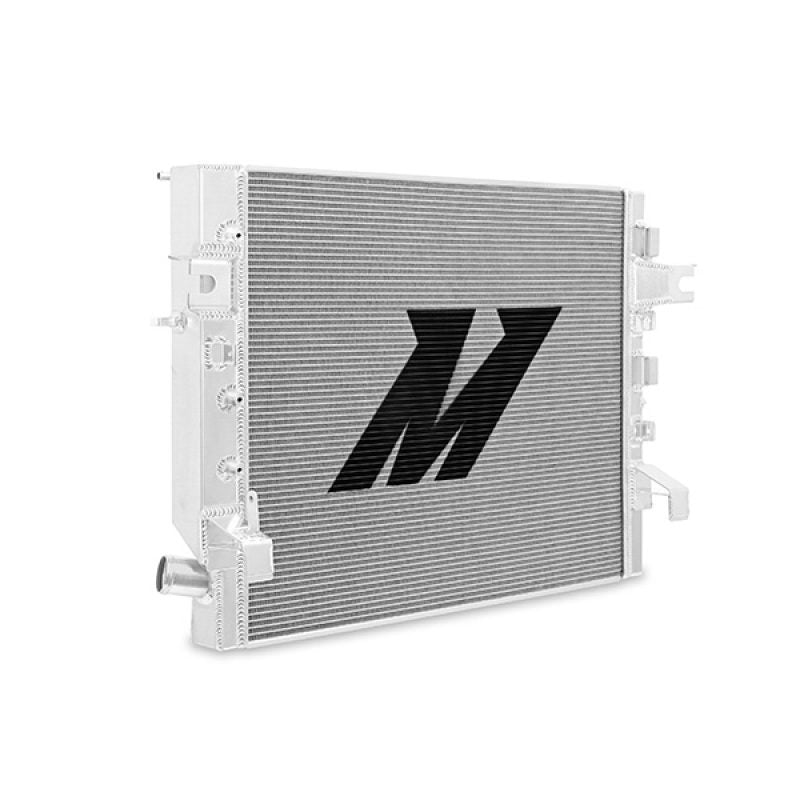

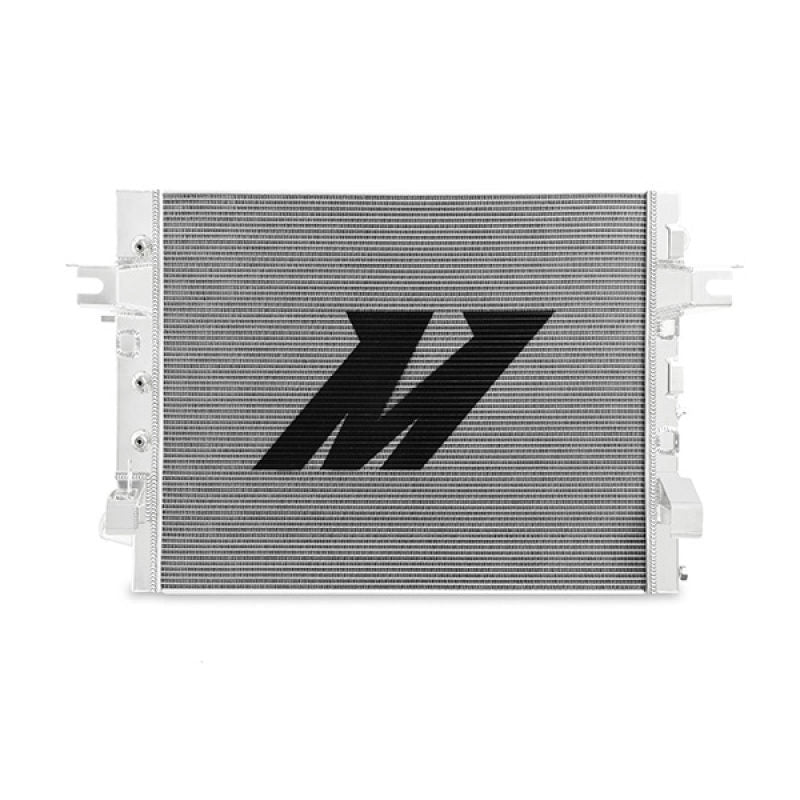

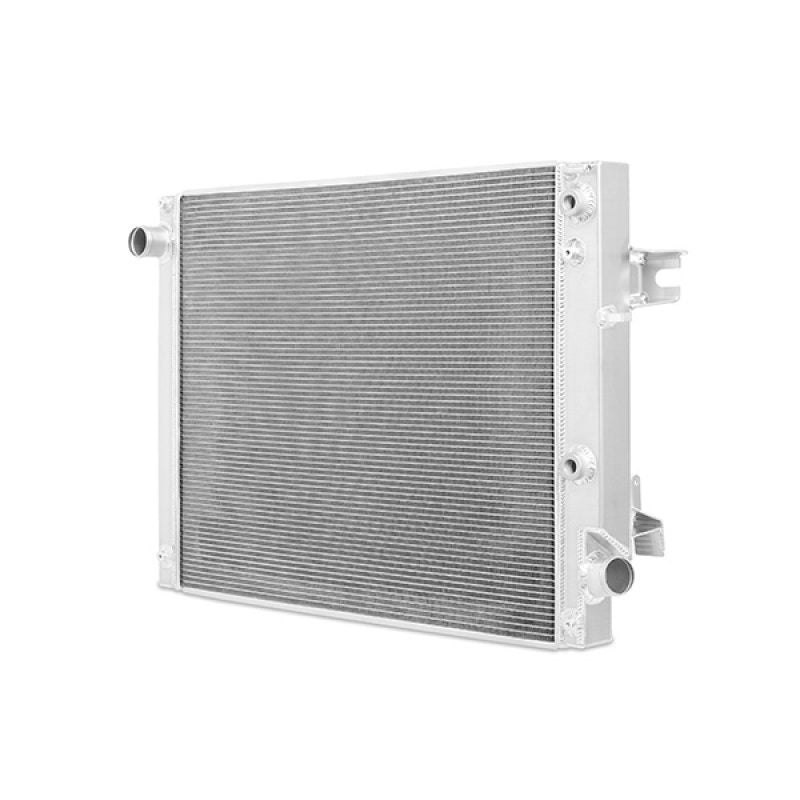

Mishimoto MMRAD-RAM-13 - 13+ Ram 2500/3500 6.7L Cummins Aluminum Radiator

Performance Aluminum Radiator, fits Dodge 6.7L Cummins 2013-2018

Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.

The legendary reliability and power of the 6.7L Cummins equipped Dodge Ram has solidified it as one of the most popular trucks in the world for getting work done. But every legend has its weakness, and for the Dodge Ram, the stock radiator is one of them.The plastic end-tanks of the stock Ram radiator are prone to cracking and leaks over time. Add the increased stress and heat created by power-adding modifications and you have a recipe for disaster. But that's where Mishimoto can help.Our new 2013-2018 Ram 2500 / 3500 radiator is the ideal upgrade for any workhorse Cummins powered Ram. With a fully-aluminum, TIG-welded construction, this radiator is built as tough as your truck. A 63-percent increase in coolant capacity, and 41-percent larger surface area mean you can pile on the power and never worry about the heat.As with all of our products, this radiator is backed up by Mishimoto's Lifetime Warranty. Doesn't your Ram deserve a radiator worthy of legend?

  • Increases coolant capacity by 63-percent and surface area by 41-percent to maximize cooling

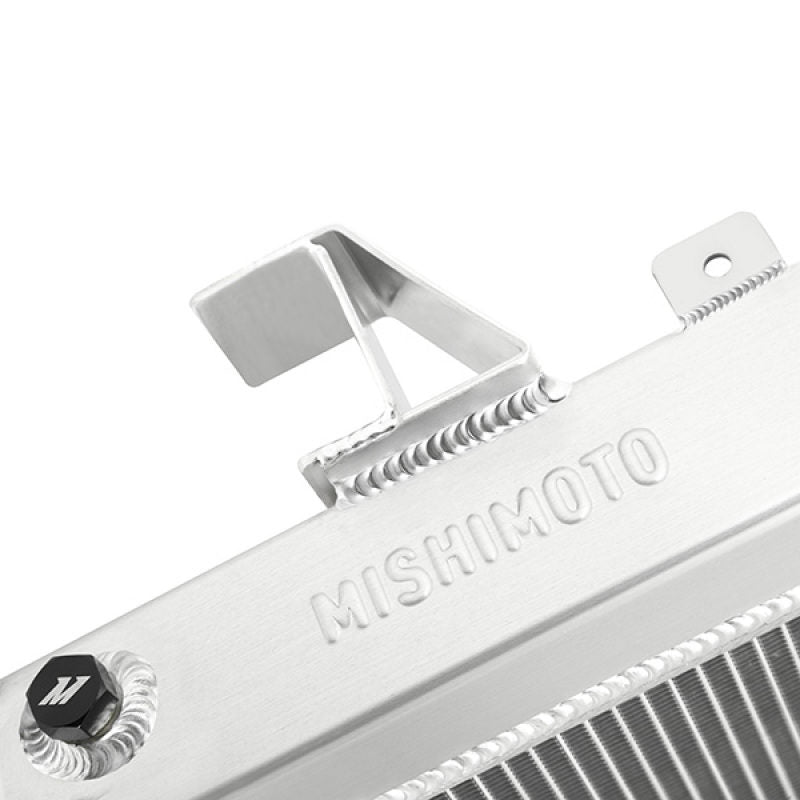

  • Durable fully aluminum construction with TIG-welded end tanks and fittings
  • Features a 2-in thick, three-row core for efficient cooling under high loads
Down Flow Or Cross Flow Type: Cross Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 7.94
Inlet Diameter: 1.61
Inlet Location: Top Left
Outlet Diameter: 1.61
Outlet Location: Bottom Right
Overall Height: 22
Overall Length: 33.5
Overall Width: 2.75
Radiator Cap Included: No
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
TechSpec Overall Height (in): 22
TechSpec Overall Length (in): 33.5
TechSpec Overall Width (in): 2.75
TechSpec Core Length (in): 26.75
TechSpec Core Height (in): 22
TechSpec Fluid Capacity (gal): 7.94 .
TechSpec Rows: 3
TechSpec Inlet (in): 1.61
TechSpec Outlet (in): 1.61
TechSpec Core Thickness (in): 1.88
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: N/A
TechSpec Material: Aluminum
TechSpec Applications: Ram 2500 6.7L L6 2013-2018--Ram 3500 6.7L L6 2013-2018--Ram 4500 6.7L L6 2013-2018--Ram 5500 6.7L L6 2013-2018
TechSpec Engine Codes: N/A
TechSpec Chassis Codes: N/A
TechSpec Note: N/A
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug--(2) Transmission Cooler Fittings-- M6 x 1.0 - 16mm Bolt--(3) M6 x 1.0 - 14mm Bolts--(4) M6 x 1.0 - 12mm Bolts--(3) M6 Flat Washers--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the 2013-2018 Dodge Ram 6.7L Cummins
SellingPoint02: Increases coolant capacity by 63-percent and surface area by 41-percent to maximize cooling
SellingPoint03: Durable fully aluminum construction with TIG-welded end tanks and fittings
SellingPoint04: Features a 2-in thick, three-row core for efficient cooling under high loads
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint07: N/A
SellingPoint06: Mishimoto Lifetime Warranty
SellingPoint05: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 5
Core Finish: Uncoated
Core Height: 22
Core Length: 26.75
Core Material: Aluminum
Core Row Quantity: 3
Core Thickness: 1.88
