Mishimoto MMRAD-MUS-64 - 64-66 Ford Mustang w/ 289 V8 Manual Aluminum Radiator
Performance Aluminum Radiator, fits Ford Mustang w/ 289 V8 1964-1966
Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.

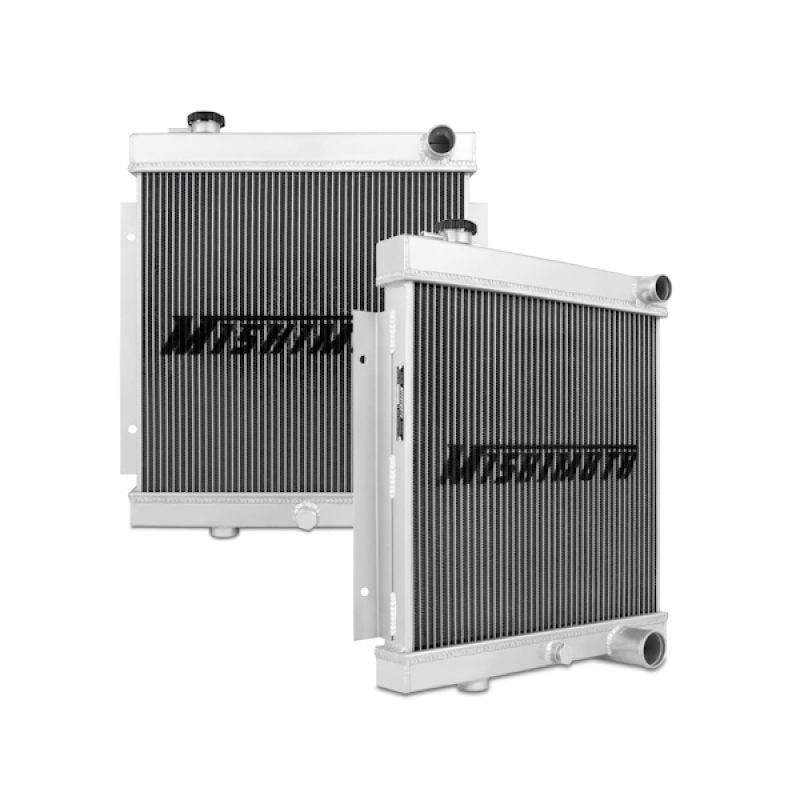

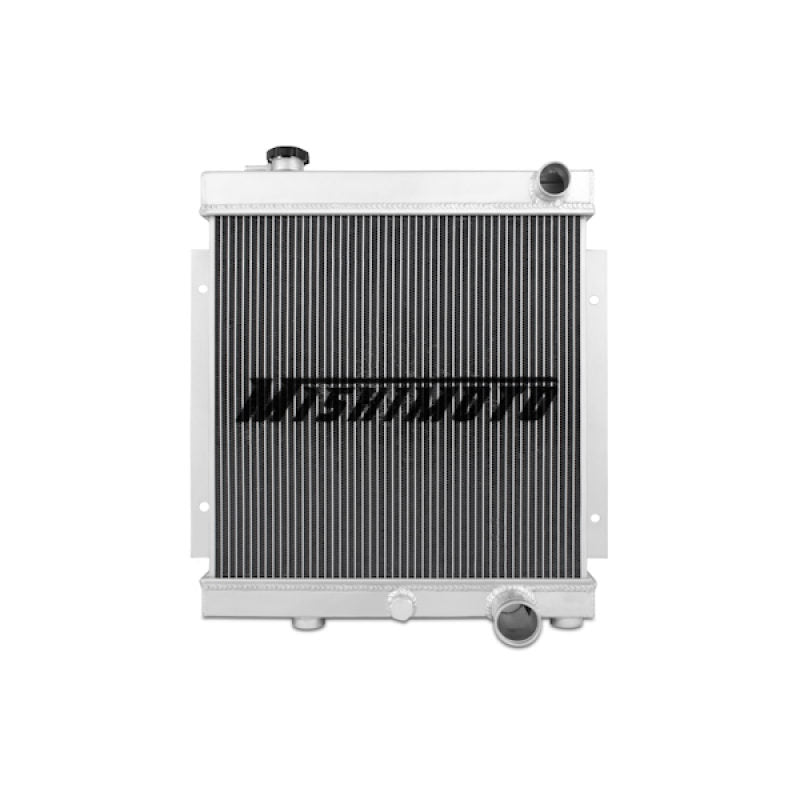

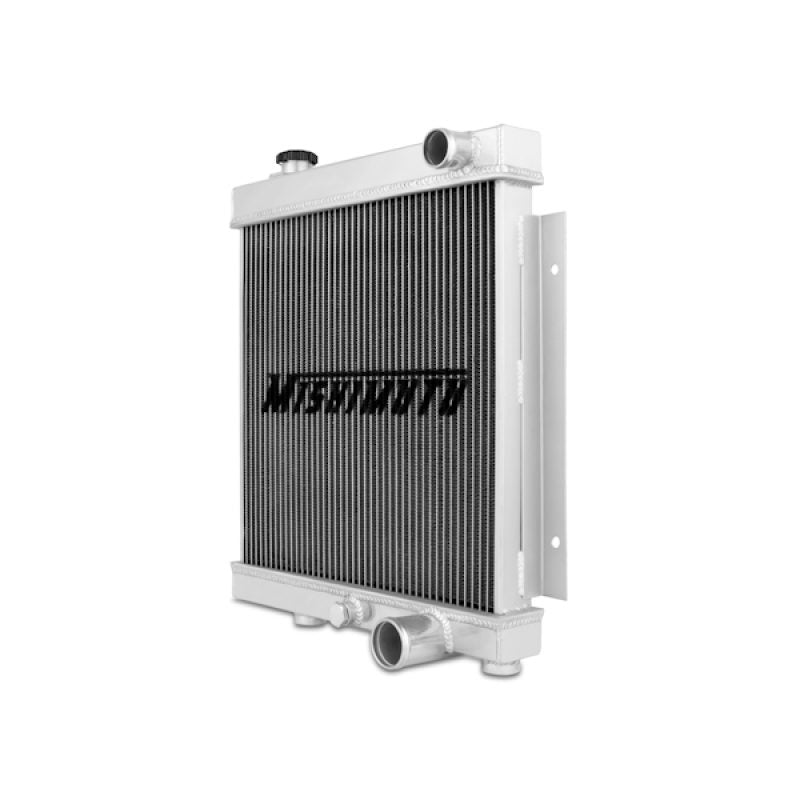

The Mishimoto 1964-1966 Mustang Aluminum Radiator w/ 289 V8 is the ideal upgrade to the stock Mustang radiator.Designed and specifically engineered to maximize cooling efficiency, boost engine functions and protect your car from overheating.A stock radiator cannot handle the heat that comes along with having a great deal of horsepower.The Mishimoto '64-'66 Mustang performance radiator features a lightweight dual core, 100-percent brazed aluminum, and polished end tanks.Every Mishimoto Performance Radiator is a direct OEM fit, no cutting or modification is required.
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.57-in thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
Core Row Quantity: 2
Core Thickness: 1.57
Down Flow Or Cross Flow Type: Down Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 4.09
Inlet Diameter: 1.5
Inlet Location: Top Right
Outlet Diameter: 1.97
Outlet Location: Bottom Right
Overall Height: 19.69
Overall Length: 21.85
Overall Width: 2.07
Radiator Cap Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
TechSpec Overall Height (in): 19.69
TechSpec Overall Length (in): 21.85
TechSpec Overall Width (in): 2.07
TechSpec Core Length (in): 16.34
TechSpec Core Height (in): 16.85
TechSpec Fluid Capacity (gal): 4.09
TechSpec Rows: 2
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.97
TechSpec Core Thickness (in): 1.57
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 130
TechSpec Material: Aluminum
TechSpec Applications: 1963-1965 Mercury Comet 260/289--1963-1964 Ford Falcon 260
TechSpec Engine Codes: N/A
TechSpec Chassis Codes: N/A
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Lifetime Warranty
SellingPoint01: Direct fit for the 1964-1966 Ford Mustang with 289ci V8
SellingPoint02: Full aluminum construction including durable, TIG-welded end tanks
SellingPoint03: Features a two-row, 1.57-in thick, efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and optimal heat dissipation
SellingPoint05: Perfect for use on the street and strip
SellingPoint06: Efficient temperature regulation for both stock and modified vehicles
SellingPoint07: Ideal replacement for an aged and/or clogged stock radiator

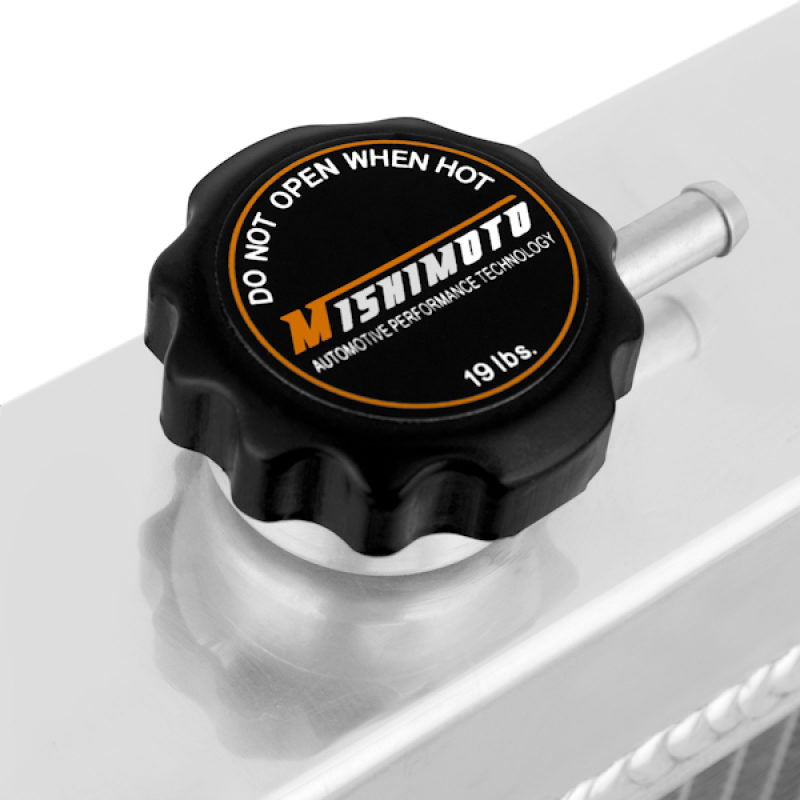

SellingPoint08: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint09: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
SellingPoint12: N/A
SellingPoint11: N/A
SellingPoint10: Mishimoto Lifetime Warranty
Core Finish: Uncoated
Core Height: 16.85
Core Length: 16.34
Core Material: Aluminum
