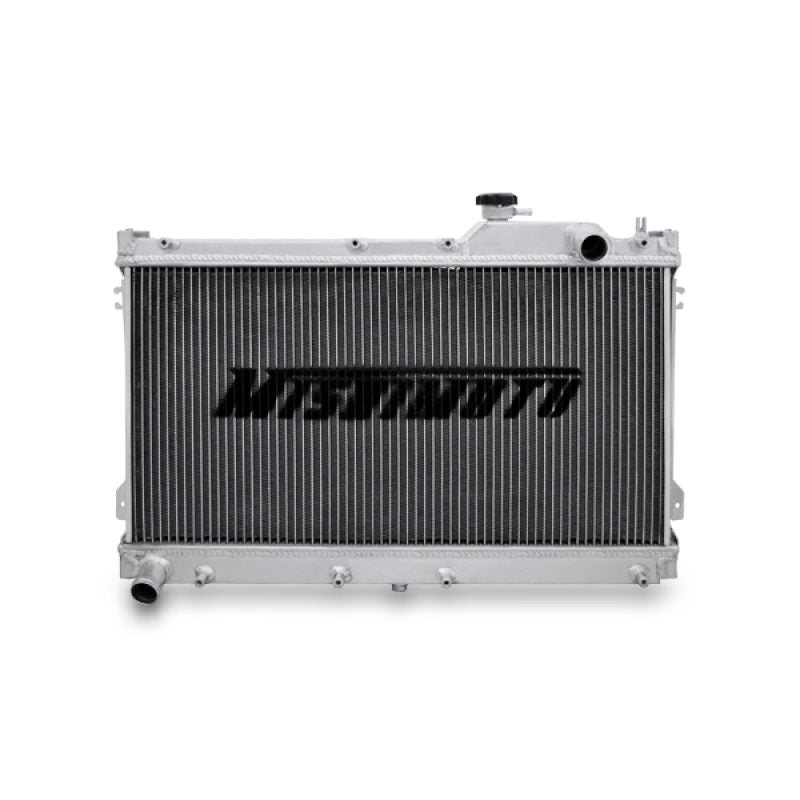

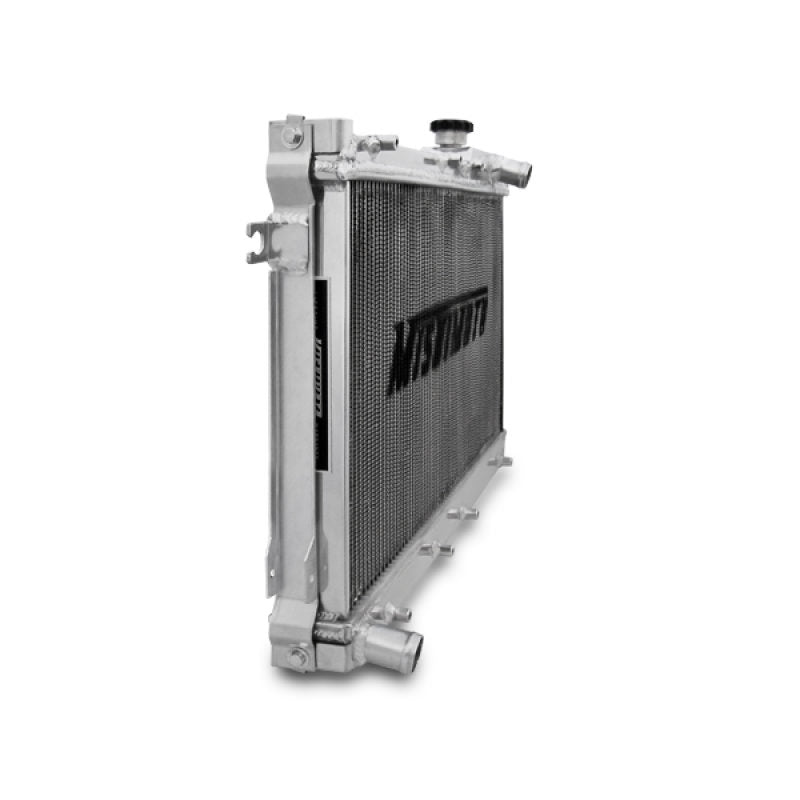

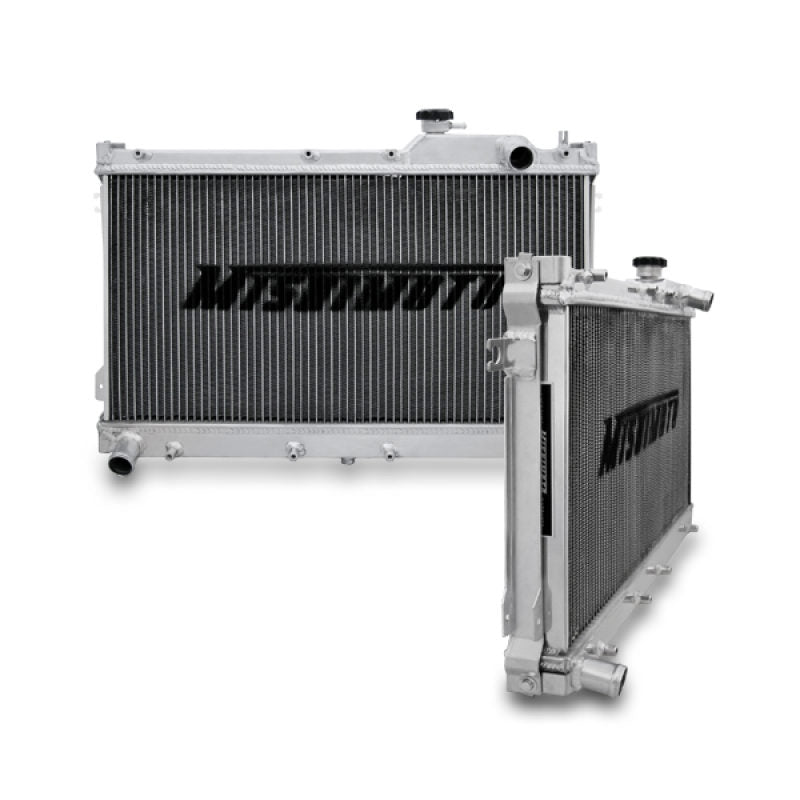

Mishimoto MMRAD-MIA-90 - 90-97 Mazda Miata Manual Aluminum Radiator
Performance Aluminum Radiator, fits Mazda Miata 1990-1997
Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
By replacing your current Miata radiator with a Mishimoto performance aluminum radiator you will undoubtedly notice a cooler more efficient running engine.All Mishimoto Mazda Miata performance aluminum radiators are designed and engineered to maximize cooling efficiency, protect your car from the overheating, and boost overall engine functions.With its lightweight dual core, 100-percent brazed aluminum, and polished tank ends installing a direct OEM fit Mishimoto radiator is effortless, no cutting or modification is required.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty.Check out the Mazda Miata hose kit, for even greater cooling efficiency.
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.97-in thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
TechSpec Overall Height (in): 18
TechSpec Overall Length (in): 27.8
TechSpec Overall Width (in): 2.55
TechSpec Core Length (in): 25.12
TechSpec Core Height (in): 12.6
TechSpec Fluid Capacity (gal): 1.79
TechSpec Rows: 2
TechSpec Inlet (in): 1.25
TechSpec Outlet (in): 1.25
TechSpec Core Thickness (in): 1.97
TechSpec Drain Plug Thread Size: M10x1.25
TechSpec DPI: 1140
TechSpec Material: N/A
TechSpec Applications: N/A
TechSpec Engine Codes: N/A
TechSpec Chassis Codes: NA6(8)C
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug--Mishimoto Radiator Cap--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the 1990-1997 Mazda Miata 1.6L/1.8L
SellingPoint02: Full aluminum construction including durable, TIG-welded end tanks
SellingPoint03: Features a two-row, 1.97-in thick, efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and optimal heat dissipation
SellingPoint05: Ideal replacement for the failure-prone stock radiator
SellingPoint06: Perfect for use on the street, track, or autocross course

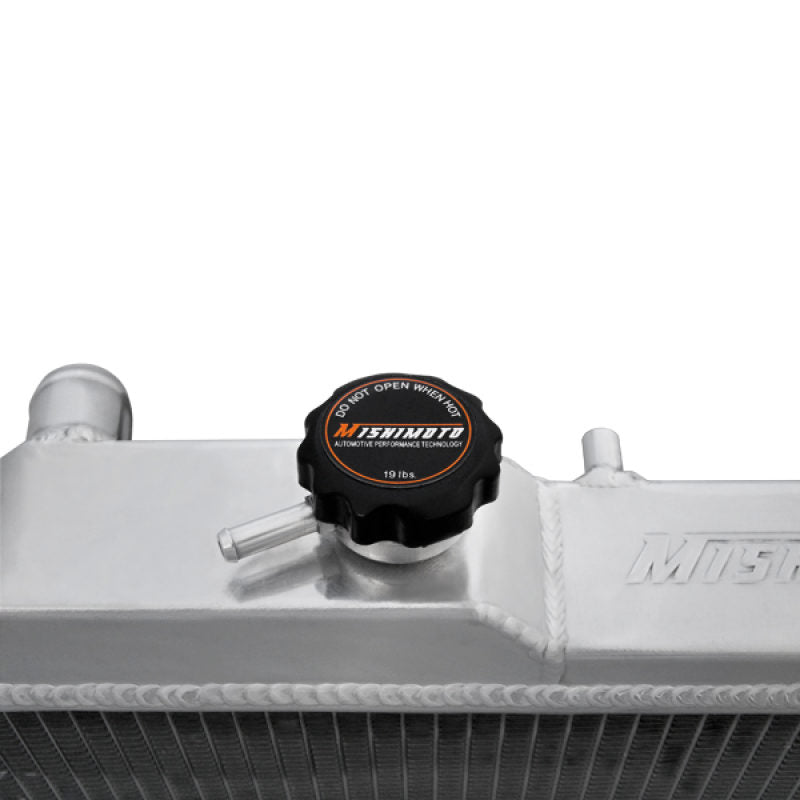

SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint08: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 4
Core Finish: Uncoated
Core Height: 12.6
Core Length: 25.12
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 1.97
Down Flow Or Cross Flow Type: Down Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M10 - 1.25
Fluid Capacity: 1.79
Inlet Diameter: 1.25
Inlet Location: Top Right
Outlet Diameter: 1.25
Outlet Location: Bottom Left
Overall Height: 18
Overall Length: 27.8
Overall Width: 2.55
Radiator Cap Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
