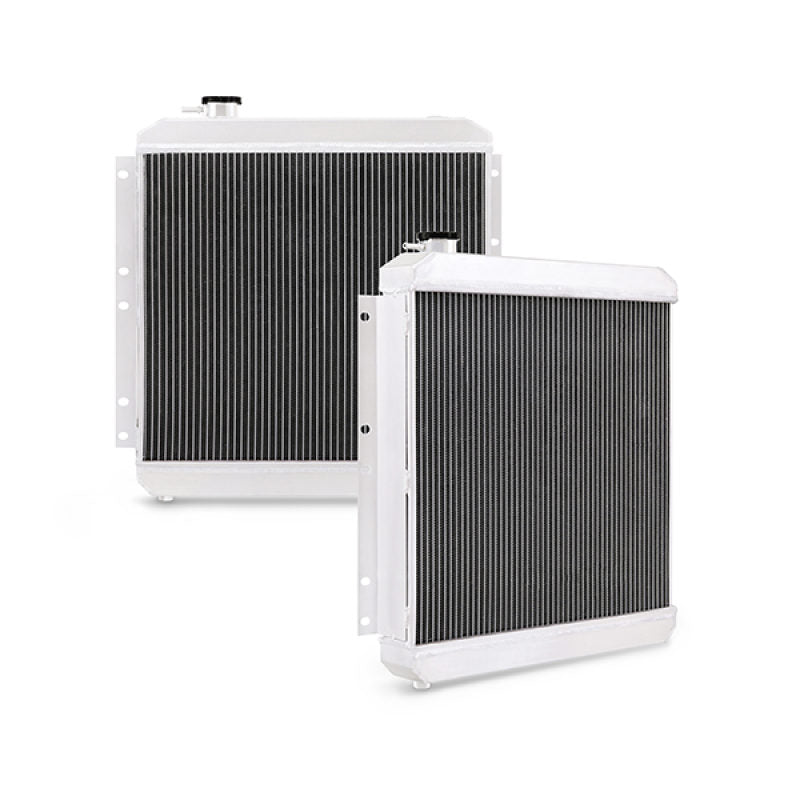

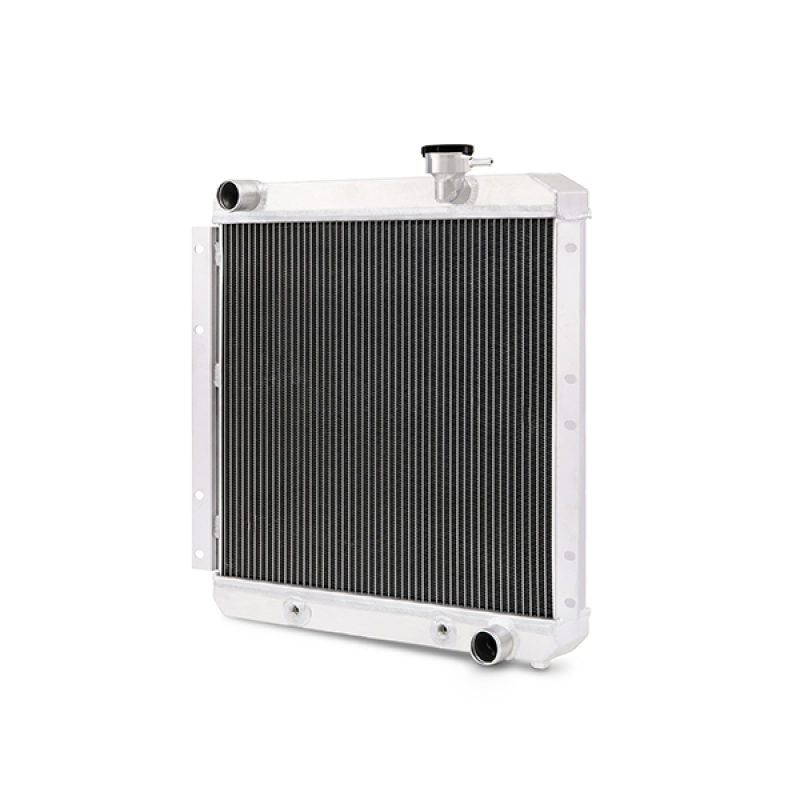

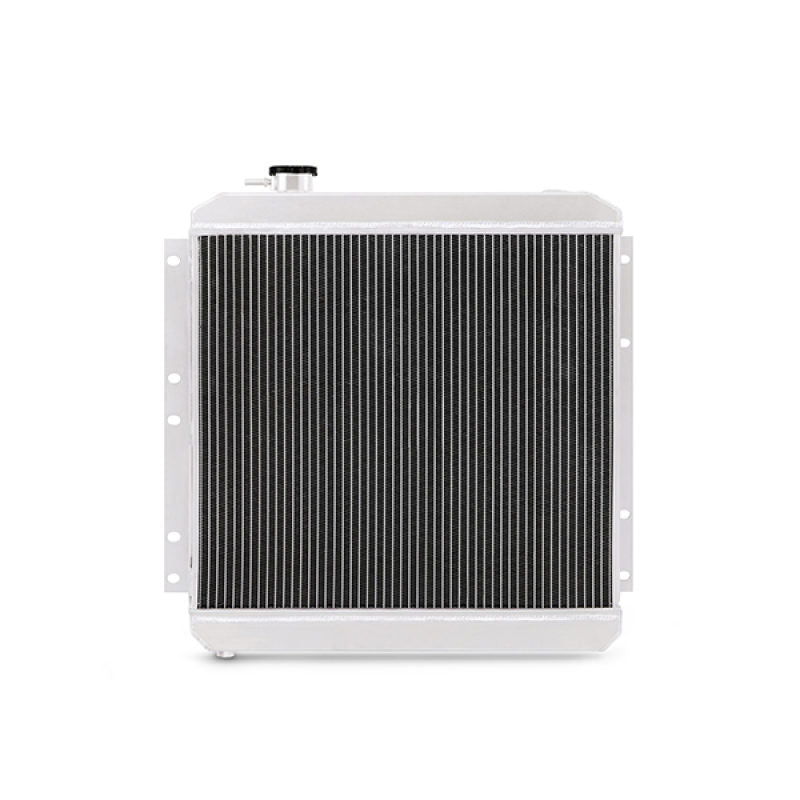

Mishimoto MMRAD-LCR-58X - 58-84 Toyota Land Cruiser FJ40 Aluminum Radiator
3-Row Performance Aluminum Radiator, fits Toyota Land Cruiser FJ40 1958-1984
Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
If you're looking to upgrade your Toyota FJ40 parts, look no further! The Mishimoto 1958--1984 Toyota Land Cruiser FJ40 radiator is an ideal upgrade for the brittle stock radiator, and provides your Cruiser with enhanced reliability and improved cooling efficiency. The Mishimoto FJ40 radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This Land Cruiser radiator also includes a Magnetic Drain Plug, which effectively removes metal fragments circulating in the cooling system. As with every Mishimoto aluminum radiator, this FJ40 radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
- All-aluminum construction with durable, TIG-welded end tanks
- Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
- 3-row core

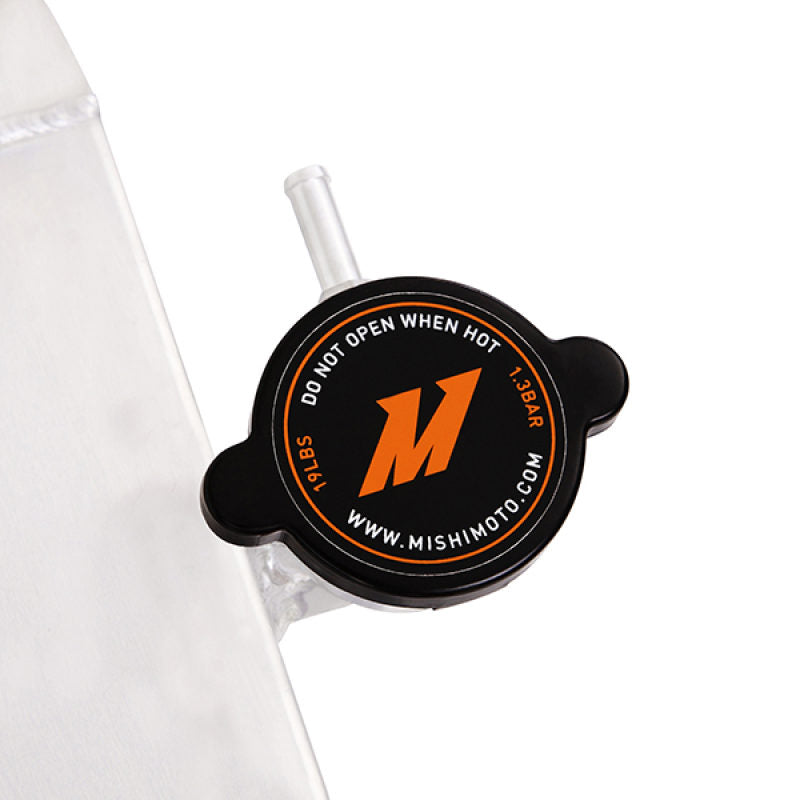

TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
SellingPoint01: All-aluminum construction with durable, TIG-welded end tanks
SellingPoint02: Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
SellingPoint03: 3-row core
SellingPoint04: Increased coolant capacity and superior heat dissipation
SellingPoint05: Billet aluminum fill neck
SellingPoint06: Brazed aluminum core
SellingPoint07: Includes magnetic drain plug to capture metallic debris and fragments in cooling system
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: N/A
Core Finish: Uncoated
Core Height: 17.1
Core Length: 19.4
Core Material: Aluminum
Core Row Quantity: 3
Core Thickness: 2
Down Flow Or Cross Flow Type: Down Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 4.99
Inlet Diameter: 1.5
Inlet Location: Top Left
Outlet Diameter: 1.5
Outlet Location: Bottom Right
Overall Height: 20
Overall Length: 22.75
Overall Width: 5.1
Radiator Cap Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: Yes
TechSpec Overall Height (in): 20
TechSpec Overall Length (in): 22.75
TechSpec Overall Width (in): 5.1
TechSpec Core Length (in): 19.4
TechSpec Core Height (in): 17.1
TechSpec Fluid Capacity (gal): 4.99
TechSpec Rows: 3
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.5
TechSpec Core Thickness (in): 2
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 180
TechSpec Material: Aluminum
TechSpec Applications: 1958-1984 Toyota Land Cruiser FJ40 (3.9L V6, 4.2L V6)--1958-1980 Toyota Land Cruiser (3.9L V6, 4.2L V6)
TechSpec Engine Codes: (3.9L) V6--(4.2L) V6
TechSpec Chassis Codes: N/A
TechSpec Note: Transmission Cooler Thread Info:--On Radiator: Female 1/4-inch BSPP
