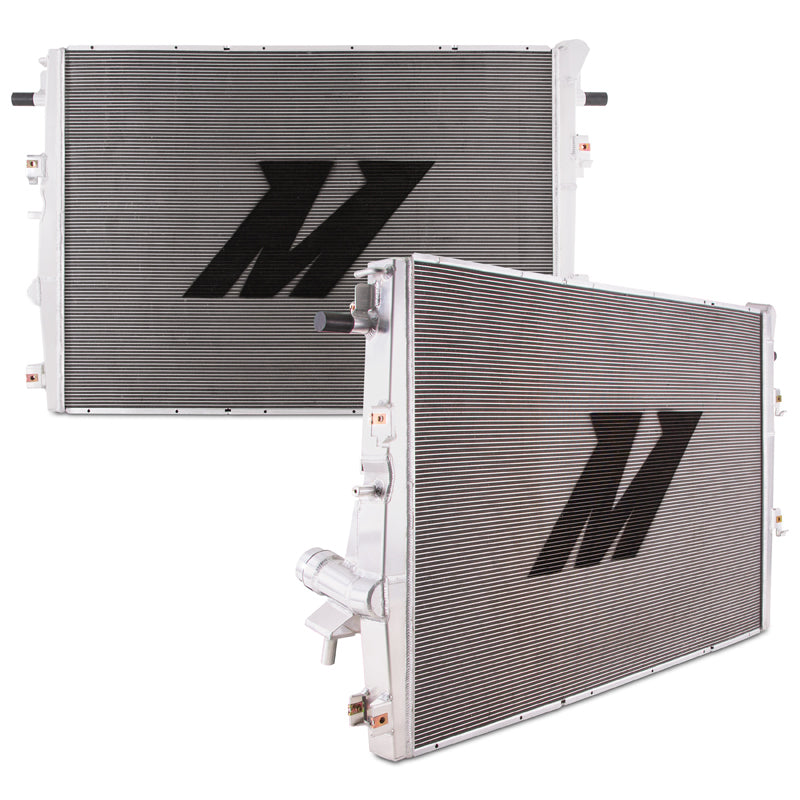

Mishimoto MMRAD-F2D-17 - 2017+ Ford 6.7L Powerstroke Aluminum Primary Radiator

Mishimoto  |  SKU: MMRAD-F2D-17
$1,24995 $1,37500
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Mishimoto MMRAD-F2D-17 - 2017+ Ford 6.7L Powerstroke Aluminum Primary Radiator

Performance Aluminum Radiator, Primary, fits Ford 6.7L Powerstroke 2017+

Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.

Mishimoto is excited to expand our line of Ford Powerstroke cooling products to the 2017+ 6.7L Powerstroke with our all-aluminum, direct-fit radiator. We've taken our experience with previous generations of Powerstroke cooling products and combined it to create a larger, stronger, and more capable primary radiator for the 2017+ 6.7L Powerstroke. Extruded tubes with internal struts help distribute stress and provide greater strength and pressure tolerance. Our rubberized upper mounting peg design is carried over from our 6.4L and previous generation 6.7L Powerstroke radiators as well. These rubberized pegs help absorb frame flex and redirect it away from the radiator's core. Increased reliability wasn't our only goal for this 6.7L Powerstroke radiator, however. The 14-percent increase in core volume, 68-percent increase in surface area, and 62-percent increase in coolant capacity add up to a radiator that's capable of cooling even the most demanding truck. Of course, this 2017+ 6.7L Powerstroke primary radiator is backed by our Mishimoto Lifetime Warranty, so you never have to worry about buying another radiator again.

  • Extruded tubes with internal struts for increased strength and pressure tolerance
  • Incorporates co-molded aluminum/rubber mounting pegs to reduce the truck's torque transfer to the radiator
  • 37-percent increase in coolant capacity
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 1.88
Down Flow Or Cross Flow Type: Cross Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 9.5
Inlet Diameter: 0
Inlet Location: Top Left
Outlet Diameter: 0
Outlet Location: Bottom Right
Overall Height: 30
Overall Length: 48
Overall Width: 7.75
Radiator Cap Included: No
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
TechSpec Overall Height (in): 30
TechSpec Overall Length (in): 48
TechSpec Overall Width (in): 7.75
TechSpec Core Length (in): 38.38
TechSpec Core Height (in): 27.75
TechSpec Fluid Capacity (gal): 9.5
TechSpec Rows: 2
TechSpec Inlet (in): N/A
TechSpec Outlet (in): N/A
TechSpec Core Thickness (in): 1.88
TechSpec Drain Plug Thread Size: N/A
TechSpec DPI: N/A
TechSpec Material: Aluminum
TechSpec Applications: 2017+ Ford Super Duty w/ 6.7L Powerstroke
TechSpec Engine Codes: N/A
TechSpec Chassis Codes: N/A
TechSpec Note: N/A
TechSpec Includes: Mishimoto Radiator-- Mishimoto Magnetic Drain Plug--Mounting Hardware--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the 2017+ Ford 6.7L Powerstroke
SellingPoint02: Extruded tubes with internal struts for increased strength and pressure tolerance
SellingPoint03: Incorporates co-molded aluminum/rubber mounting pegs to reduce the truck’s torque transfer to the radiator
SellingPoint04: 37-percent increase in coolant capacity
SellingPoint05: 20-percent increase in fin surface area
SellingPoint06: 10-percent increase in core volume over stock radiator
SellingPoint07: CNC-machined quick-disconnect inlet and outlet for perfect fitment and function
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
Core Finish: Uncoated
Core Height: 27.75
Core Length: 38.38
