Mishimoto MMRAD-DMAX-01 - 01-05 Chevrolet/GMC 6.6L Duramax Radiator

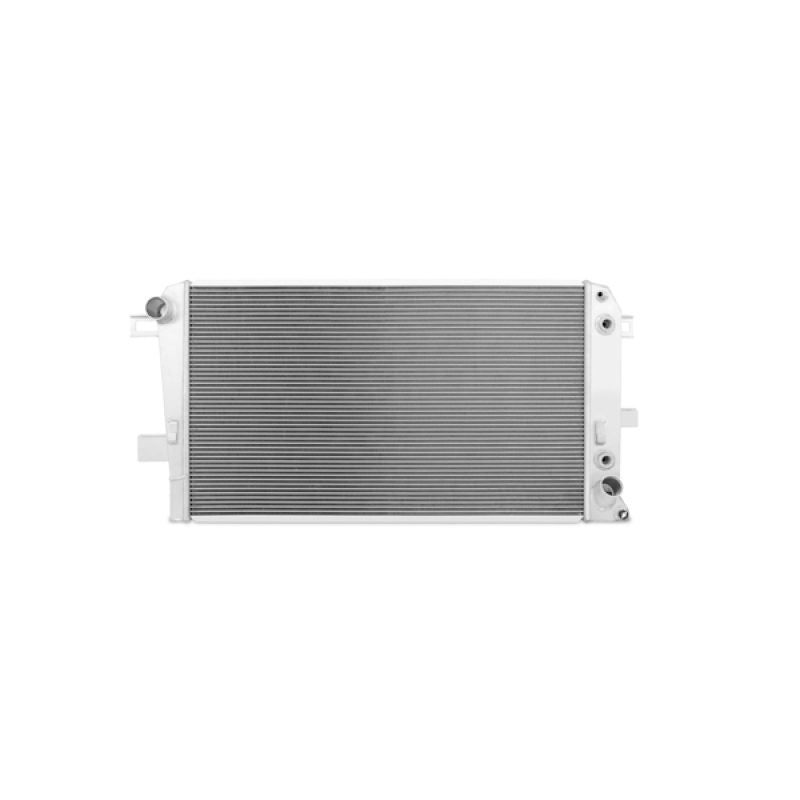

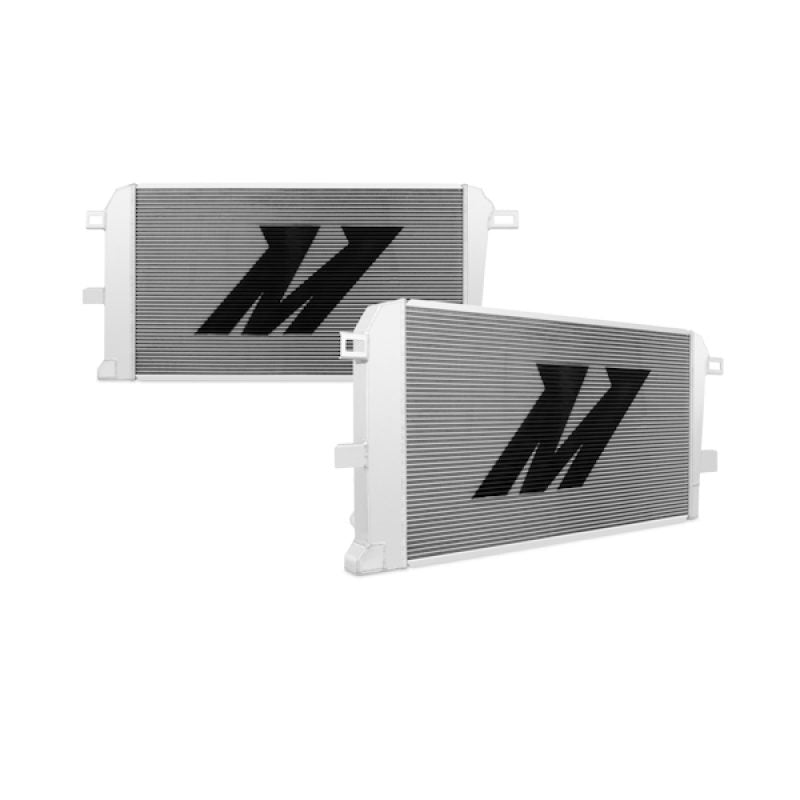

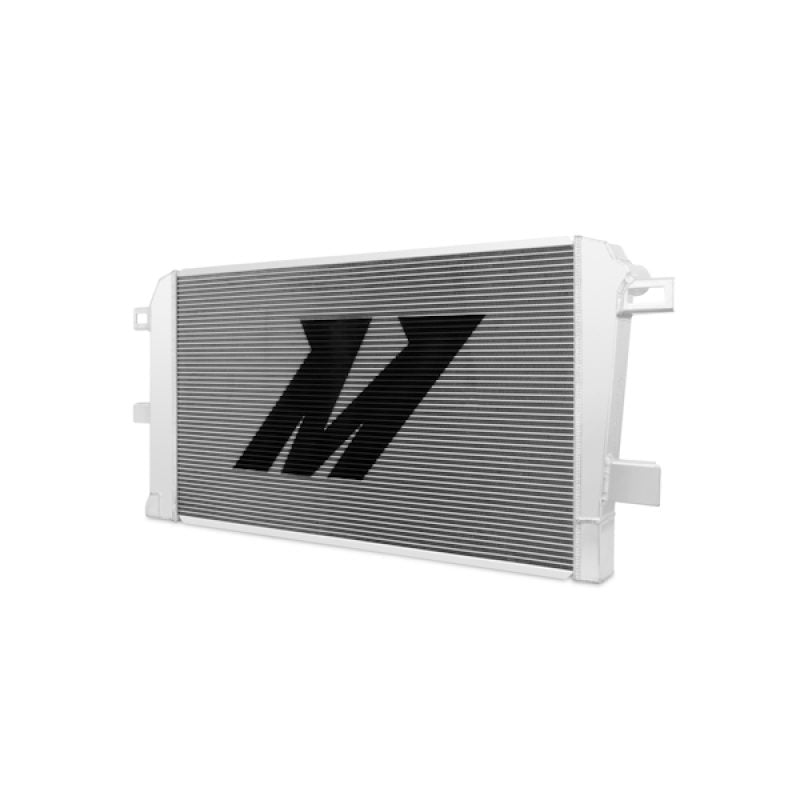

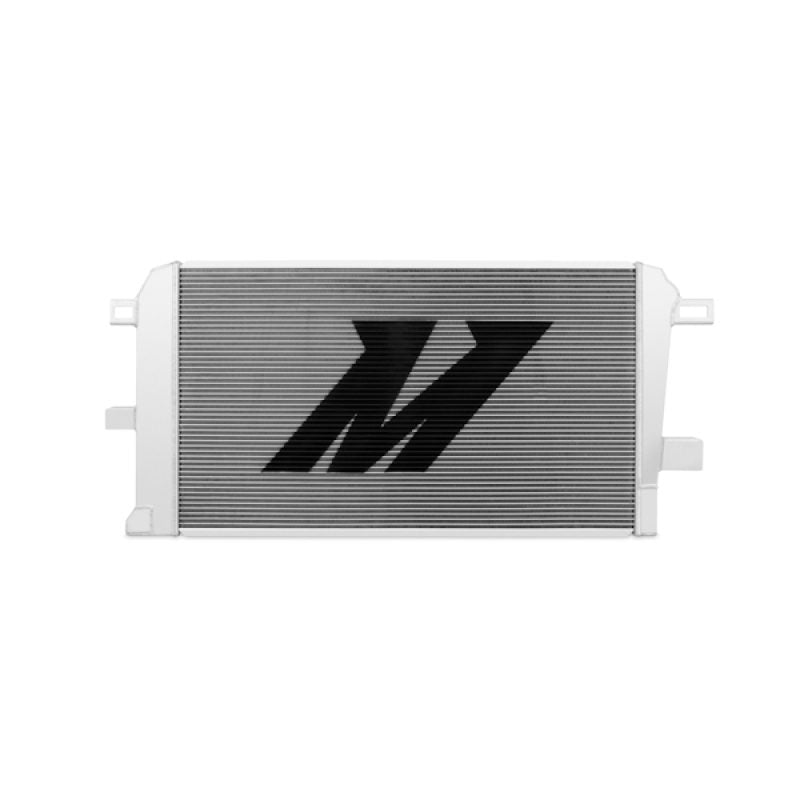

Performance Aluminum Radiator, fits Chevrolet/GMC 6.6L Duramax 2001-2005
Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
Mishimoto has released a performance aluminum radiator for the 2001-2005 Chevrolet/GMC 6.6L Duramax.Mishimoto performance radiators are manufactured from high-quality aircraft-grade aluminum with a 100-percent aluminum core and polished end tanks.The Mishimoto 6.6L Duramax performance radiator offers increased cooling efficiency, and the all-aluminum TIG-welded construction provides a rugged design that can take the abuse of any environment or terrain.Pair your Mishimoto 6.6L Duramax aluminum radiator with our silicone coolant hose kit for the ultimate in cooling performance and reliability.As with all our products, this radiator is protected by the Mishimoto lifetime warranty.
- 100-percent brazed aluminum core
- TIG-welded to perfection

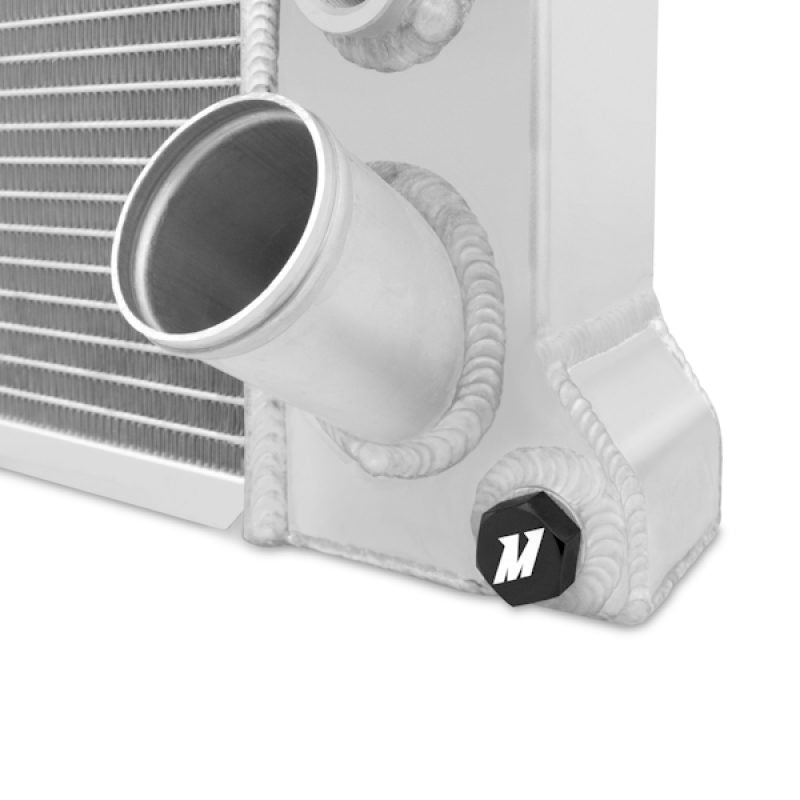

- Magnetic drain plug included
Inlet Diameter: 1.89
Inlet Location: Top Left
Outlet Diameter: 1.89
Outlet Location: Bottom Right
Overall Height: 20.8
Overall Length: 45.6
Overall Width: 5.4
Radiator Cap Included: No
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
TechSpec Overall Height (in): 20.8
TechSpec Overall Length (in): 45.6
TechSpec Overall Width (in): 5.4
TechSpec Core Length (in): 34.06
TechSpec Core Height (in): 19.61
TechSpec Fluid Capacity (gal): 6.87
TechSpec Rows: 2
TechSpec Inlet (in): 1.89
TechSpec Outlet (in): 1.89
TechSpec Core Thickness (in): 2.2
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 2510
TechSpec Material: Aluminum
TechSpec Applications: 2001-2005 Chevrolet Silverado 2500 HD w/ 6.6L Duramax LB7/LLY--2001-2005 Chevrolet Silverado 3500 HD w/ 6.6L Duramax LB7/LLY--2001-2005 GMC Sierra 2500 HD w/ 6.6L Duramax LB7/LLY--2001-2005 GMC Sierra 3500 HD w/ 6.6L Duramax LB7/LLY
TechSpec Includes: Mishimoto Radiator-- Magnetic Drain Plug--Mishimoto Lifetime Warranty
SellingPoint01: 100-percent brazed aluminum core
SellingPoint02: TIG-welded to perfection
SellingPoint03: Magnetic drain plug included
TechSpec Note: N/A
TechSpec Chassis Codes: N/A
TechSpec Engine Codes: N/A
SellingPoint04: Natural aluminum finish
SellingPoint05: Lifetime warranty
SellingPoint06: N/A
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 5
Core Finish: Uncoated
Core Height: 19.61
Core Length: 34.06
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 2.2
Down Flow Or Cross Flow Type: Cross Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 6.87
