Mishimoto MMRAD-DATS-70 - 70-73 Datsun 240Z Manual/Automatic Radiator

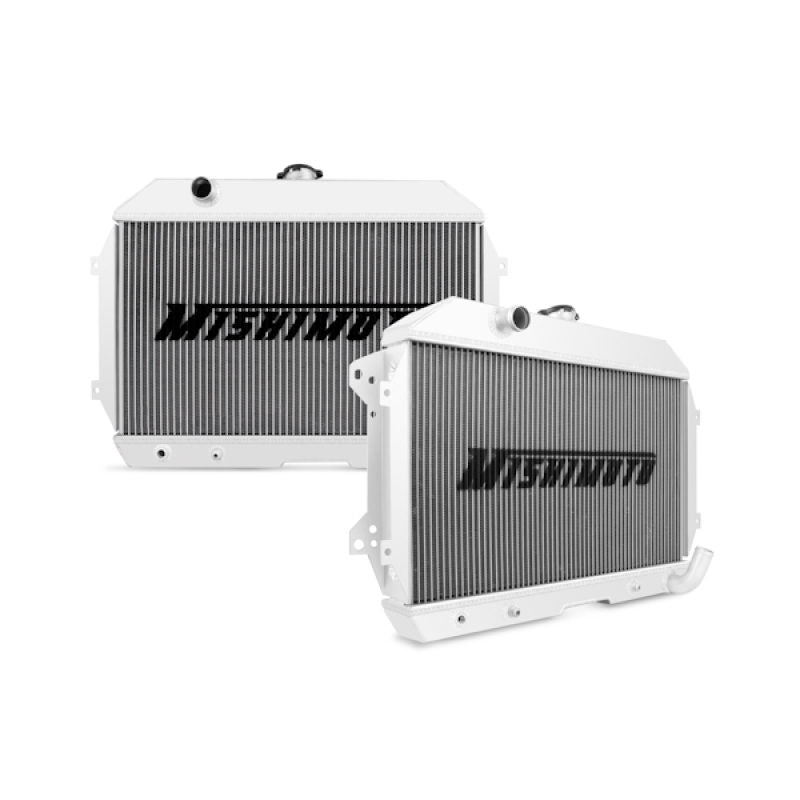

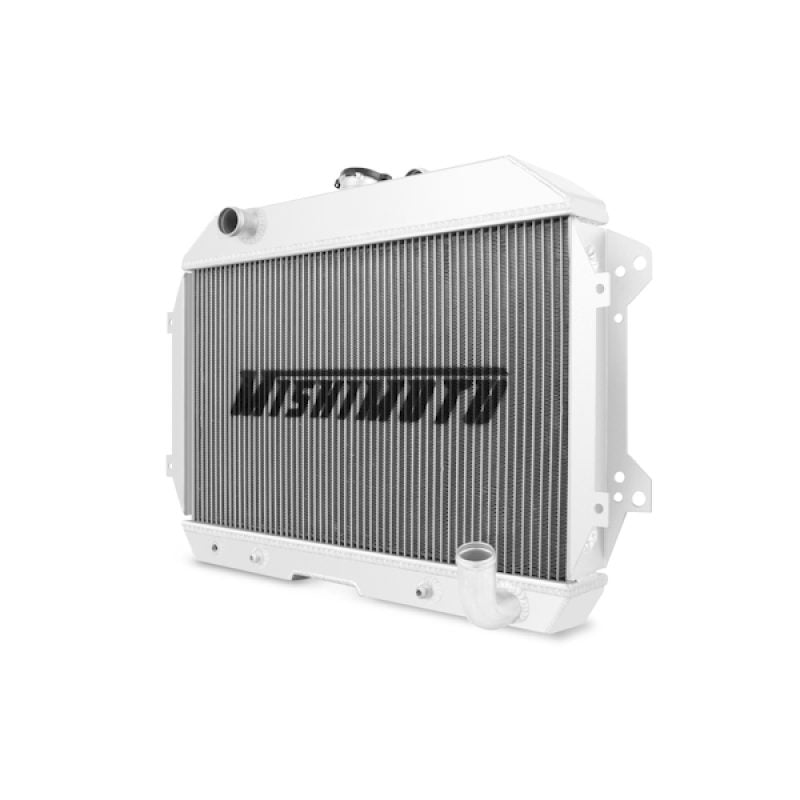

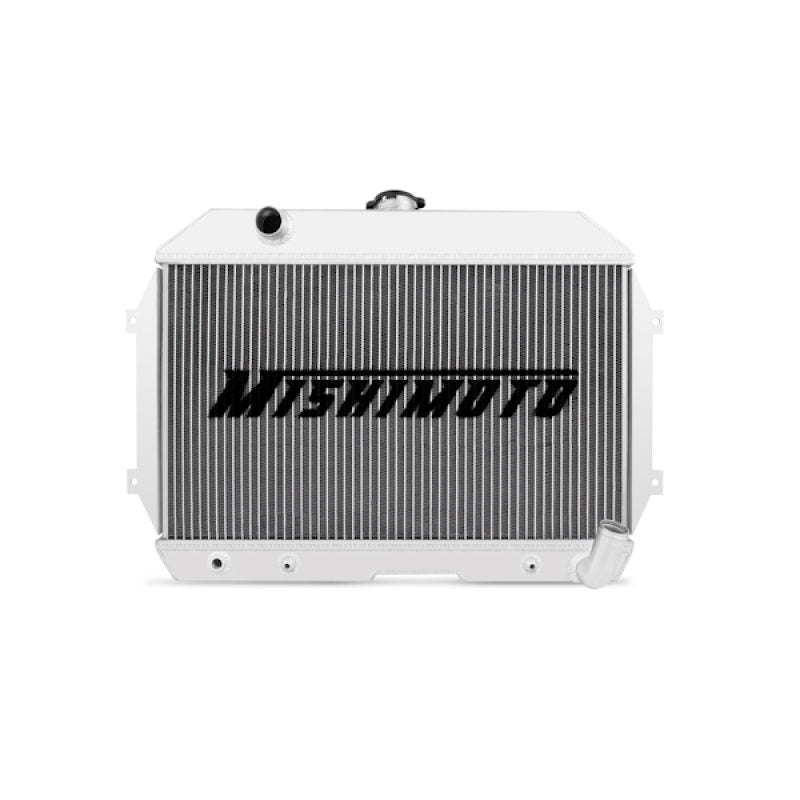

Datsun 240Z 2-Row Performance Aluminum Radiator, 1970-1973
Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
The Mishimoto performance aluminum radiator for the Datsun 240Z is the ideal update to the stock Datsun radiator.The last thing you want is to be limited by an old, worn out radiator during a hot day at the strip or when you're stuck in traffic.Our engineers know that, and our design reflects this by utilizing all-aluminum construction and added fluid capacity to increase cooling efficiency.With polished end tanks and a signature Mishimoto radiator cap, the Mishimoto Datsun 240Z radiator looks as good as it performs!
- Full aluminum design with durable, TIG-welded construction
- Features a two-row, 1.65-in thick brazed aluminum core, providing ideal fluid temperatures on the street or track
- Ideal replacement for an aged, clogged, or leaking stock radiator
Outlet Diameter: 1.38
Outlet Location: Bottom Right
Overall Height: 27.3
Overall Length: 19.16
Overall Width: 6.2
Radiator Cap Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
TechSpec Overall Height (in): 27.3
TechSpec Overall Length (in): 19.16
TechSpec Overall Width (in): 6.2
TechSpec Core Length (in): 23.15
TechSpec Core Height (in): 13.58
TechSpec Fluid Capacity (gal): 2.39
TechSpec Rows: 2
TechSpec Inlet (in): 1.38
TechSpec Outlet (in): 1.38
TechSpec Core Thickness (in): 1.65
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 110
TechSpec Material: Aluminum
TechSpec Applications: 1970-1973 Datsun 240Z--1974-1975 Datsun 260Z
TechSpec Engine Codes: L24--L26
TechSpec Chassis Codes: S30
TechSpec Note: N/A
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the 1970-1973 Datsun 240Z and 1974-1975 Datsun 260Z
SellingPoint02: Full aluminum design with durable, TIG-welded construction
SellingPoint03: Features a two-row, 1.65-in thick brazed aluminum core, providing ideal fluid temperatures on the street or track
SellingPoint04: Ideal replacement for an aged, clogged, or leaking stock radiator

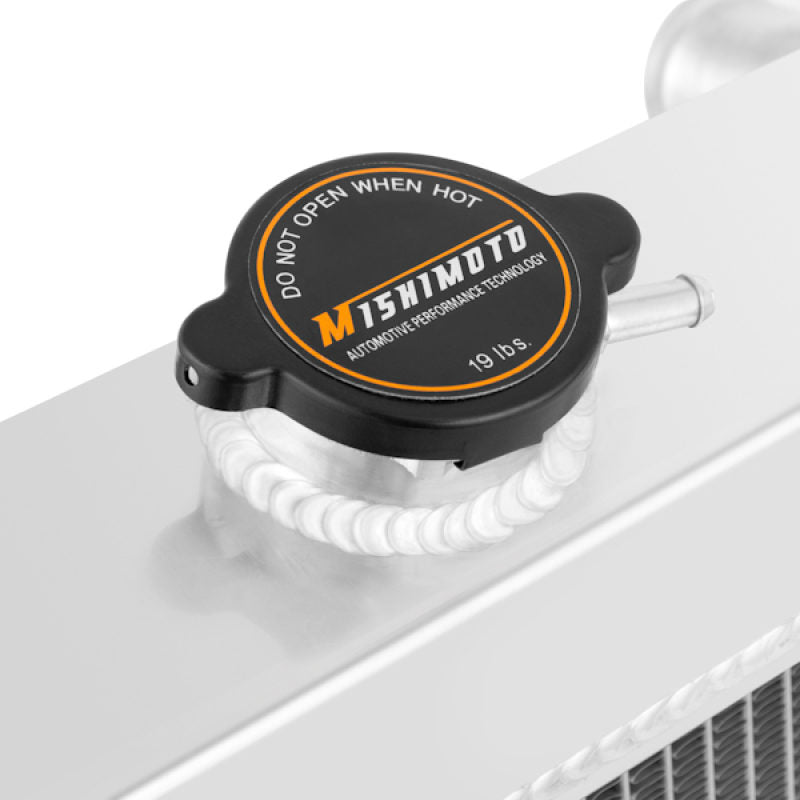

SellingPoint05: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint06: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
Core Finish: Uncoated
Core Height: 13.58
Core Length: 23.15
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 1.65
Down Flow Or Cross Flow Type: Down Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 2.39
Inlet Diameter: 1.38
Inlet Location: Top Left
