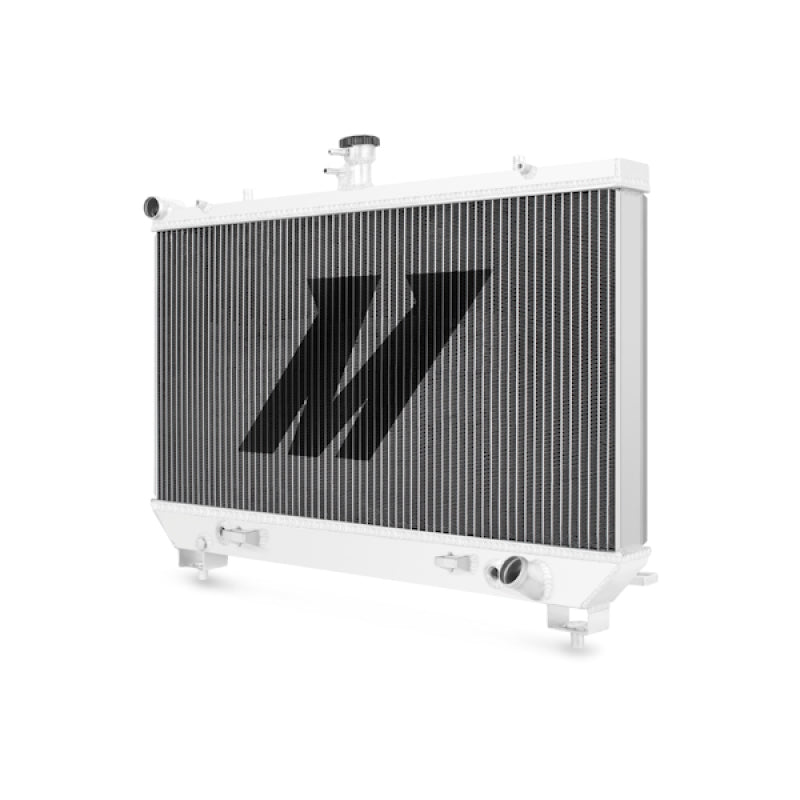

Mishimoto MMRAD-CSS-10 - 10-11 Chevrolet Camaro SS V8 Aluminum Radiator
Performance Aluminum Radiator, fits Chevrolet Camaro SS 2010-2011
Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.

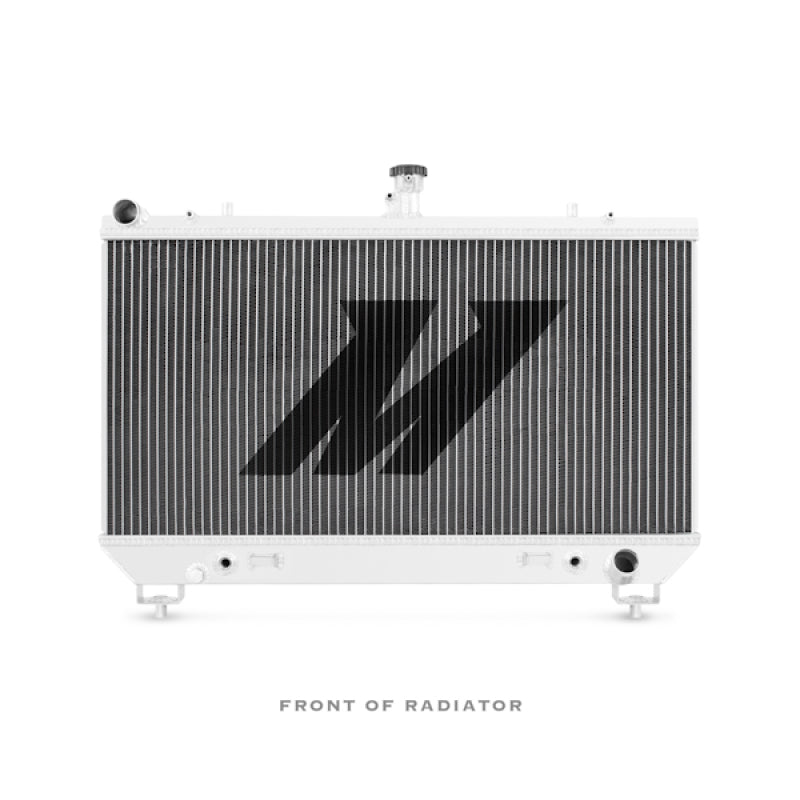

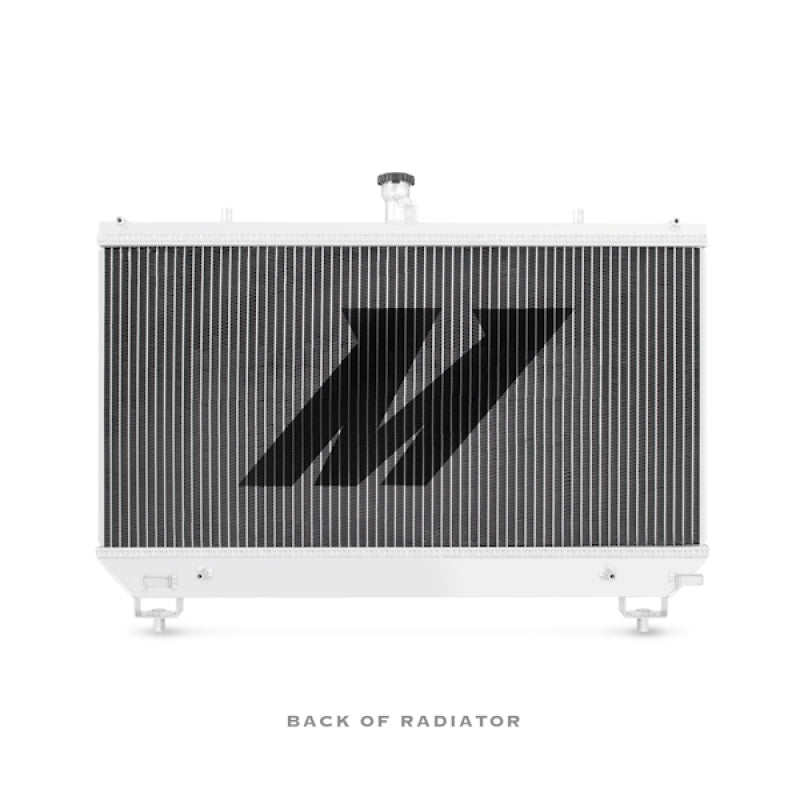

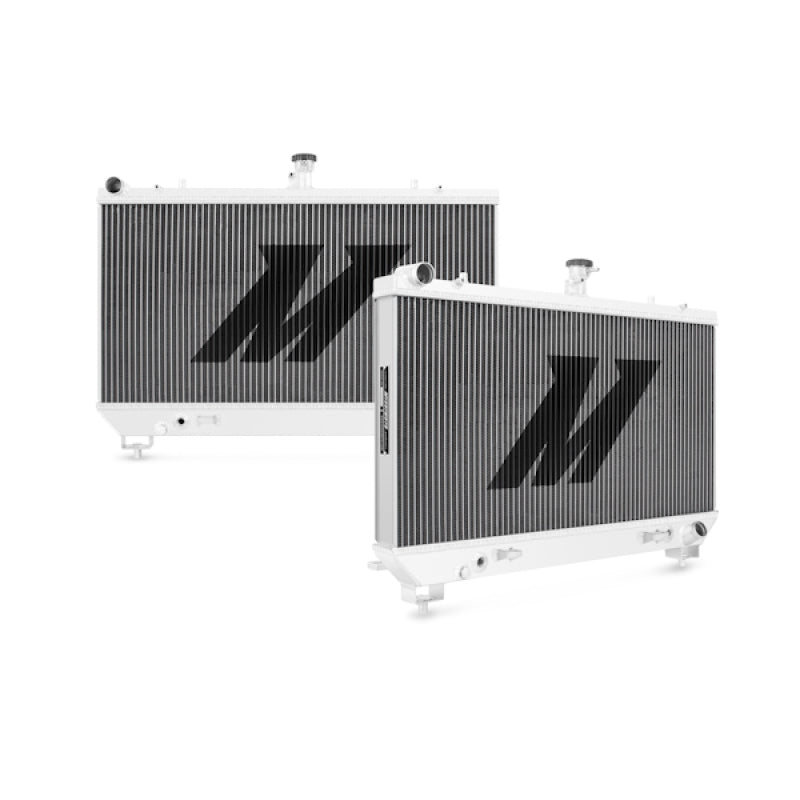

The Mishimoto performance aluminum radiator for the 2010-2011 Chevrolet Camaro SS is the ideal upgrade to the stock Camaro radiator.The last thing you want is to be limited by the factory unit during a hot day at the strip or when you're stuck in traffic.Our engineers know that, and our design reflects this by increasing cooling efficiency by 30-percent.Curious how much 30-percent really is? Well considering our radiator lets your cooling system gain gallon of extra capacity and lowers coolant temps by 20F, that 30-percent is pretty impressive.With polished end tanks and all aluminum construction, the Mishimoto Camaro SS radiator looks as good as it performs!

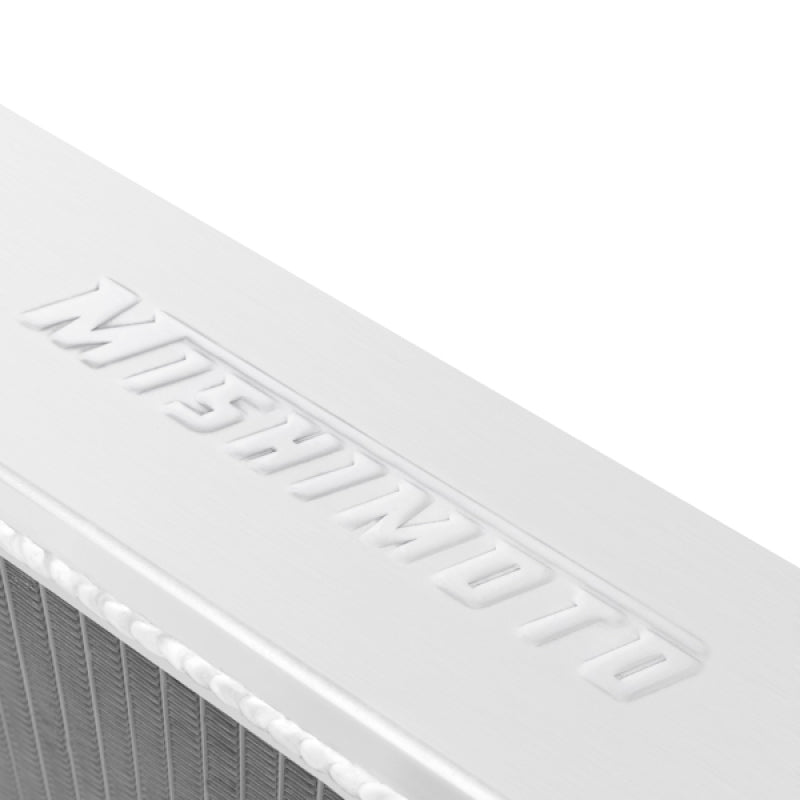

- Full aluminum construction with durable, TIG-welded end tanks
- Features a two-row, 2.20-in thick brazed aluminum core, providing ideal fluid temperatures on the street and strip
- .5 gal of additional fluid capacity
TechSpec DPI: 13142
TechSpec Material: Aluminum
TechSpec Applications: 2010-2011 Chevy Camaro SS (AT & MT)
TechSpec Engine Codes: L99--LS3
TechSpec Chassis Codes: Zeta
TechSpec Note: N/A
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the 2010-2011 Chevrolet Camaro SS
SellingPoint02: Full aluminum construction with durable, TIG-welded end tanks
SellingPoint03: Features a two-row, 2.20-in thick brazed aluminum core, providing ideal fluid temperatures on the street and strip
SellingPoint04: .5 gal of additional fluid capacity
SellingPoint05: Lowers radiator outlet temperatures by 20 F
SellingPoint06: 20-percent greater cooling efficiency

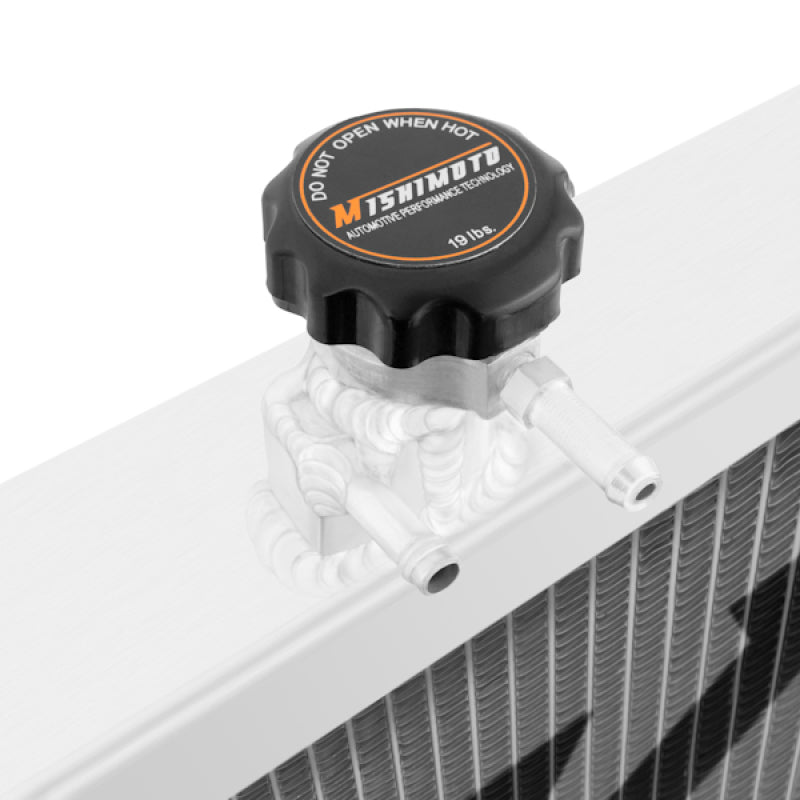

SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system

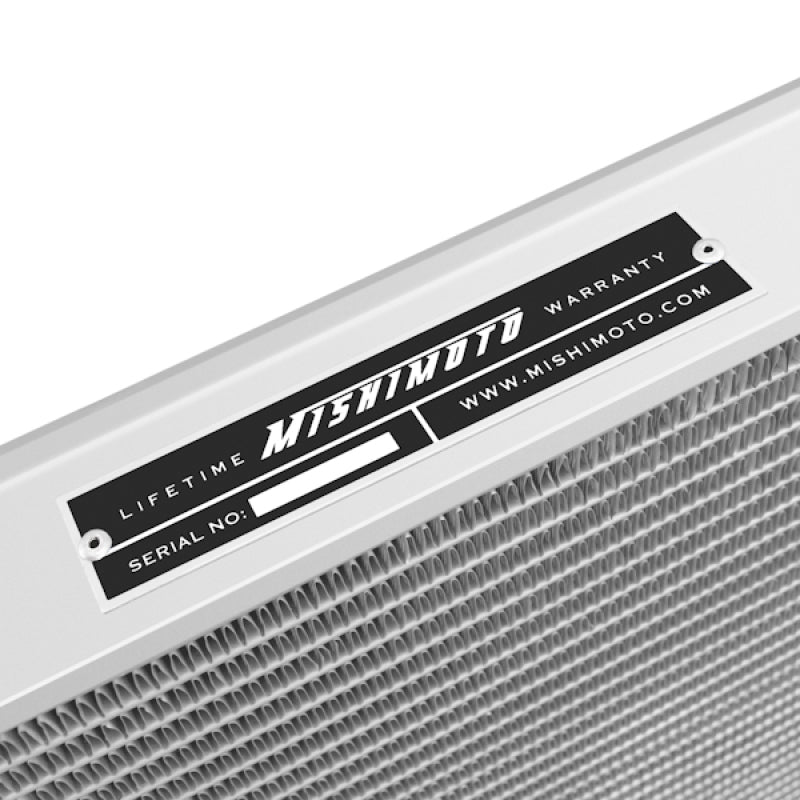

SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
Core Finish: Uncoated
Core Height: 15.1
Core Length: 29.8
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 2.2
Down Flow Or Cross Flow Type: Down Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 3.34
Inlet Diameter: 1.38
Inlet Location: Top Left
Outlet Diameter: 1.38
Outlet Location: Bottom Right
Overall Height: 30.6
Overall Length: 23.3
Overall Width: 5.6
Radiator Cap Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
TechSpec Overall Height (in): 30.6
TechSpec Overall Length (in): 23.3
TechSpec Overall Width (in): 5.6
TechSpec Core Length (in): 29.8
TechSpec Core Height (in): 15.1
TechSpec Fluid Capacity (gal): 3.34
TechSpec Rows: 2
TechSpec Inlet (in): 1.38
TechSpec Outlet (in): 1.38
TechSpec Core Thickness (in): 2.2
TechSpec Drain Plug Thread Size: M12 x 1.5
