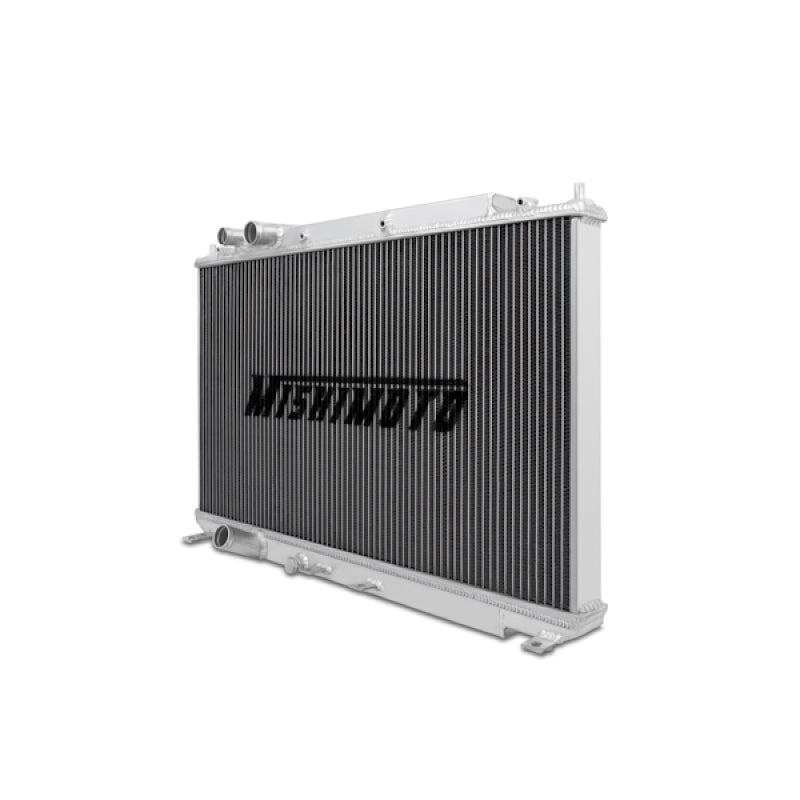

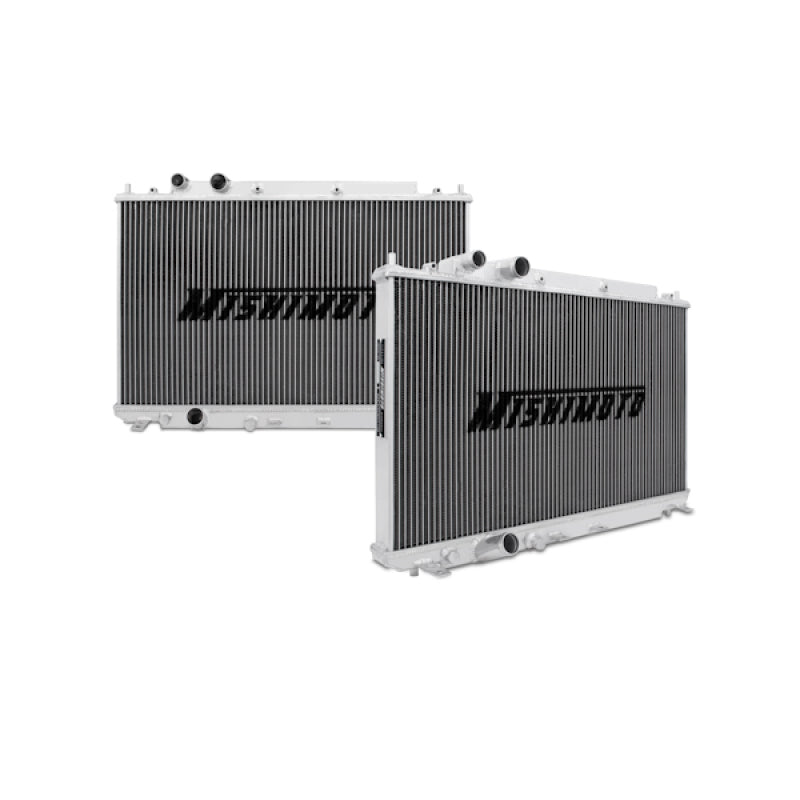

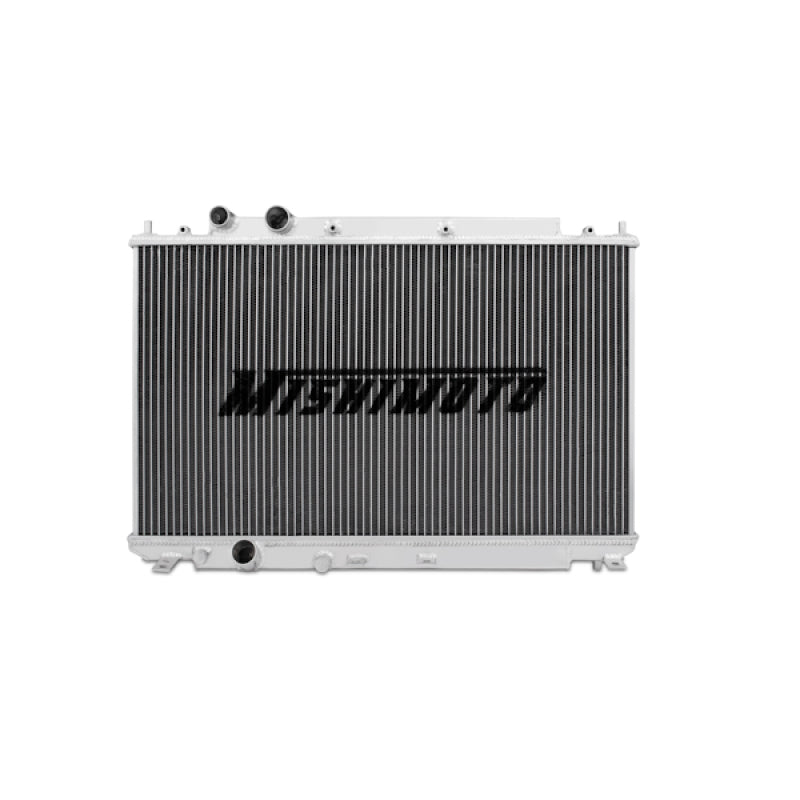

Mishimoto MMRAD-CIV-06SI - 06+ Honda Civic SI Manual Aluminum Radiator
Performance Aluminum Radiator, fits Honda Civic SI 2006-2011
Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
A Mishimoto performance aluminum radiator is the ideal upgrade to the stock 2006-2011 Honda Civic Si radiator.For a cooler more efficient running engine, all Mishimoto radiators are designed and engineered to maximize cooling, boost engine functions, and most importantly prevent your car from overheating.Made with 100-percent brazed aluminum and polished end tanks, this lightweight two row core radiator will enhance the overall performance and lifetime of your engine.All Mishimoto radiators are backed by a lifetime warranty.Check out the 2006-2011 Civic Si hose kit, for even greater cooling efficiency.

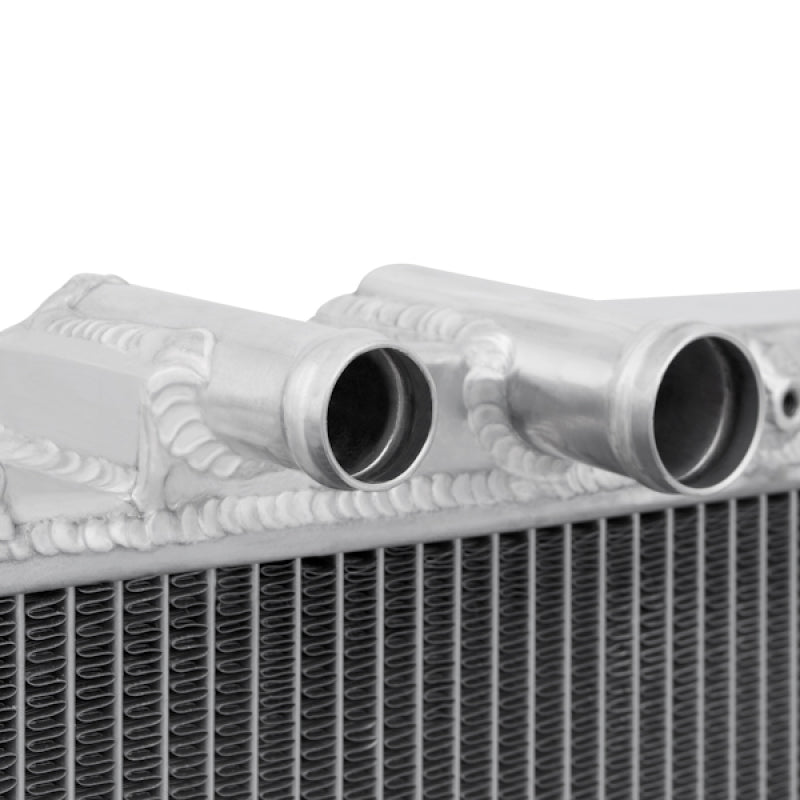

- Full aluminum construction with durable TIG-welded end tanks
- Features a two-row, 1.57-in thick brazed aluminum core which provides efficient fluid temperature regulation on the street and track

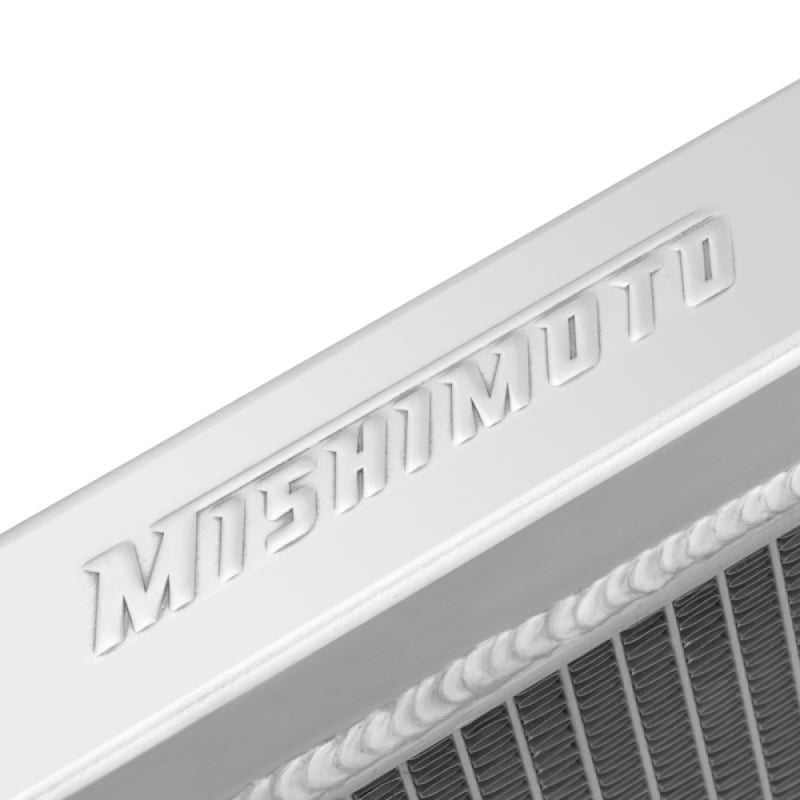

- Polished end tanks provide a stylish upgrade to your engine bay
TechSpec Overall Height (in): 26.8
TechSpec Overall Length (in): 18.2
TechSpec Overall Width (in): 2.07
TechSpec Core Length (in): 14.72
TechSpec Core Height (in): 26.32
TechSpec Fluid Capacity (gal): 2.03
TechSpec Rows: 2
TechSpec Inlet (in): 1.25
TechSpec Outlet (in): 1.25
TechSpec Core Thickness (in): 1.57
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 2927
TechSpec Material: Aluminum
TechSpec Applications: Honda Civic 1.8L L4 2006-2011--Honda Civic 2.0L L4 2006-2011
TechSpec Engine Codes: K20z3
TechSpec Chassis Codes: FG1FG2FA1FA5
TechSpec Note: N/A
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the 2006-2011 Honda Civic Si
SellingPoint02: Full aluminum construction with durable TIG-welded end tanks
SellingPoint03: Features a two-row, 1.57-in thick brazed aluminum core which provides efficient fluid temperature regulation on the street and track
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A

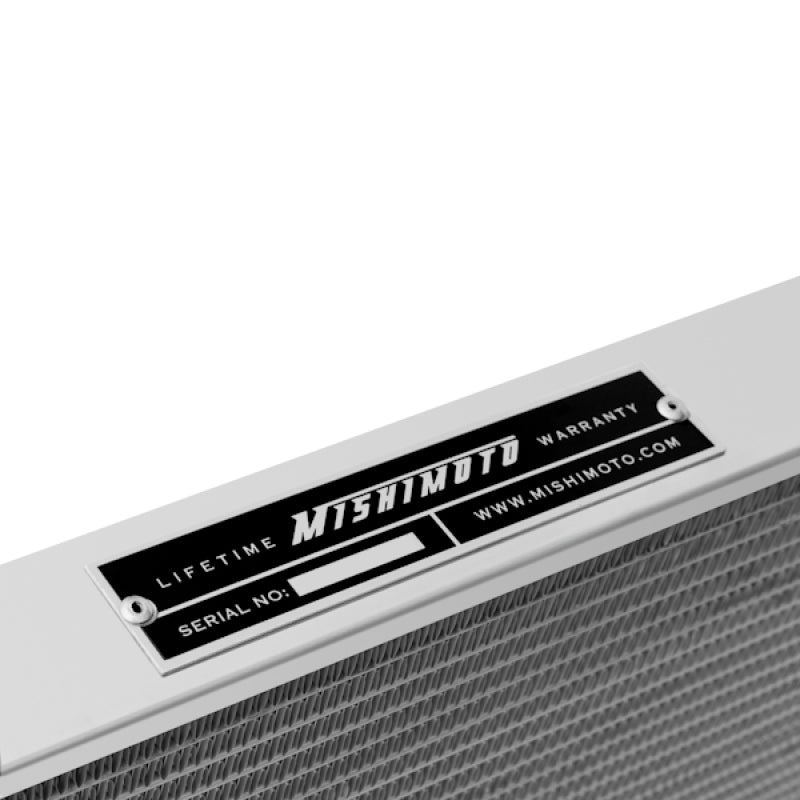

SellingPoint06: Mishimoto Lifetime Warranty
SellingPoint05: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint04: Polished end tanks provide a stylish upgrade to your engine bay
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
Core Finish: Uncoated
Core Height: 26.32
Core Length: 14.72
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 1.57
Down Flow Or Cross Flow Type: Cross Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 2.03
Inlet Diameter: 1.25
Inlet Location: Top Left
Outlet Diameter: 1.25
Outlet Location: Bottom Left
Overall Height: 26.8
Overall Length: 18.2
Overall Width: 2.07
Radiator Cap Included: No
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
