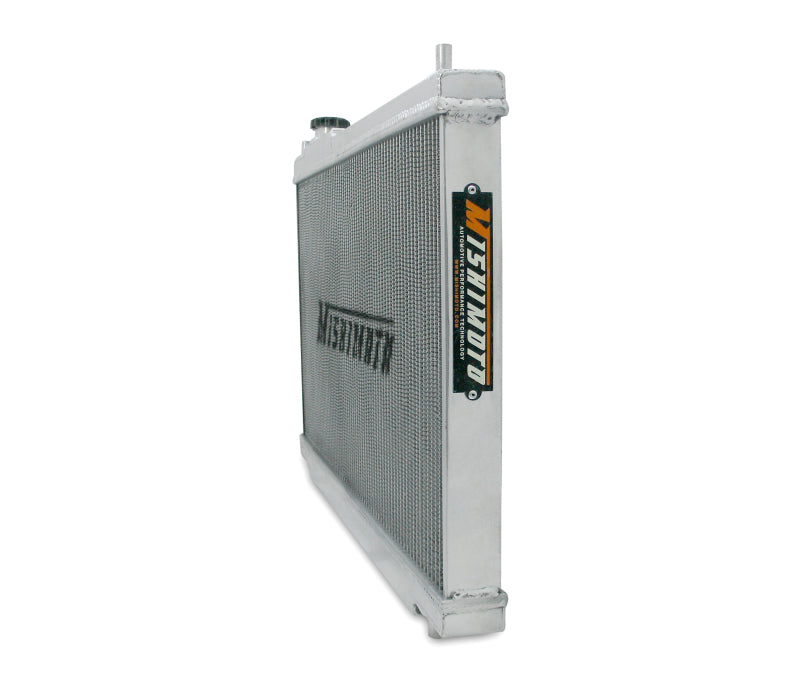

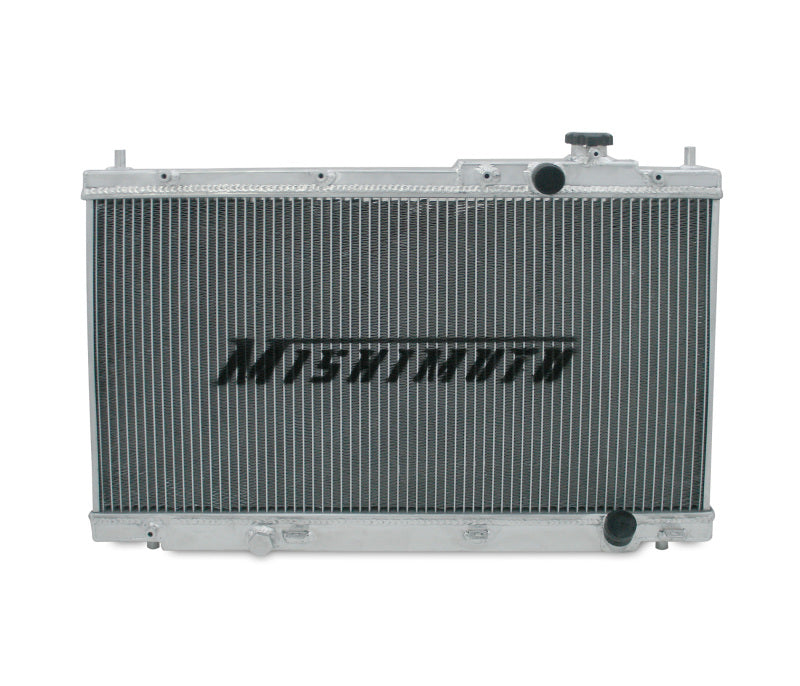

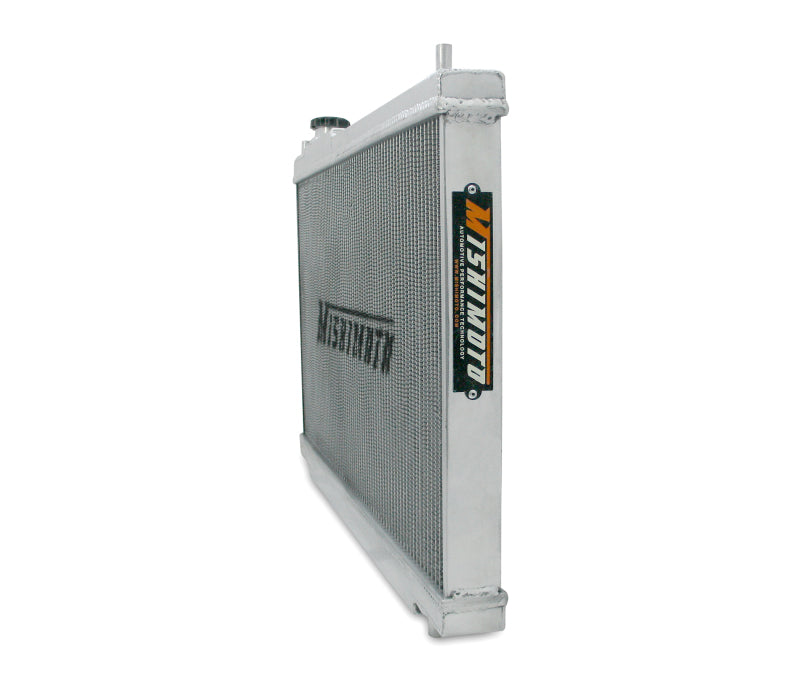

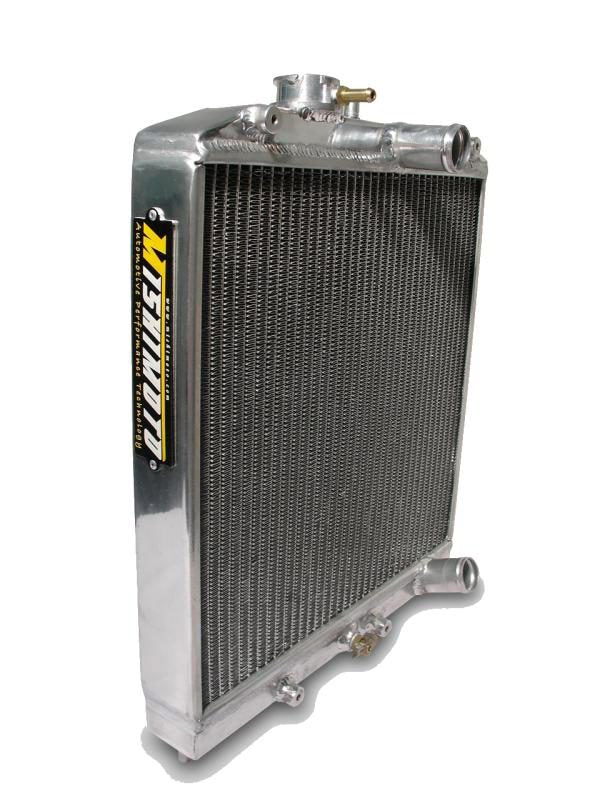

Mishimoto MMRAD-CIV-01 - 01-05 Honda Civic Manual Trans Aluminum Radiator
Performance Aluminum Radiator, fits Honda Civic 2001-2005
Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
A Mishimoto performance aluminum radiator is the ideal upgrade to the stock Civic radiator.For a cooler more efficient running engine, all Mishimoto radiators are designed and engineered to maximize cooling, boost engine functions, and most importantly prevent your car from overheating.Made with 100-percent brazed aluminum and polished end tanks, this lightweight dual core radiator will enhance the overall performance and lifetime of your engine.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty.
- Constructed from durable, TIG-welded, aircraft quality aluminum
- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
TechSpec Engine Codes: D17a1D17a2
TechSpec Chassis Codes: EM2
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the 2001-2005 Honda Civic w/ 1.7L engine
SellingPoint02: Constructed from durable, TIG-welded, aircraft quality aluminum
SellingPoint03: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint04: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint05: Mishimoto Lifetime Warranty
SellingPoint06: N/A
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
Core Finish: Uncoated
Core Height: 13.78
Core Length: 26
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 1.57
Down Flow Or Cross Flow Type: Down Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 1.52
Inlet Diameter: 1.1
Inlet Location: Top Left
Outlet Diameter: 1.1
Outlet Location: Bottom Right
Overall Height: 26.9
Overall Length: 17.9
Overall Width: 2.07
Radiator Cap Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
TechSpec Overall Height (in): 26.9
TechSpec Overall Length (in): 17.9
TechSpec Overall Width (in): 2.07
TechSpec Core Length (in): 26
TechSpec Core Height (in): 13.78
TechSpec Fluid Capacity (gal): 1.52
TechSpec Rows: 2
TechSpec Inlet (in): 1.1
TechSpec Outlet (in): 1.1
TechSpec Core Thickness (in): 1.57
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 2354
TechSpec Material: Aluminum
TechSpec Applications: N/A
