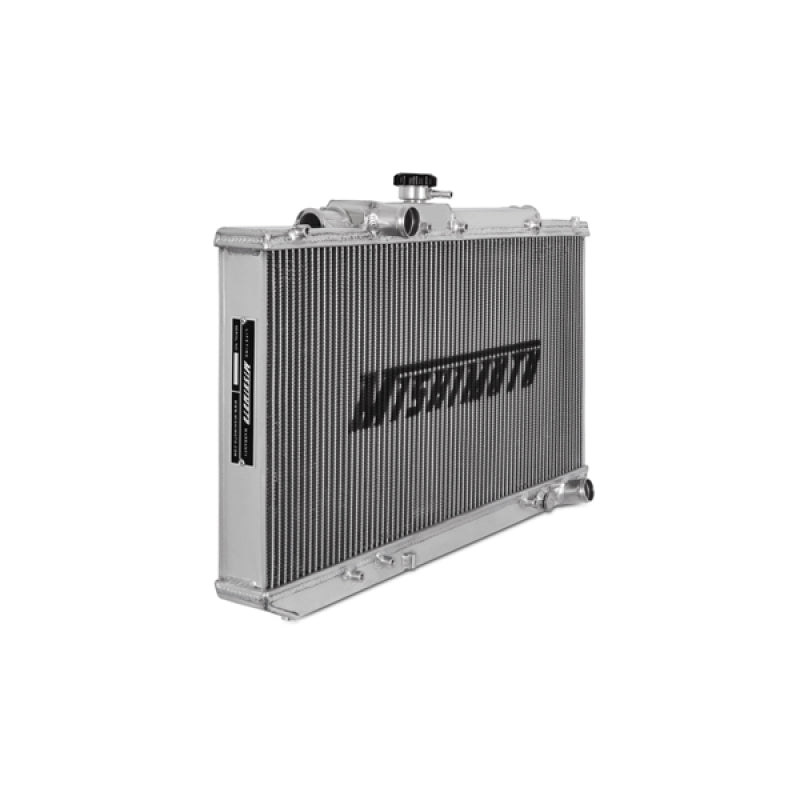

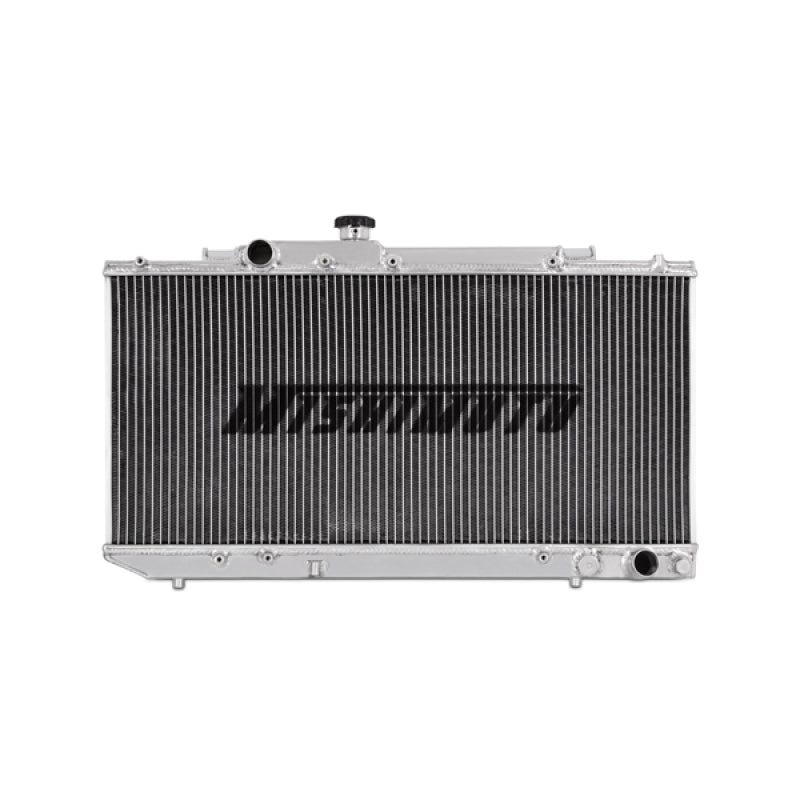

Mishimoto MMRAD-CEL-89 - 89-93 Toyota Celica GT4 Manual Performance Aluminum Radiator
Performance Aluminum Radiator, fits Toyota Celica GT4 1989-1993
Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
The Toyota Celica is ideal for engine upgrades and modifications that can provide substantial horsepower and torque increases.By replacing your current Celica radiator with a Mishimoto performance aluminum radiator, you will undoubtedly notice a cooler running engine.The Mishimoto Toyota Celica aluminum radiators are designed and engineered to maximize cooling efficiency and protect your car from the overheating.Installation is effortless with a direct OEM fit - no cutting or modification is required.
- Full aluminum design featuring robust TIG-welded construction
- Ideal replacement for the failure-prone stock plastic end tank radiator
- Features a two-row, 2.04-in thick brazed aluminum core which provides efficient fluid temperature reduction
TechSpec Rows: 2
TechSpec Inlet (in): 1.25
TechSpec Outlet (in): 1.25
TechSpec Core Thickness (in): 2.04
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 1174
TechSpec Material: Aluminum
TechSpec Applications: N/A
TechSpec Engine Codes: 3S-GTE
TechSpec Chassis Codes: ST185
TechSpec Note: N/A
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the 1989-1994 Toyota Celica GT-Four/All-trac
SellingPoint02: Full aluminum design featuring robust TIG-welded construction
SellingPoint03: Ideal replacement for the failure-prone stock plastic end tank radiator
SellingPoint04: Features a two-row, 2.04-in thick brazed aluminum core which provides efficient fluid temperature reduction

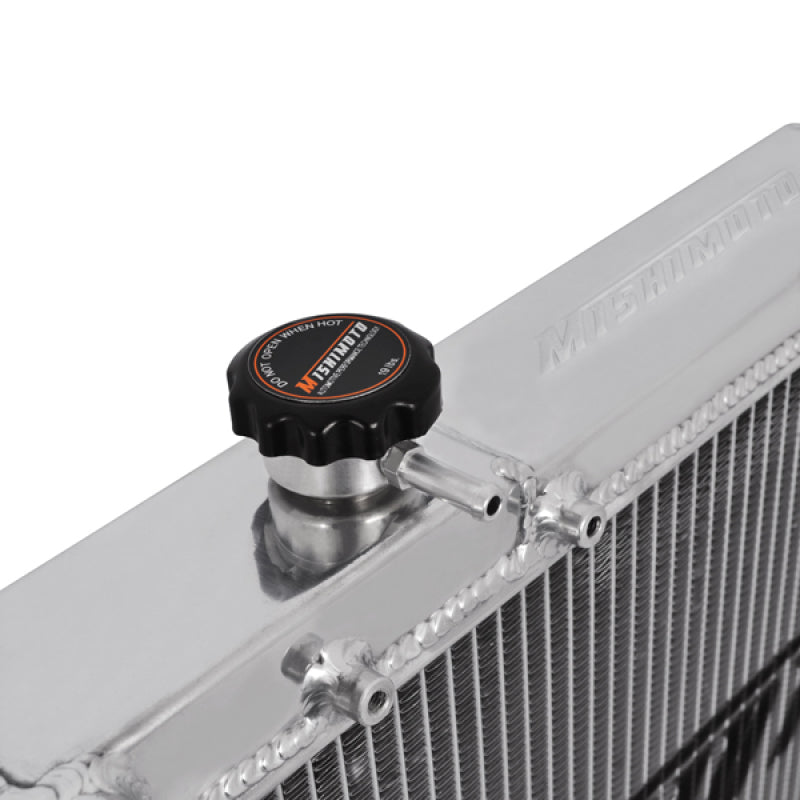

SellingPoint05: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint07: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
SellingPoint06: Perfect for use under stressful driving conditions such as autocross, rallycross, or track events
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
Core Finish: Uncoated
Core Height: 27.5
Core Length: 12.52
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 2.04
Down Flow Or Cross Flow Type: Down Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 1.94
Inlet Diameter: 1.25
Inlet Location: Top Left
Outlet Diameter: 1.25
Outlet Location: Bottom Right
Overall Height: 28.1
Overall Length: 17.3
Overall Width: 2.54
Radiator Cap Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
TechSpec Overall Height (in): 28.1
TechSpec Overall Length (in): 17.3
TechSpec Overall Width (in): 2.54
TechSpec Core Length (in): 12.52
TechSpec Core Height (in): 27.5
TechSpec Fluid Capacity (gal): 1.94
