Mishimoto MMRAD-CAM-70 - 70-81 Chevy Camaro Aluminum Radiator

Mishimoto  |  SKU: MMRAD-CAM-70
$000

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Mishimoto MMRAD-CAM-70 - 70-81 Chevy Camaro Aluminum Radiator

2-Row Performance Aluminum Radiator, fits ChevroletCamaro 1970-1981

Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.

The Mishimoto performance aluminum radiator for the Chevrolet Camaro / Pontiac Firebird is an ideal upgrade to the OEM radiator. Whether you are cruising to a car show or slinging rubber at the strip an efficient cooling system is a must. The Mishimoto Chevrolet Camaro aluminum radiator features a 2 row core and high pressure radiator cap to keep your stock or modified small block temperatures in check. Not only will this radiator improve engine cooling but the incorporated transmission cooler will provide significant reductions in fluid temperatures. The Mishimoto Chevrolet Camaro radiator is crafted from high quality TIG welded aluminum with polished end tanks. This aluminum radiator is a direct fit unit and will not require any trimming or cutting and is backed by the Mishimoto lifetime warranty.

  • Full aluminum radiator featuring robust TIG-welded construction
  • Two-row brazed aluminum core provides efficient fluid temperature reduction on the street or strip

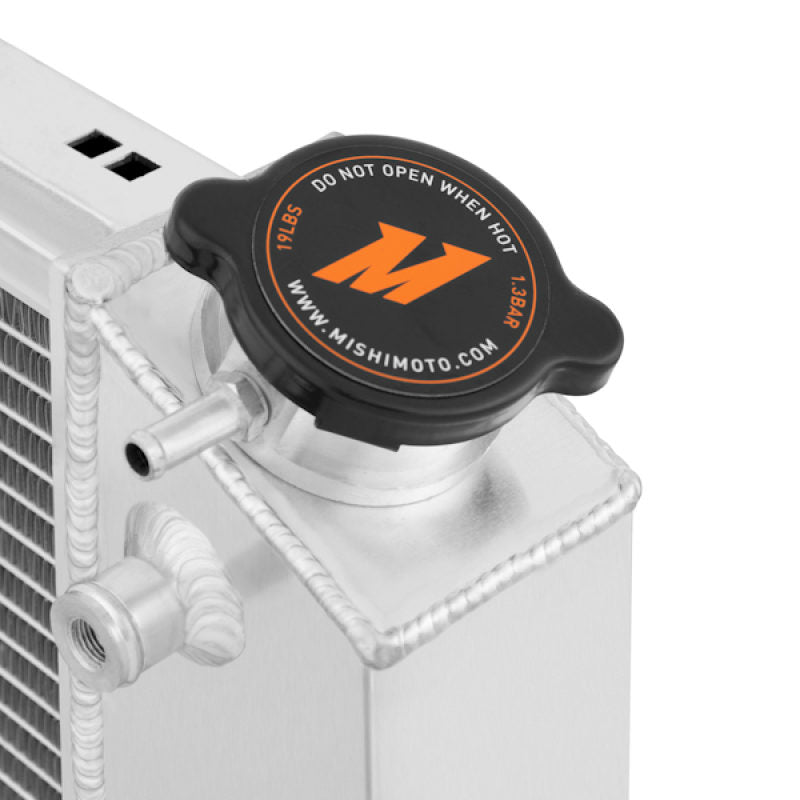

  • Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
TechSpec Overall Height (in): 31
TechSpec Overall Length (in): 18.75
TechSpec Overall Width (in): 4.2
TechSpec Core Length (in): 26.2
TechSpec Core Height (in): 16.5
TechSpec Fluid Capacity (gal): 4.87
TechSpec Rows: 2
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.57
TechSpec Core Thickness (in): 1.41
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 162
TechSpec Material: Aluminum
TechSpec Applications: 1970-1981 Chevrolet Camaro
TechSpec Engine Codes: N/A
TechSpec Chassis Codes: N/A
TechSpec Note: N/A
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug w/ Dowty Oil Seal--(2) 1/8-inch NPT Plugs--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the 1970-1981 Chevrolet Camaro w/ L6 and V8 engines
SellingPoint02: Full aluminum radiator featuring robust TIG-welded construction
SellingPoint03: Two-row brazed aluminum core provides efficient fluid temperature reduction on the street or strip
SellingPoint04: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint05: Polished aluminum end tanks enhance engine bay aesthetics
SellingPoint06: Includes Mishimoto M12 x 1.25-in Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
Core Finish: Uncoated
Core Height: 16.5
Core Length: 26.2
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 1.41
Down Flow Or Cross Flow Type: Cross Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 4.87
Inlet Diameter: 1.5
Inlet Location: Top Left
Outlet Diameter: 1.57
Outlet Location: Bottom Right
Overall Height: 31
Overall Length: 18.75
Overall Width: 4.2
Radiator Cap Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
