Mishimoto MMOP-TPS - Oil Sandwich Plate Adapter with 3 x 1/8in NPT Ports
Mishimoto | SKU:
MMOP-TPS
Sale price
$7599
Regular price
$8359
Unit price
/
Unavailable
$7.60 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

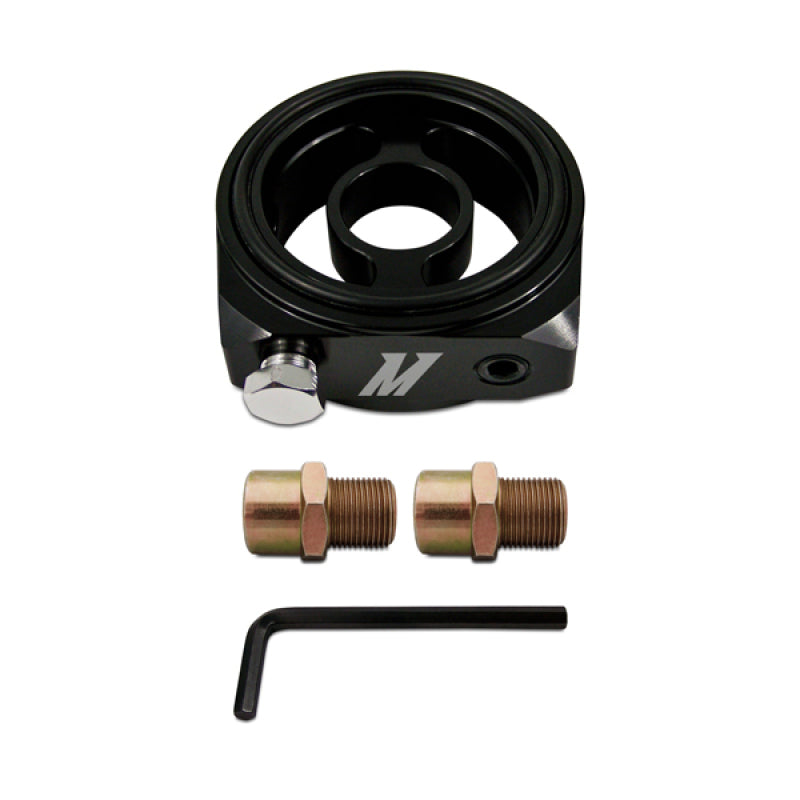

Mishimoto MMOP-TPS - Oil Sandwich Plate Adapter with 3 x 1/8in NPT Ports
Oil Filter Sandwich Plate Adapter
High-performance component designed to enhance thermal efficiency, durability, and reliability under demanding conditions. Engineered to support optimal temperature control and system performance across applications.
The Mishimoto Oil Filter Sandwich Plate Adapters are made with 3 NPT ports to allow you to install an oil temperature sensor, oil pressure sensor, and/or a turbo oil feed.This easy-to-install plate eliminates the need to drill into your block by using the mounting point on your engine oil filter.Two adapters are included with purchase for fitment with multiple applications.
- 6061 aluminum, CNC-machined
- Three 1/8-in NPT ports (with plug) for sensors/oil feed/etc.
- M20 x 1.5 and 3/4-UNF
TechSpec Rows: N/A
TechSpec Core Construction: N/A
TechSpec Core Length (in): N/A
TechSpec Core Height (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec Engine Codes: N/A
TechSpec Chassis Codes: N/A
TechSpec Installation Notes: Sandwich Plate Adapter: 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Overall Height (in): 2.8
TechSpec Overall Length (in): 3
TechSpec Overall Width (in): 1.125
TechSpec Inlet: N/A
TechSpec Outlet: N/A
TechSpec Includes: Oil Plate Sandwich Adapter with 1/8-in NPT Ports--Large O-ring--Sandwich Plate Adapters--Black Flush Fittings w/ Allen Key Bolt--Allen Key--Hex Head Fitting--Installation Guide--Mishimoto Lifetime Warranty
TechSpec Applications: N/A
TechSpec Fluid Capacity (qts): N/A
TechSpec Note: N/A
SellingPoint01: 6061 aluminum, CNC-machined
SellingPoint02: Three 1/8-in NPT ports (with plug) for sensors/oil feed/etc.
SellingPoint03: M20 x 1.5 and 3/4-UNF
SellingPoint04: 16 Sandwich Plate Adapters
SellingPoint05: Mishimoto Lifetime Warranty
SellingPoint06: N/A
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 2
Color: Black
Gasket Or Seal Included: Yes
Material: 6061 Aluminum
Port Quantity: 2
Thickness: 1
