Mishimoto MMOCA-GTO - 04-06 Pontiac GTO LS1/LS2 Front-Sump Oil Cooler Adapter

Mishimoto  |  SKU: MMOCA-GTO
$23495 $25800

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Mishimoto MMOCA-GTO - 04-06 Pontiac GTO LS1/LS2 Front-Sump Oil Cooler Adapter

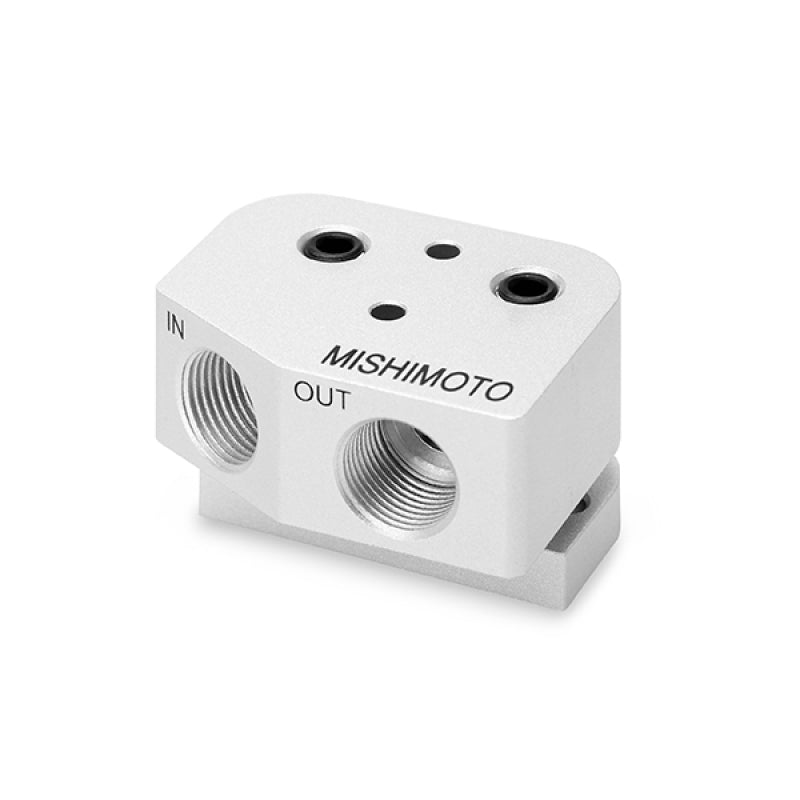

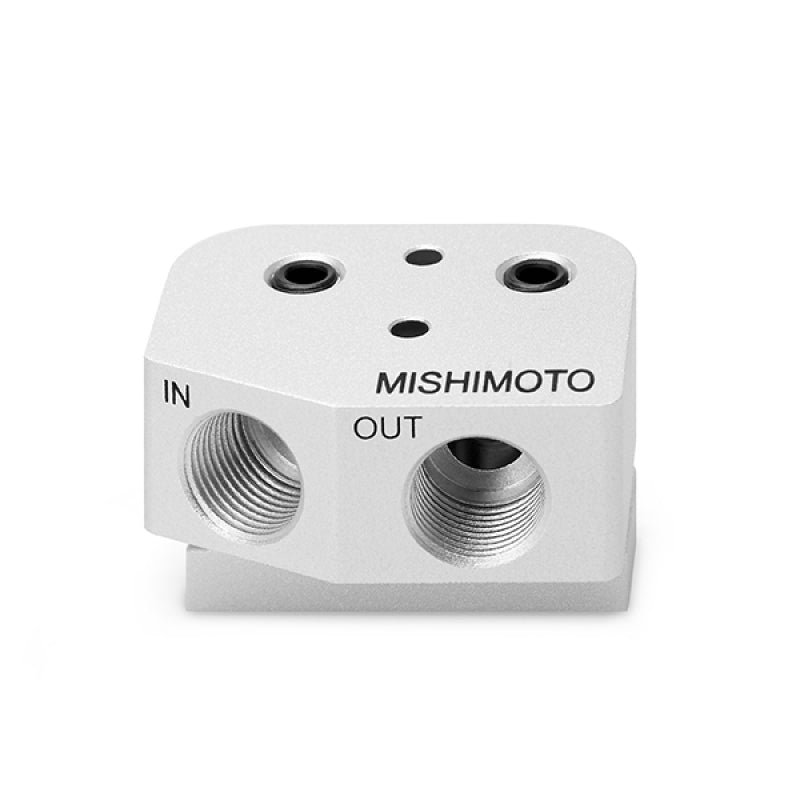

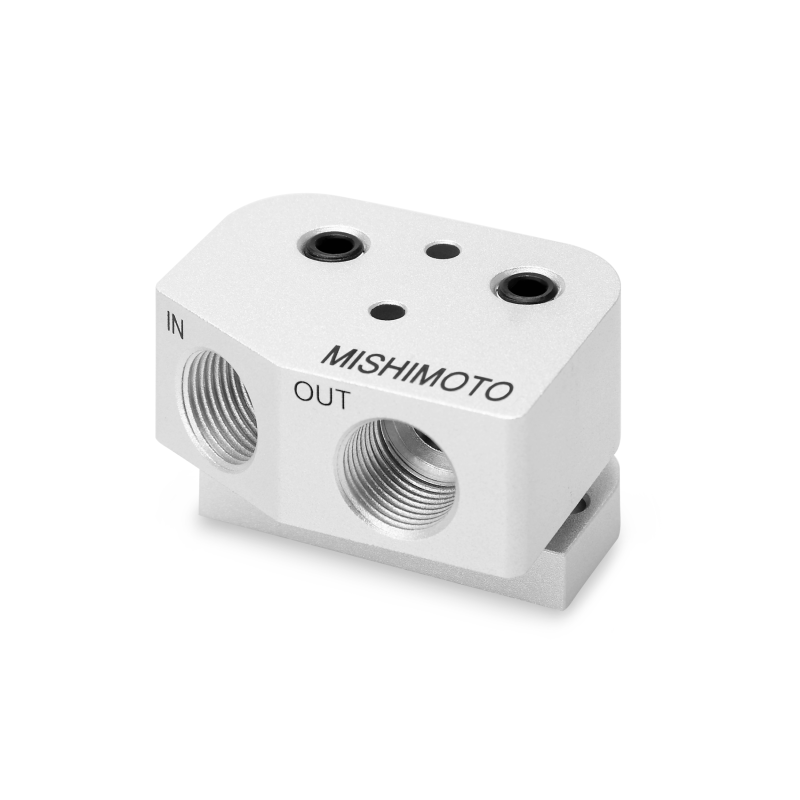

Mishimoto Front-Sump Oil Cooler Adapter for LS1/LS2

This LS1/LS2 front-sump oil cooler adapter allows you to get creative with your build. It is designed to give you a starting point when designing your own custom oil cooler setup. The adapter and fittings are CNC-machined from 6061 aluminum for superior fitment and durability. The adapter features two 1/8in NPT ports to allow for extra sensors or oil feeds, just in case you're thinking of adding a big oleft turbocharger in the future. Let this kit be the end of high oil temperatures in your LS engine.

  • Designed for LS1/LS2 equipped vehicles with a front-sump
  • Allows for use of -10AN fittings for custom oil cooler installation
  • CNC-machined components, including 6061 aluminum fittings and adapter plates
  • Two 1/8in NPT ports (with plugs) for sensors/oil feed/etc.
  • Mishimoto Lifetime Warranty
SellingPoint06: Mishimoto Lifetime Warranty
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
TechSpec Rows: N/A
TechSpec Core Construction: N/A
TechSpec Core Length (in): N/A
TechSpec Core Height (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec Engine Codes: LS-1--LS-2
TechSpec Chassis Codes: V-Body
TechSpec Installation Notes: Torque bolts to between 108 in-lbs and 120 in-lbs
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Inlet: N/A
TechSpec Outlet: N/A

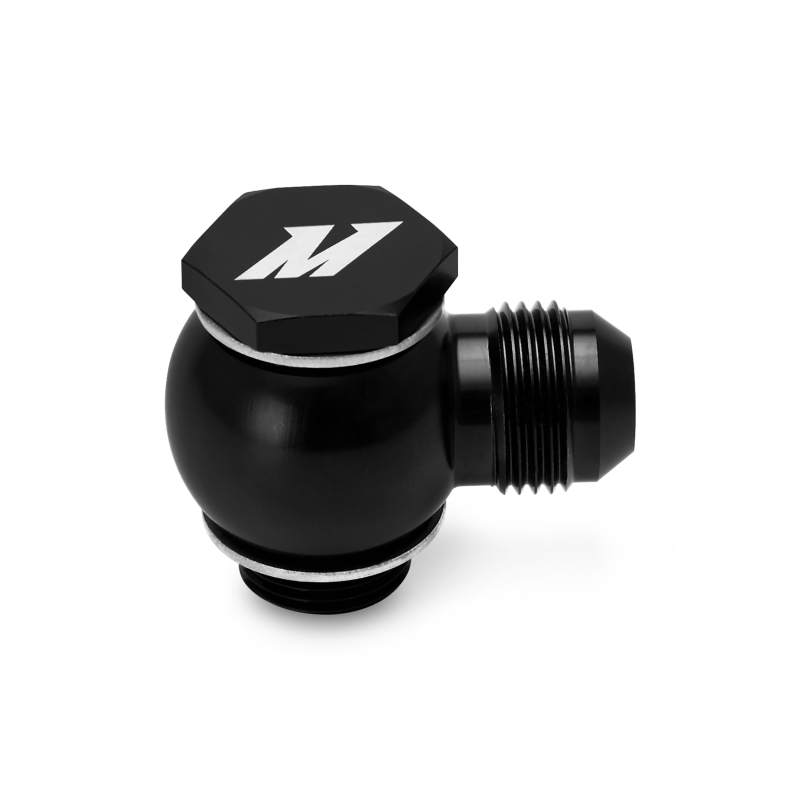

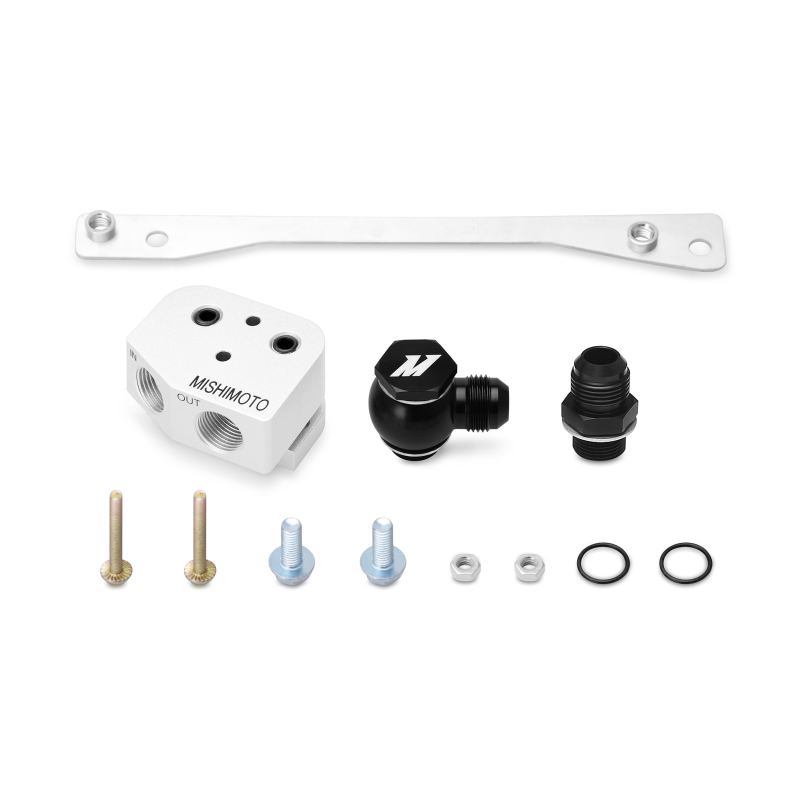

TechSpec Includes: Oil Cooler Adapter Housing & Spacer--Aluminum Power Steering Relocation Bracket--Banjo Fitting w/ Bolt M20 x -10AN, Black--M20 x -10AN Straight Fitting, Black--O-Rings--1/8-in NPT Plugs--Mounting Hardware Set--Mishimoto Lifetime Warranty
TechSpec Applications: 2001-2005 Holden Monaro (V2 VC8 & VZ)--1999-2006 Holden Commodore (VT, VX, VY & VZ)--1999-2006 Holden Commodore Ute--1999-2006 Holden Statesman (WH, WK, WL)--1999-2006 Holden Caprice (WH, WK, WL)--2001-2006 Vauxhall Monaro----Other vehicles equipped with the GM front-sump oil pan part number 12599397, 12599398, 12581209, or 12581210.
TechSpec Fluid Capacity (qts): N/A
TechSpec Note: N/A
SellingPoint01: Designed for LS1/LS2 equipped vehicles with a front-sump
SellingPoint02: Allows for use of -10AN fittings for custom oil cooler installation
SellingPoint03: CNC-machined components, including 6061 aluminum fittings and adapter plates
SellingPoint04: Two 1/8-in NPT ports (with plugs) for sensors/oil feed/etc.
SellingPoint05: Includes one straight and one banjo fitting for easy installation of -10AN oil lines Includes power steering relocation bracket
