Mishimoto MMOC-WRX-01BK - 01-05 Subaru WRX/STi Oil Cooler Kit - Black
Oil Cooler Kit, Black, fits Subaru WRX/STI 2001-2005
High-performance engine oil cooler designed to regulate oil temperature and protect critical engine components. Efficient heat dissipation improves durability, maintains lubrication, and ensures reliable performance.

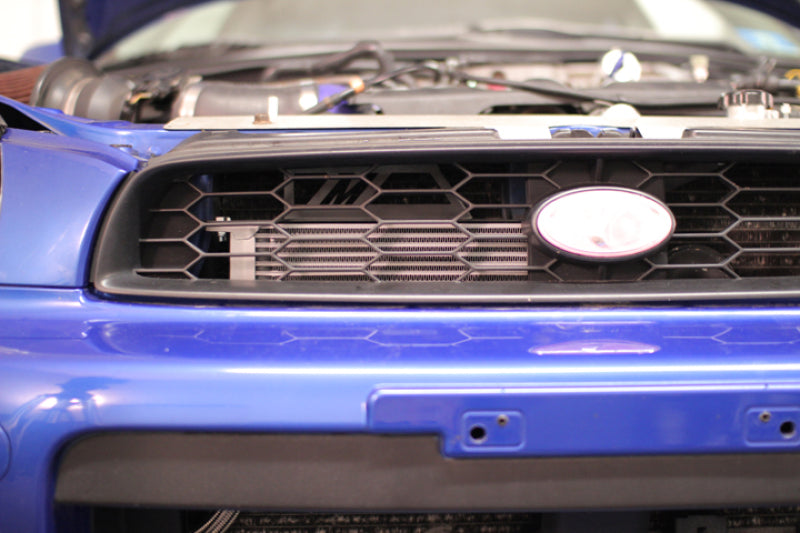

Mishimoto proudly announces the all-new 2001-05 Subaru WRX/STi Oil Cooler KIt'specially designed for your Subaru WRX and STi, the Mishimoto oil cooler is a direct fit and can be installed in just two hours! Mounted in the front grille for optimal airflow, the Mishimoto Subaru WRX/STi oil cooler kit drops temperatures over 20 degrees.You can be sure that this kit is perfect for keeping your Subaru WRX or STi cool under any driving conditions.The Mishimoto 2001-2005 Subaru WRX/STi Oil Cooler Kit comes with a Lifetime Warranty, so you know quality is guaranteed! Available with either silver or a stealth black cooler this kit is perfect for your street or track Subaru!
- Provides Dramatic Temperature Drop
- 2 psi pressure loss
- Thermostatic option available
TechSpec Rows: 10
TechSpec Core Construction: N/A
TechSpec Core Length (in): 11
TechSpec Core Height (in): 2.76
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: EJ205--EJ255
TechSpec Chassis Codes: GD
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Inlet: N/A
TechSpec Outlet: N/A

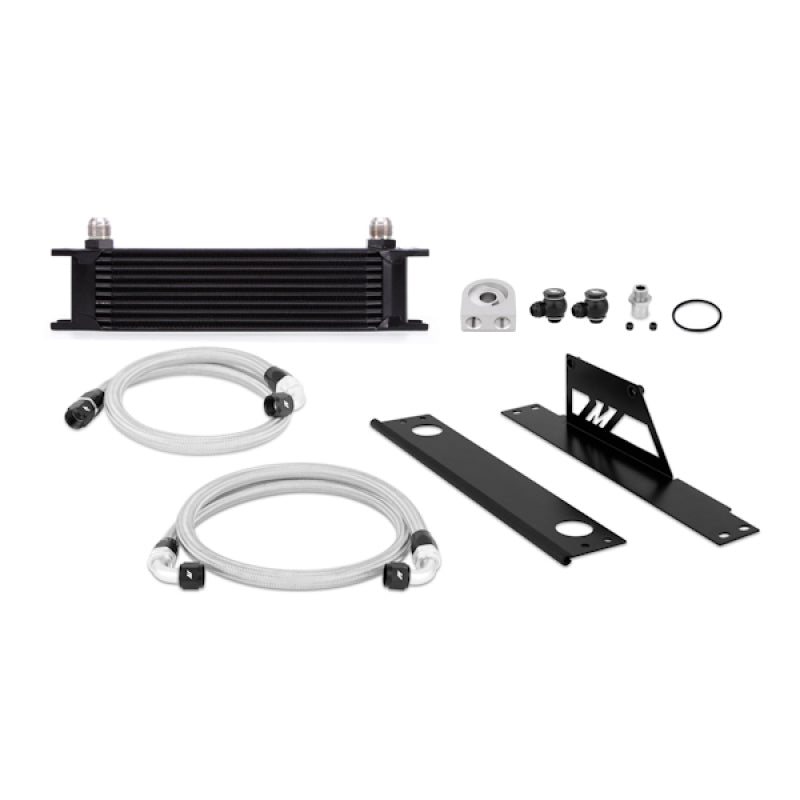

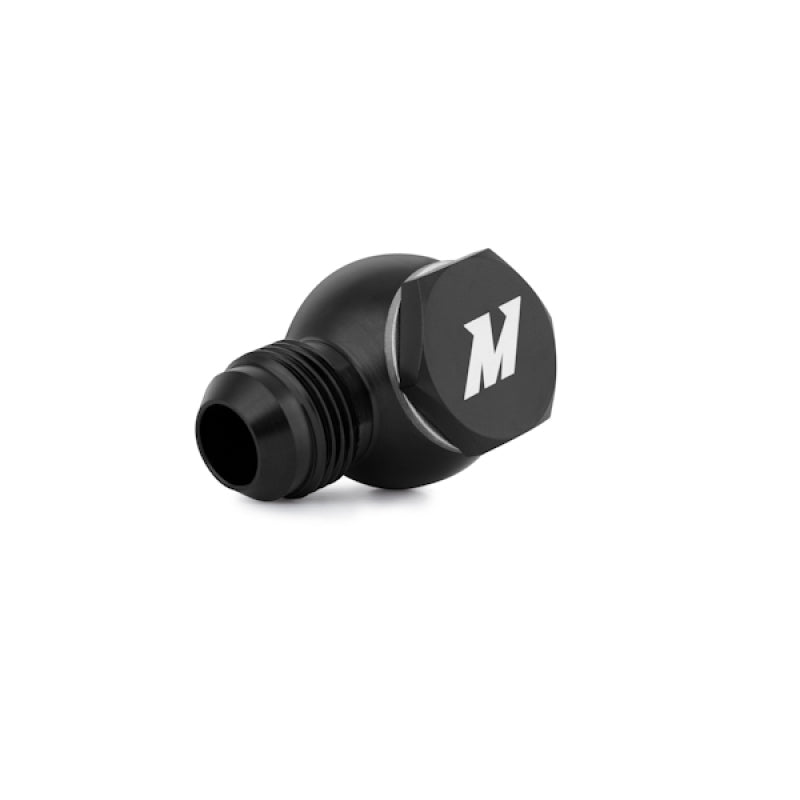

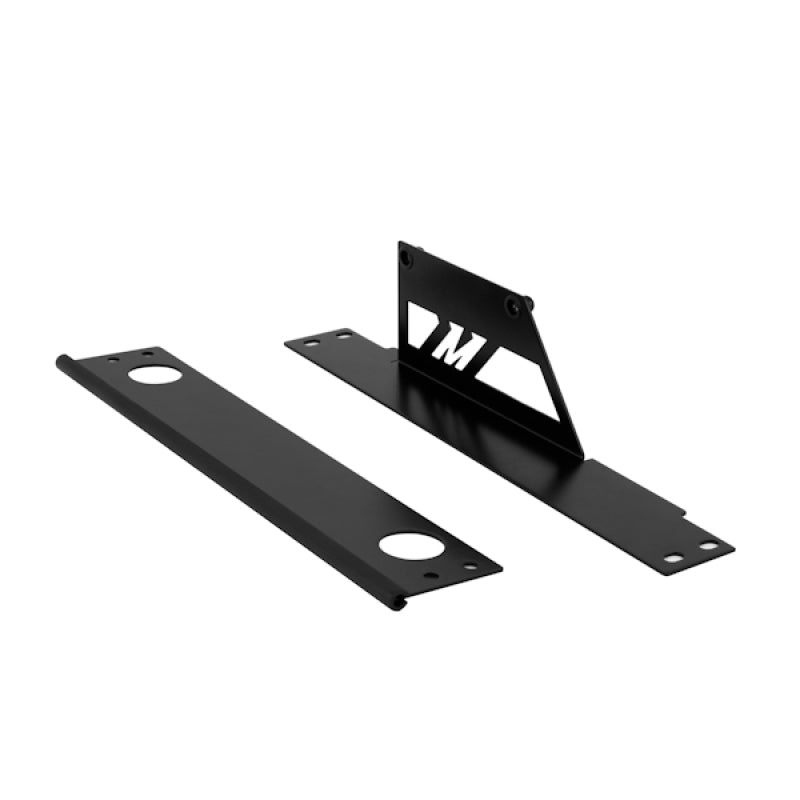

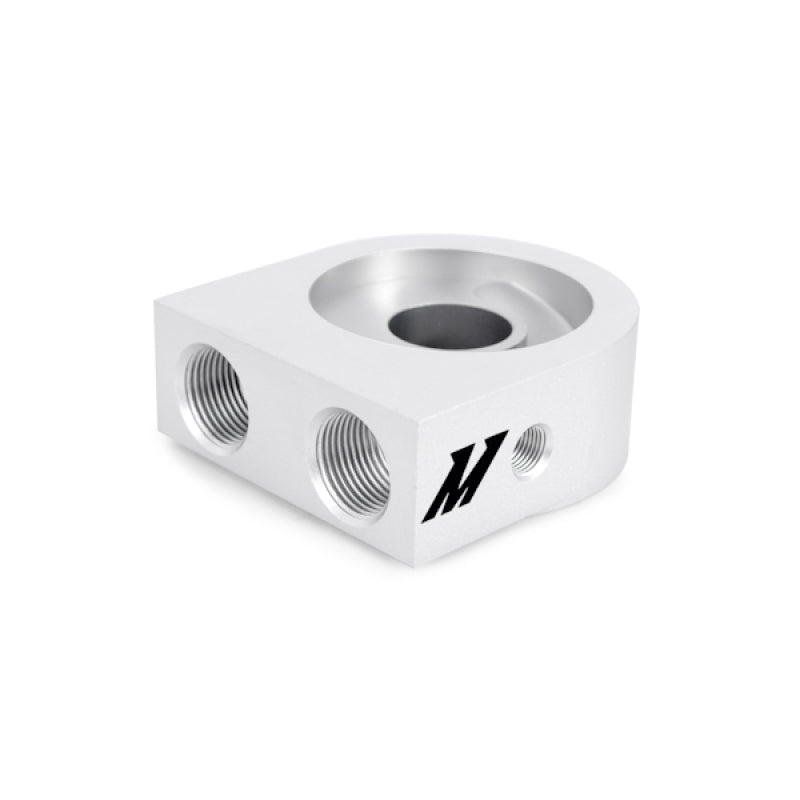

TechSpec Includes: Application-Specific Mounting Brackets--10-Row Oil Cooler--3-ft Stainless Steel Braided Hose w/ -10AN Fittings--4-ft 4-in Stainless Steel Braided Hose w/ -10AN Fittings--Oil Sandwich Plate--Stainless Steel Sandwich Plate Adapter, M20--Banjo Fitting w/ Bolt M20 x -10AN, Black--Black Rubber Seal--Mounting Hardware Set--Mishimoto Lifetime Warranty
TechSpec Applications: 2001-2005 Subaru WRX--2004-2005 Subaru STI
TechSpec Fluid Capacity (qts): N/A
TechSpec Note: Requires trimming of exhaust heat shield for proper installation. Will not fit on vehicles equipped with front mount intercoolers. Fits automatic and manual applications.
SellingPoint01: Provides Dramatic Temperature Drop
SellingPoint02: 2 psi pressure loss
SellingPoint03: Direct fit for the Subaru WRX/STI 2001-2005

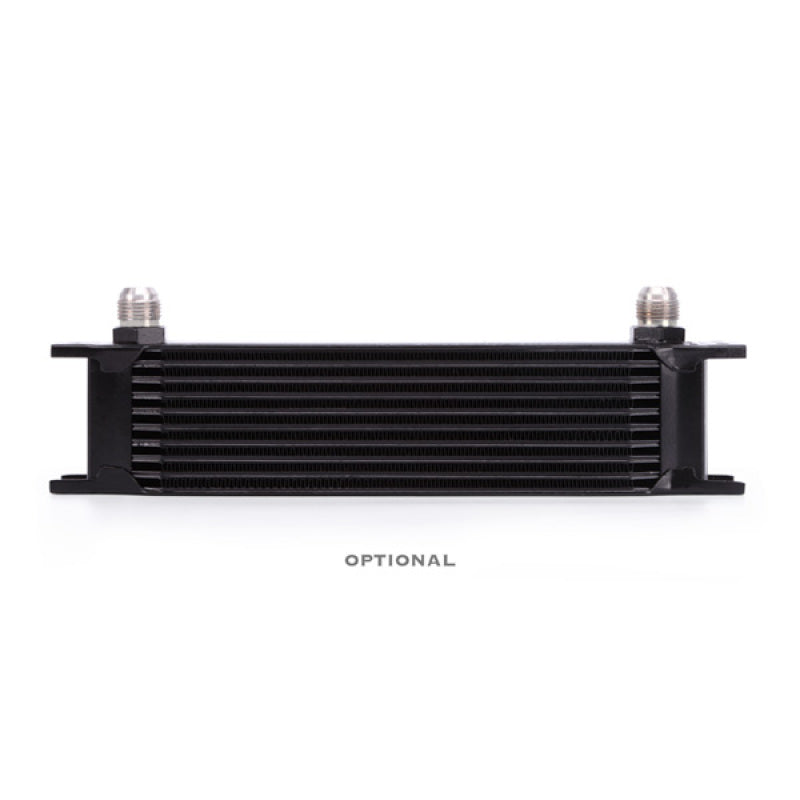

SellingPoint04: Thermostatic option available
SellingPoint05: Stealth black and sleek silver cooler options
SellingPoint06: Lifetime Warranty
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
OptionLabel: Black Cooler, Non-Thermostatic
Base Height: 0
Color: Black
Core Color: Black
Core Height: 2.76
Core Row Quantity: 0
Core Thickness: 1.97
Core Type: Bar-and-Plate
Core Width: 11
Finish: Anodized
Fluid Capacity: 0
Grade Type: Performance
Inlet Fitting Gender: Male
Inlet Fitting Type: AN Flare
Inlet Outside Diameter: 0
Outlet Fitting Gender: Male
Outlet Fitting Type: AN Flare
Outlet Outside Diameter: 0
Width: 0
