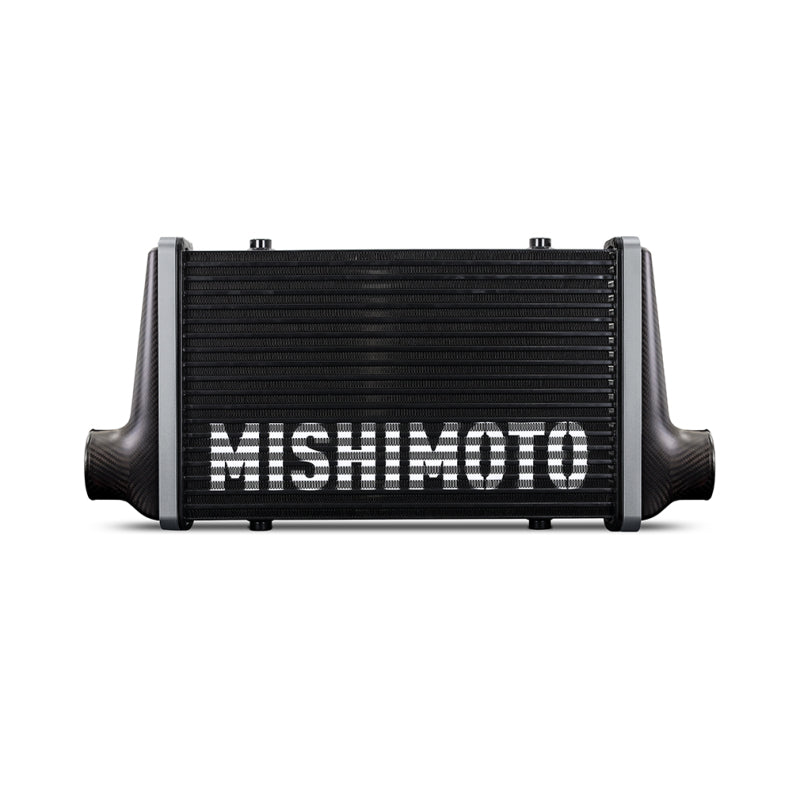

Mishimoto MMINT-UCF-M4S-C-C - Universal Carbon Fiber Intercooler - Matte Tanks - 450mm Silver Core - C-Flow - C V-Band

Mishimoto  |  SKU: MMINT-UCF-M4S-C-C
$000


AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

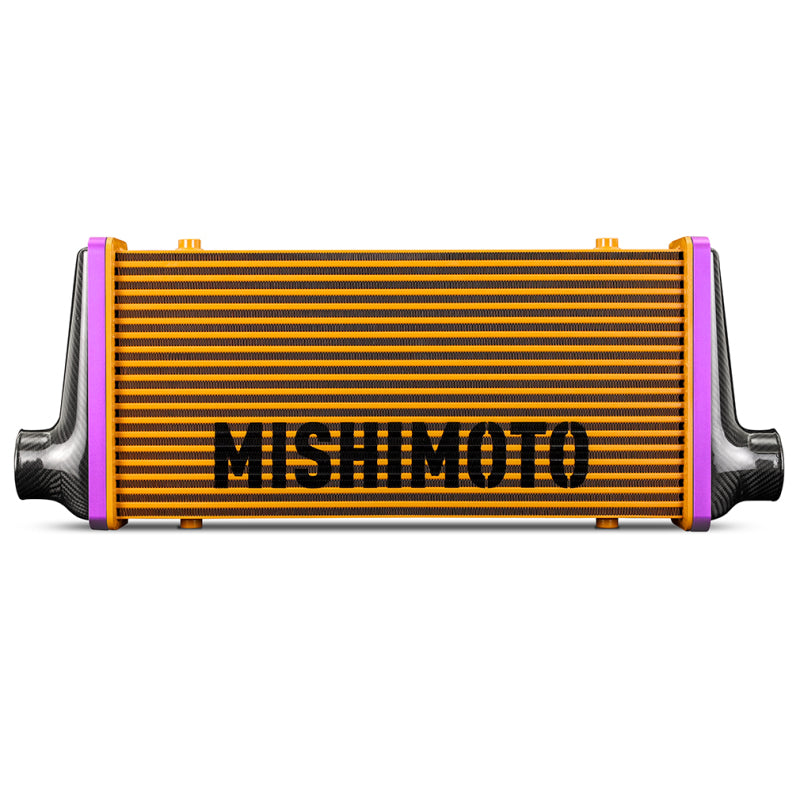

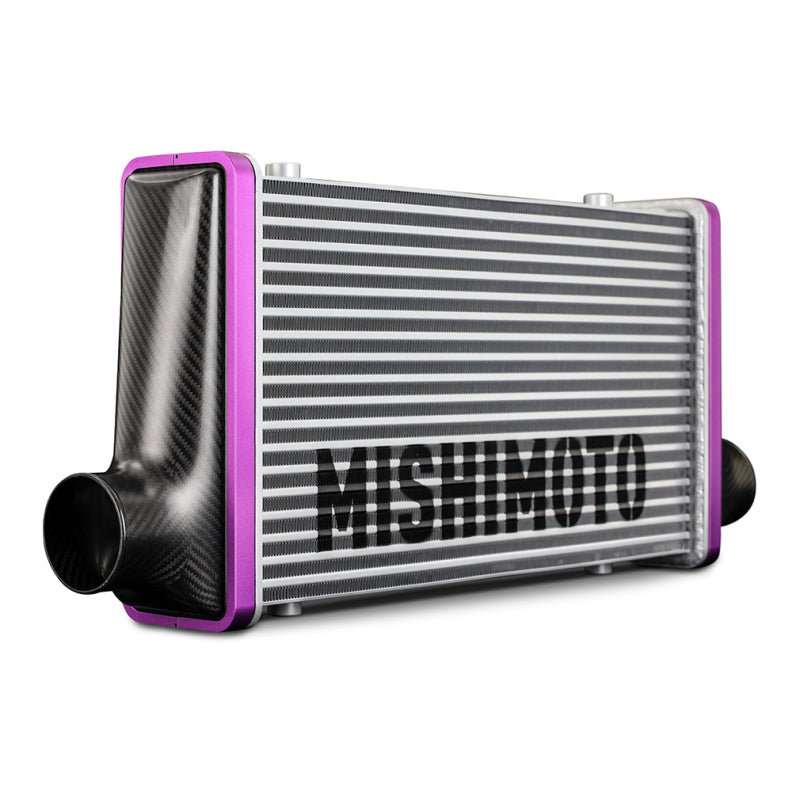

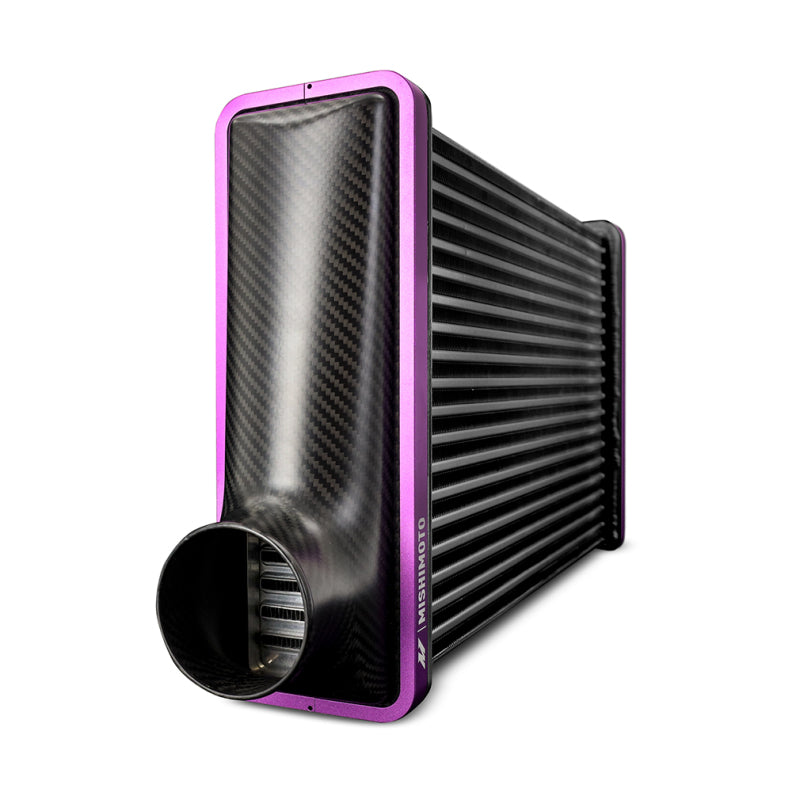

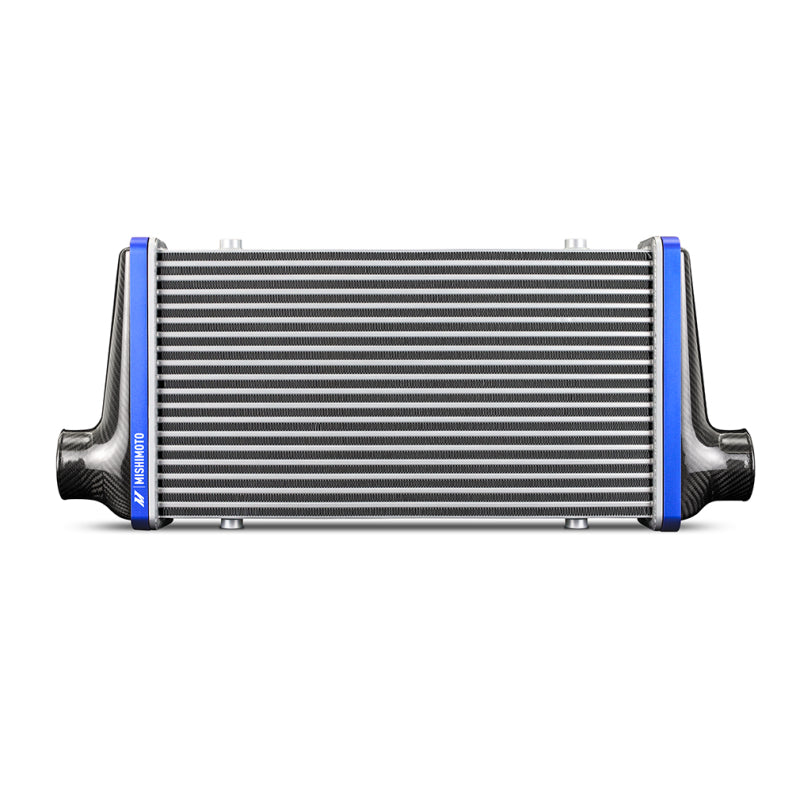

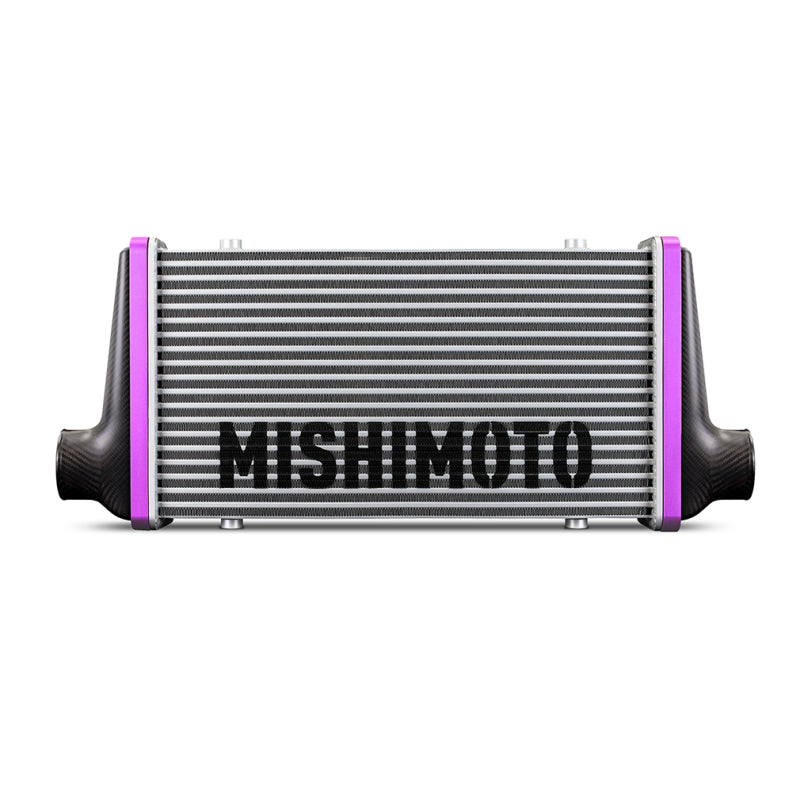

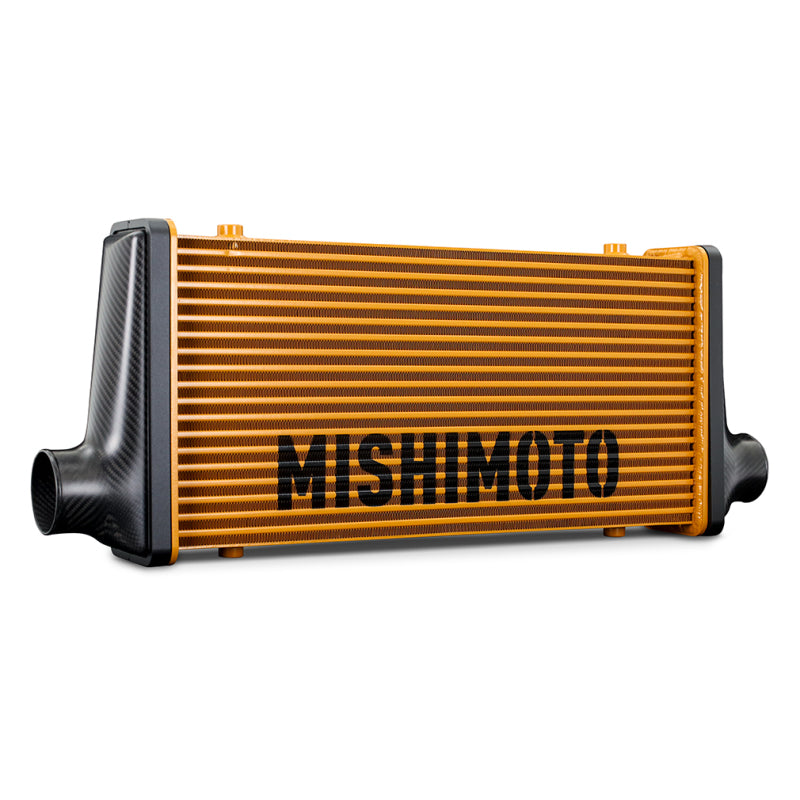

Mishimoto MMINT-UCF-M4S-C-C - Universal Carbon Fiber Intercooler - Matte Tanks - 450mm Silver Core - C-Flow - C V-Band

MMINT-UCF, Matte Tanks, 450mm Silver Core, Offset, Clear Anodized V-Band

High-efficiency intercooler engineered to reduce intake air temperatures for improved power and engine performance. Durable construction ensures optimal heat exchange, consistent boost, and a precise, reliable fit.

Building a performance vehicle is a quest for balance between opposing needs. Form vs function. Power vs weight. Strength vs lightness. Most of the time, one of those needs is more important to the build, so the other is sacrificed. But here at Mishimoto, we're done sacrificing. Thanks to our exclusive carbon fiber intercooler, you can have it all: aesthetics, performance, strength, and lightness all rolled into one innovative package. The end tanks are formed from solid 3K twill-woven carbon fiber. Carbon fiber gives our end tanks more strength than aluminum with 70% less weight. Three sizes of custom-engineered cores between the carbon fiber end tanks, combined with 3-inch inlets optimized for flow, ensure our intercooler is up to the task for builds producing up to 950 horsepower and 32 PSI of boost. The one-of-a-kind V-band core clamps hold the end tanks tight to the core under boost without the use of adhesives that can fail after repeated heat cycles. To ensure the end tanks can hold up to the rigors of road or track, they've been independently laboratory tested to SAE J400 standards for gravel impacts. With the Mishimoto carbon fiber intercooler, you don't have to sacrifice performance or strength for lightness. Carbon fiber isn't just strong, it's one of the most stunning raw materials available. Nothing beats the look of precisely woven carbon fiber

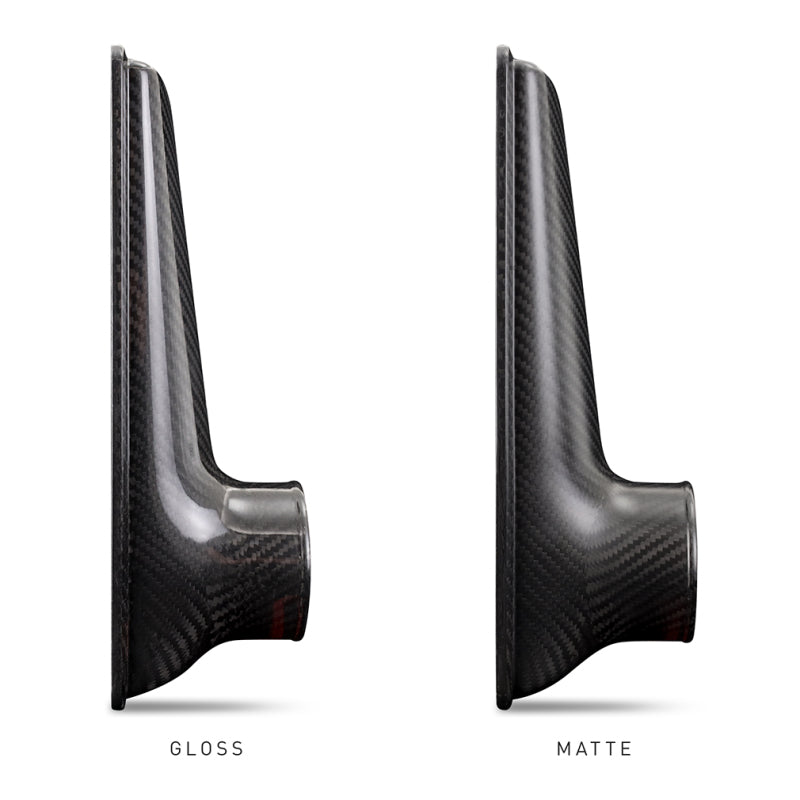

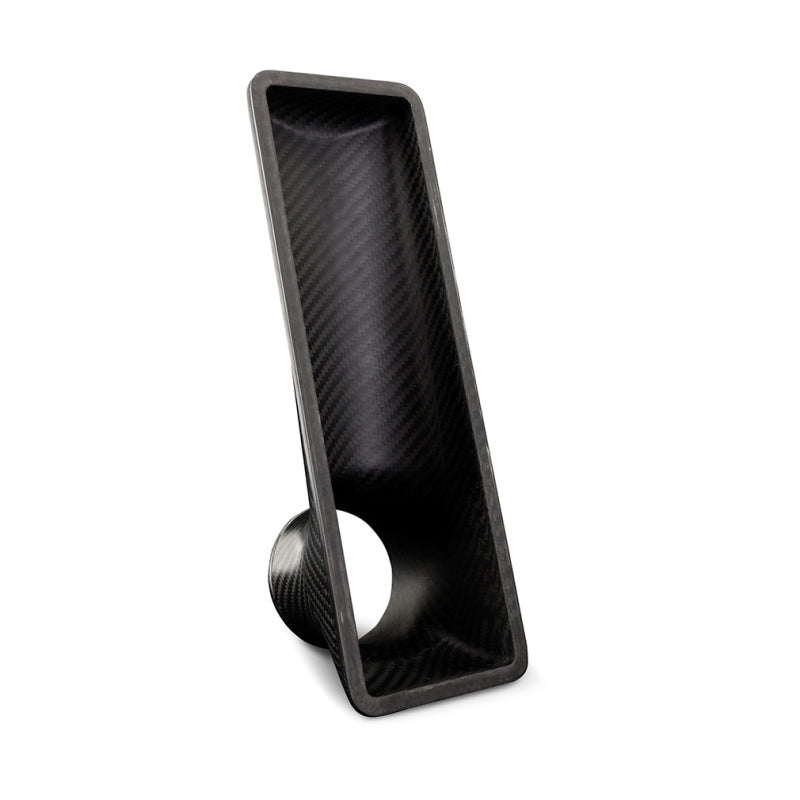

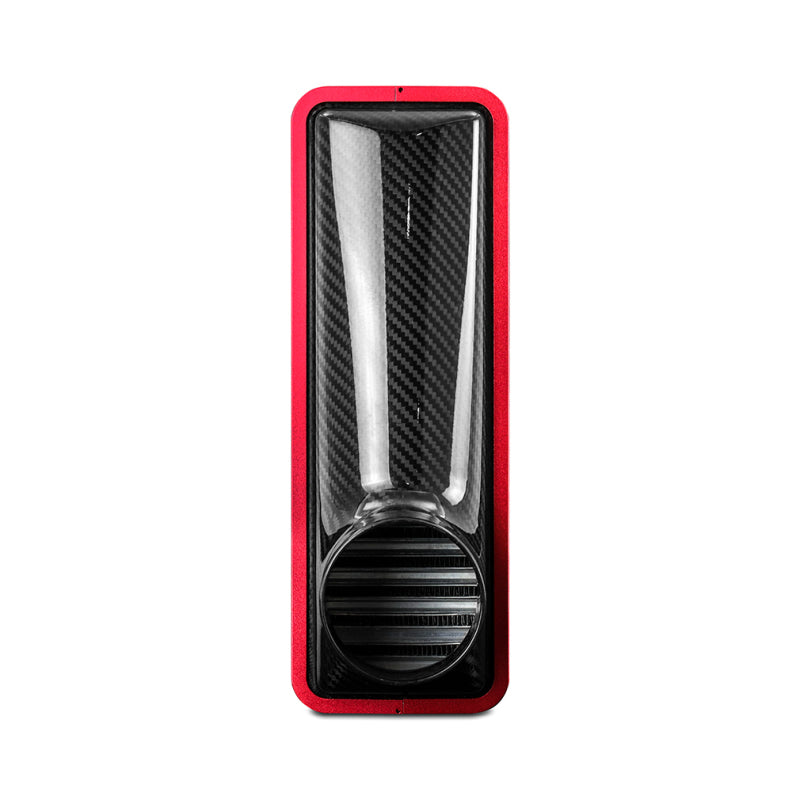

  • 3K twill-woven prepreg carbon fiber end tanks for maximum strength and lightness
  • Patent Number D1,050,186 S
  • Compatible with our universal 3-in couplers, intercooler pipes, and 50mm blow off valve
TechSpec Note: Product is custom built to order and is not returnable.--Lifetime Warranty does not cover incorrectly ordered products; please verify all options before ordering.--Each intercooler is made to order, please allow up to 48 hours after ordering for shipping notification.----Maximum Recommended Horsepower:--17-in Core: 700 HP--20-in Core: 800 HP--23-in Core: 950 HP
TechSpec Weight (lbs): N/A
TechSpec Outlet (in): 3
TechSpec Inlet (in): 3
TechSpec Core Height (in): 12.28
SellingPoint15: Mishimoto Lifetime Warranty
Install Difficulty: N/A
OptionLabel: Matte Tanks, 450mm Silver Core, Offset, Clear Anodized V-Band
TechSpec Applications: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Type: N/A
TechSpec Engine Codes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
Core Height: 12.28
Core Length: 17.71
Core Thickness: 4.25
Height: 0
Length: 0
Width: 0
Inlet Outside Diameter: 3
Outlet Outside Diameter: 3
Inlet Fitting Gender: Male
Outlet Fitting Gender: Male
Inlet Tank Material: Aluminum
Grade Type: Performance
Universal Or Specific Fit: Specific
Core Material: Aluminum
Core Color: Matte Tanks, 450mm Silver Core, Offset, Clear Anodized V-Band

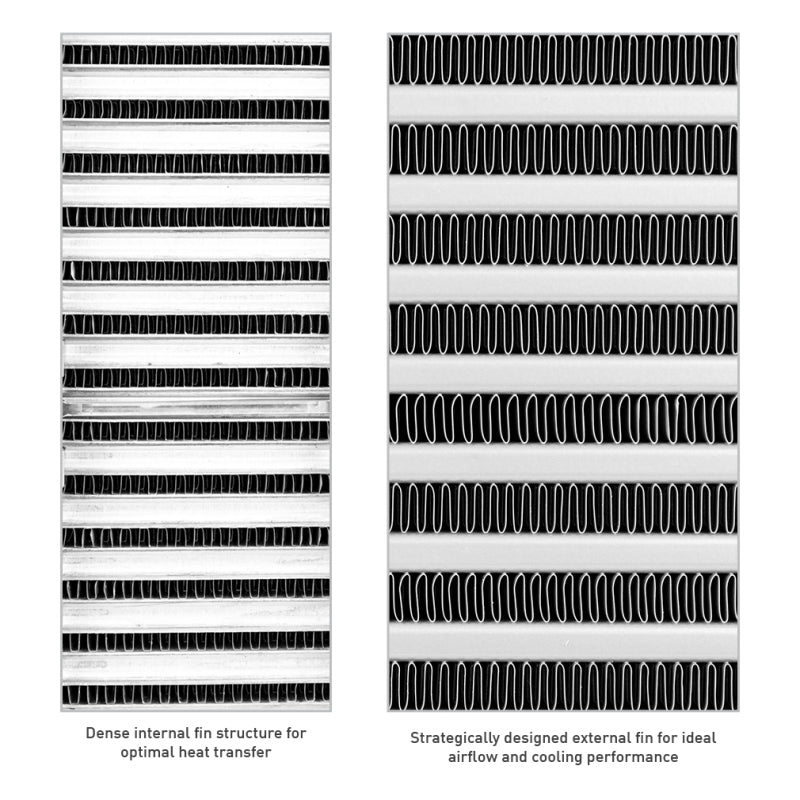

Type: Tube-and-Fin
TechSpec Core Thickness (in): 4.25
SellingPoint03: 3K twill-woven prepreg carbon fiber end tanks for maximum strength and lightness
SellingPoint14: Patent No. US D1,050,186 S and Patent Pending
SellingPoint13: Compatible with our universal 3-in couplers and intercooler pipes

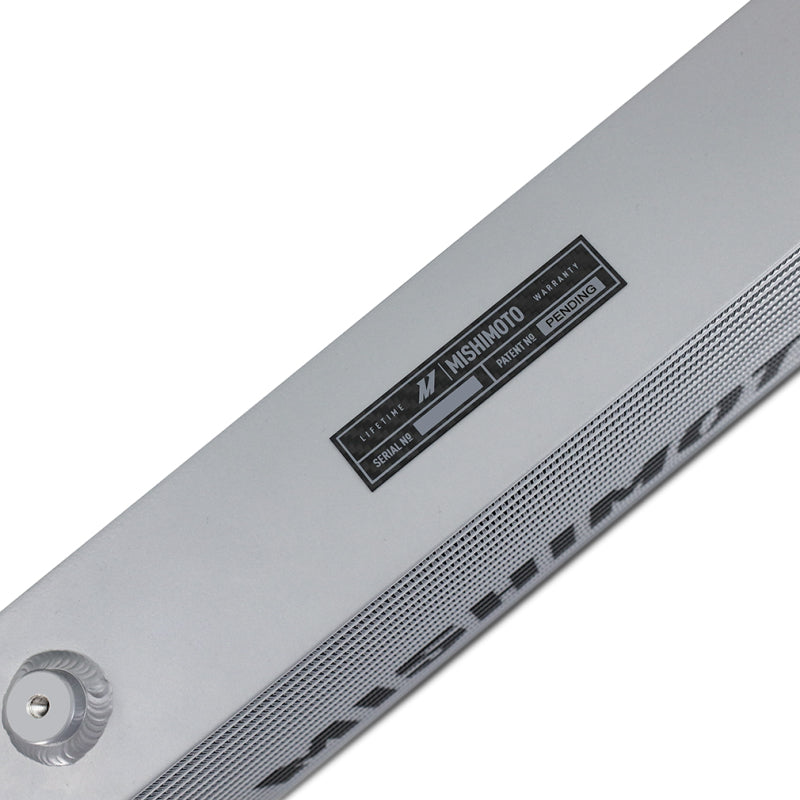

SellingPoint12: Core features four M8x1.25 threaded bosses on top and bottom for mounting versatility
SellingPoint11: Included vibration dampening isolators prevent damage from engine or body movement

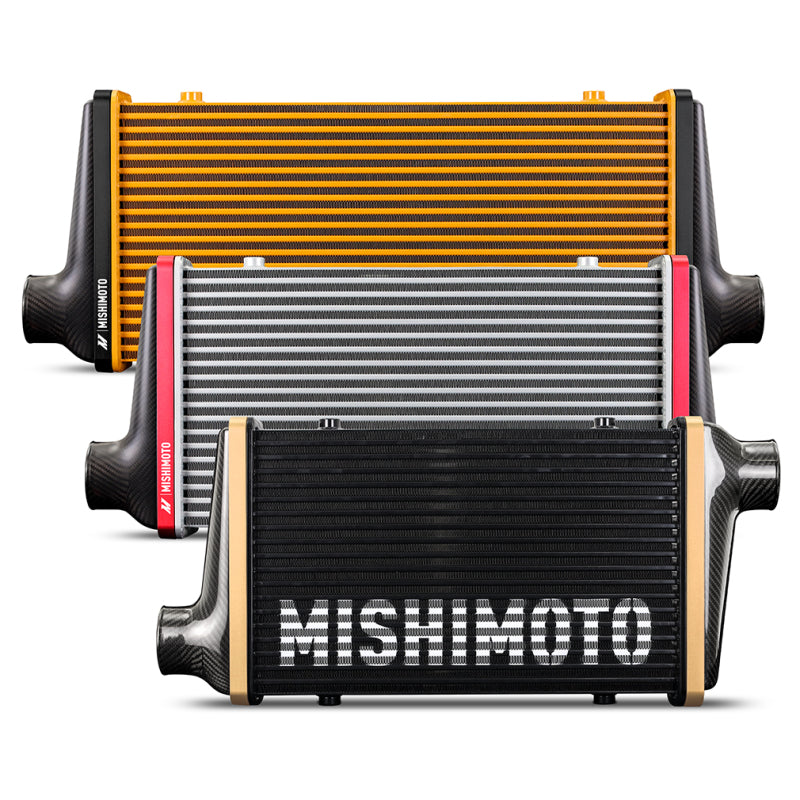

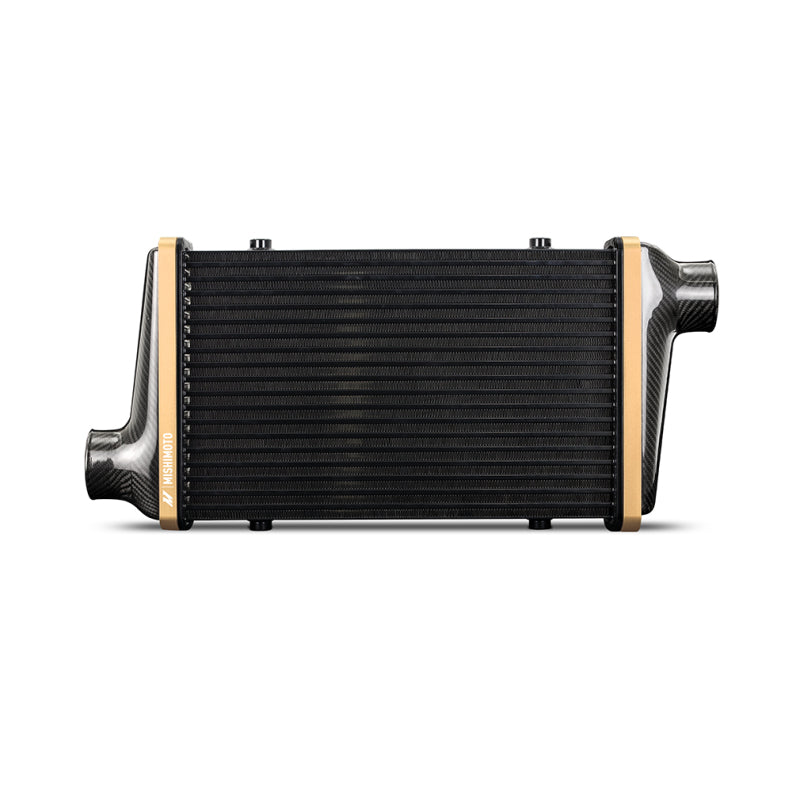

SellingPoint10: Three available core lengths with both straight-through and offset inlet configurations
SellingPoint09: 3-inch inlet and outlet for optimal flow on high-horsepower builds
SellingPoint08: Viton end tank O-ring provides superior fuel, oil, and coolant resistance
SellingPoint07: Supports builds up to 950 horsepower

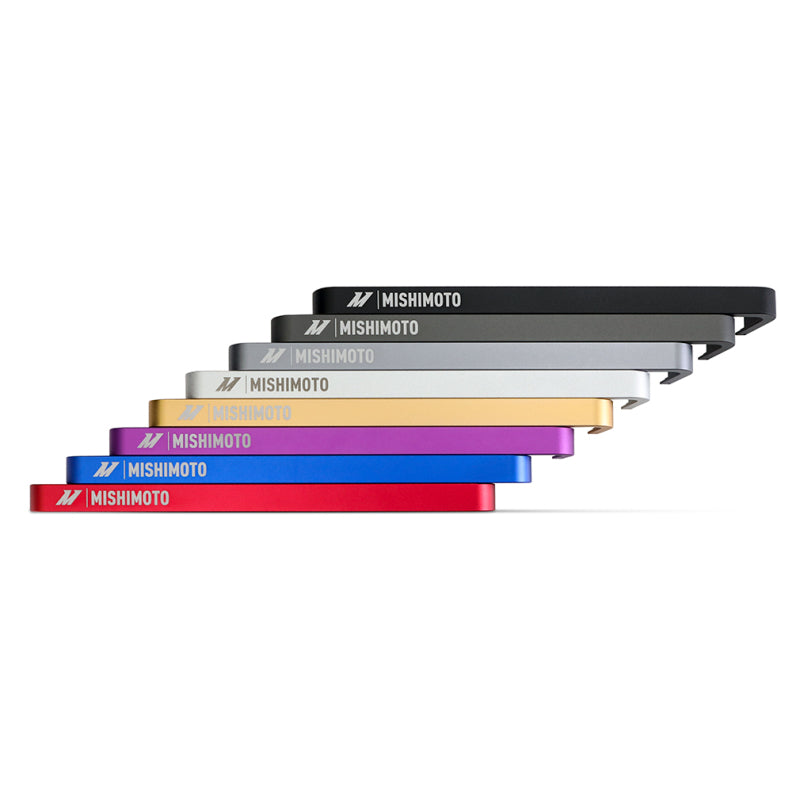

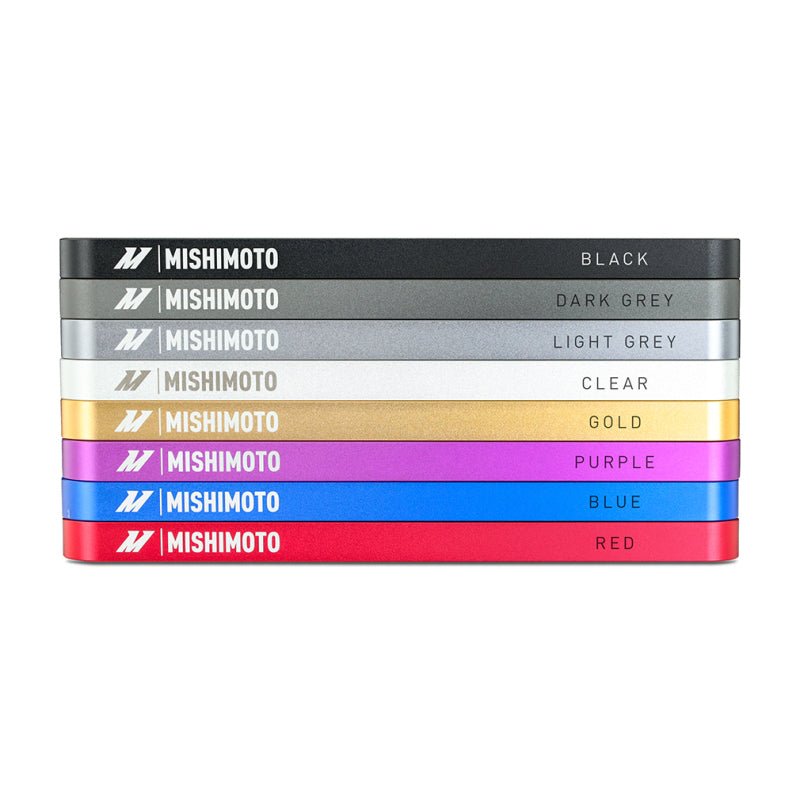

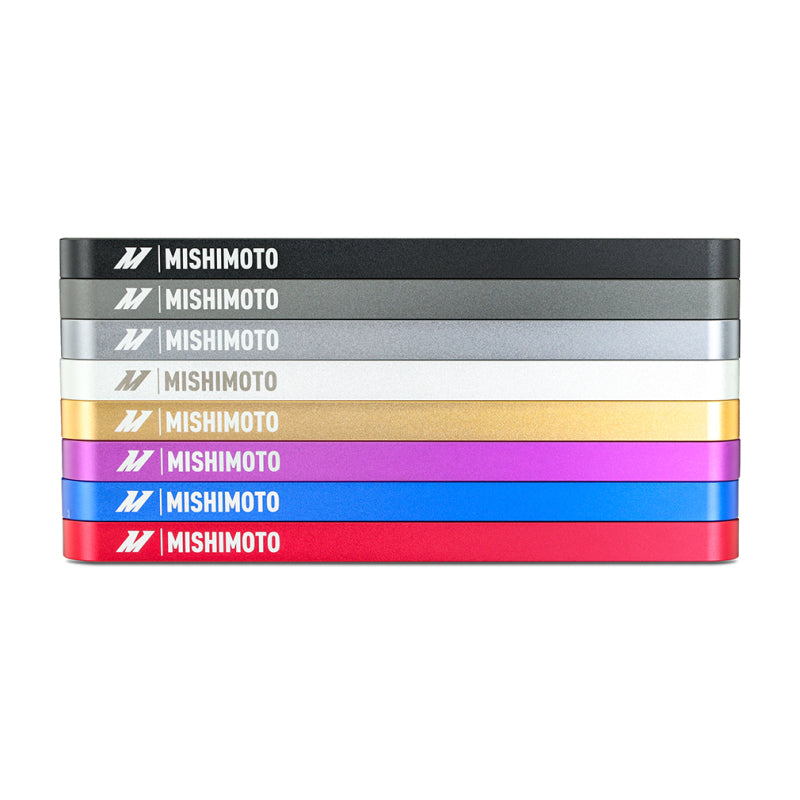

SellingPoint06: 8 end tank clamp colors and 3 core colors to suit any color scheme

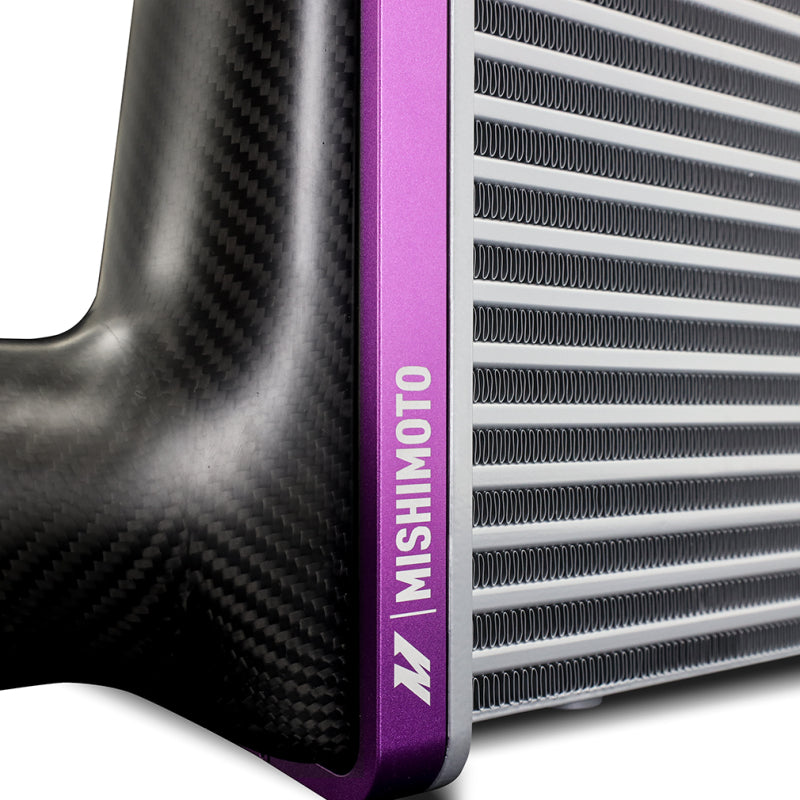

SellingPoint05: Exclusive aircraft-grade anodized aluminum end tank clamps withstand high boost pressures
SellingPoint04: Designed, engineered, and assembled in our Garnet Valley, PA facility
SellingPoint02: Over 280 possible configurations fit any vehicle, build, or style
TechSpec Core Length (in): 17.71--20.67--23.62
SellingPoint01: Genuine carbon fiber end tanks with tube-and-fin core
TechSpec Centerline Radius: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Shape: N/A
TechSpec Installation Notes: N/A

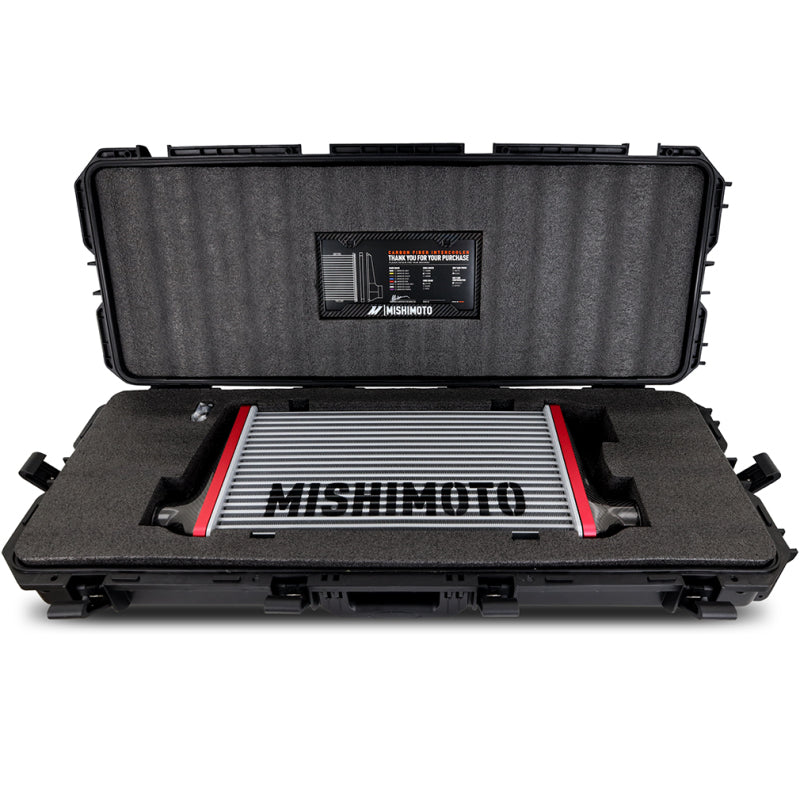

TechSpec Includes: (1) Mishimoto Custom-Built Carbon Fiber Intercooler--(1) M8 Mounting Kit with Hardware--Mishimoto Lifetime Warranty
