Mishimoto MMINT-RS-16KBK - 2016+ Ford Focus RS Performance Intercooler Kit - Black

Mishimoto  |  SKU: MMINT-RS-16KBK
$1,29995 $1,43000
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

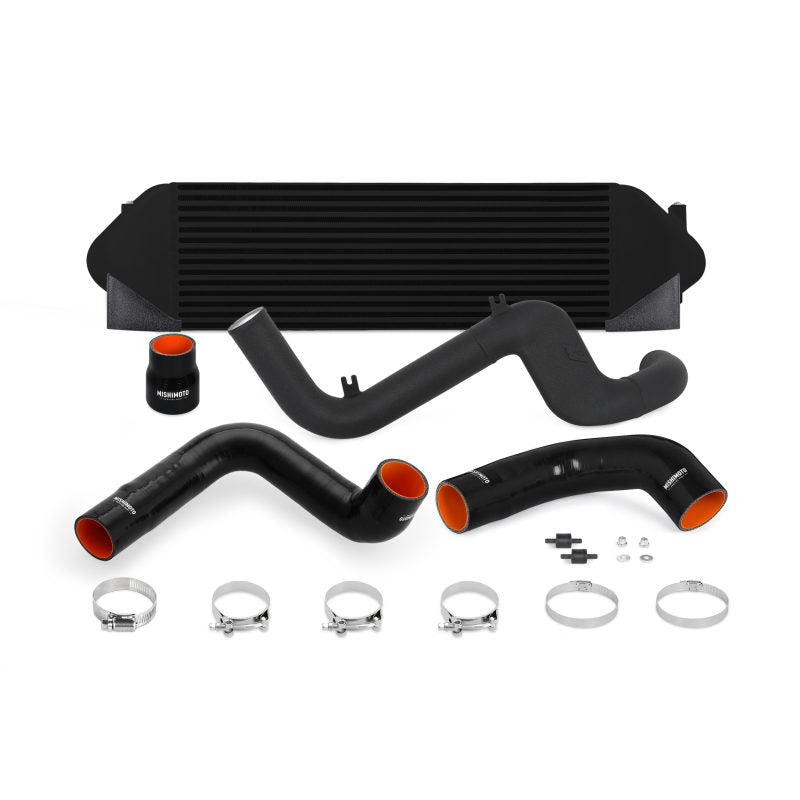

Mishimoto MMINT-RS-16KBK - 2016+ Ford Focus RS Performance Intercooler Kit - Black

Intercooler Kit, Black/Black, fits Ford Focus RS 2016-2018

Complete intercooler kit engineered to reduce intake air temperatures for increased power and efficiency. Includes high-quality components for optimal airflow, improved throttle response, and a precise, easy installation.

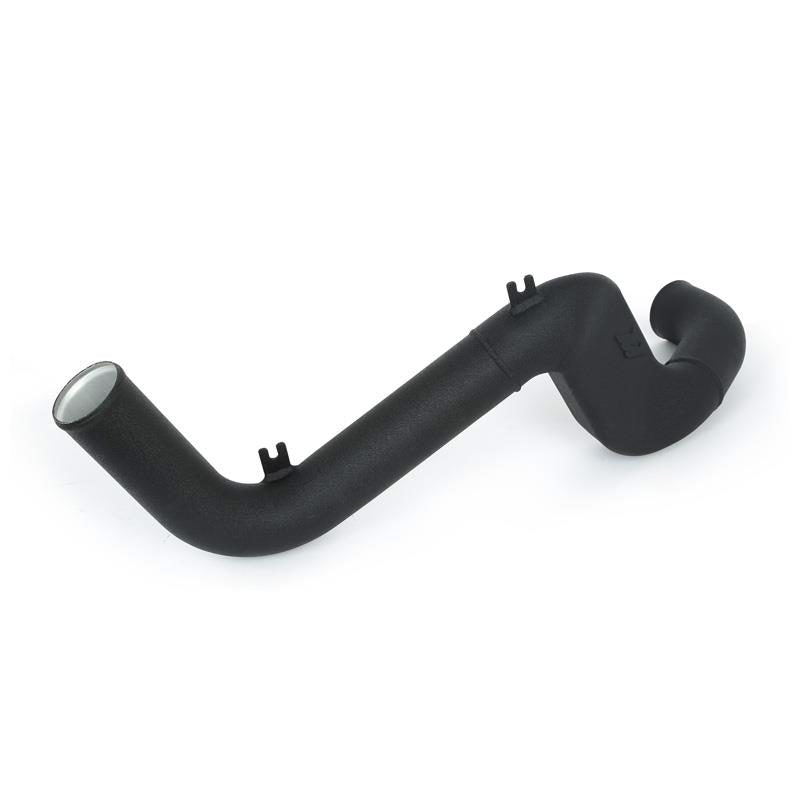

Say hello to our performance intercooler kit for the 2016-2018 Ford Focus RS! Whether you are a track junkie, occasionally taking your RS for some spirited driving, or making your RS a car to steal the show, this intercooler will suit your needs. Our intercooler has been beefed up with a 36-percent increase in core volume and a 214-percent increase in external fin surface area, which means increased air-cooling efficiency for your RS. Our core reduces air outlet temperature by almost 40-percent while minimizing the inlet/outlet pressure drop across the core, and provides gains of 7hp and 8ft-lbs! The hefty, direct-fit, bar-and-plate core is durable enough to wIt'stand any type of abuse you throw at it, while improving the heat transfer process both at idle and cruising speeds.This kit also includes the Mishimoto performance intercooler piping kit to further improve the flow of the charged air through your 2.3l EcoBoost. The piping kit replaces the stock hot-side pipe with our custom design which not only features a 40-percent increase in internal volume, but also is specifically shaped to direct airflow over the stock PTU cooler. Our cold-side pipe features 5-layers of wire reinforced silicone, with a larger diameter to increase the flow of the charged air, but also longevity of your turbocharging system.The Performance Intercooler Kit is available with either a silver or black, and, with all of our products, is covered under the Mishimoto Lifetime Warranty to keep you pushing the limits in your RS for a lifetime.

  • 80-percent increase in core size
  • 36-percent increase in internal core volume and 214-percent increase in external fin surface area
  • 46-percent and 45-percent less pressure drop than stock cold-side and hot-side pipe, respectively
TechSpec Applications: 2016-2018 Ford Focus RS
TechSpec Engine Codes: 2.3L EcoBoost GTDi I4
TechSpec Chassis Codes: C346
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: 600
TechSpec Overall Length (in): N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Width (in): N/A

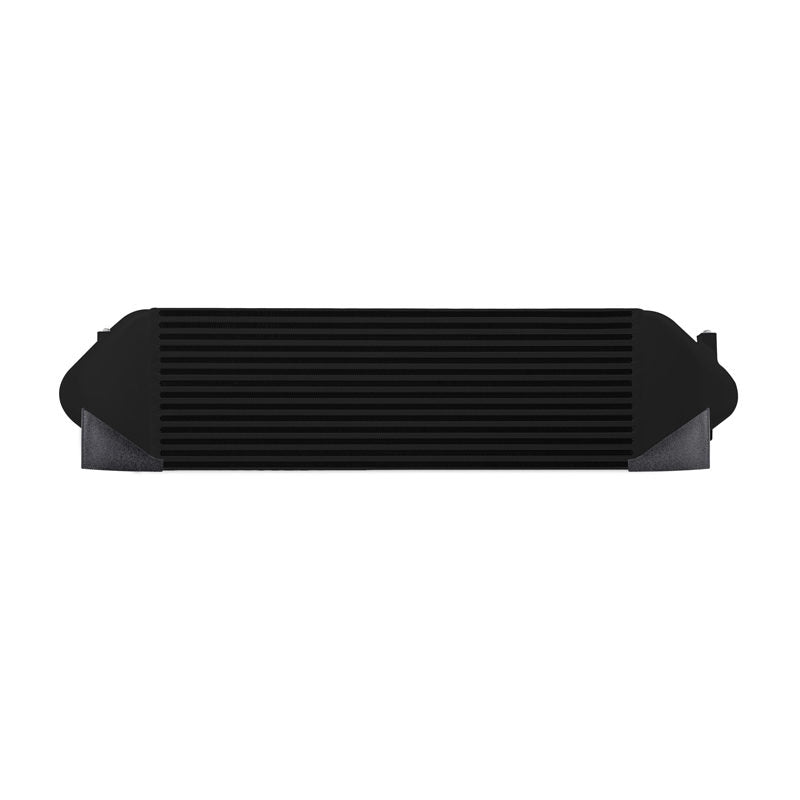

TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): N/A
TechSpec Core Length (in): 25.6
TechSpec Core Height (in): 8.3
TechSpec Inlet (in): 2.75
TechSpec Outlet (in): 2.75
TechSpec Weight (lbs): 33
TechSpec Note: N/A

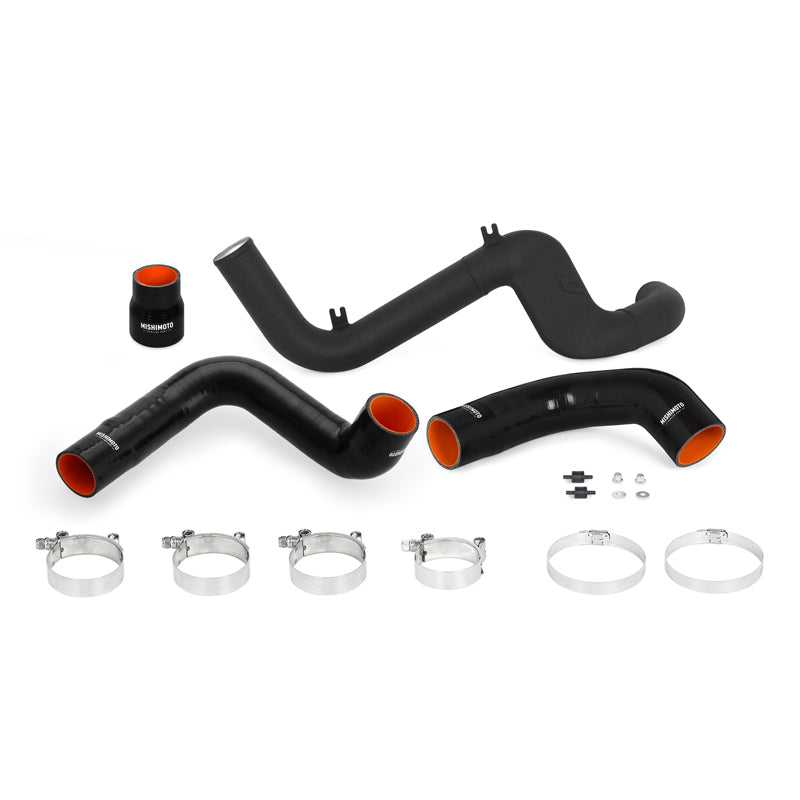

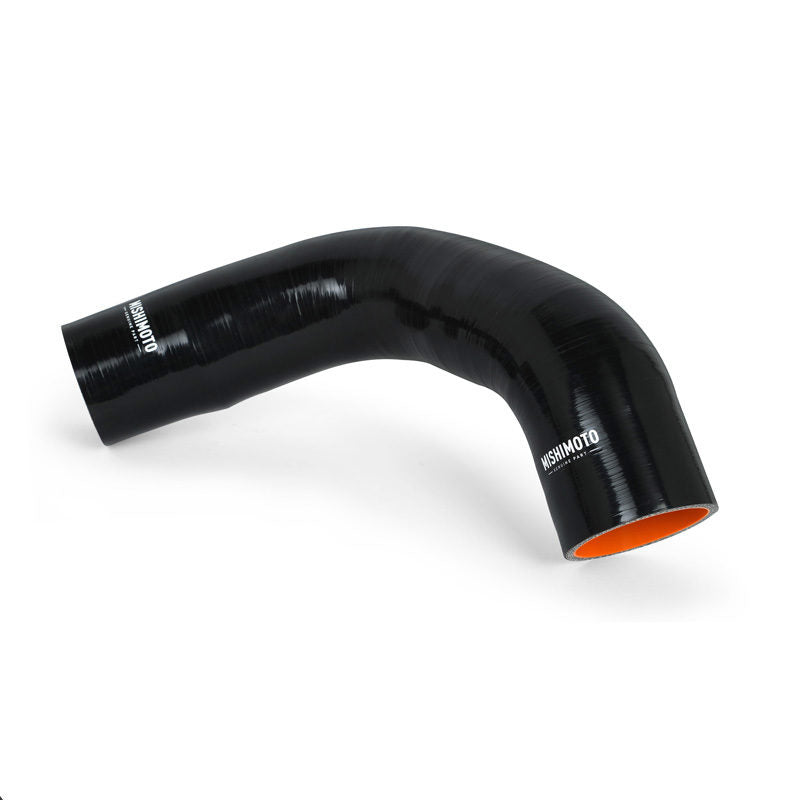

TechSpec Includes: (1) Mishimoto Intercooler--(1) Left & Right Diversion Plate--(1) Hot-side Intercooler Pipe--(2) Silicone Couplers--(1) Wire-reinforced Silicone Hose--(4) T-bolt clamps--(2) High-Torque Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
TechSpec Pipe Shape: N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Centerline Radius: N/A
SellingPoint01: Direct fit for the 2016-2018 Ford Focus RS
SellingPoint02: 80-percent increase in core size
SellingPoint03: 36-percent increase in internal core volume and 214-percent increase in external fin surface area
SellingPoint04: 46-percent and 45-percent less pressure drop than stock cold-side and hot-side pipe, respectively
SellingPoint05: 31-percent and 40-percent increase in internal volume compared to stock cold-side and hot-side pipe, respectively
SellingPoint06: Designed to not block off cooling to the PTU
SellingPoint07: 7 whp and 8 wtq bolt-on power increase with stock tune
SellingPoint08: Intercooler Available in Sleek Silver or Stealth Black
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
OptionLabel: Stealth Black
Cold Side Pipe Inside Diameter: 2.75
Core Thickness: 0
Pipe Finish: Powder Coated
Pipe Material: Aluminum
Universal Or Specific Fit: Specific
Core Length: 25.6
Core Height: 8.3
Core Color: Black
Core Construction: Bar-and-Plate
Core Material: Aluminum
Coupler Color: Black
Coupler Material: Silicone
End Tank Construction: Cast
End Tank Material: Aluminum
Grade Type: Performance
Hose Clamps Included: Yes
Hot Side Pipe Inside Diameter: 2.75
Inlet Diameter: 2.75
Outlet Diameter: 2.75
Intercooler Type: Air-to-Air
Maximum Boost Pressure: 0
Maximum Horsepower: 600
Pipe Color: Black
