Mishimoto MMINT-MUS4-24SL - 2024+ Ford Mustang EcoBoost Performance Intercooler - Silver

Mishimoto  |  SKU: MMINT-MUS4-24SL
$82695 $91000

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

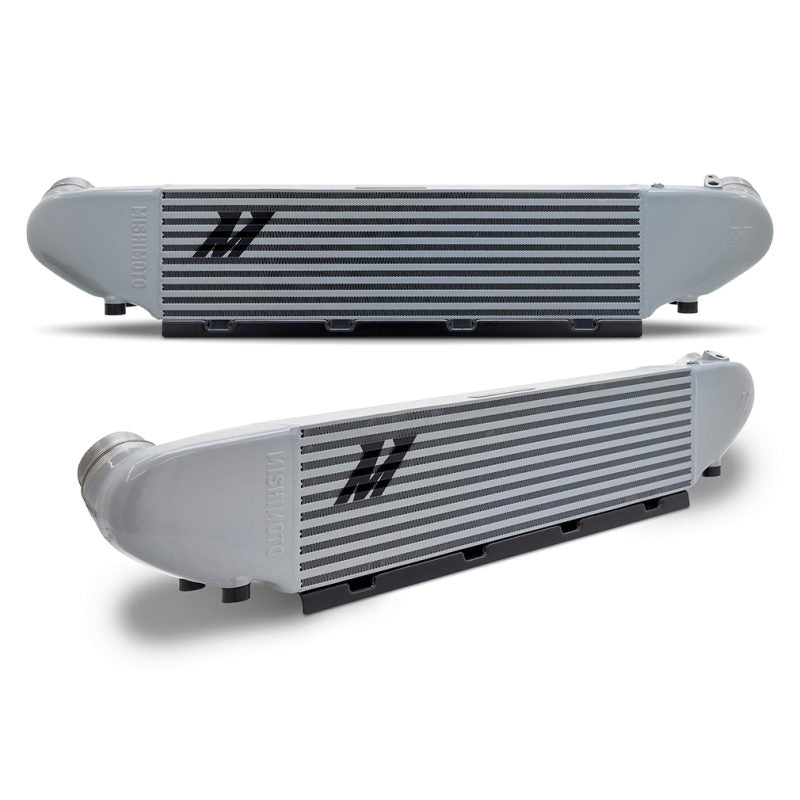

Mishimoto MMINT-MUS4-24SL - 2024+ Ford Mustang EcoBoost Performance Intercooler - Silver

Intercooler, Silver, fits Ford Mustang EcoBoost 2024+

High-efficiency intercooler engineered to reduce intake air temperatures for improved power and engine performance. Durable construction ensures optimal heat exchange, consistent boost, and a precise, reliable fit.

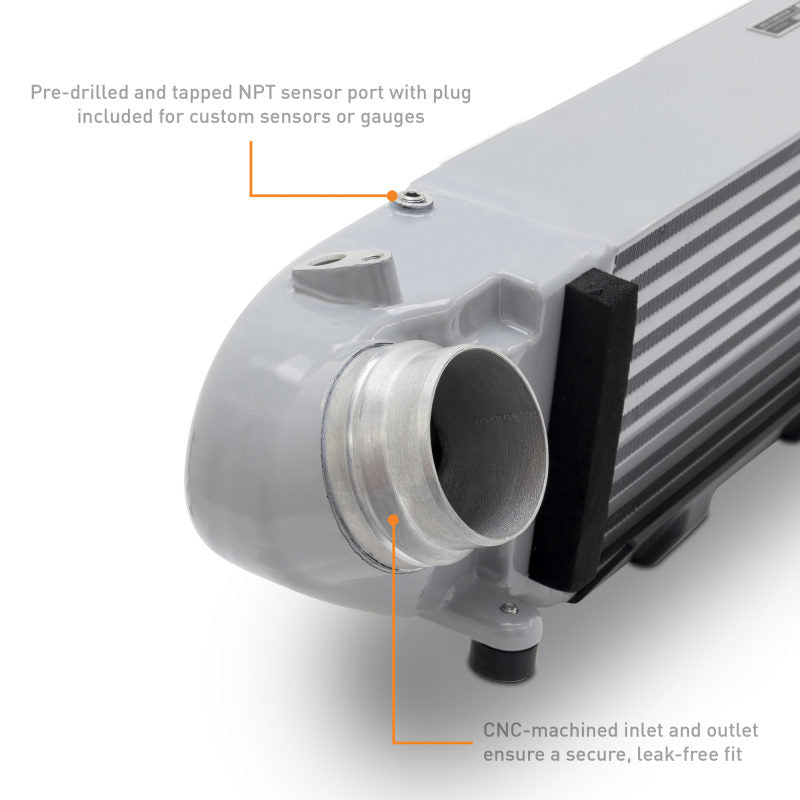

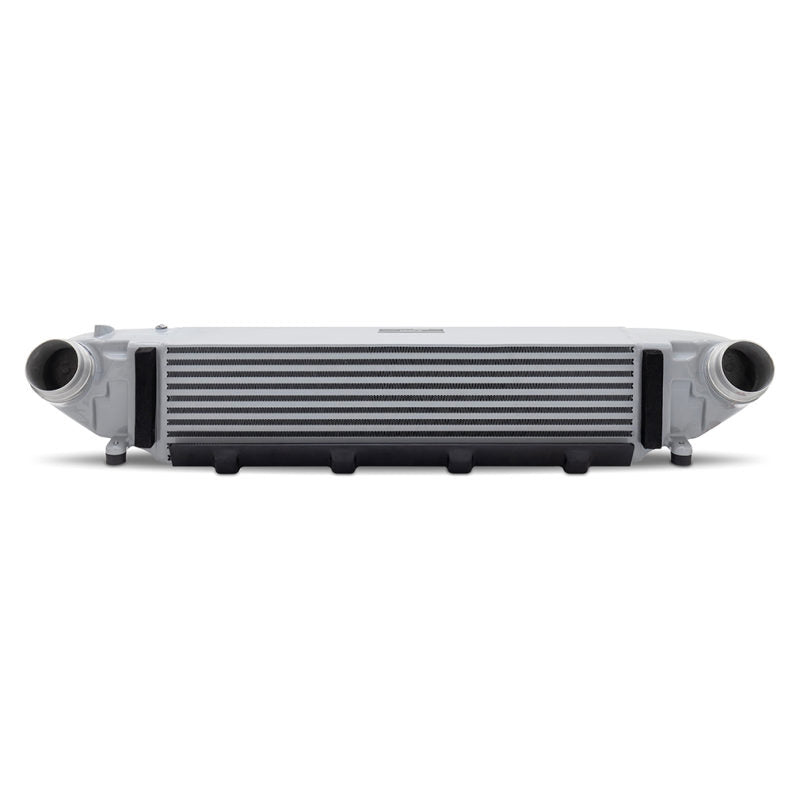

Take your 2024+ Ford Mustang EcoBoost to the next level with the Mishimoto Performance Intercooler. Engineered for maximum cooling efficiency and reliability, this direct-fit intercooler is built to handle the demands of spirited driving while remaining safe to run on the stock tune. Featuring a robust bar-and-plate core with cast aluminum end tanks, it delivers improved airflow, reduced intake temperatures, and increased power for your EcoBoost Mustang. -- The Mishimoto intercooler boasts the largest possible core size that can fit in the stock location, providing a 60% increase in core volume compared to the factory unit. Oversized 63mm inlet and outlet diameters outflow the stock system for better charge air movement, while a diverter plate in the hot-side end tank promotes even airflow distribution across the core. Gains of up to 12 horsepower and 11 ft-lbs of torque can be achieved without any tuning required. -- Installation is simple and fully compatible with stock ducting and both OEM and Mishimoto intercooler pipes, with no cutting required. Foam sealing strips ensure maximum airflow through the core, and a custom vacuum-formed bottom air deflector improves underbody flow while reducing NVH thanks to its ribbed structure. To support the increased weight of the larger core, the intercooler mounts directly to the subframe using four EPDM rubber sandwich mounts, isolating vibration and increasing overall rigidity. -- Every intercooler comes equipped with a pre-drilled and tapped NPT sensor port for data logging or the addition of auxiliary sensors. All necessary hardware is included for a straightforward installation. -- The Mishimoto Performance Intercooler for the 2024+ Ford Mustang EcoBoost is built for enthusiasts who want lower intake temps, increased power, and a long-lasting solution to keep their Mustang running strong. Like all Mishimoto products, this intercooler is backed by the Mishimoto Lifetime Warranty.

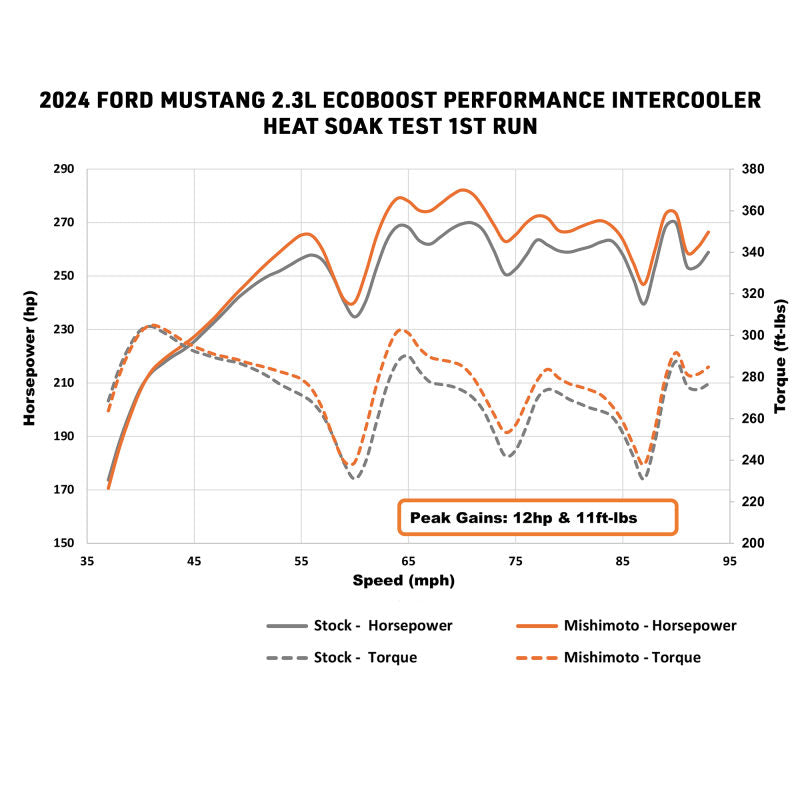

  • Gains of up to 12 hp and 11 ft-lbs of torque on a stock tune
  • Reduces charged-air temperatures at outlet by up to 60F
  • Robust bar-and-plate core with cast aluminum end tanks supports up to 526 hp
TechSpec Maximum Recommended Boost Pressure (PSI): 50
TechSpec Maximum Recommended Horsepower: 526
TechSpec Overall Length (in): 35.7
TechSpec Overall Height (in): 6.5
TechSpec Overall Width (in): 5.3
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 3.54
TechSpec Core Length (in): 22.83
TechSpec Core Height (in): 6.08
TechSpec Inlet (in): 2.44
TechSpec Outlet (in): 2.44
TechSpec Weight (lbs): 12.3

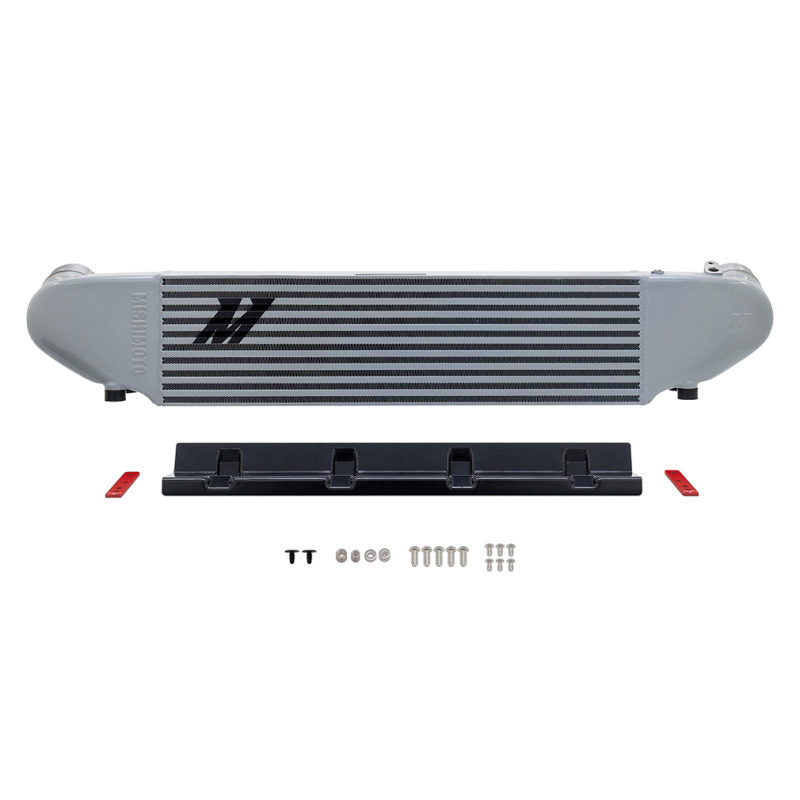

TechSpec Includes: (1) Mishimoto Performance Intercooler--(1) Deflector Panel Kit--(1) Bracket Kit--Mishimoto Lifetime Warranty
TechSpec Centerline Radius: N/A
Install Difficulty: 3
TechSpec Installation Notes: N/A
TechSpec Pipe Shape: N/A
TechSpec Pipe Length: N/A
TechSpec Note: N/A
TechSpec Pipe Diameter: N/A
OptionLabel: Silver Cooler
Core Height: 6.08
Core Length: 22.83
Core Thickness: 3.54
Height: 6.5
Length: 35.7
Width: 5.3
Inlet Outside Diameter: 2.44
Outlet Outside Diameter: 2.44
Inlet Fitting Gender: Male
Outlet Fitting Gender: Male
Inlet Tank Material: Aluminum
Grade Type: Performance
Universal Or Specific Fit: Specific
Core Material: Aluminum
Core Color: Silver
Type: Bar-and-Plate
SellingPoint01: Gains of up to 12 hp and 11 ft-lbs of torque on a stock tune
SellingPoint02: Reduces charged-air temperatures at outlet by up to 60°F
SellingPoint03: Robust bar-and-plate core with cast aluminum end tanks supports up to 526 hp

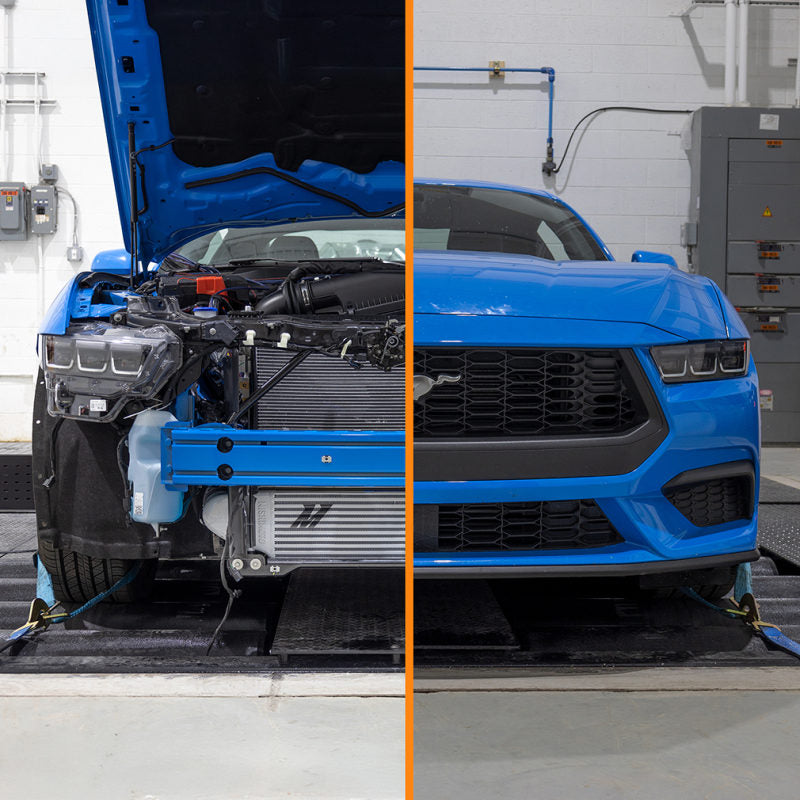

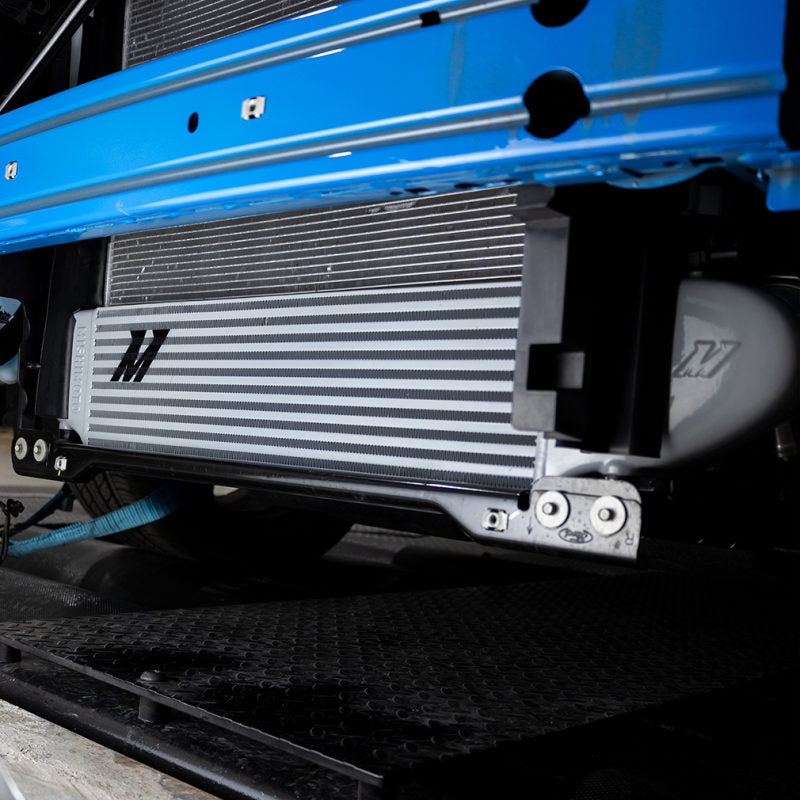

SellingPoint04: Maximized core in stock location below the crash bar to maintain even airflow and prevent heat pockets

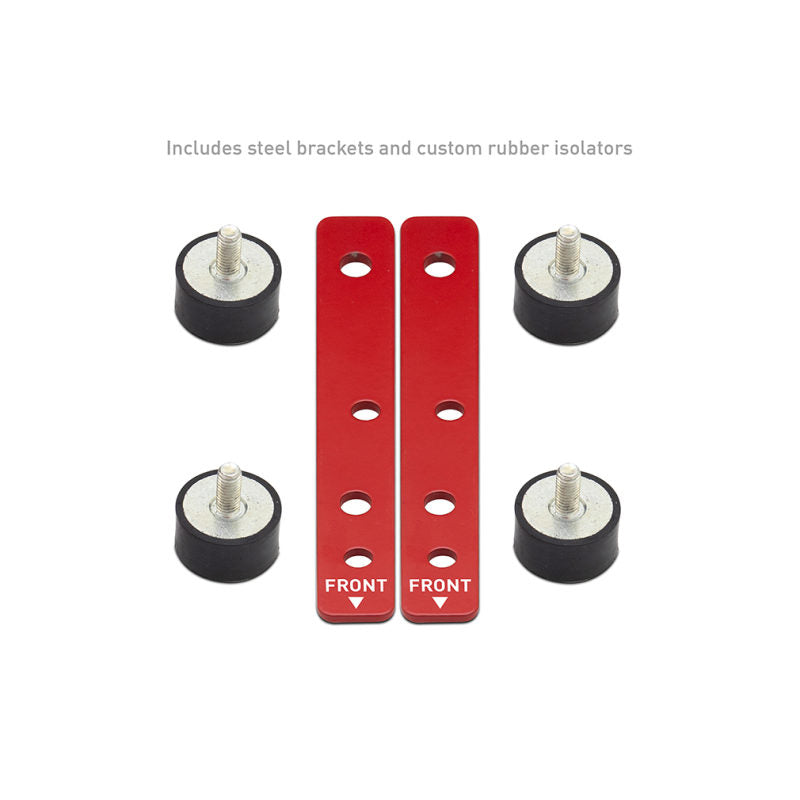

SellingPoint05: Mounts to subframe with rubber sandwich mounts for vibration isolation and superior support
SellingPoint06: Hot-side end tank features diverter plate for even airflow

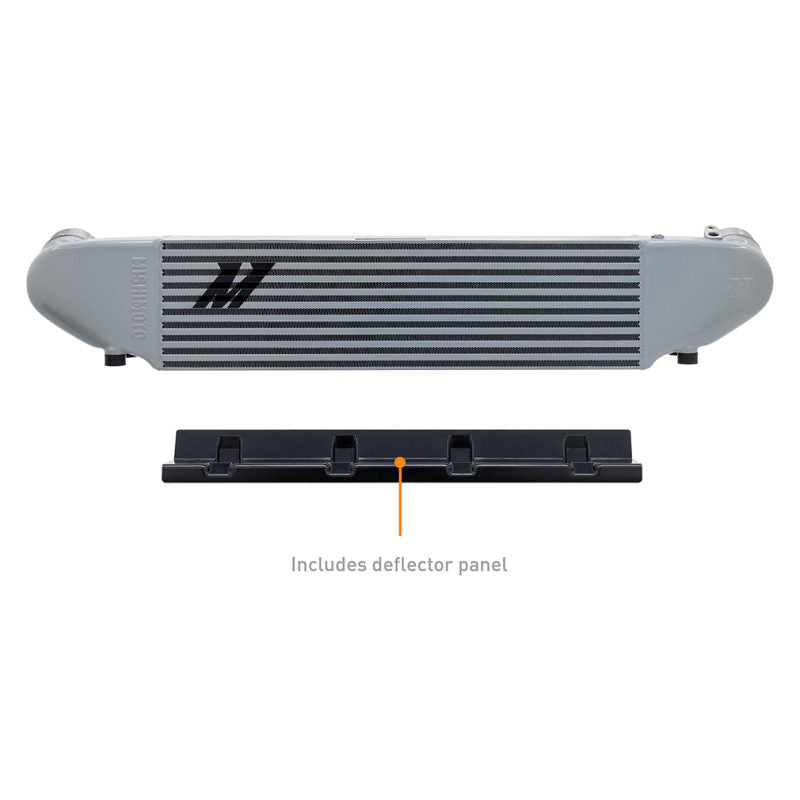

SellingPoint07: Foam strips and custom bottom air deflector maximize airflow and reduce noise and vibration levels
SellingPoint08: Impressive 60% increased core size over stock
SellingPoint09: Includes all necessary hardware for installation
SellingPoint10: Available in silver or black for sharp aesthetics behind the grille
SellingPoint11: Mishimoto Lifetime Warranty
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Ford Mustang EcoBoost 2024+
TechSpec Engine Codes: 2.3L EcoBoost I4
TechSpec Chassis Codes: S650
