Mishimoto MMINT-MUS4-24KSLBK - 2024+ Ford Mustang 2.3L EcoBoost Performance Intercooler Kit - Silver/Black

Mishimoto  |  SKU: MMINT-MUS4-24KSLBK
$1,31595 $1,44800

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Mishimoto MMINT-MUS4-24KSLBK - 2024+ Ford Mustang 2.3L EcoBoost Performance Intercooler Kit - Silver/Black

Intercooler Kit, Silver/Black, fits Ford Mustang EcoBoost 2024+

Complete intercooler kit engineered to reduce intake air temperatures for increased power and efficiency. Includes high-quality components for optimal airflow, improved throttle response, and a precise, easy installation.

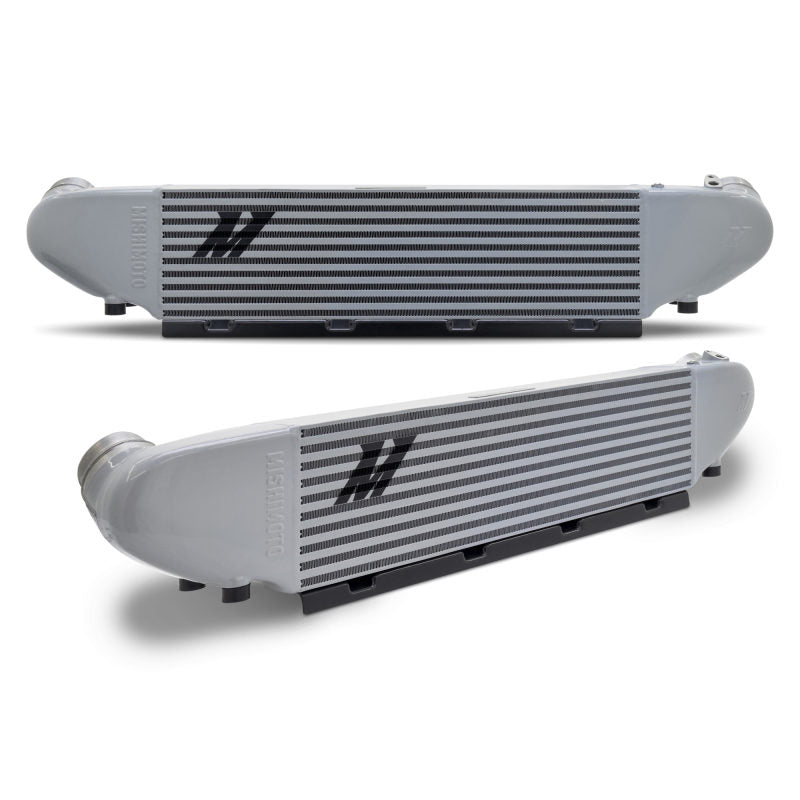

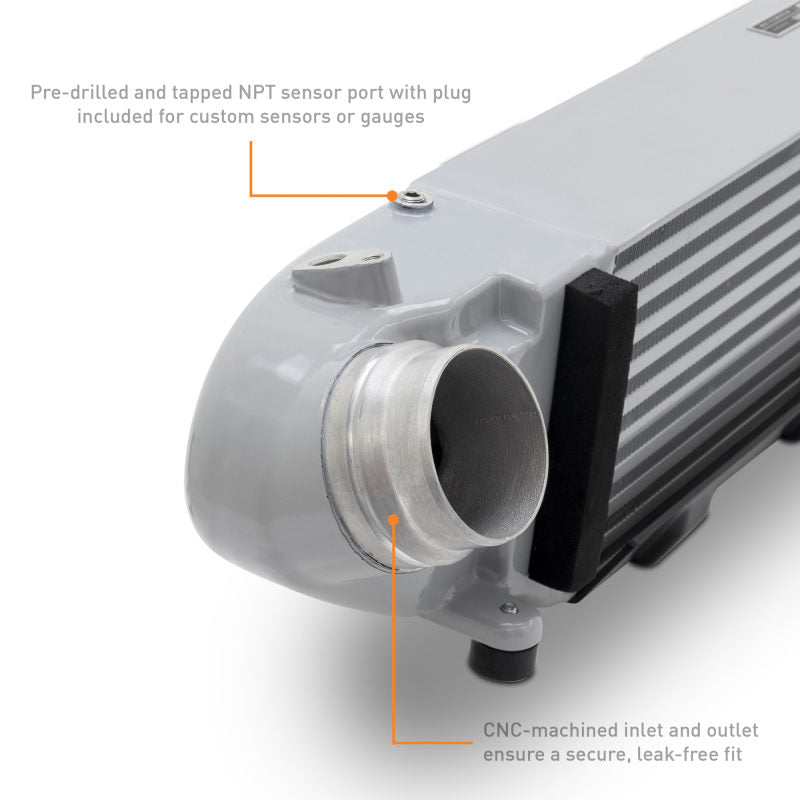

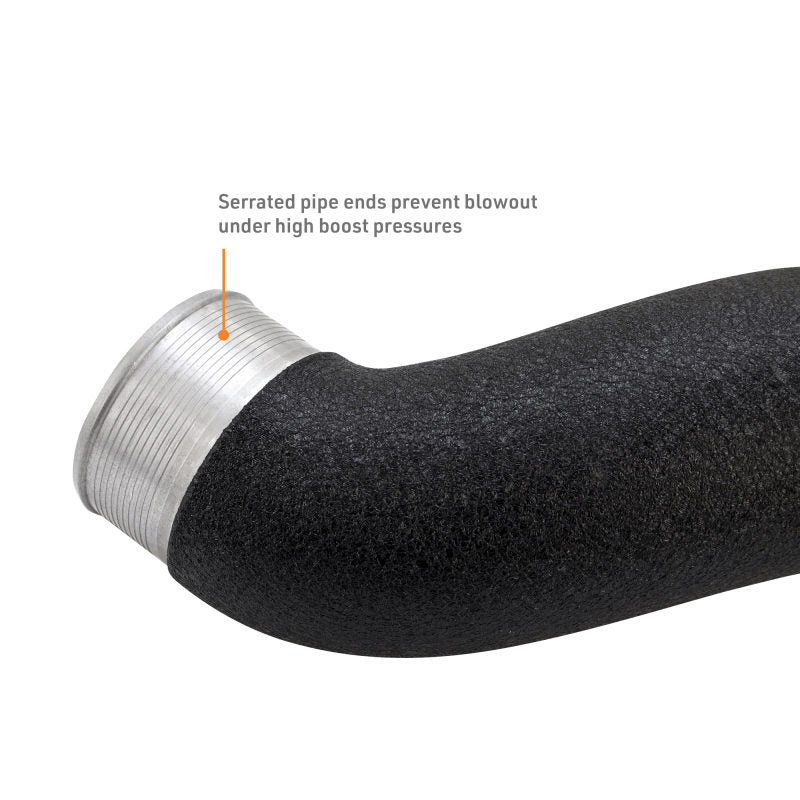

Upgrade your 2024+ Ford Mustang EcoBoost with the Mishimoto Intercooler and Pipe Kit, a complete system designed to maximize airflow, lower intake temps, and boost performance. This kit combines a direct-fit bar-and-plate intercooler with high-flow hot-side and cold-side aluminum pipes, delivering safe, tune-free power gains. -- The intercooler features cast aluminum end tanks and fits in the stock location with a 60% increase in core volume. Oversized 63mm inlets/outlets improve flow, while a diverter plate ensures even air distribution. Foam sealing strips and a custom-formed air deflector maximize airflow through the core and reduce NVH. Four EPDM rubber sandwich mounts isolate vibration and add rigidity. Gains of up to 12 hp and 11 ft-lbs of torque are possible with no tuning, and a pre-drilled NPT port allows for auxiliary sensors or data logging. -- The included intercooler pipes are made from durable aluminum with cast connections for strength and precise fitment. A cast turbo outlet elbow integrates the blow-off valve seat and retains factory harness clipping points for a clean install. CNC-machined quick-disconnect fittings, DuraCore(TM) silicone couplers, high-torque worm-gear clamps, and an ID-matched transition coupler ensure secure, high-flow connections. Extra clearance also allows compatibility with the Mishimoto performance radiator. -- Available in polished or wrinkle black finishes, the Mishimoto Intercooler and Pipe Kit provides improved airflow, reduced intake temps, better underhood aesthetics, and long-term durability. Installation is straightforward with all hardware included, and every kit is backed by the Mishimoto Lifetime Warranty.

  • Gains of up to 12 hp and 11 ft-lbs of torque on a stock tune
  • Reduces charged-air temperatures at outlet by up to 60F
  • Robust bar-and-plate core with cast aluminum end tanks supports up to 526 hp
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Note: N/A
OptionLabel: Silver Cooler--Black Pipes
Cold Side Pipe Inside Diameter: 2.44
Core Thickness: 3.54
Core Length: 22.83
Core Height: 6.08
Core Color: Silver
Core Construction: Bar-and-Plate
Core Material: Aluminum
Coupler Color: Black
Coupler Material: Silicone
End Tank Construction: Cast
End Tank Material: Aluminum
Grade Type: Performance
Hose Clamps Included: Yes
Hot Side Pipe Inside Diameter: 2.44
Inlet Diameter: 2.44
Outlet Diameter: 2.44
Intercooler Type: Air-to-Air
Maximum Boost Pressure: 50
Maximum Horsepower: 526
Pipe Color: Black
Pipe Finish: Powder Coated
Pipe Material: Aluminum
Universal Or Specific Fit: Specific
SellingPoint01: Gains of up to 12 hp and 11 ft-lbs of torque on a stock tune
SellingPoint02: Reduces charged-air temperatures at outlet by up to 60°F

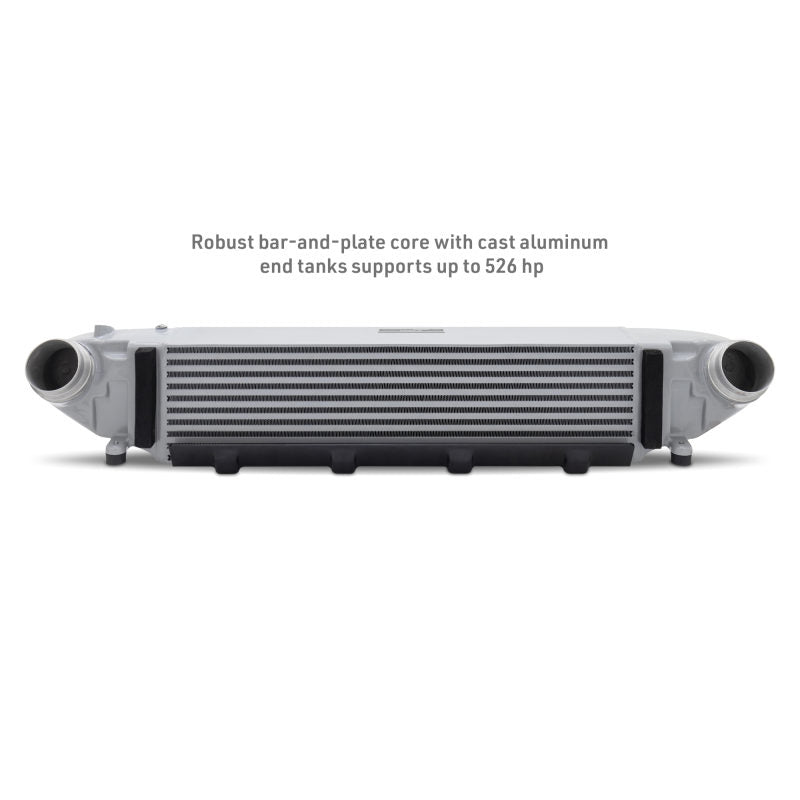

SellingPoint03: Robust bar-and-plate core with cast aluminum end tanks supports up to 526 hp

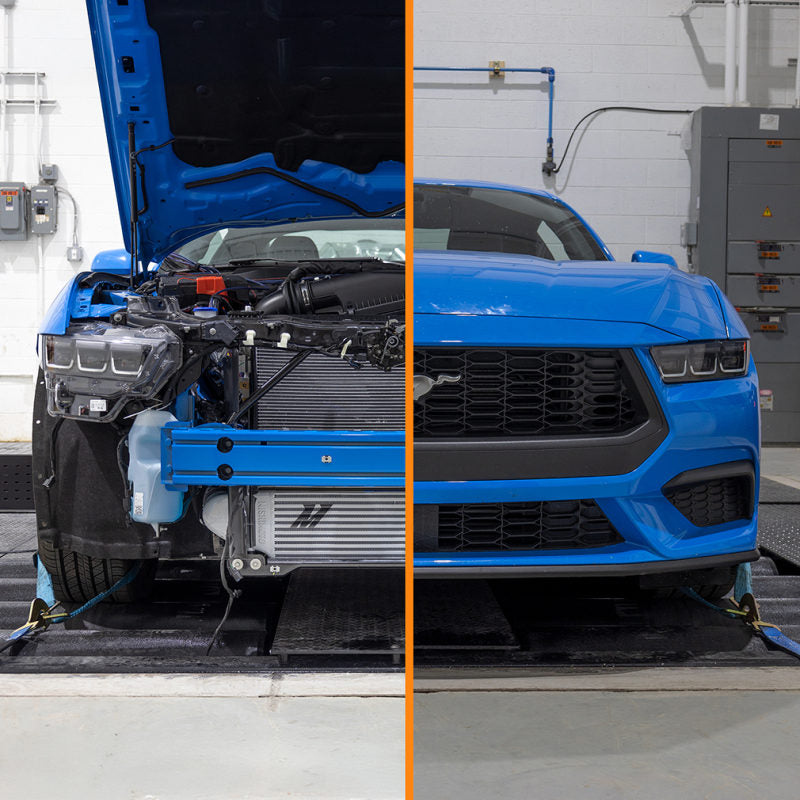

SellingPoint04: Maximized core in stock location below the crash bar to maintain even airflow and prevent heat pockets

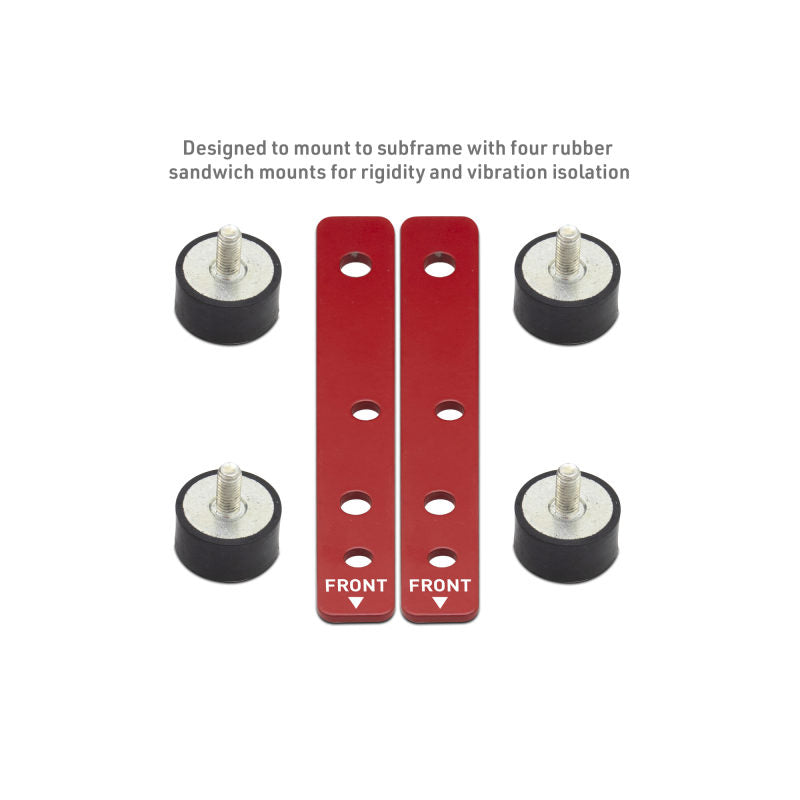

SellingPoint05: Designed to mount to subframe with four rubber sandwich mounts for rigidity and vibration isolation

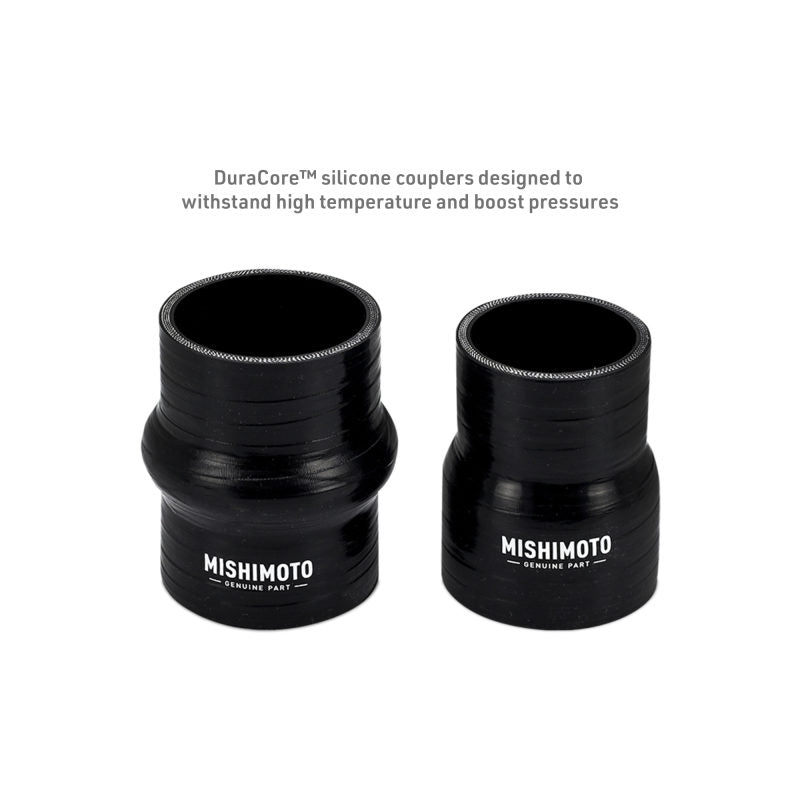

SellingPoint06: DuraCore™ silicone couplers designed to withstand high temperature and boost pressures

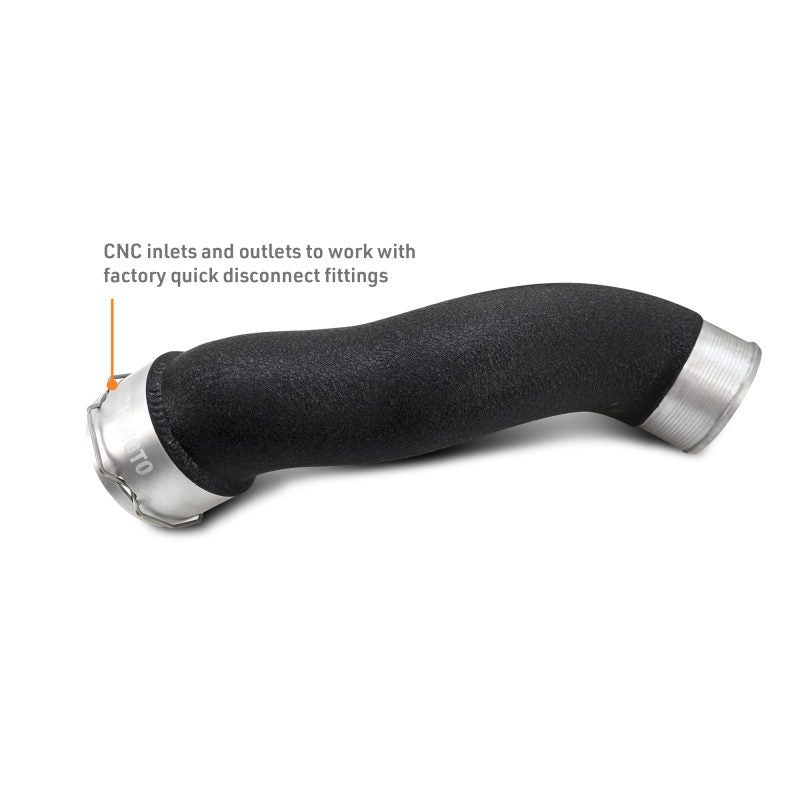

SellingPoint07: Includes CNC quick-disconnect fittings and high-torque worm-gear clamps for secure fitment
SellingPoint08: Cast end sections on both pipes provide a smooth transition for maximum airflow and precise fitment
SellingPoint09: ID-matched transition coupler on cold side for smooth airflow into intercooler
SellingPoint10: Diverter plate in hot side end tank offers even airflow distribution
SellingPoint11: Foam strips and custom bottom air deflector maximize airflow and reduce noise and vibration levels
SellingPoint12: Intercooler available in silver or black for sharp aesthetics behind the grille
SellingPoint13: Pipes available in polished or wrinkle black finish for a clean underhood look
SellingPoint14: Mishimoto Lifetime Warranty
SellingPoint15: N/A
TechSpec Applications: 2024+ Ford Mustang EcoBoost
TechSpec Engine Codes: 2.3L EcoBoost I4
TechSpec Chassis Codes: S650
TechSpec Maximum Recommended Boost Pressure (PSI): 50
TechSpec Maximum Recommended Horsepower: 526
TechSpec Overall Length (in): 35.7
TechSpec Overall Height (in): 6.5
TechSpec Overall Width (in): 5.3
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 3.54
TechSpec Core Length (in): 22.83
TechSpec Core Height (in): 6.08
TechSpec Inlet (in): 2.44
TechSpec Outlet (in): 2.44
TechSpec Weight (lbs): 17

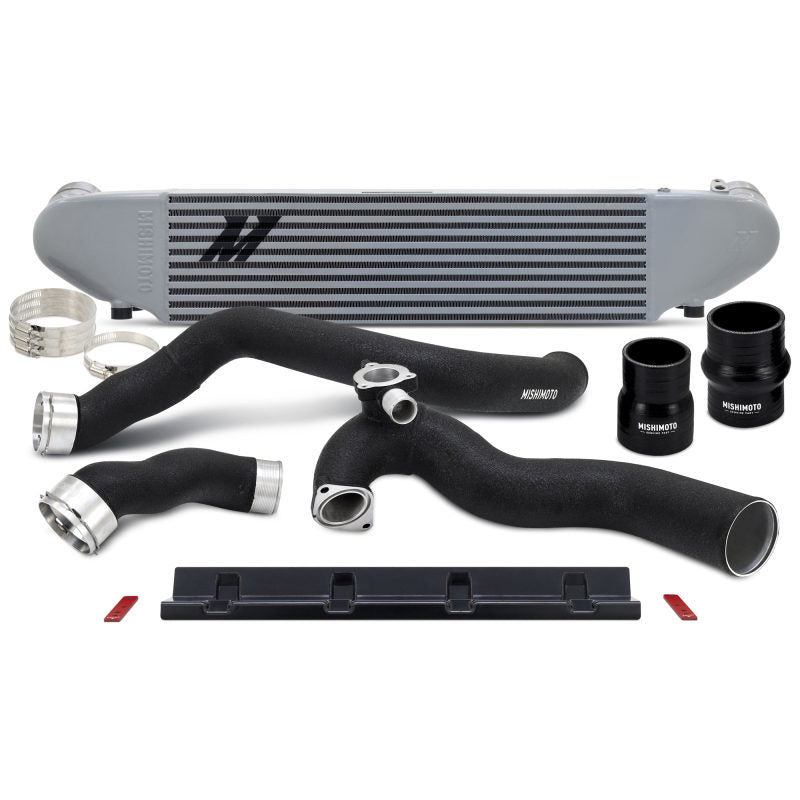

TechSpec Includes: (1) Mishimoto Performance Intercooler--(1) Deflector Panel Kit--(1) Bracket Kit--(2) Hot Side Pipes--(1) Cold Side Pipe--(2) Duracore Couplers--(4) Spring Clamps--(2) O-Rings--(3) Buttonhead Locking Bolts--(1) Tree Clip Zip Tie--Mishimoto Lifetime Warranty
TechSpec Pipe Diameter: 2.75
TechSpec Centerline Radius: 3.15
Install Difficulty: 3
TechSpec Installation Notes: N/A
