Mishimoto MMINT-F2D-17BL - 2017+ Ford 6.7L Powerstroke Air-To-Water Intercooler - Micro-Wrinkle Blue

Mishimoto  |  SKU: MMINT-F2D-17BL
$1,92295 $2,11500

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Mishimoto MMINT-F2D-17BL - 2017+ Ford 6.7L Powerstroke Air-To-Water Intercooler - Micro-Wrinkle Blue

Air-to-Water Performance Intercooler, fits Ford 6.7L Powerstroke 2017+

The 2017+ Ford Super Duty equipped with the 6.7L Powerstroke is one of the most capable and reliable trucks on the road today. But, when Mishimoto heard about 6.7L Powerstroke air-to-water intercoolers leaking internally, we set to work making the 6.7L Powerstroke even better. The Mishimoto 6.7L Powerstroke intercooler brings even more reliability to the 6.7L by ditching the stamped and stacked plate stock design. Instead, our intercooler is built with cast aluminum end tanks that are precision TIG welded to the robust bar-and-plate core. The cast end-tanks reduce potential failure points, making them more reliable than cut and welded tanks. Further durability is added by the inclusion of a mandrel-bent cold-side pipe and silicone couplers with Duracoreandtrade

  • Includes Mishimoto mandrel-bent aluminum cold-side pipe for a direct fit on 2017+ vehicles
  • Mishimoto Lifetime Warranty
  • Direct fit for all 2017+ Ford 6.7L Powerstroke
  • 22-percent Greater air flow than stock 6.7L Powerstroke intercooler
  • Dyno-proven 40 lb-ft torque gains without other modifications
TechSpec Applications: 2017+ Ford Super Duty 6.7L Powerstroke
TechSpec Engine Codes: N/A
TechSpec Chassis Codes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 4.48
TechSpec Core Length (in): 10.59
TechSpec Core Height (in): 6.69
TechSpec Inlet (in): N/A
TechSpec Outlet (in): N/A
TechSpec Weight (lbs): N/A
TechSpec Note: If you have already purchased our 2017+ Ford 6.7L Powerstroke Intercooler Piping and would like to add this intercooler, please contact our Customer Experience Team----Patent #D907063

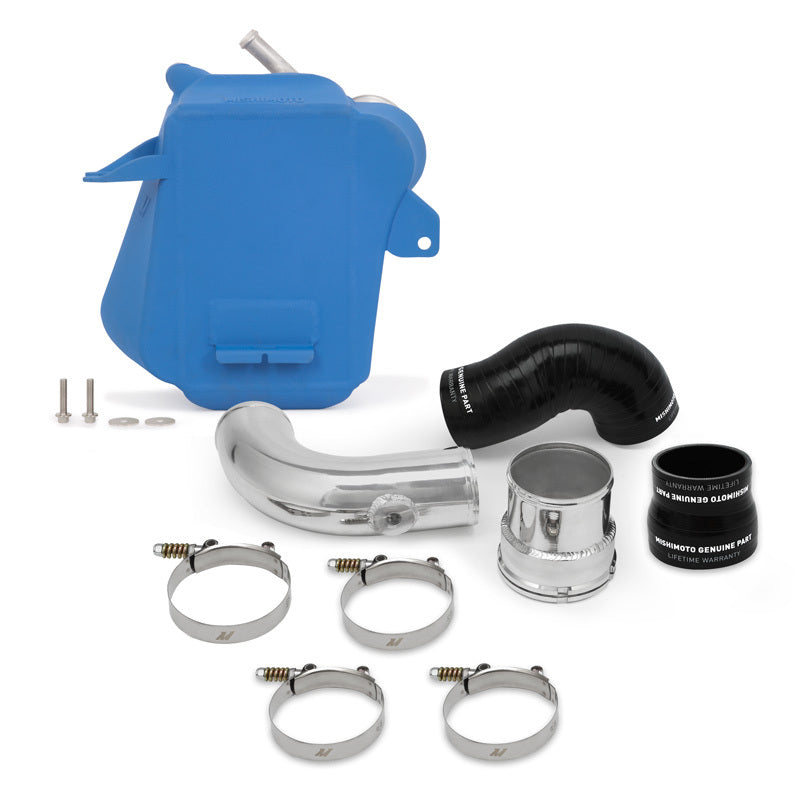

TechSpec Includes: (1) Mishimoto Air-to-Water Intercooler--(1) Mandrel-Bent Cold-Side Pipe--(1) CNC-Machined Aluminum Quick-Disconnect Coupler--(2) Silicone Boots w/ Duracore Technology--(4) Constant-Tension Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 11 lb-ft (15NM) recommended for all constant-tension worm gear clamps. These clamps have an operating range of 11-14 lb-ft (15-20NM). Do not exceed the maximum torque rating of 14 lb-ft (20NM)
TechSpec Pipe Shape: N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Centerline Radius: N/A
SellingPoint01: Direct fit for all 2017+ Ford 6.7L Powerstroke
SellingPoint02: 22-percent Greater air flow than stock 6.7L Powerstroke intercooler
SellingPoint03: Dyno-proven 40 lb-ft torque gains without other modifications
SellingPoint04: Cast end tanks are more durable than brazed or welded end tanks, eliminating potential leak points
SellingPoint05: Bar-and-plate core for efficient cooling and unsurpassed strength
SellingPoint06: No tune required-Intercooler can be installed on a completely stock or modified truck
SellingPoint07: Includes Mishimoto mandrel-bent aluminum cold-side pipe for a direct fit on 2017+ vehicles
SellingPoint08: Includes Mishimoto Silicone Boots with DuraCore technology and Constant Tension Worm Gear Clamps
SellingPoint09: Available in a Micro-Wrinkle Silver, Micro-Wrinkle Black, or Micro-Wrinkle Blue powder coated finish
SellingPoint10: Patent numberD907,063
SellingPoint11: Mishimoto Lifetime Warranty
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
CARB EO Number: D-759-4
Install Difficulty: 3
OptionLabel: Micro-Wrinkle Blue
