Mishimoto MMINT-F10-12WBK - 12-16 BMW F10 M5 Intercooler Kit (Wrinkle Black)

Mishimoto  |  SKU: MMINT-F10-12WBK
$1,79995 $1,98000

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

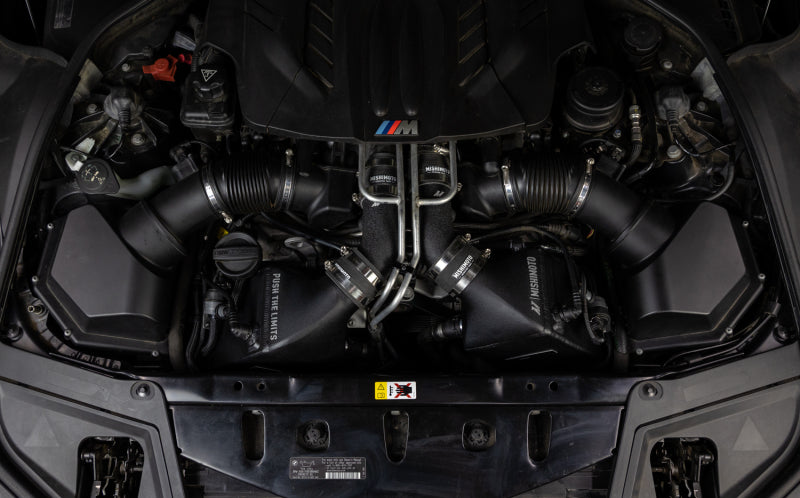

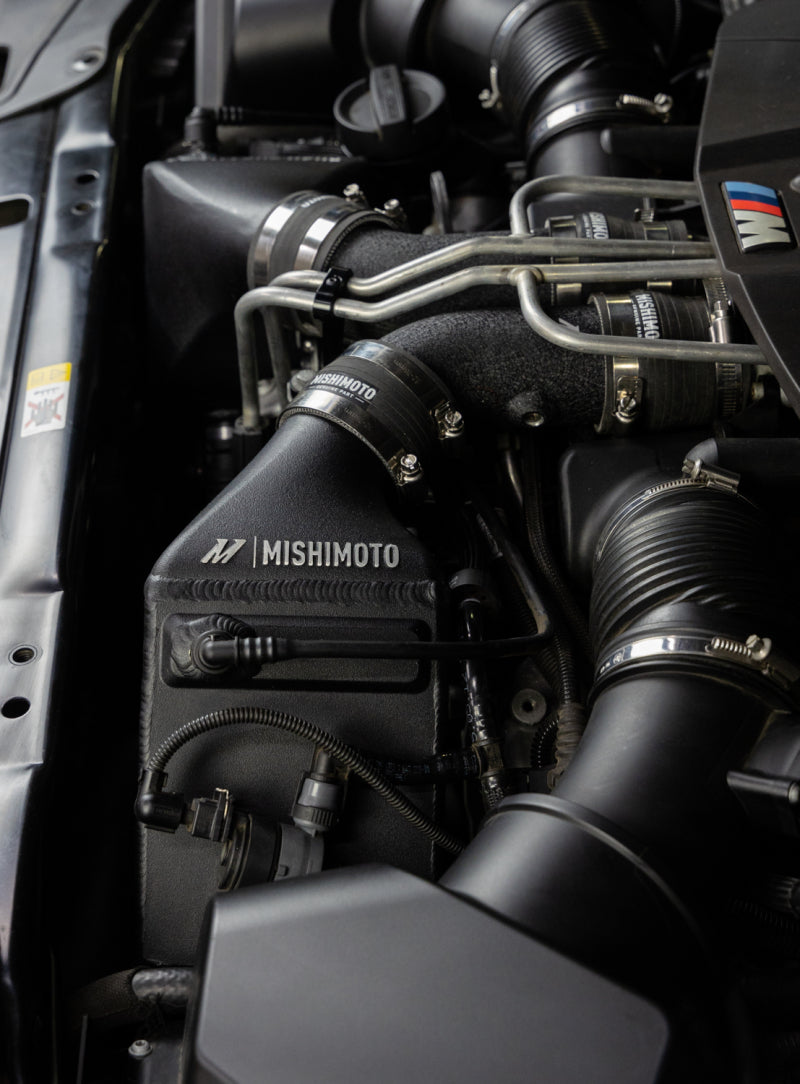

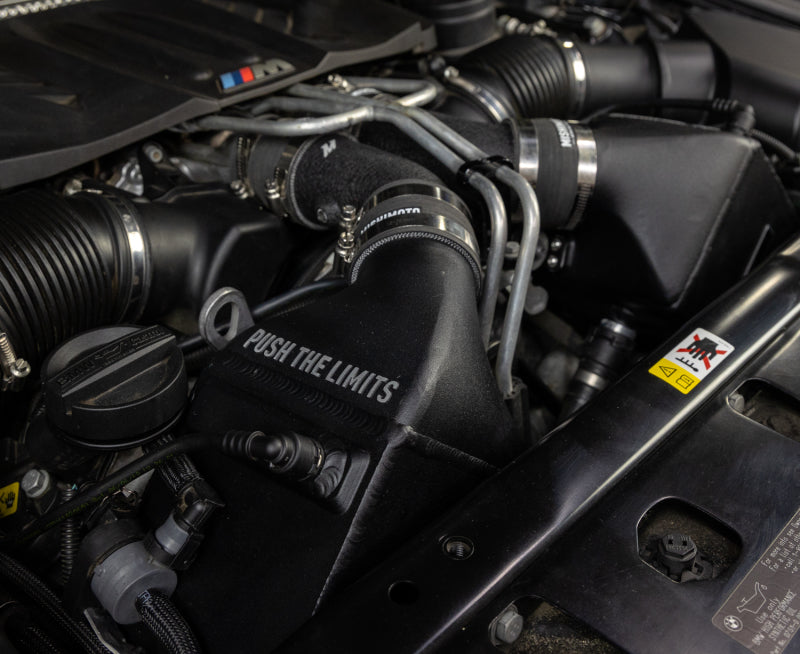

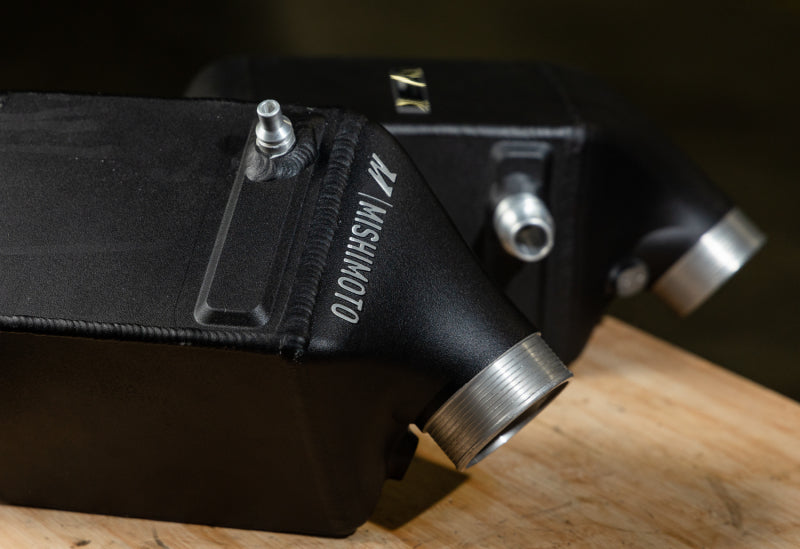

Mishimoto MMINT-F10-12WBK - 12-16 BMW F10 M5 Intercooler Kit (Wrinkle Black)

Performance Air to Water Intercooler, Black, fits BMW M5/M6 2012-2016

High-efficiency intercooler engineered to reduce intake air temperatures for improved power and engine performance. Durable construction ensures optimal heat exchange, consistent boost, and a precise, reliable fit.

The BMW F10 M5 power and handling statistics are completely mind-blowing for a car tipping the scales at over two tons. The S63 twin-turbo V8 is underrated from the factory and responds well to tuning and bolt on modifications. Calling it the ultimate super sedan would not do this car justice. Heavy, high horsepower vehicles are also very good at generating heat. This added heat often affects the engine cooling, charge air cooling, or oil cooling systems. Since we already tackled the oil cooling system with our F10 M5 performance oil cooler, it was time to turn our attention towards the liquid-to-air intercooler system.----Our engineering team designed intercooler and pipe kit that offers increased volume, improved cooling efficiency, and superior airflow compared to the factory coolers. We started by increasing core volume by 37-percent compared to the stock coolers. Using our extensive knowledge of heat transfer, our team designed an extremely efficient bar-and-plate core which provides optimal cooling and a 10-percent reduction in airflow restriction. During our in-depth testing, we recorded 24-degree drops in intake temperatures and power gains of 25 WHP/22 WTQ on our stage-1-tuned M5. We saw increases in timing as a result of cooler intake temperatures, which provided more consistent, higher power output.----As with all our products, this Mishimoto BMW F10 M5 Intercooler Kit includes our signature lifetime warranty for a lifetime of performance.

  • Dyno-proven power and torque gains of 25 WHP and 22 lb-ft
  • 37-percent increase in core volume for improved cooling capacity
  • 24-degree reduction in intake temperature allows for improved ignition timing and more power
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A

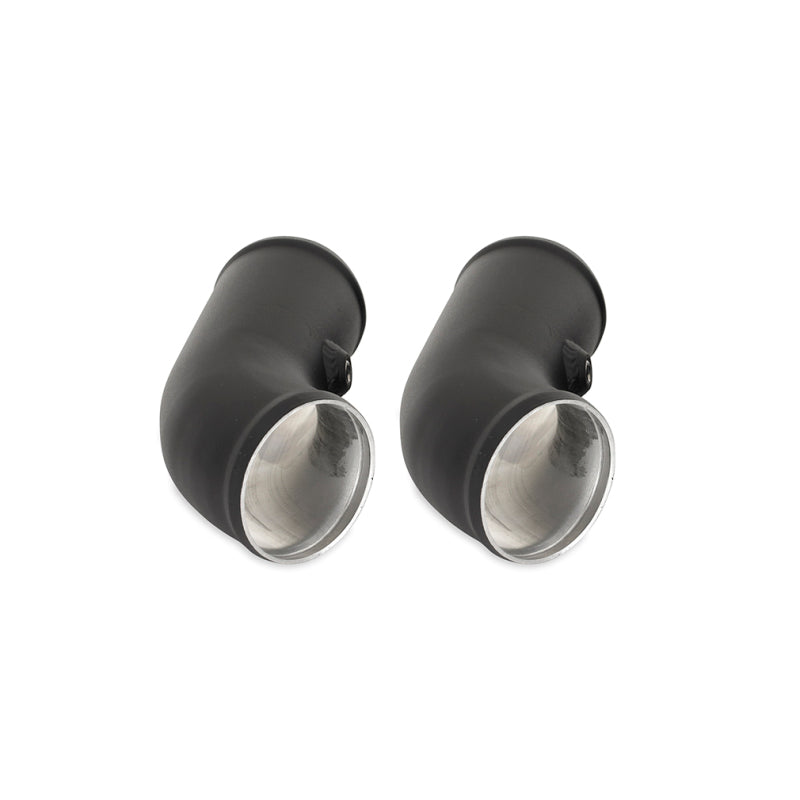

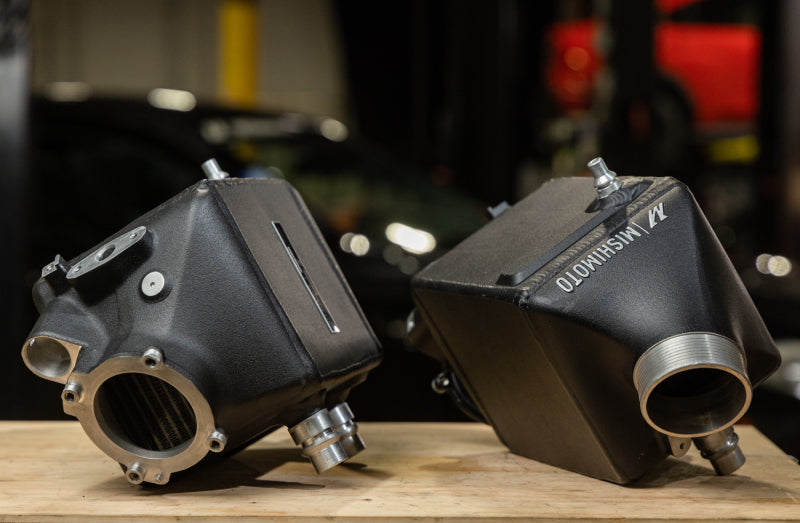

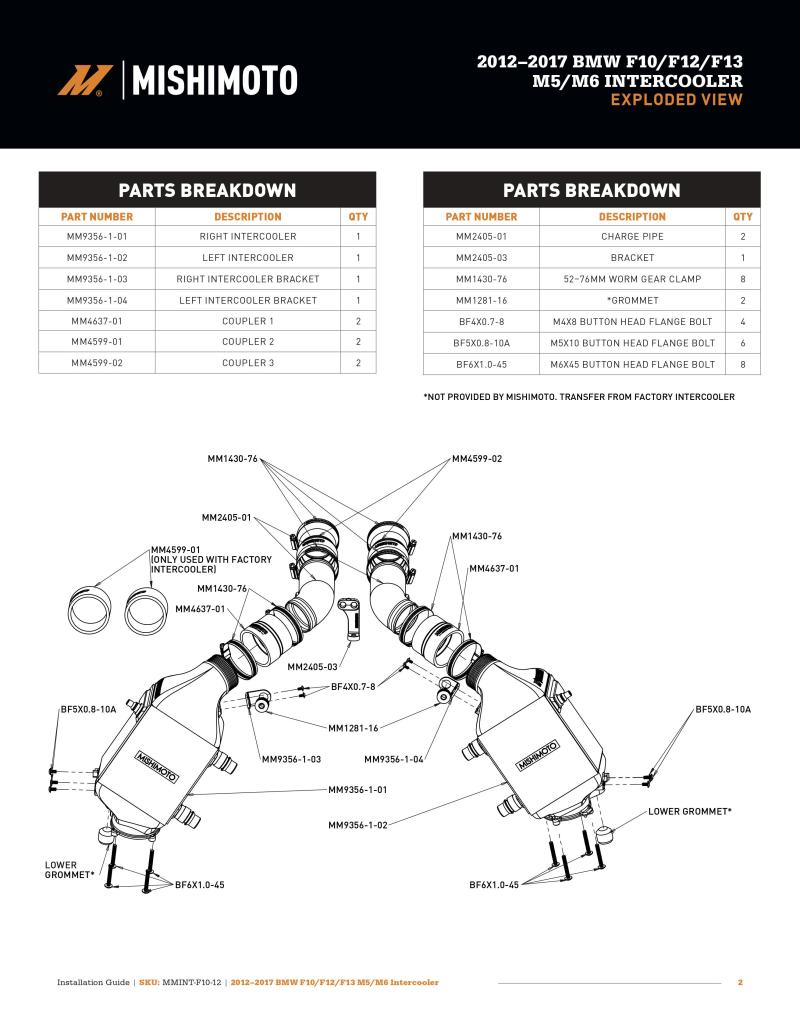

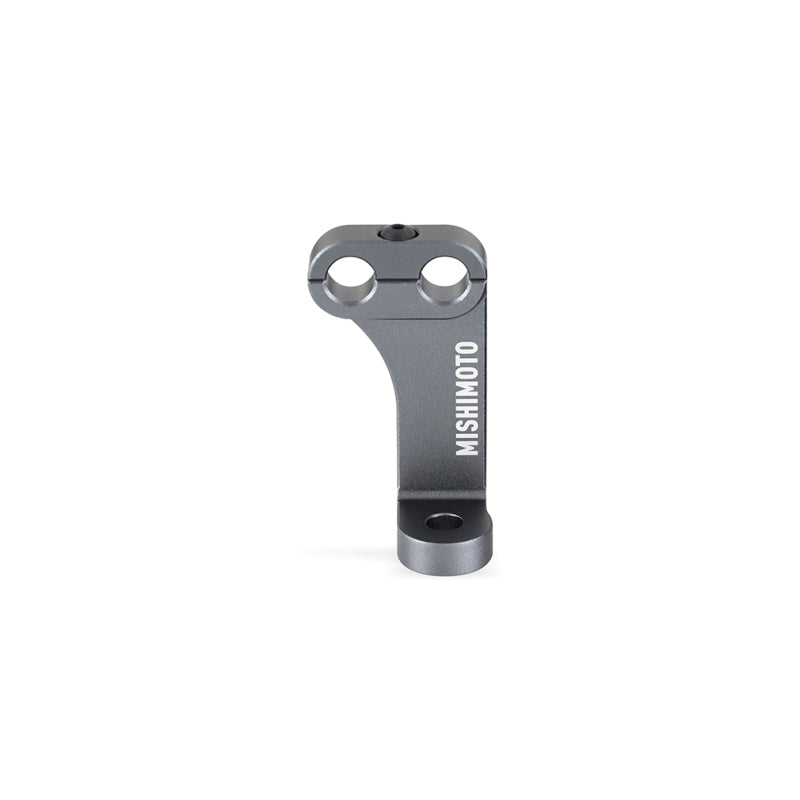

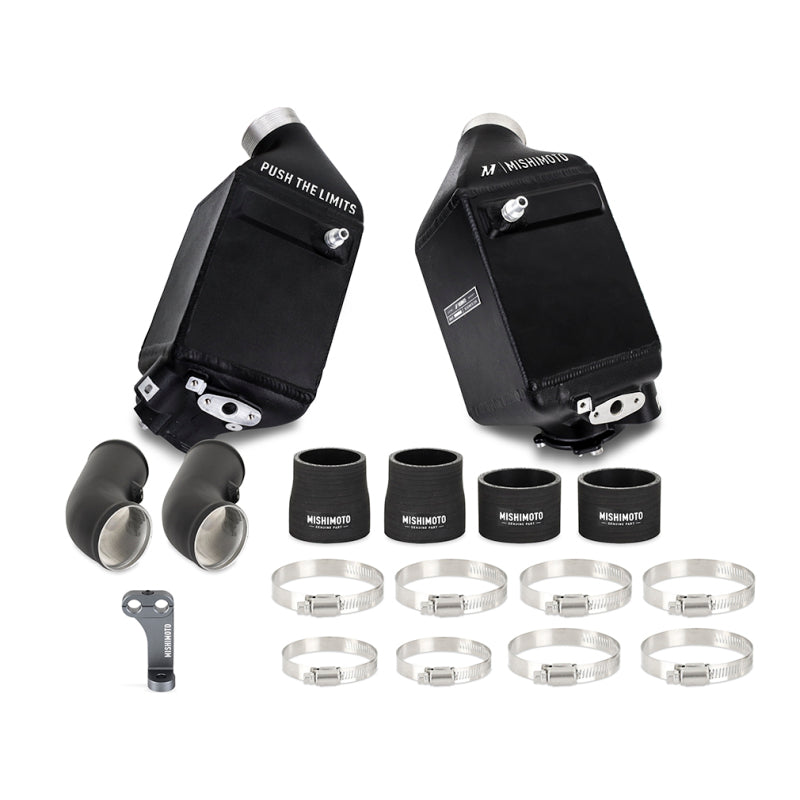

TechSpec Includes: (1) Drivers Side Intercooler--(1) Passenger Side Intercooler--(2) Intercooler Brackets--(2) Mounting Grommets--(2) Coolant Hoses--(6) Coolant Hose O-Rings--(2) Intercooler Pipes--(1) Intercooler Pipe Bracket--(4) Intercooler Pipe Couplers--(4) Worm Gear Clamps-- Mounting Hardware-- Mishimoto Lifetime Warranty
TechSpec Core Thickness (in): 5.5
TechSpec Core Length (in): 6.9
TechSpec Core Height (in): 5.7
Install Difficulty: N/A
TechSpec Centerline Radius: N/A
TechSpec Inlet (in): N/A
TechSpec Outlet (in): N/A
SellingPoint10: Micro-wrinkle black powder coated finish provides corrosion resistance and stealthy aesthetic
TechSpec Installation Notes: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A
TechSpec Note: N/A
TechSpec Pipe Diameter: N/A
OptionLabel: N/A
TechSpec Applications: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Type: N/A
TechSpec Engine Codes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
Core Height: 5.7
Core Length: 6.9
Core Thickness: 5.5
Height: 0
Length: 0
Width: 0
Inlet Outside Diameter: 0
Outlet Outside Diameter: 0
Inlet Fitting Gender: Male
Outlet Fitting Gender: Male
Inlet Tank Material: Aluminum
Grade Type: Performance
Universal Or Specific Fit: Specific
Core Material: Aluminum
Core Color: N/A
Type: Bar-and-Plate
SellingPoint01: Direct fit for the 2012-2016 BMW M5 and 2012-2016 BMW M6
SellingPoint02: Dyno-proven power and torque gains of 25 WHP and 22 lb-ft
SellingPoint03: 37-percent increase in core volume for improved cooling capacity
SellingPoint04: 24-degree reduction in intake temperature allows for improved ignition timing and more power
SellingPoint05: Improved heat-soak resistance allows for more time on the throttle
SellingPoint06: 10-percent less restrictive than stock for improved power potential

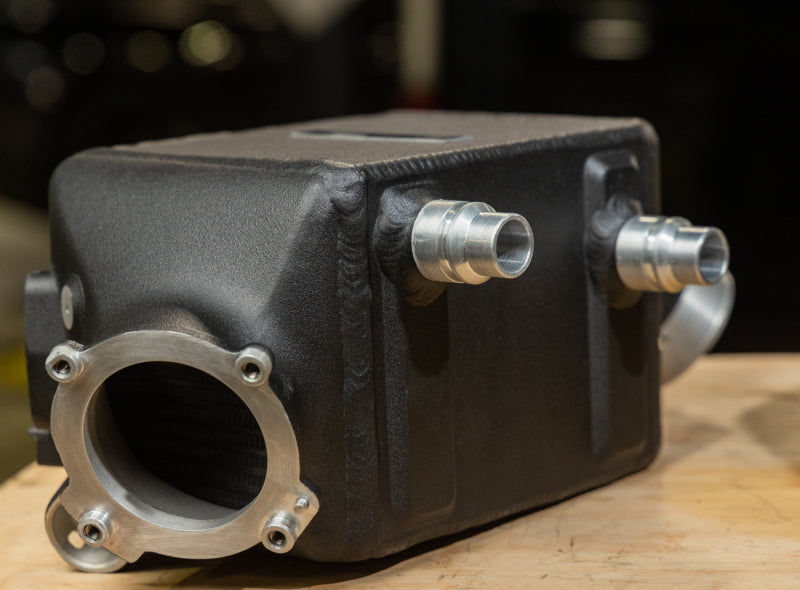

SellingPoint07: Durable cast aluminum end tanks won't flex or crack under high boost

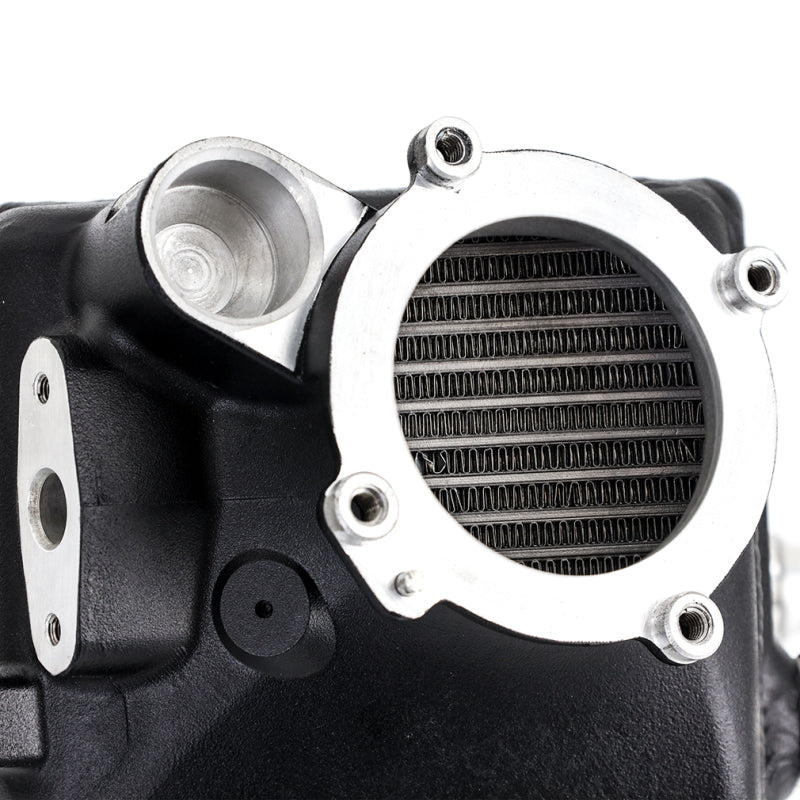

SellingPoint08: Efficient bar-and-plate core provides maximum cooling efficiency

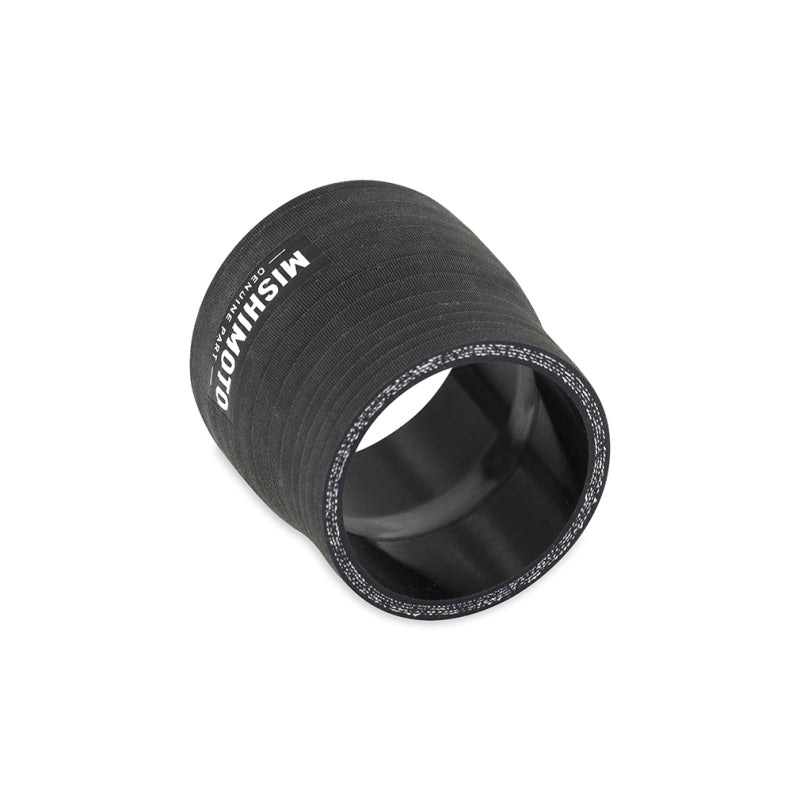

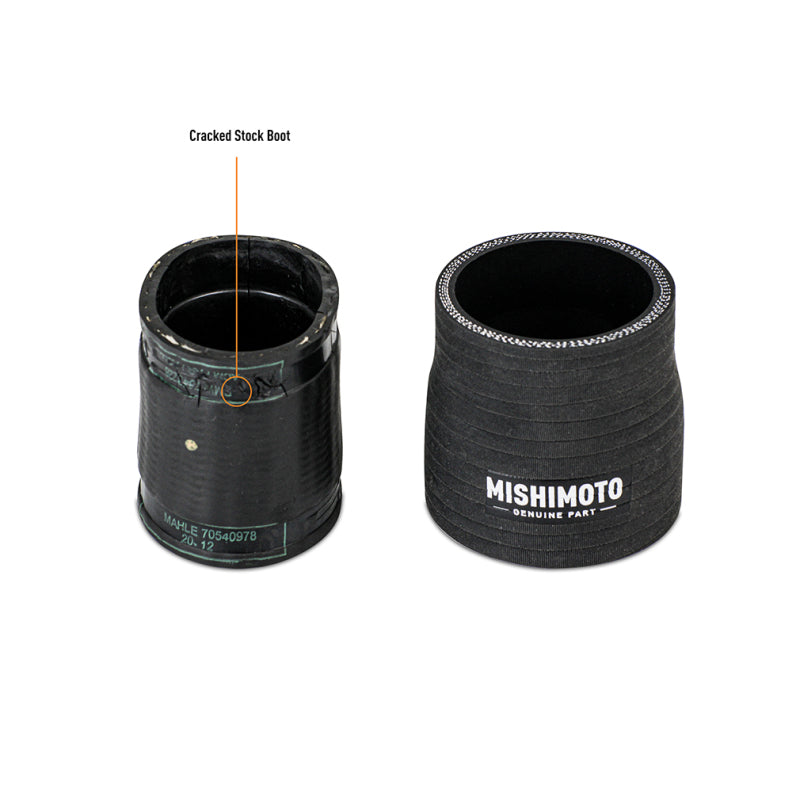

SellingPoint09: Included silicone couplers provide enhanced durability and will not degrade or crack over time
SellingPoint11: Patent Pending
SellingPoint12: Mishimoto Lifetime Warranty
