Mishimoto MMIG-F150-01 - 01-10 Ford F150 Single Ignition Coil

Mishimoto  |  SKU: MMIG-F150-01
$3999 $4399

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

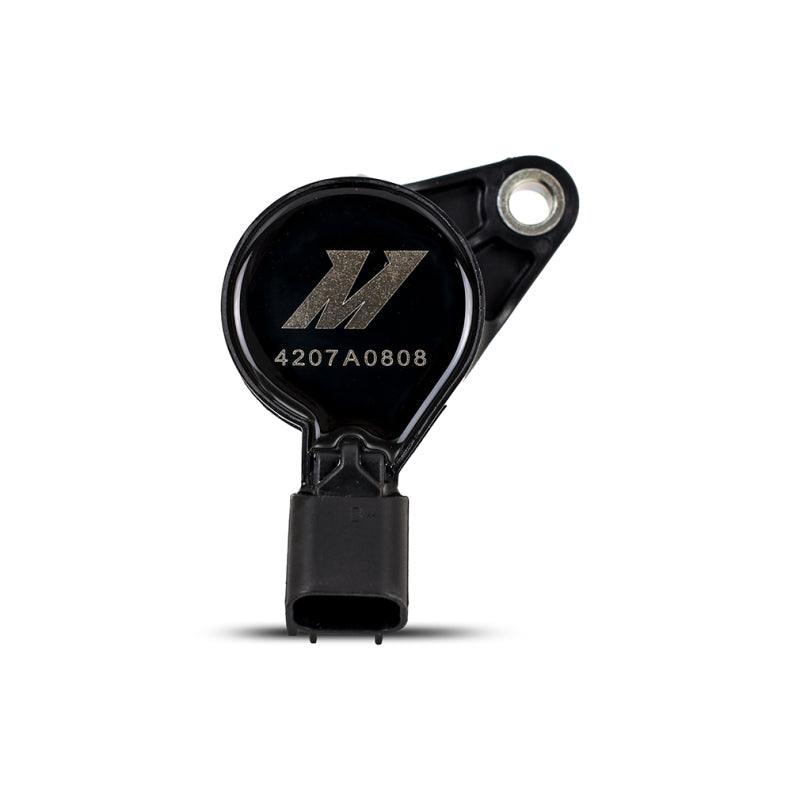

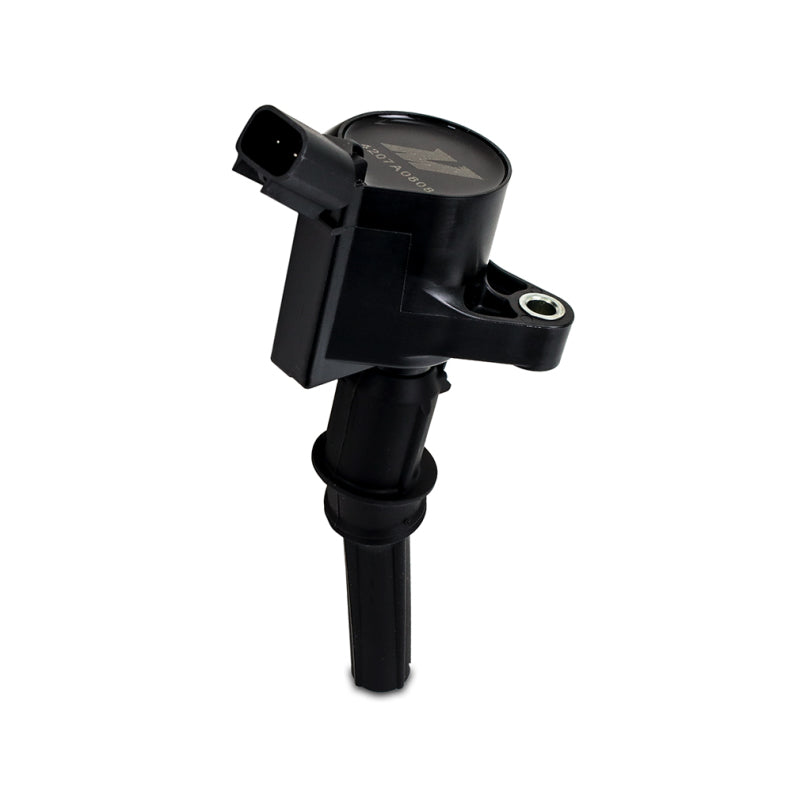

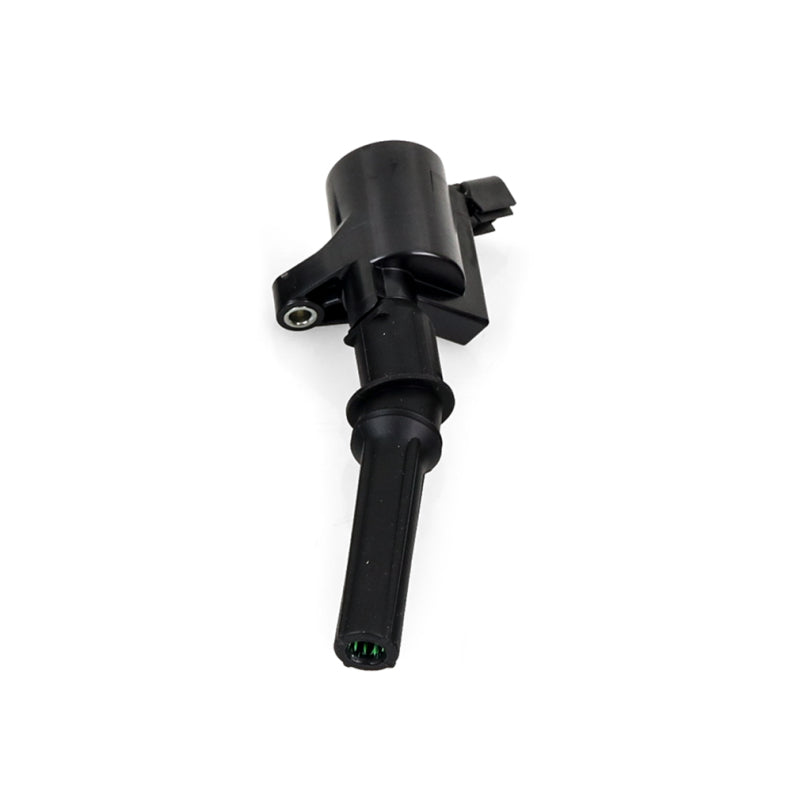

Mishimoto MMIG-F150-01 - 01-10 Ford F150 Single Ignition Coil

Ignition Coil, fits Ford F-150 2001-2010

High-performance ignition coil designed to deliver consistent voltage for efficient combustion and reliable starts. Durable construction improves fuel efficiency, throttle response, and overall engine performance.

The basic requirements for a properly running engine are fuel, air, compression, and spark. Before increasing the power of your V8 or even V10, it is wise to ensure all maintenance is up to date and these processes are performing as intended. Weak spark from your ignition system can result in misfiring under high load driving and spark blow-out, which hinders performance. -- Mishimoto is proud to launch our new lineup of ignition coils, aimed at providing high-quality replacements that can bring your vehicle up to Stage 0 before moving on to horsepower adding modifications. Our ignition coils are designed and tested to meet or exceed OEM Ford performance standards and are available as a single coil or in sets of eight or ten. Once installed with a set of new spark plugs, one can expect a refreshed ignition system with improved engine startup, a smoother idle, and restored performance from your Ford Modular or Triton engine. The primary frame of our coils is constructed from extremely robust phenolic resin, ensuring optimal longevity in high temperature environments. The precision lower boot provides a barrier against moisture entry into the plug well, eliminating chances for spark plug contamination. In addition, our coils are pre-lubricated with dielectric grease to prevent corrosion and ensure an optimal connection between the spark plug and coil. -- Mishimoto ignition coils are an ideal replacement for worn or defective factory coils. As with all our products, these ignition coils include our signature Mishimoto Lifetime Warranty.

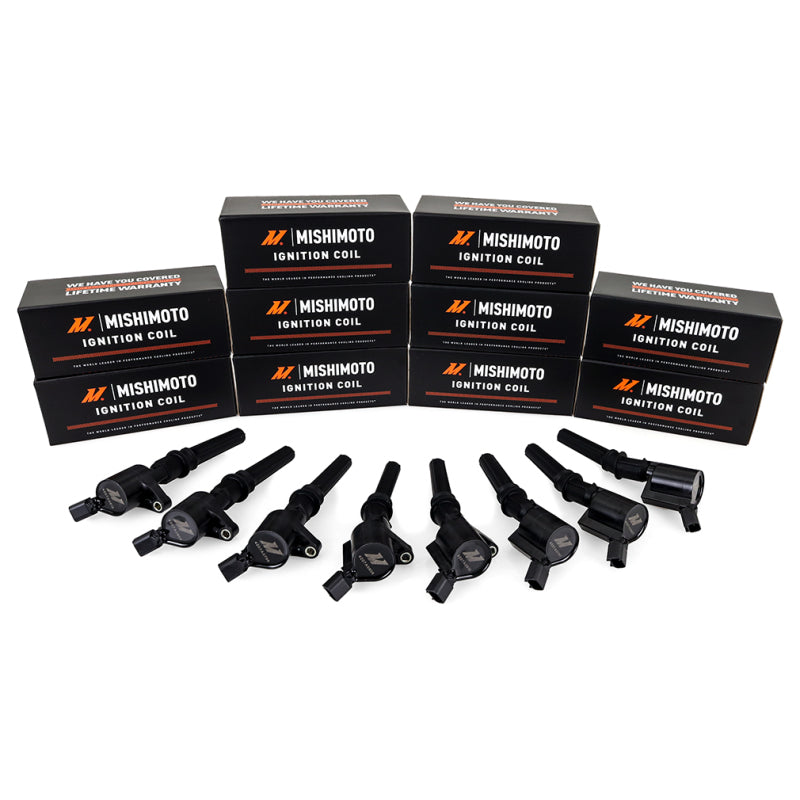

  • High-quality replacement coils available in full sets or single units
  • Designed and tested to meet or exceed OEM Ford performance specifications
  • Improves engine startup, idle, and restores performance
SellingPoint01: Direct fit for Ford 2001-2010 F-150
SellingPoint14: N/A
Install Difficulty: 1
TechSpec Includes: Mishimoto Ignition Coil(s)--Mishimoto Lifetime Warranty
TechSpec Note: This ignition coil features a horizontal (angled) electrical connector plug that points out to the side. It is typically used on earlier Ford 2-valve V8 engines. Please visually check your existing coils under the hood or verify with your VIN through a dealership to confirm that your vehicle requires OEM part number DG-508 before purchasing.
TechSpec Engine Codes: Triton V10--Modular V8
TechSpec Applications: Ford F-150 V8 4.6L 2001-2010--Ford Crown Victoria V8 4.6L 2001-2011--Ford Explorer V8 4.6L 2002-2005--Ford F-250 Super Duty V8 5.4L 2001-2004--Ford Excursion V8 5.4L 2001-2005--Ford F-250 Super Duty V10 6.8L 2001-2004--Ford Excursion V10 6.8L 2001-2005
TechSpec Overall Height (Inches): N/A
TechSpec Material: N/A
OptionLabel: Single Coil
SellingPoint15: N/A
SellingPoint13: N/A
SellingPoint02: High-quality replacement coils available in full sets or single units
SellingPoint12: N/A
SellingPoint11: N/A
SellingPoint10: N/A
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint08: Pre-lubricated boots with dielectric grease ensures optimal corrosion resistance
SellingPoint07: High-quality phenolic resin outer shell ensures longevity in high-temperature environments
SellingPoint06: Durable rubber boot provides barrier against moisture, oil, and debris
SellingPoint05: Refreshes ignition system ensuring strong spark for stock and modified vehicles
SellingPoint04: Improves engine startup, idle, and restores performance
SellingPoint03: Designed and tested to meet or exceed OEM Ford performance specifications
Coil Type: COP Coil
Coil Wire Included: No
Color: Black
Connector Gender: Female
Connector Quantity: 1
Grade Type: Standard Replacement
Ignition Type: Standard
Length: 6.87
Mounting Hole Quantity: 1
Oil Filled: No
Overall Height: 3.34
Terminal Gender: Female
Terminal Quantity: 2
Terminal Type: Blade
Universal Or Specific Fit: Specific
